Honda Odyssey 2004. Manual - part 136





*01

*02

S0X4A00A20336359411MBAT00

11-242

Intake Air System

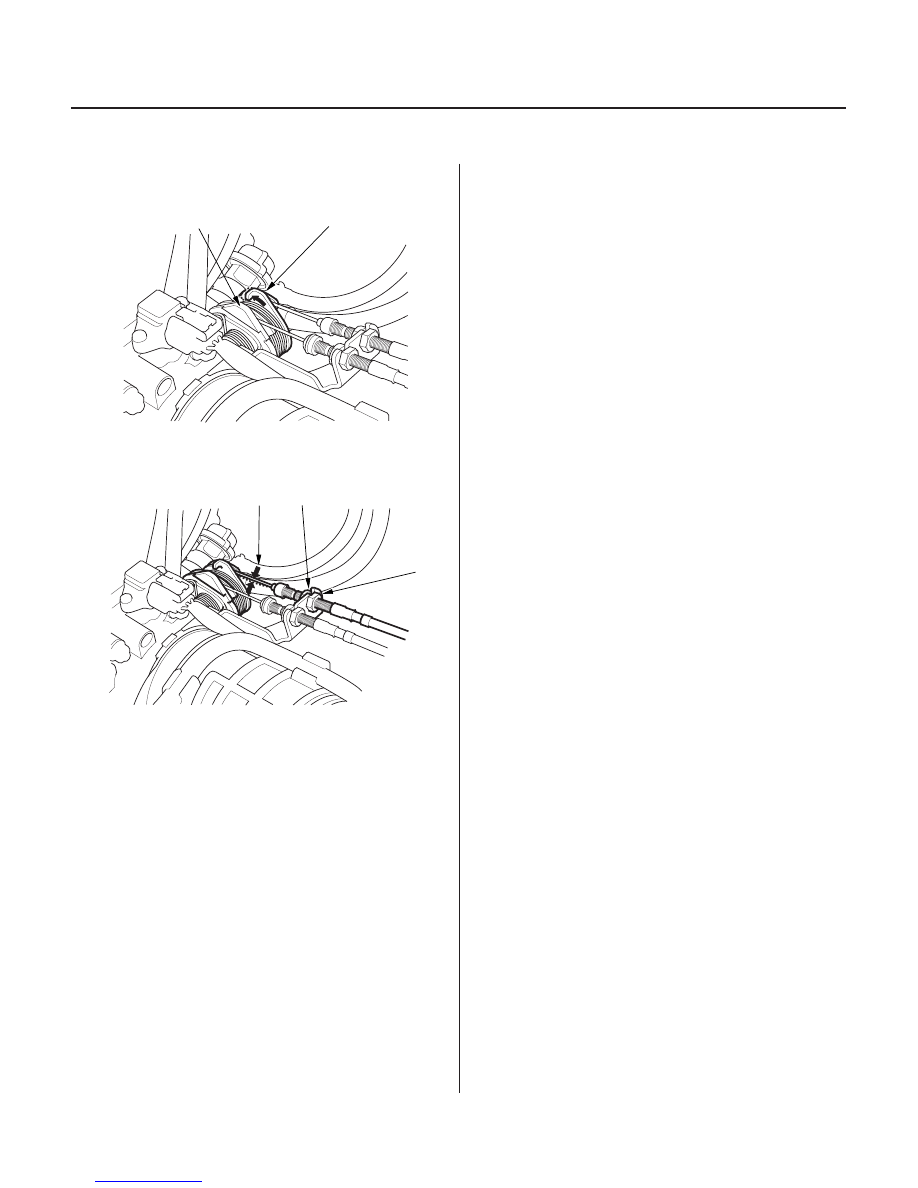

Throttle Cable Adjustment

B

A

A

B

C

1. Hold the throttle link (A) to the throttle lever (B).

There should be no clearance.

2. Check cable free play at the throttle linkage. Cable

free play (A) should be 10

12 mm (3/8

1/2 in.).

3. If free play is not within specs (10

12 mm, 3/8

1/2

in.), loosen the locknut (B), turn the adjusting nut
(C) until the free play is as specified, then retighten
the locknut.

4. With the cable properly adjusted, check the throttle

valve to be sure it opens fully when you push the
accelerator pedal to the floor. Also check the
throttle valve to be sure it returns to the idle
position whenever you release the accelerator
pedal.

03/07/29 09:24:43 61S0X050_110_0242

01

02

S0X4A00A20336359401KDAT00

’99-00 models

’01 model

11-243

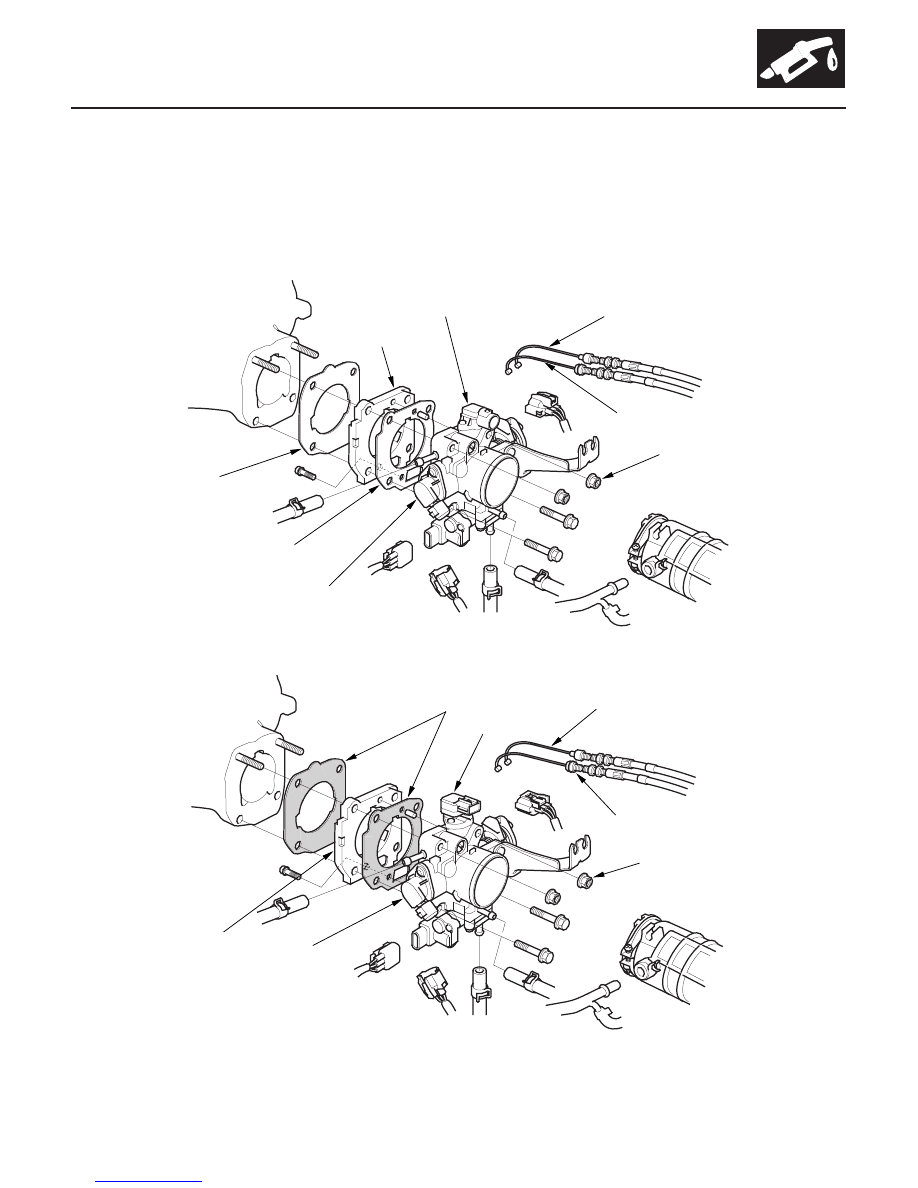

Throttle Body Removal/Installation

SPACER

MAP SENSOR

THROTTLE CABLE

22 N·m (2.2 kgf ·m, 16 lbf·ft)

TP SENSOR

GASKET

GASKET

CRUISE CONTROL CABLE

GASKET

MAP SENSOR

THROTTLE CABLE

CRUISE
CONTROL CABLE

22 N·m
(2.2 kgf·m, 16 lbf·ft)

TP SENSOR

SPACER

NOTE:

• Do not adjust the throttle stop screw.
• After reassembly, adjust the cruise control cable (see page 4-52), and the throttle cable (see page 11-242).
• The TP sensor is not removable.

(cont’d)

Replace.

Replace.

Replace.

03/07/29 09:24:44 61S0X050_110_0243

03

’02-04 models

11-244

Intake Air System

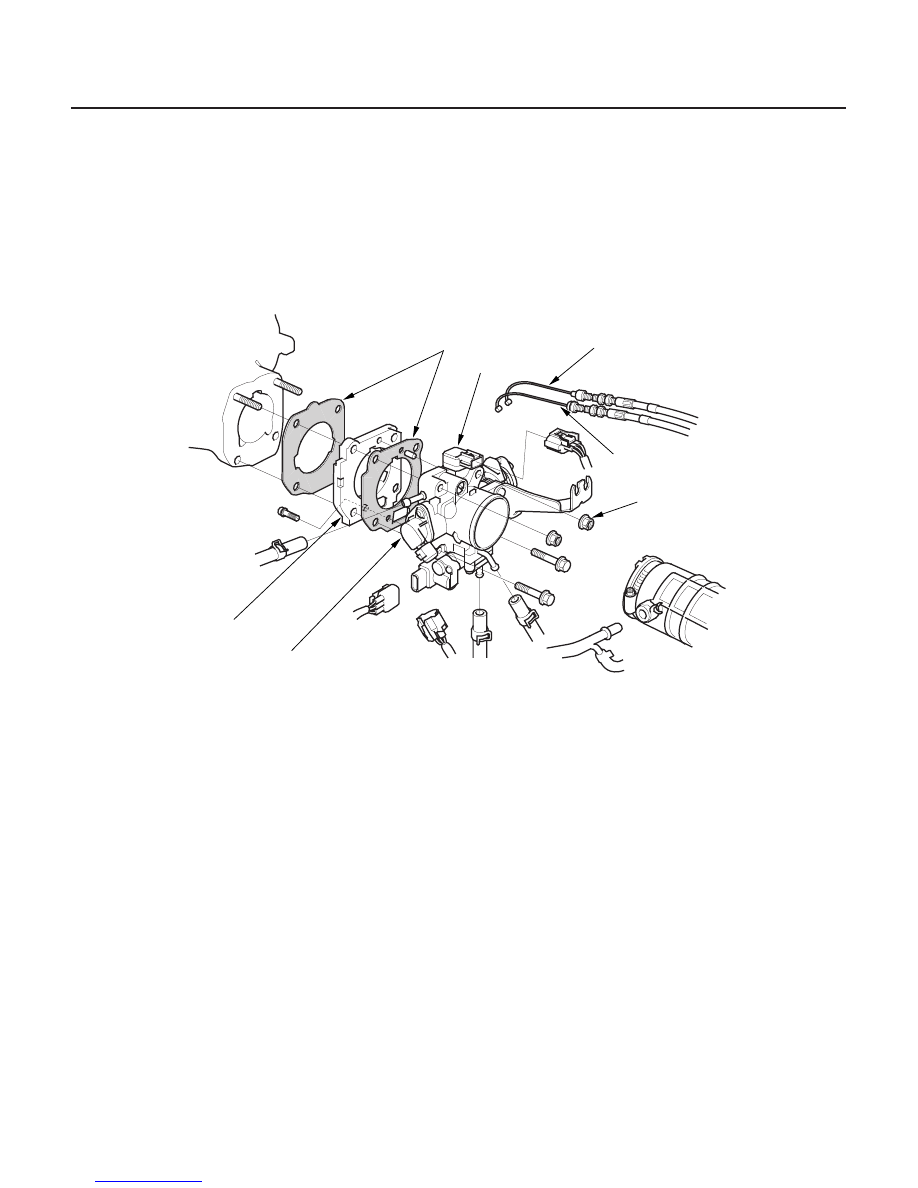

Throttle Body Removal/Installation (cont’d)

GASKET

MAP SENSOR

THROTTLE CABLE

CRUISE
CONTROL CABLE

22 N·m
(2.2 kgf·m, 16 lbf·ft)

TP SENSOR

SPACER

Replace.

03/07/29 09:24:44 61S0X050_110_0244

03

04

01

*01

S0X4A00A20336359401MFAT00

’99 model

’00 model

’01 model

’02-04 models

11-245

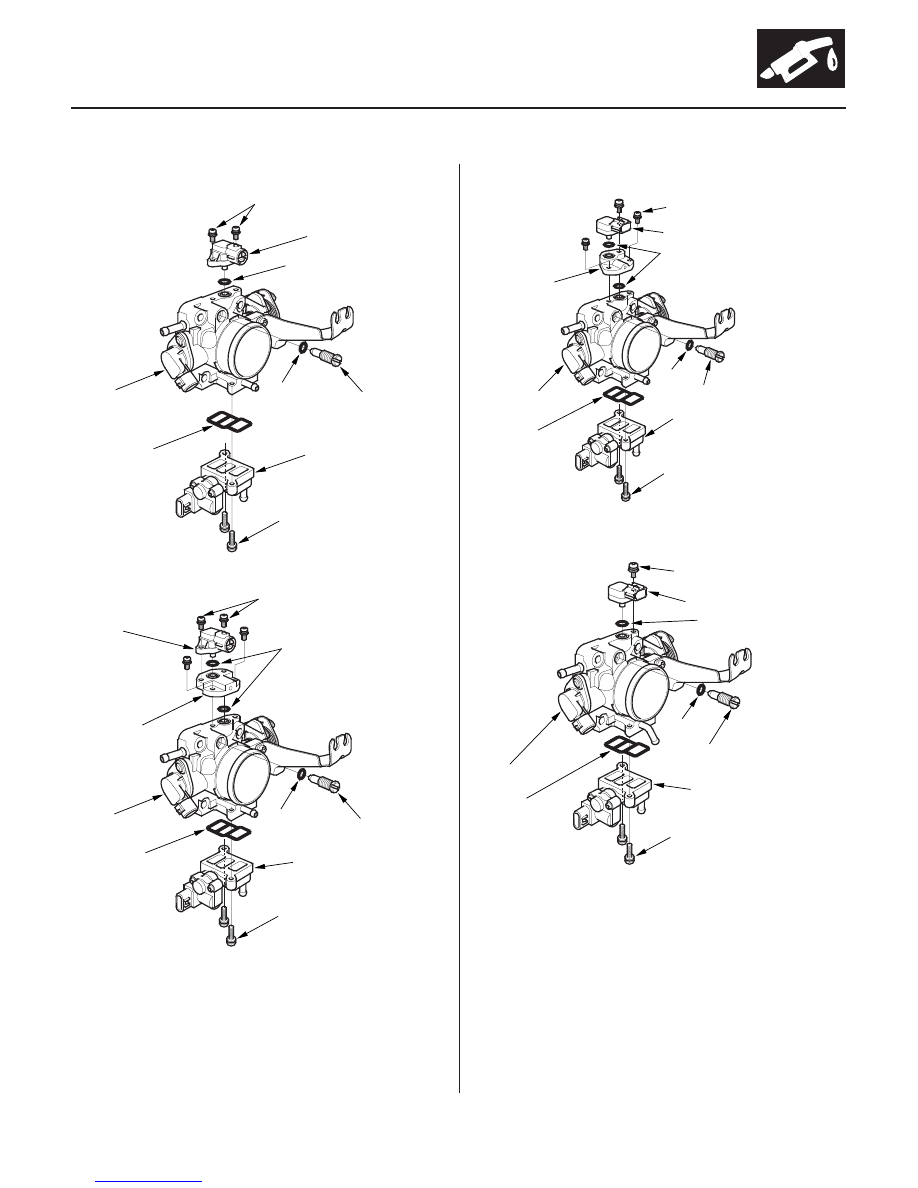

Throttle Body Disassembly/Reassembly

2.1 N·m (0.21 kgf·m, 1.5 lbf·ft)

MAP SENSOR

IDLE ADJUSTING
SCREW

O-RING

IAC VALVE

3.5 N·m (0.35 kgf·m, 2.5 lbf·ft)

O-RING

TP SENSOR

O-RING

2.1 N·m (0.21 kgf·m, 1.5 lbf·ft)

MAP SENSOR

IDLE ADJUSTING
SCREW

O-RING

IAC VALVE

3.5 N·m (0.35 kgf·m, 2.5 lbf·ft)

O-RING

TP SENSOR

O-RING

SPACER

2.1 N·m
(0.21 kgf·m, 1.5 lbf·ft)

MAP SENSOR

O-RING

O-RING

IDLE ADJUSTING SCREW

IAC VALVE

O-RING

TP SENSOR

3.5 N·m
(0.35 kgf·m, 2.5 lbf·ft)

2.1 N·m
(0.21 kgf·m, 1.5 lbf·ft)

MAP SENSOR

O-RING

SPACER

O-RING

IDLE ADJUSTING SCREW

IAC VALVE

O-RING

TP SENSOR

3.5 N·m
(0.35 kgf·m, 2.5 lbf·ft)

Replace.

Replace.

Replace.

Replace.

Replace.

Replace.

Replace.

Replace.

03/07/29 09:24:46 61S0X050_110_0245
