Honda Odyssey 2004. Manual - part 127





*01

02

*02

S0X4AZBK77100090462FAAT00

DTC P0462

‘03-04 Models:

YES

NO

YES

NO

YES

NO

YES

NO

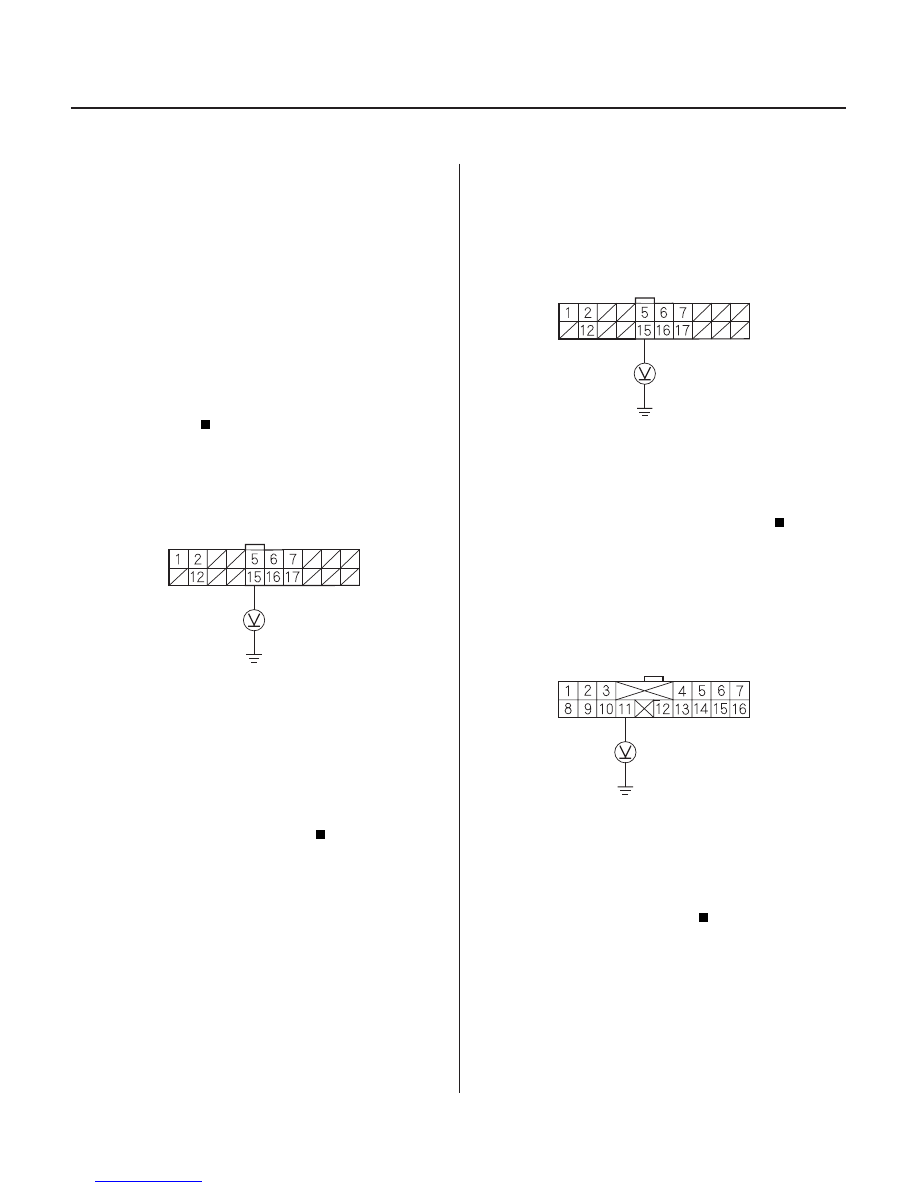

11-206

Fuel Supply System

DTC Troubleshooting (cont’d)

PCM CONNECTOR E (20P)

FSL05
(YEL/BLU)

PCM CONNECTOR E (20P)

FSL05
(YEL/BLU)

GAUGE ASSEMBLY 16P CONNECTOR

FSL05
(YEL/BLU)

Fuel Level

Sensor (Fuel Gauge Sending Unit) Circuit
Low Voltage

1. Reset the PCM (see page 11-4).

2. Start the engine.

Go to step 3.

Intermittent failure, system is OK at this time.

Check for poor connections or loose terminals at
the fuel gauge sending unit, the gauge assembly
and the PCM.

3. Measure voltage between PCM connector terminal

E15 and body ground.

Go to step 4.

Substitute a known-good PCM and recheck

(see page 11-5). If the symptom-indication goes
away, replace the original PCM.

4. Turn the ignition switch OFF.

5. Remove the rear seats and carpet, and the access

panel from the floor.

6. Disconnect the fuel tank unit 5P connector.

7. Turn the ignition switch ON (II).

8. Measure voltage between PCM connector E15 and

body ground.

Replace the fuel gauge sending unit.

Go to step 9.

9. Measure voltage between gauge assembly 16P

connector terminal No. 11 and body ground.

Repair open in the wire between the PCM

(E15) and the gauge assembly.

Go to step 10.

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Is DT C P0462 indicated?

Is ther e 0.9 V or less?

Is ther e batter y voltage?

Is ther e about 5 V ?

03/07/29 09:24:18 61S0X050_110_0206

*03

*04

YES

NO

YES

NO

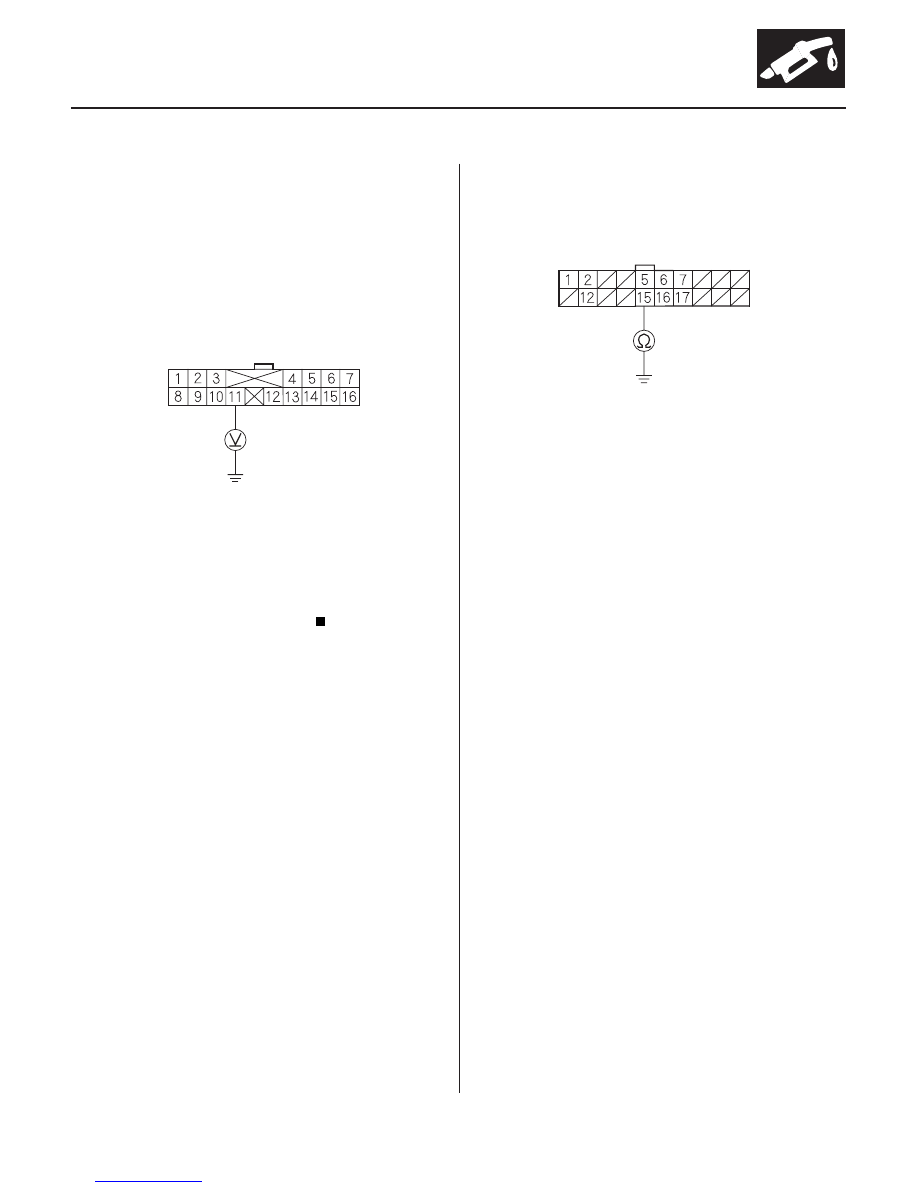

11-207

GAUGE ASSEMBLY 16P CONNECTOR

FSL05
(YEL/BLU)

PCM CONNECTOR E (20P)

FLVL
(YEL/BLU)

10. Turn the ignition switch OFF.

11. Disconnect the PCM connector E (20P).

12. Turn the ignition switch ON (II).

13. Measure voltage between gauge assembly 16P

connector terminal No. 11 and body ground.

Substitute a known-good PCM and recheck

(see page 11-5). If the symptom-indication goes
away, replace the original PCM.

Go to step 14.

14. Turn the ignition switch OFF.

15. Disconnect the gauge assembly connector B (22P).

16. Check for continuity between PCM connector

terminal E15 and body ground.

Repair short in the wire between gauge

assembly and PCM.

Replace the gauge assembly

(see page 22-100).

Wire side of female terminals

Wire side of female terminals

Is ther e about 5 V ?

Is ther e about 5 V ?

03/07/29 09:24:18 61S0X050_110_0207

01

*01

*02

S0X4AZBK77100090463FAAT00

DTC P0463

‘03-04 Models:

YES

NO

YES

NO

YES

NO

YES

NO

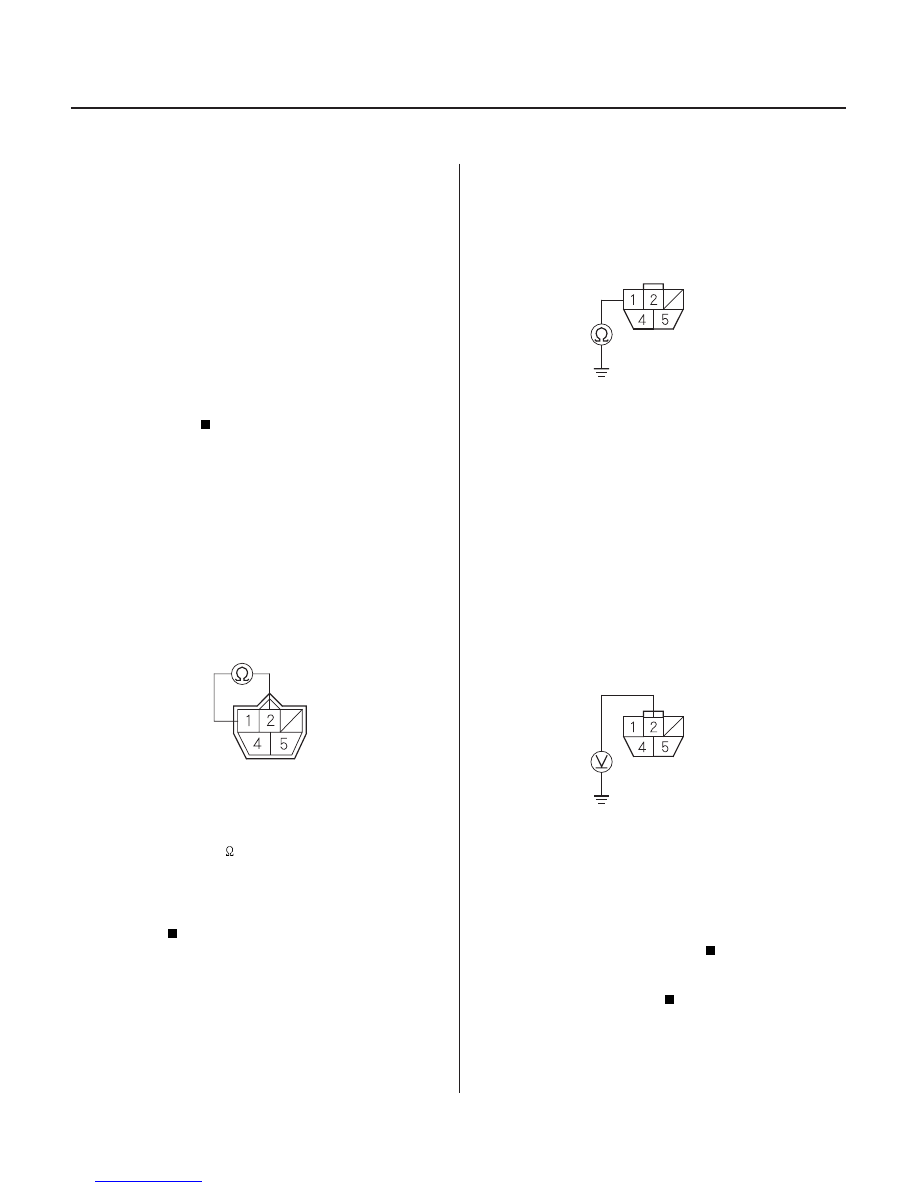

11-208

Fuel Supply System

DTC Troubleshooting (cont’d)

FUEL TANK UNIT 5P CONNECTOR

FSL05

GND

FUEL TANK UNIT 5P CONNECTOR

GND
(BLK)

FUEL TANK UNIT 5P CONNECTOR

FSL05
(YEL/BLU)

Fuel Level

Sensor (Fuel Gauge Sending Unit) Circuit
High Voltage

1. Reset the PCM (see page 11-4).

2. Start the engine.

Go to step 3.

Intermittent failure, system is OK at this time.

Check for poor connections or loose terminals at
the fuel gauge sending unit, the gauge assembly
and the PCM.

3. Turn the ignition switch OFF.

4. Remove the rear seats and carpet, and the access

panel from the floor.

5. Disconnect the fuel tank unit 5P connector.

6. Measure resistance between fuel tank unit 5P

connector terminals No. 1 and No. 2.

Go to step 7.

Replace the fuel gauge sending unit (see page

11-234).

7. Check for continuity between body ground and fuel

tank unit 5P connector terminal No. 1.

Go to step 8.

Repair open in the wire between fuel gauge

sending unit and ground (G551).

8. Turn the ignition switch ON (II).

9. Measure voltage between fuel tank unit 5P

connector terminal No. 2 and body ground.

Substitute a known-good PCM and recheck

(see page 11-5). If the symptom/indication goes
away, replace the original PCM.

Repair open in the wire between fuel pump

and the gauge assembly.

Terminal side of male terminals

Wire side of female terminals

Wire side of female terminals

Is DT C P0463 indicated?

Is ther e 13

130

?

Is ther e continuity?

Is ther e about 5 V ?

03/07/29 09:24:19 61S0X050_110_0208

*01

*02

*03

S0X4AZ6A20326445512FAAT00

’99-00, ’02-04 Models

YES

NO

YES

NO

YES

NO

YES

NO

YES

NO

11-209

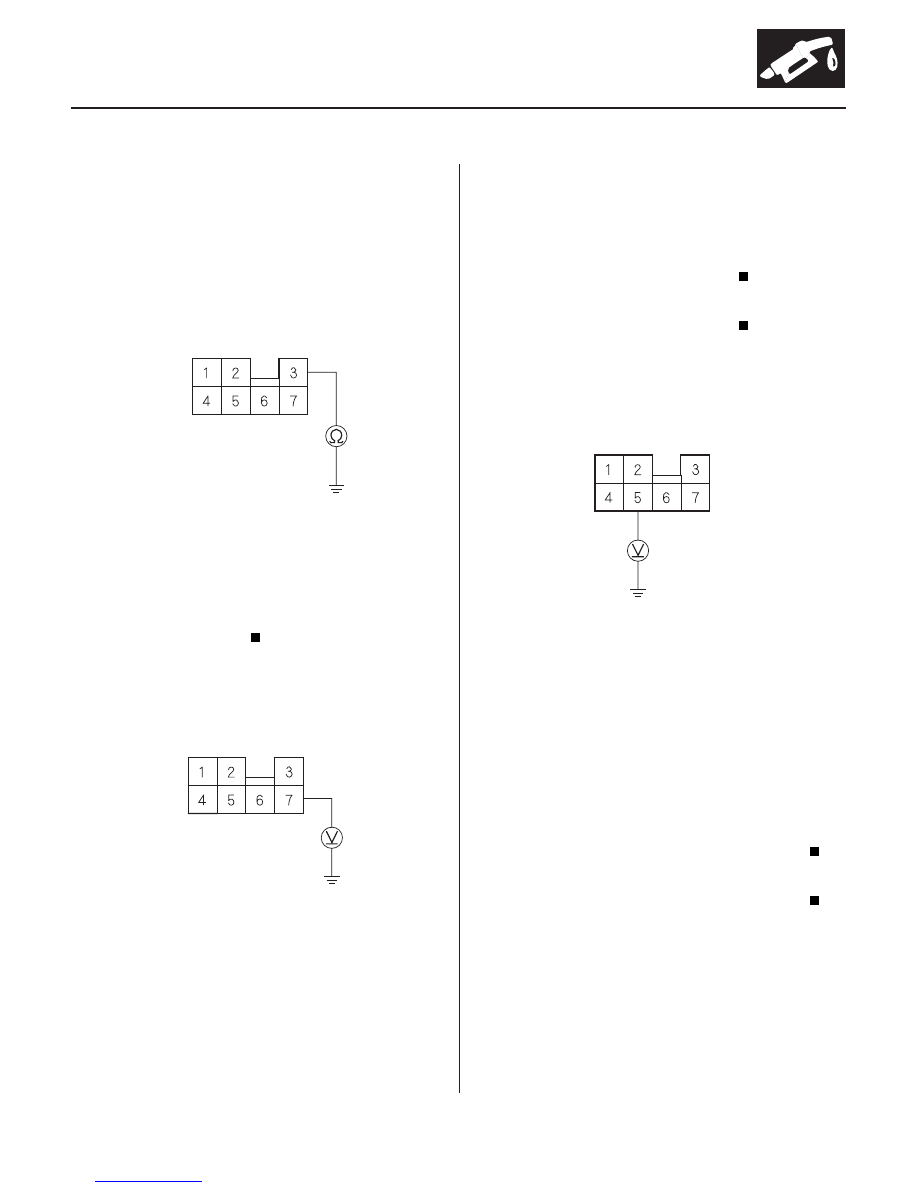

PGM-FI Main Relay Circuit Troubleshooting

PG1 (BLK)

PGM-FI MAIN RELAY 7P CONNECTOR

BAT (WHT/GRN)

PGM-FI MAIN RELAY 7P CONNECTOR

IG1 (RED/WHT)

PGM-FI MAIN RELAY 7P CONNECTOR

1. Turn the ignition switch OFF.

2. Disconnect the PGM-FI main relay 7P connector.

3. Check for continuity between body ground and

PGM-FI main relay 7P connector terminal No. 3.

Go to step 4.

Repair open in the wire between the PGM-FI

main relay and G101.

4. Measure voltage between body ground and PGM-FI

main relay 7P connector terminal No. 7.

Go to step 6.

Go to step 5.

5. Check for a blown ACG S (15A) fuse in the under-

hood fuse/relay box.

Repair short in the wire between the PGM-FI

main relay and the ACG S (15A) fuse.

Repair open in the wire between the PGM-FI

main relay and the ACG S (15A) fuse.

6. Turn the ignition switch ON (II), and measure

voltage between body ground and PGM-FI main
relay 7P connector terminal No. 5.

Go to step 8.

Go to step 7.

7. Check for a blown No. 1 FUEL PUMP (15A) fuse in

the driver’s under-dash fuse/relay box.

Repair short in the wire between the PGM-FI

main relay and the No. 1 FUEL PUMP (15A) fuse.

Repair open in the wire between the PGM-FI

main relay and the No. 1 FUEL PUMP (15A) fuse.

(cont’d)

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Is ther e continuity?

Is ther e batter y voltage?

Is the f use blown?

Is ther e batter y voltage?

Is the f use blown?

03/07/29 09:24:19 61S0X050_110_0209
