Idle Control System

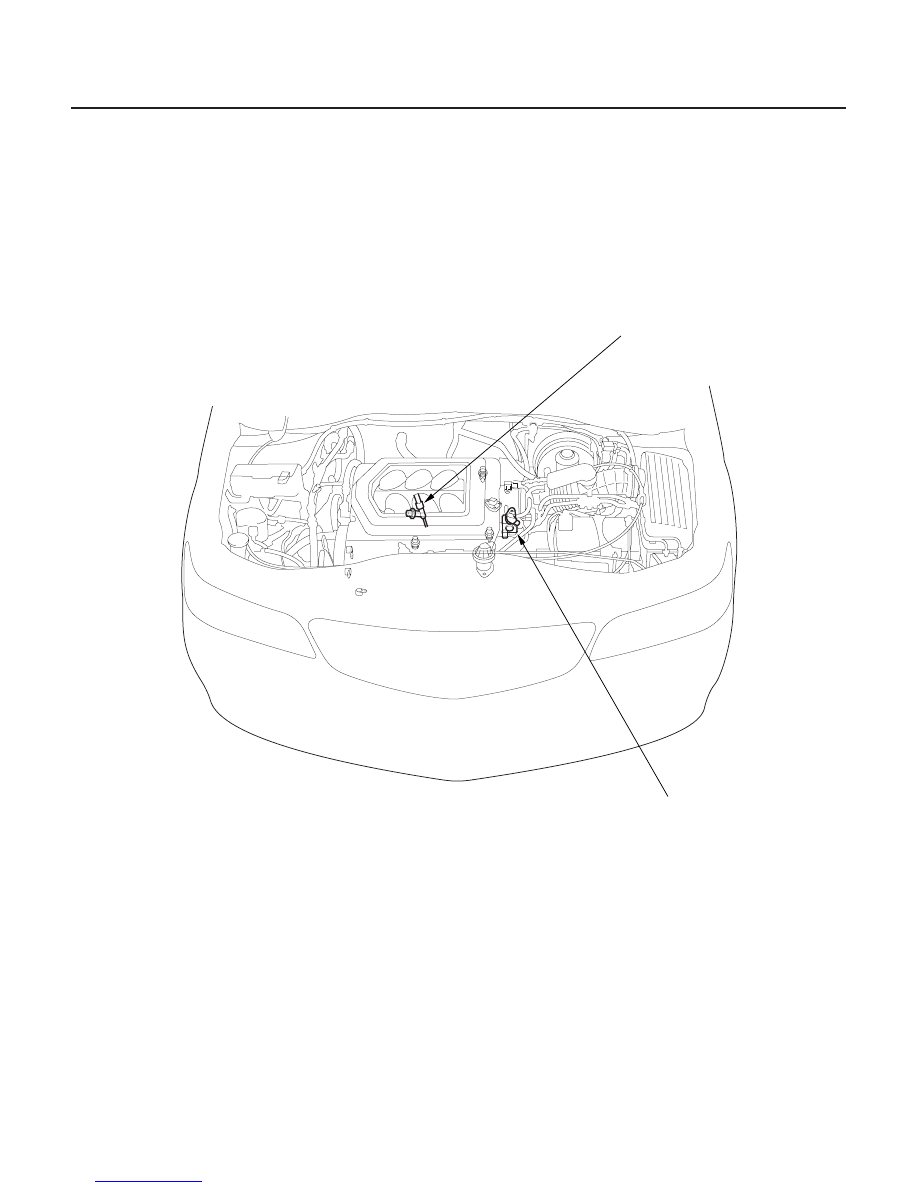

Component Location Index

IDLE AIR CONTROL (IAC) VALVE

POWER STEERING PRESSURE
(PSP) SWITCH

Troubleshooting, page 11-184

Troubleshooting, page 11-196

*: The illustration shows ’99-00 Models.

03/07/29 09:23:03 61S0X050_110_0182

±

01

S0X4A00K77100090505FAAT00

DTC P0505:

YES

NO

YES

NO

YES

NO

11-183

DTC Troubleshooting

A

Malfunction in Idle Control

System

NOTE: If DTC P1519 is stored at same time as DTC
P0505, troubleshoot DTC P1519 first, then recheck for
DTC P0505.

1. Start the engine. Hold the engine at 3,000 rpm with

no load (in Park or neutral) until the radiator fan
comes on.

2. Check the engine speed at idle with no-load

conditions: headlights, blower fan, rear window
defogger, radiator fan, and air conditioner are not
operating.

Intermittent failure, system is OK at this

time.

If the idle speed is less than 680 rpm, go to

step 3; if it’s 780 rpm or higher, go to step 4.

3. Disconnect the IAC valve 3P connector.

Adjust the idle speed (see page 11-201). If the

idle speed will not adjust properly, clean the
passage in the throttle body, and then adjust it
again.

Replace the IAC valve.

4. Turn the ignition switch OFF.

5. Remove the intake air duct from the throttle body.

6. Start the engine, and let it idle.

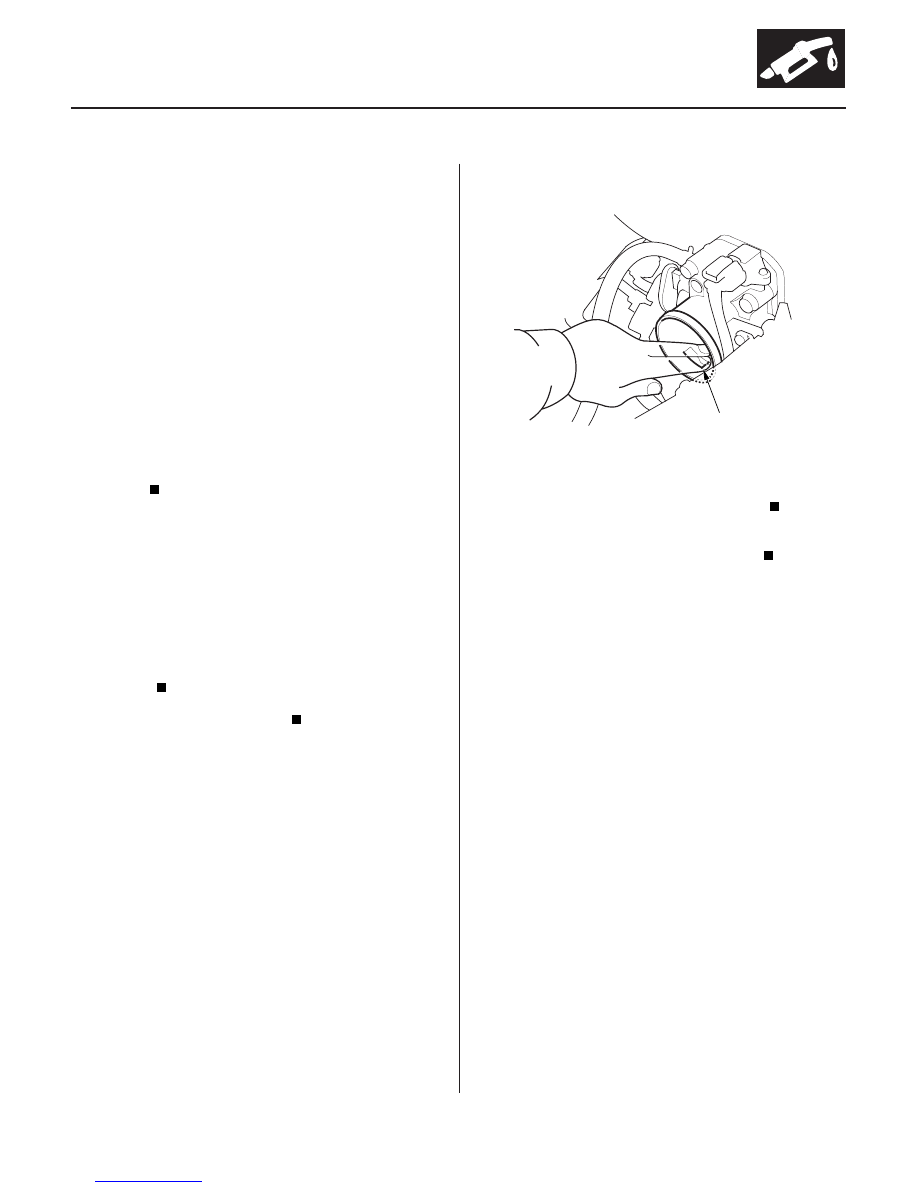

7. Put your fingers on the lower port (A) in the throttle

body.

Check the idle speed (see page 11-201). If it’s

out of specification, replace the IAC valve.

Check for vacuum leaks with the throttle valve

completely closed, and repair as needed.

Is the engine r unning at 7 30

50 r pm?

Does the engine speed incr ease or f luctuate?

Does the engine speed dr op?

03/07/29 09:23:04 61S0X050_110_0183

*01

*02

*03

S0X4AZ6K77100091519FAAT00

DTC P1519

’99-00, ’02-04 Models:

YES

NO

YES

NO

YES

NO

YES

NO

11-184

Idle Control System

DTC Troubleshooting (cont’d)

IAC VALVE 3P CONNECTOR

IGP (YEL/BLK)

IAC VALVE 3P CONNECTOR

GND (BLK)

PCM CONNECTOR B (25P)

IACV (BLK/RED)
(’99-00 models:
IACV (BLK/BLU))

IAC Valve

Circuit Malfunction

1. Reset the PCM (see page 11-4).

2. Turn the ignition switch ON (II).

Go to step 3.

Intermittent failure, system is OK at this time.

Check for poor connections or loose terminals at
the IAC valve and at the PCM.

3. Turn the ignition switch OFF.

4. Disconnect the IAC valve 3P connector.

5. Turn the ignition switch ON (II).

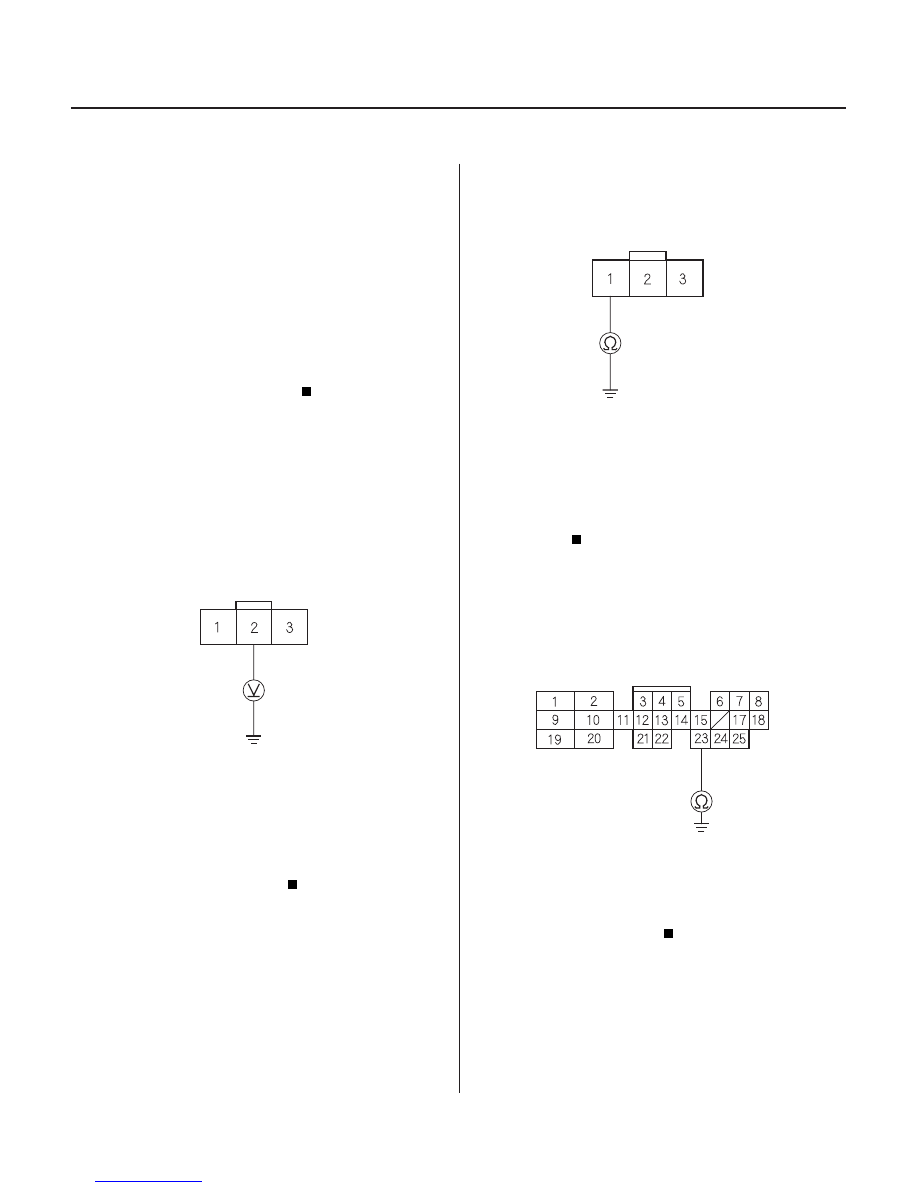

6. Measure voltage between IAC valve 3P connector

terminal No. 2 and body ground.

Go to step 7.

Repair open in the wire between the IAC valve

and the PGM-FI main relay.

7. Turn the ignition switch OFF.

8. Check for continuity between body ground and IAC

valve 3P connector terminal No. 1.

Go to step 9.

Repair open in the wire between the IAC valve

and G101.

9. Disconnect PCM connector B (25P).

10. Check for continuity between body ground and

PCM connector terminal B23.

Repair short in the wire between the IAC

valve and the PCM (B23).

Go to step 11.

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Is DT C P1519 indicated?

Is ther e batter y voltage?

Is ther e continuity?

Is ther e continuity?

03/07/29 09:23:04 61S0X050_110_0184

*04

*05

*06

YES

NO

YES

NO

11-185

IAC VALVE 3P CONNECTOR

JUMPER WIRE

IACV (BLK/RED)
(’99-00 models:
IACV (BLK/BLU))

PCM CONNECTOR B (25P)

IACV (BLK/RED)
(’99-00 models:
IACV (BLK/BLU))

PCM CONNECTOR B (25P)

IACV (BLK/RED)
(’99-00 models:
IACV (BLK/BLU))

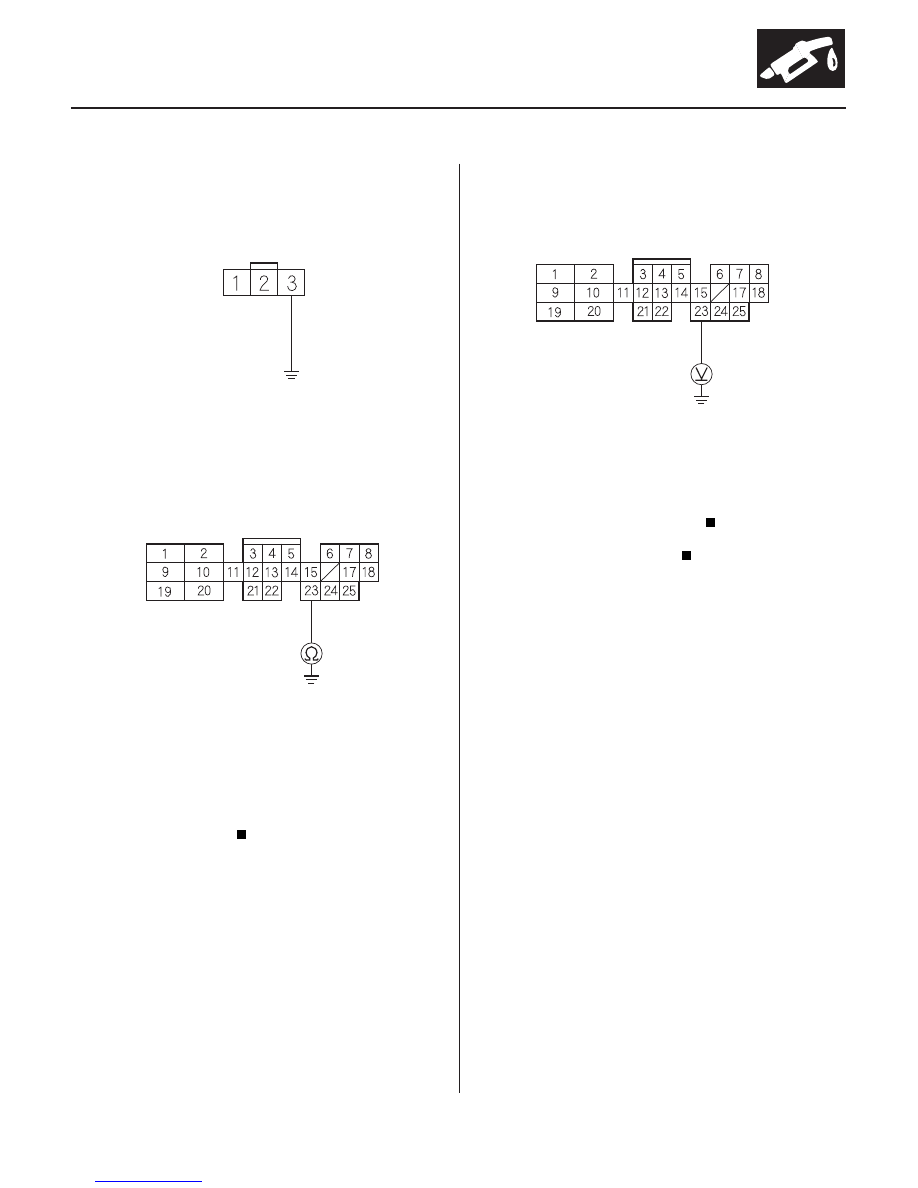

11. Connect IAC valve 3P connector terminal No. 3 to

body ground with a jumper wire.

12. Check for continuity between PCM connector

terminal B23 and body ground.

Go to step 13.

Repair open in the wire between the IAC valve

and the PCM (B23).

13. Remove the jumper wire from the IAC valve 3P

connector, then reconnect the IAC valve 3P
connector.

14. Turn the ignition switch ON (II).

15. Measure voltage between body ground and PCM

connector terminal B23.

Substitute a known-good PCM and recheck

(see page 11-5). If the symptom/indication goes
away, replace the original PCM.

Replace the IAC valve.

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Is ther e continuity?

Is ther e batter y voltage?

03/07/29 09:23:05 61S0X050_110_0185
