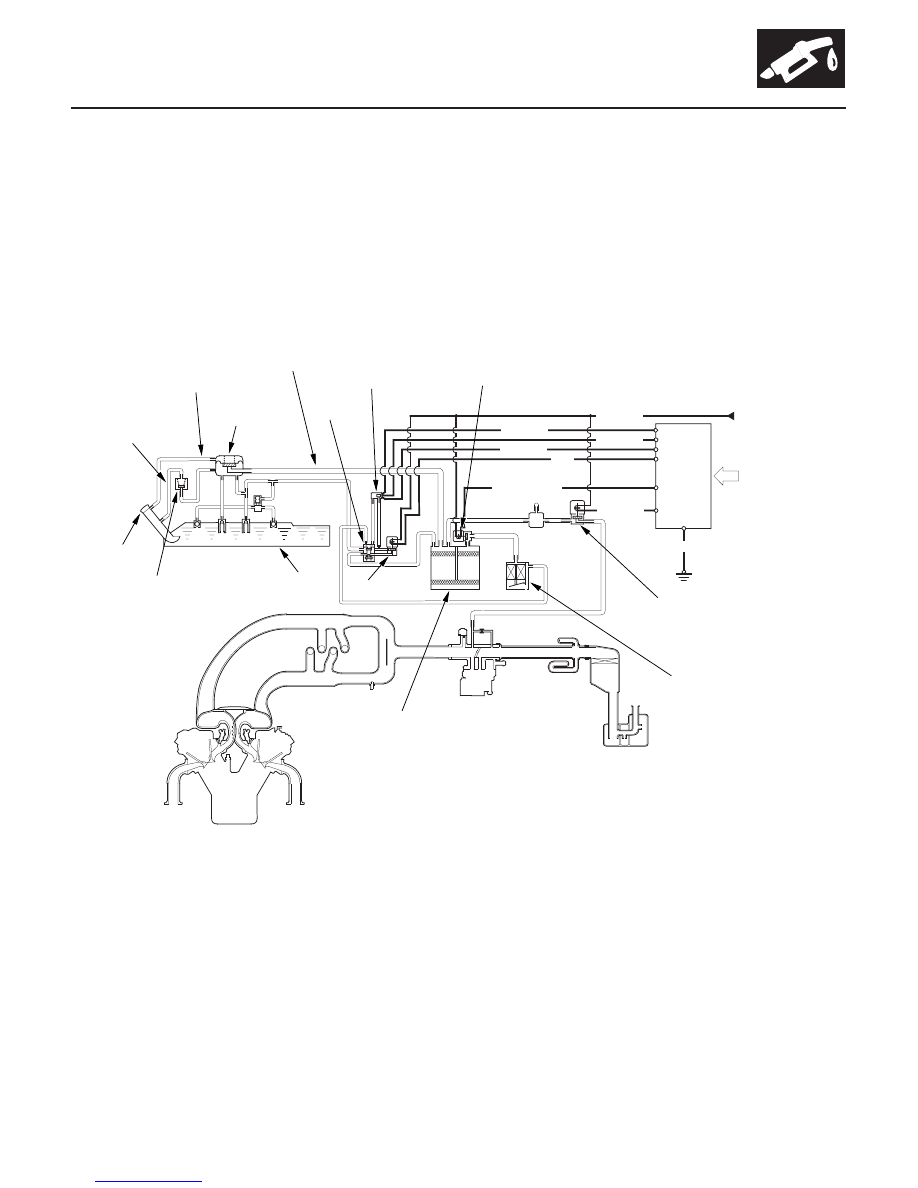

Evaporative Emission (EVAP) Control Diagram (’01-04 Models)

’01 model:

11-54

Fuel and Emissions Systems

System Descriptions (cont’d)

FUEL TANK VAPOR
SIGNAL TUBE

FUEL TANK VAPOR
CONTROL VALVE

FUEL TANK VAPOR
VENT TUBE

EVAP
TWO WAY
VALVE

FTP SENSOR

EVAP CANISTER
VENT SHUT
VALVE

from
No.6 ECU
(PCM)
CRUISE
CONTROL
(15A)
(in the driver’s
under-dash
fuse/relay box)

FUEL TANK VAPOR
RECIRCULATION
TUBE

FUEL
FILL
CAP

FUEL TANK VAPOR
RECIRCULATION
VALVE

FUEL TANK

EVAP BYPASS
SOLENOID VALVE

YEL/BLU

LT GRN

GRN/BLK

BLU

BLK/YEL

RED/YEL

BLK

EVAP CONTROL
CANISTER
FILTER

EVAP CONTROL
CANISTER

EVAP CANISTER
PURGE VALVE

VARIOUS
SENSORS

LT GRN/WHT

PCM

The EVAP controls minimize the amount of fuel vapor escaping to the atmosphere. Vapor from the fuel tank is
temporarily stored in the EVAP control canister until it can be purged from the canister into the engine and burned.

• The EVAP canister is purged by drawing fresh air through it and into a port on the intake manifold. The purging

vacuum is controlled by the EVAP canister purge valve, which operates whenever engine coolant temperature is
above 147°F (64°C).

• When vapor pressure in the fuel tank is higher than the set value of the EVAP two way valve, the valve opens and

regulates the flow of fuel vapor to the EVAP control canister.

• During refueling, the fuel tank vapor control valve opens with the pressure in the fuel tank, and feeds the fuel vapor

to the EVAP control canister.

03/07/29 09:19:23 61S0X050_110_0054

*19

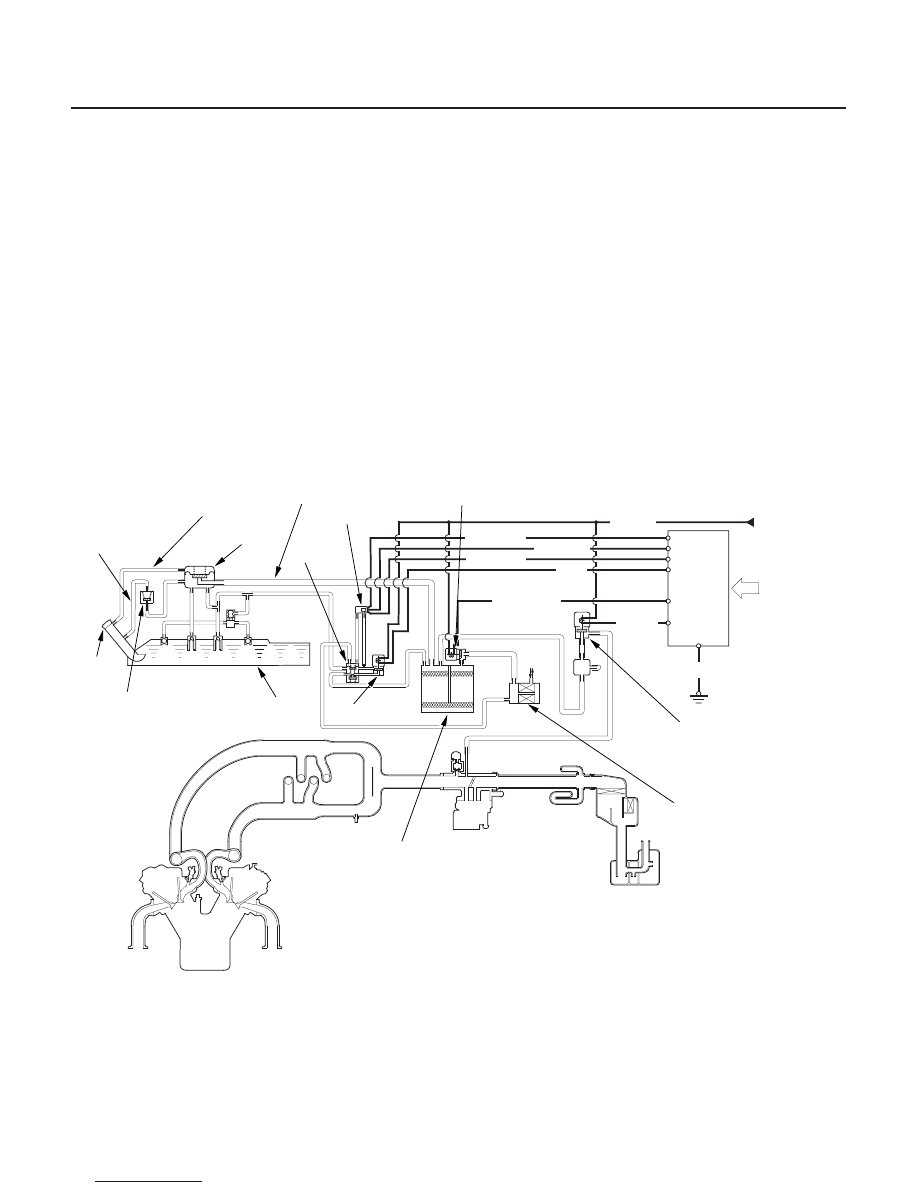

’02-04 models:

11-55

FUEL TANK VAPOR
SIGNAL TUBE

FUEL TANK
VAPOR CONTROL
VALVE

FUEL TANK VAPOR
VENT TUBE

EVAP
TWO WAY
VALVE

FTP SENSOR

EVAP CANISTER
VENT SHUT
VALVE

from
No.6 ECU
(PCM)
CRUISE
CONTROL
(15A)
(in the driver’s
under-dash
fuse/relay box)

FUEL TANK
VAPOR
RECIRCULATION
TUBE

FUEL
FILL
CAP

FUEL TANK VAPOR
RECIRCULATION
VALVE

FUEL TANK

EVAP BYPASS
SOLENOID VALVE

YEL/BLU

GRN/BLK

BLU

RED/YEL

EVAP CANISTER
FILTER

EVAP CANISTER

EVAP CANISTER
PURGE VALVE

VARIOUS
SENSORS

LT GRN/WHT

PCM

BLK/YEL

LT GRN

BLK

(cont’d)

03/07/29 09:19:24 61S0X050_110_0055

*20

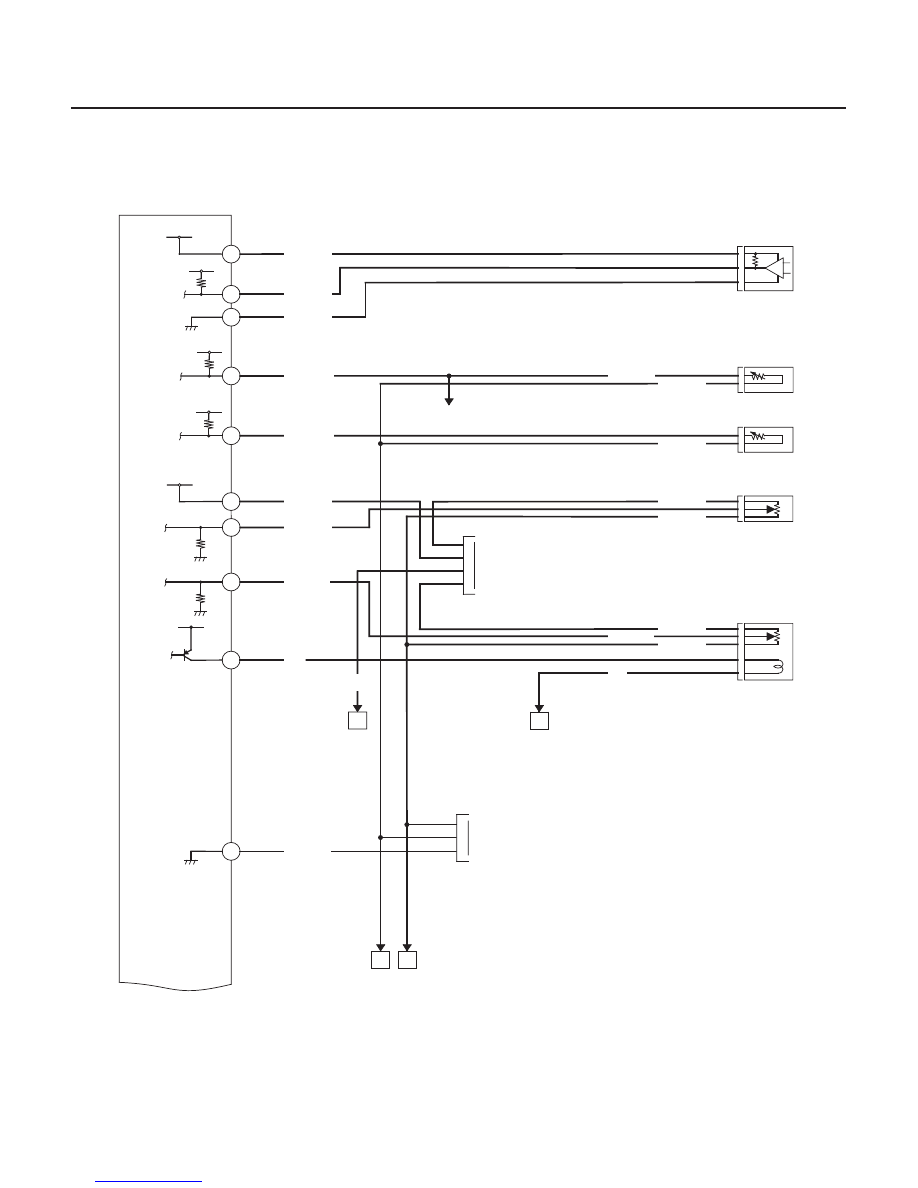

PCM Circuit Diagram

11-56

Fuel and Emissions Systems

MAP SENSOR

ECT SENSOR

IAT SENSOR

TP SENSOR

EGR VALVE
POSITION
SENSOR

EGR VALVE

JUNCTION
CONNECTOR D

YEL/BLU

VCC1

BLK

GRN/BLK

WHT/BLK

MAP

SG1

ECT

IAT

VCC2

TPS

EGRP

EGR

SG2

JUNCTION
CONNECTOR D

YEL/BLU

GRN/BLK

GRN/BLK

GRN/BLK

YEL/RED

RED/GRN

GRN/WHT

RED/WHT

RED/YEL

RED/BLK

WHT/BLK

YEL/BLU

GRN/BLK

RED/WHT

C7

C6

B7

To CLIMATE
CONTROL UNIT
(EX model)

B

A

YEL/
BLU

PNK

AC

C

2

2

2

2

2

1

2

2

2

2

C19

C17

C26

C25

C28

C27

C18

03/07/29 09:19:24 61S0X050_110_0056

System Descriptions (cont’d)

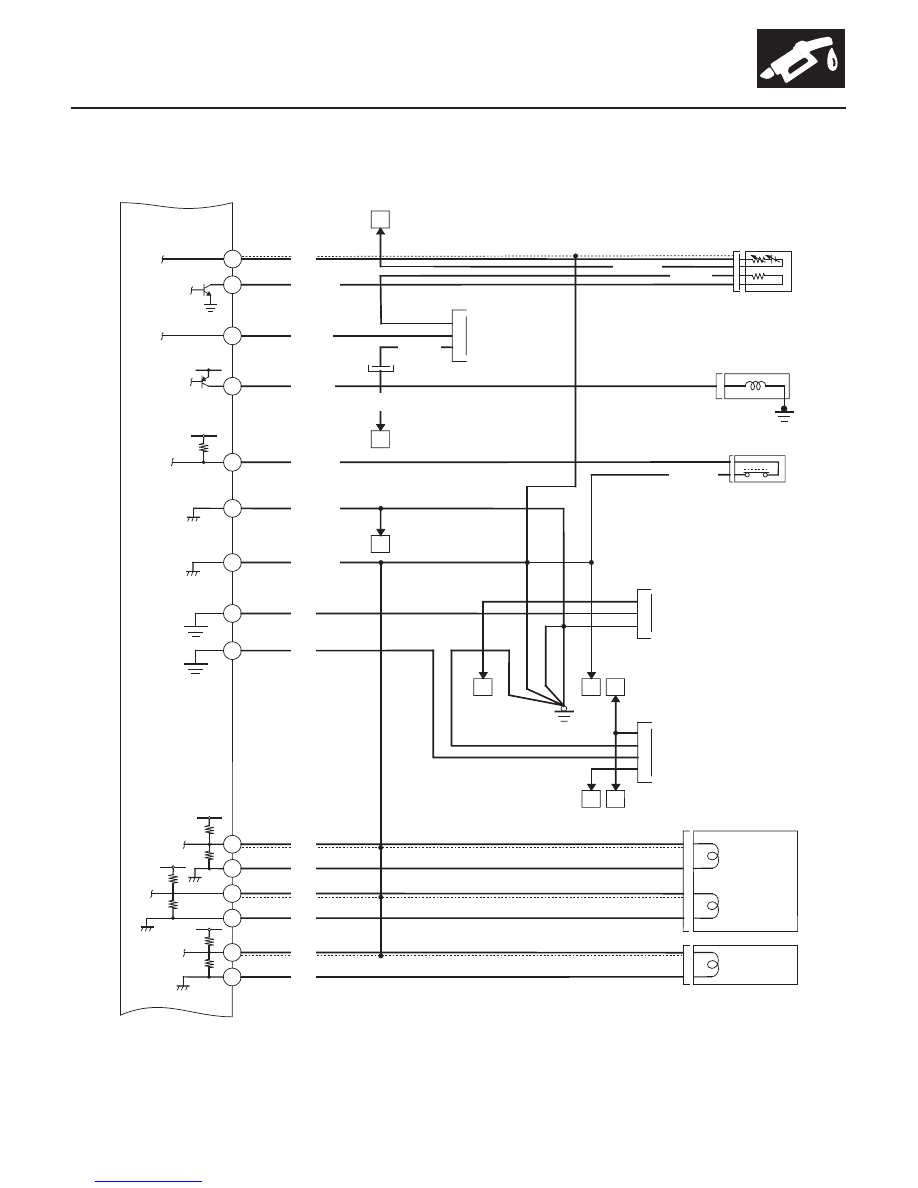

’99-00 Models
