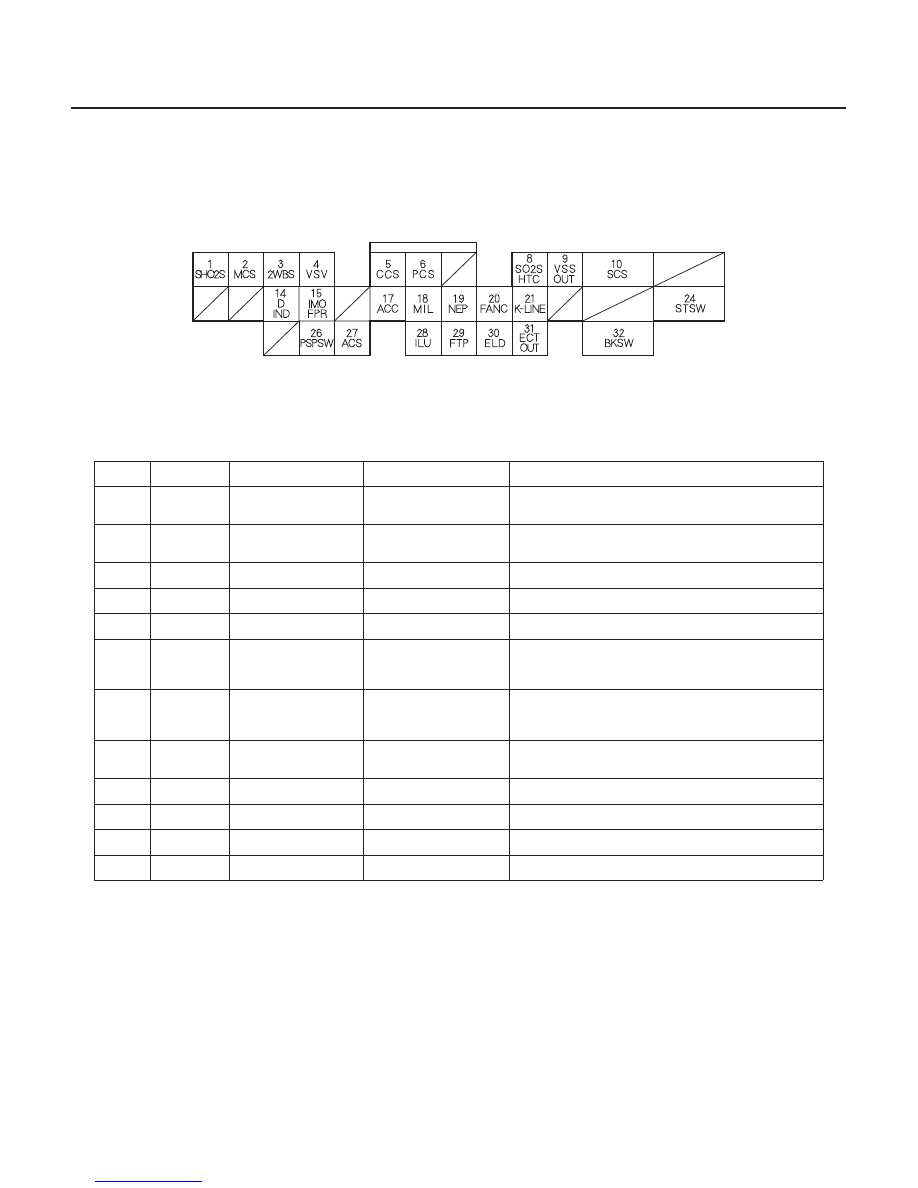

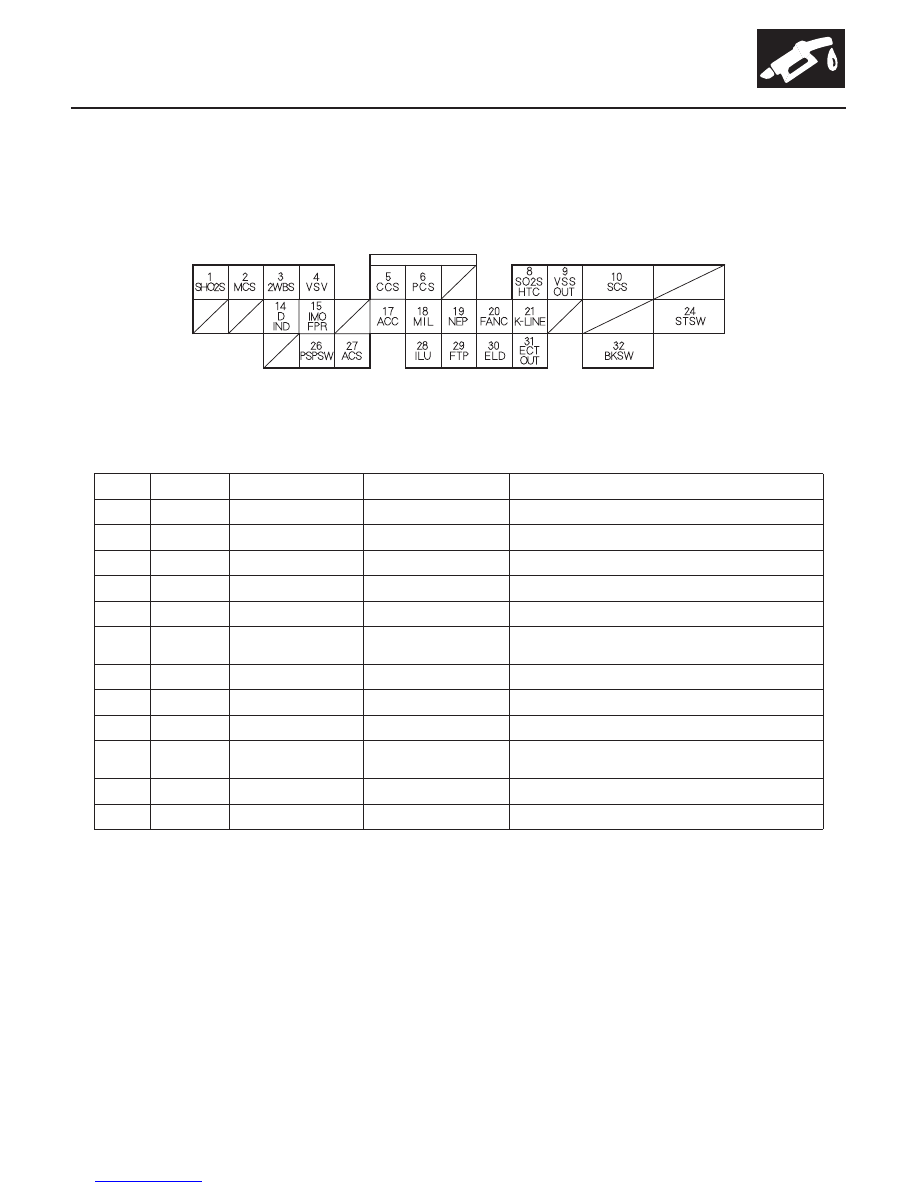

− *04 PCM Inputs and Outputs at Connector A (32P) ’02-04 Models Terminal number Wire color Terminal name Description Signal 11-34 Fuel and Emissions Systems System Descriptions (cont’d) NOTE: Standard battery voltage is 12 V. 1 WHT/RED SHO2S (SECONDARY Detects secondary HO2S With throttle fully opened from idle and fully warmed up 2 GRN/WHT MCS (ENGINE MOUNT Drives engine mount At idle, not in P or N position: about 0 V 3 BLU 2WBS (EVAP BYPASS Drives EVAP bypass With ignition switch ON (II): battery voltage 4 LT GRN/ WHT VSV (EVAP CANISTER Drives EVAP canister vent With ignition switch ON (II): battery voltage 5 BLU/GRN CCS (CRUISE Detects cruise control With ignition switch ON (II): pulses 6 RED/YEL PCS (EVAP CANISTER Drives EVAP canister With engine running, engine coolant, below 147°F (64°C): 8 BLK/WHT SO2SHTC Drives secondary HO2S With ignition switch ON (II): battery voltage 9 BLU/WHT VSSOUT (VEHICLE Sends vehicle speed Depending on vehicle speed: pulses 10 BRN SCS (SERVICE CHECK Detects service check With terminal connected: 0 V 14 GRN/BLK DIND (D INDICATOR) Drives D indicator light With D indicator ON: 0 V 15 GRN/YEL IMOFPR (IMMOBILIZER Drives fuel pump relay 0 V for 2 seconds after turning ignition switch ON (II), then 17 RED ACC (A/C CLUTCH Drives A/C clutch relay With compressor ON: 0 V Wire side of female terminals 03/07/29 09:18:03 61S0X050_110_0034 |
