Honda Odyssey 2004. Manual - part 83





*51

PCM Inputs and Outputs at Connector C (22P)

’01 Model

Terminal

number

Wire color

Terminal name

Description

Signal

11-30

Fuel and Emissions Systems

System Descriptions (cont’d)

NOTE: Standard battery voltage is 12 V.

1

WHT

LSA

(A/T CLUTCH

PRESSURE CONTROL
SOLENOID VALVE A

SIDE)

Ground for A/T clutch
pressure control solenoid
valve A

2

BLU/YEL

SHA (SHIFT SOLENOID
VALVE A)

Drives shift solenoid
valve A

With engine running in 2nd, 3rd gears: battery
voltage
With engine running in 1st, 4th gears: about 0 V

4

PNK

ATPD3 (TRANSMISSION
RANGE SWITCH D3
POSITION)

Detects transmission range
switch D3 signals

In D3 position: about 0 V
In any other position: battery voltage

6

WHT

NMSG (MAINSHAFT
SPEED SENSOR GROUND)

Ground for input shaft
(mainshaft) speed sensor

7

RED

NM (MAINSHAFT SPEED
SENSOR)

Detects input shaft
(mainshaft) speed sensor
signals

Depending on vehicle speed: pulses
When engine stopped: about 0 V

8

GRN

LSB

(A/T CLUTCH

PRESSURE CONTROL
SOLENOID VALVE B

SIDE)

Ground for A/T clutch
pressure control solenoid
valve B

9

GRN/WHT

SHB (SHIFT SOLENOID
VALVE B)

Drives shift solenoid
valve B

With engine running in 1st, 2nd gears: battery
voltage
With engine running in 3rd, 4th gears: about 0 V

10

YEL

LC (TORQUE CONVERTER
CLUTCH SOLENOID
VALVE)

Drives torque converter
clutch solenoid valve

With lock-up ON: battery voltage
With lock-up OFF: about 0 V

11

BLU/BLK

OP2SW (2ND OIL
PRESSURE SWITCH)

Detects 2nd oil pressure
switch

With the ignition switch ON (II): battery voltage

12

BLU

ATP2 (TRANSMISSION
RANGE 2 POSITION
SWITCH)

Detects transmission range
switch 2 signal

In 2 position: about 0 V
In any other position: battery voltage

13

YEL

ATPD4 (TRANSMISSION
RANGE D4 POSITION
SWITCH)

Detects transmission range
switch D4 signal

In D4 position: about 0 V
In any other position: battery voltage

14

GRN

NCSG (COUNTERSHAFT
SPEED SENSOR GROUND)

Ground for output shaft
(countershaft) speed sensor

15

BLU

NC (COUNTERSHAFT
SPEED SENSOR)

Detects output shaft
(countershaft) speed sensor
signals

Depending on vehicle speed: pulses
When engine stopped: about 0 V

17

GRN

SHC (SHIFT SOLENOID
VALVE C)

Drives shift solenoid
valve C

With engine running in 1st, 3rd gears: battery
voltage
With engine running in 2nd, 4th gears: about 0 V

19

WHT/RED

OP3SW (3RD OIL
PRESSURE SWITCH)

Detects 3rd oil pressure
switch

With the ignition switch ON (II): battery voltage

20

BRN

ATP1 (TRANSMISSION
RANGE 1 POSITION
SWITCH)

Detects transmission range
switch 1 position signal

In 1 position: about 0 V
In any other position: battery voltage

21

WHT

ATPR (TRANSMISSION
RANGE R POSITION
SWITCH)

Detects transmission range
switch R position signal

In R position: about 0 V
In any other position: battery voltage

22

BLU/WHT

ATPNP (NEUTRAL/PARK
POSITION SWITCH)

Detects transmission range
switch N or P signal

In P or N position: about 0 V
In any other position: battery voltage

Wire side of female terminals

03/07/29 09:18:01 61S0X050_110_0030

*41

PCM Inputs and Outputs at Connector D (17P) (With ABS/TCS)

’01 Model

Terminal

number

Wire color

Terminal name

Description

Signal

11-31

NOTE: Standard battery voltage is 12 V.

3

PNK/BLK

FPTDR (FRAME TO
POWERTRAIN TORQUE
DOWN REQUEST)

Detects engine retard
request signal

With TCS operating: about 5 V
With TCS not operating: about 2.5 V

5

LT GRN/RED

PFINH (POWERTRAIN TO
FRAME INHIBITION)

Sends TCS operation
permission signal

Permission (normal): about 2.5 V
Inhibition (engine coolant temperature below 32°F
(0°C): about 5 V
Failure (TCS and/or PCM is failure): 0 V

9

WHT/RED

VREF (REFERENCE
VOLTAGE)

Provides reference voltage
to ABS/TCS control unit

With ignition switch ON (II): about 5 V
With ignition switch OFF: 0 V

11

LT GRN

ATSFTP (A/T GEAR
POSITION SWITCH
OUTPUT SIGNAL)

Sends transmission range
switch signal

With engine running in P position: about 4 V

16

RED/BLK

TPSOUT (THROTTLE
POSITION SENSOR
OUTPUT SIGNAL)

Sends TP sensor signal

With throttle fully open: about 4.8 V
With throttle fully closed: about 0.5 V

: With ABS/TCS

(cont’d)

Wire side of female terminals

03/07/29 09:18:01 61S0X050_110_0031

11

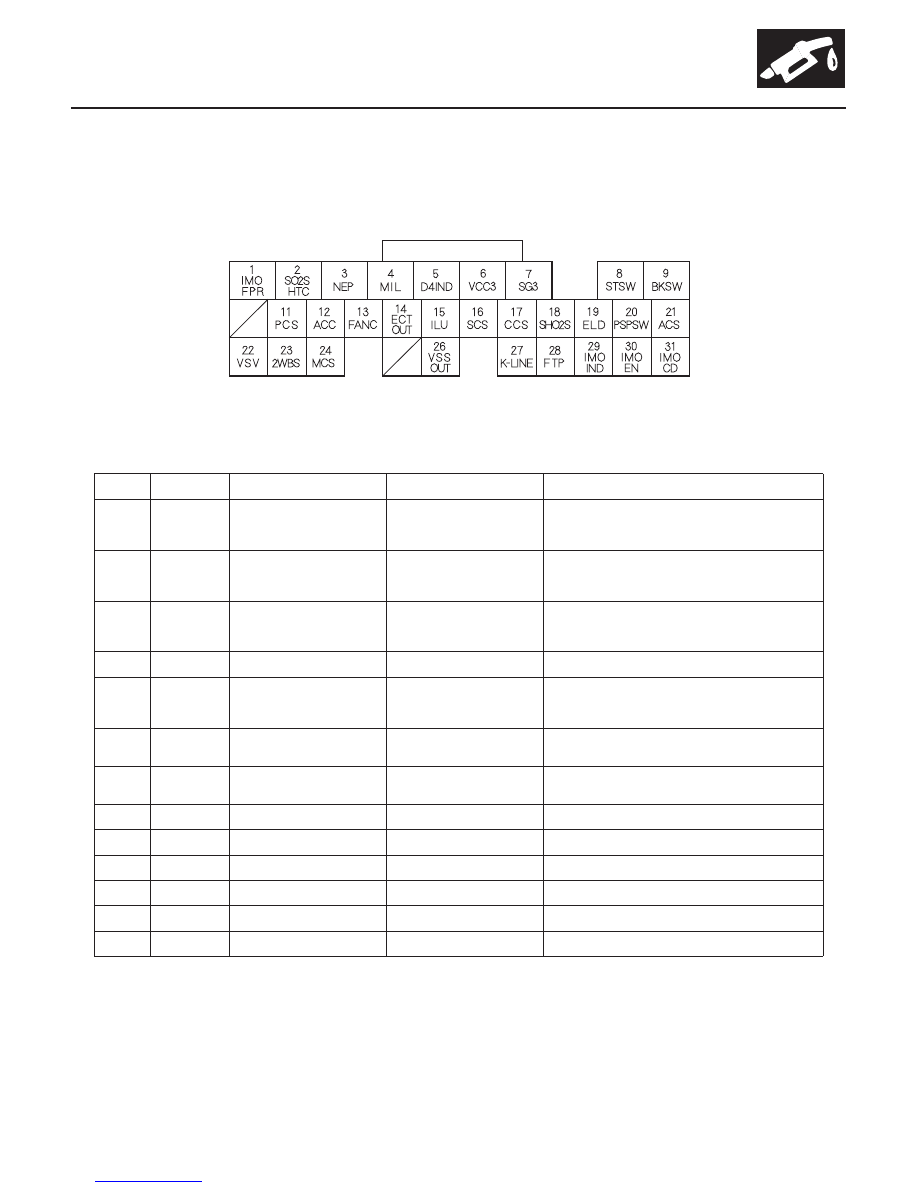

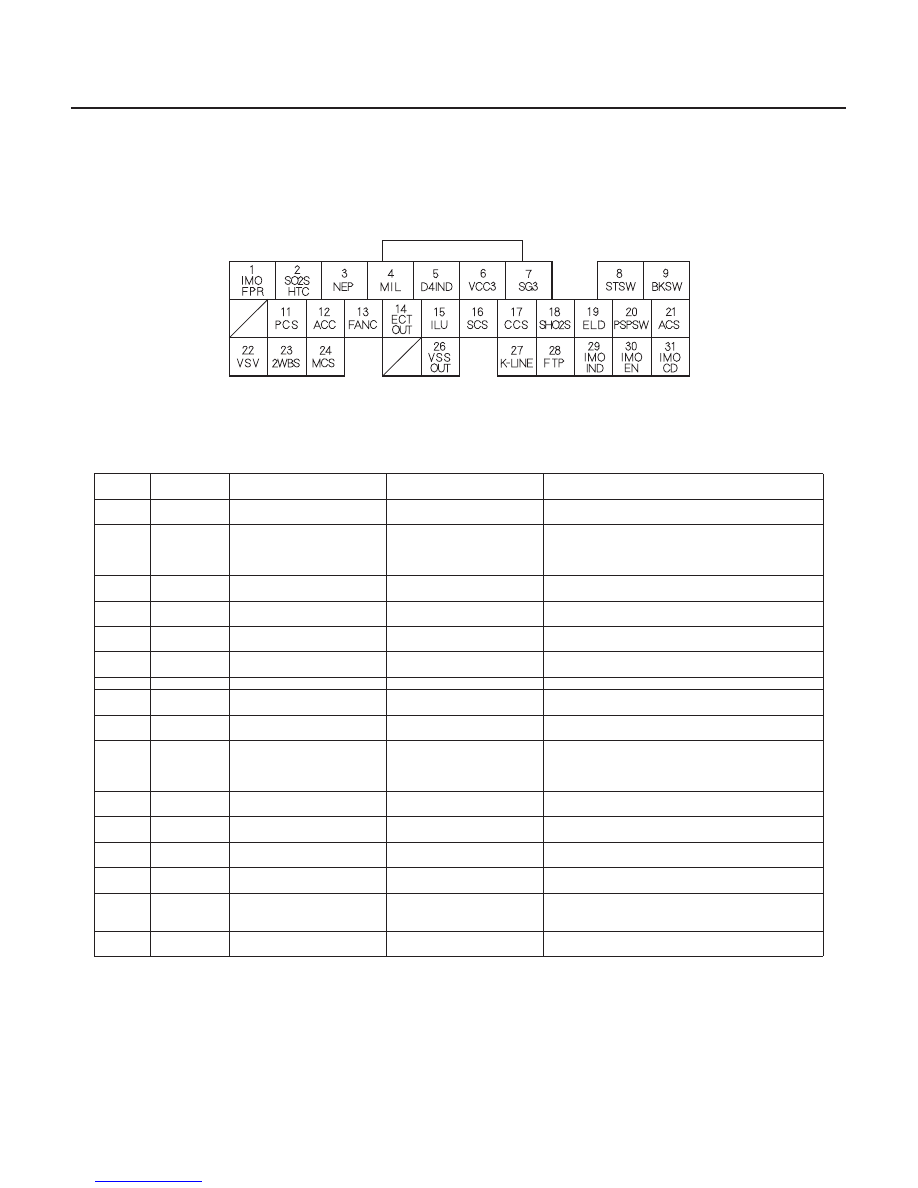

PCM Inputs and Outputs at Connector E (31P)

’01 Model

Terminal

number

Wire color

Terminal name

Description

Signal

11-32

Fuel and Emissions Systems

System Descriptions (cont’d)

NOTE: Standard battery voltage is 12 V.

1

GRN/YEL

IMOFPR (IMMOBILIZER
FUEL PUMP RELAY)

0 V for 2 seconds after turning ignition switch ON
(II), then battery voltage

2

BLK/WHT

SO2SHTC (SECONDARY
HEATED OXYGEN SENSOR
(SECONDARY HO2S)
HEATER CONTROL)

Drives secondary HO2S

With ignition switch ON (II): battery voltage
With fully warmed up engine running: duty
controlled

3

BLU

NEP (ENGINE SPEED
PULSE)

Outputs engine speed pulse

With engine running: pulses

4

GRN/ORN

MIL (MALFUNCTION
INDICATOR LAMP)

Drives MIL

With MIL turned ON: about 0 V
With MIL turned OFF: battery voltage

5

GRN/BLK

Drives D4 indicator

With D4 indicator ON: about 0 V
With D4 indicator OFF: battery voltage

6

YEL/BLU

VCC3 (SENSOR VOLTAGE)

Power source to FTP sensor

With ignition switch ON (II): about 5 V
With ignition switch OFF (II): about 0 V

7

GRN/BLK

SG3 (SENSOR GROUND)

Ground for FTP sensor

Less than 1.0 V at all times

8

BLU/ORN

STSW (STARTER SWITCH
SIGNAL)

Detects starter switch signal

With starter switch OFF: about 0 V

9

WHT/BLK

BKSW (BRAKE PEDAL
POSITION SWITCH)

Detects brake pedal
position switch signal

With brake pedal released: about 0 V

11

RED/YEL

PCS (EVAPORATIVE
EMISSION (EVAP)
CANISTER PURGE VALVE)

Drives EVAP canister purge
valve

With engine running, engine coolant below 147°F
(64°C): battery voltage
With engine running, engine coolant above 147°F
(64°C): duty controlled

12

RED

ACC (A/C CLUTCH RELAY)

Drives A/C clutch relay

With compressor ON: about 0 V
With compressor OFF: battery voltage

13

BLU/RED

FANC (RADIATOR FAN
CONTROL)

Driver radiator fan relay

With radiator fan running: about 0 V
With radiator fan stopped: battery voltage

14

YEL/GRN

ECTOUT (ECT SIGNAL
OUTPUT)

Sends engine coolant
temperature signal

With ignition switch ON (II): pulses

15

WHT/RED

ILU (INTERLOCK CONTROL
UNIT)

Drives interlock control unit

With ignition switch ON (II) and brake pedal
pressed: about 0 V

16

BRN

SCS (SERVICE CHECK
SIGNAL)

Detects service check
connector signal (the signal
causing a DTC indication)

17

BLU/GRN

CCS (CRUISE CONTROL
SIGNAL)

Detects cruise control signal

With ignition switch ON (II): pulses

Wire side of female terminals

03/07/29 09:18:02 61S0X050_110_0032

heater

Drives fuel pump

D4IND (D4 INDICATOR)

With starter switch at START (III): battery voltage

With terminal connected: about 0 V
With terminal disconnected: about 5 V

12

PCM Inputs and Outputs at Connector E (31P)

’01 Model

Terminal

number

Wire color

Terminal name

Description

Signal

11-33

NOTE: Standard battery voltage is 12 V.

18

WHT/RED

SHO2S (SECONDARY
HEATED OXYGEN SENSOR
(SECONDARY HO2S),
SENSOR 2)

Detects secondary HO2S
(sensor 2) signal

With throttle fully opened from idle with fully
warmed up engine: above 0.6 V
With throttle quickly closed: below 0.4 V

19

GRN/RED

ELD (ELECTRICAL LOAD
DETECTOR (ELD))

Detects ELD signal

With parking lights on at idle: about
2.5

3.5 V

With low beam headlights turned on at idle: about
1.5

2.5 V

20

GRN

PSPSW (POWER STEERING
PRESSURE SWITCH
SIGNAL)

Detects PSP switch signal

At idle with steering wheel in straight ahead
position: about 0 V
At idle with steering wheel at full lock: battery
voltage

21

BLU/RED

ACS (A/C SWITCH SIGNAL)

Detects A/C switch signal

With A/C switch ON: about 0 V
With A/C switch OFF: battery voltage

22

LT GRN/

WHT

VSV (EVAPORATIVE
EMISSION (EVAP)
CANISTER VENT SHUT
VALVE

Drives EVAP canister vent
shut valve

With ignition switch ON (II): battery voltage

23

BLU

2WBS (EVAPORATIVE
EMISSION (EVAP) BYPASS
SOLENOID VALVE)

Drives EVAP bypass
solenoid valve

With ignition switch ON (II): battery voltage

24

GRN/WHT

MCS (ENGINE MOUNT
CONTROL SOLENOID
VALVE)

Drives engine mount
control solenoid valve

Above idle: battery voltage

26

BLU/WHT

VSSOUT (VEHICLE SPEED
SENSOR OUTPUT SIGNAL)

Sends vehicle speed sensor
signal

Depending on vehicle speed: pulses

27

GRY

K-LINE

Sends and receives scan
tool signal

With ignition switch ON (II): pulses or battery
voltage

28

LT GRN

FTP (FUEL TANK
PRESSURE (FTP) SENSOR)

Detects FTP sensor signal

about 2.5 V

29

PNK

IMOIND (IMMOBILIZER
INDICATOR)

Drives immobilizer
indicator

With immobilizer indicator ON: about 0 V
With immobilizer indicator OFF: battery voltage

30

BLU

IMOEN (IMMOBILIZER
ENABLE SIGNAL)

Sends immobilizer enable
signal

31

RED

IMOCD (IMMOBILIZER
CODE)

Detects immobilizer signal

(cont’d)

Wire side of female terminals

03/07/29 09:18:02 61S0X050_110_0033

At idle, not in P or N position: about 0 V

With ignition switch ON (II) and fuel fill cap removed:
