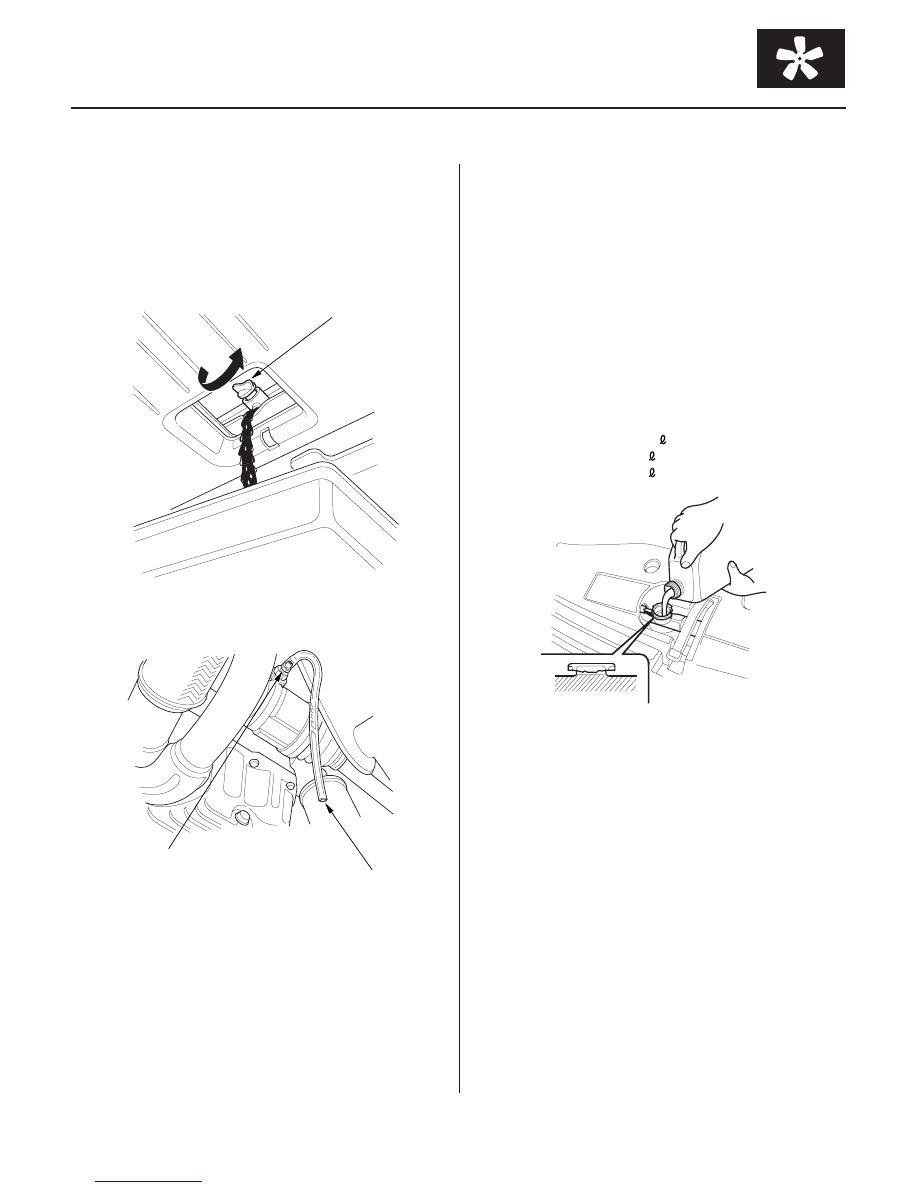

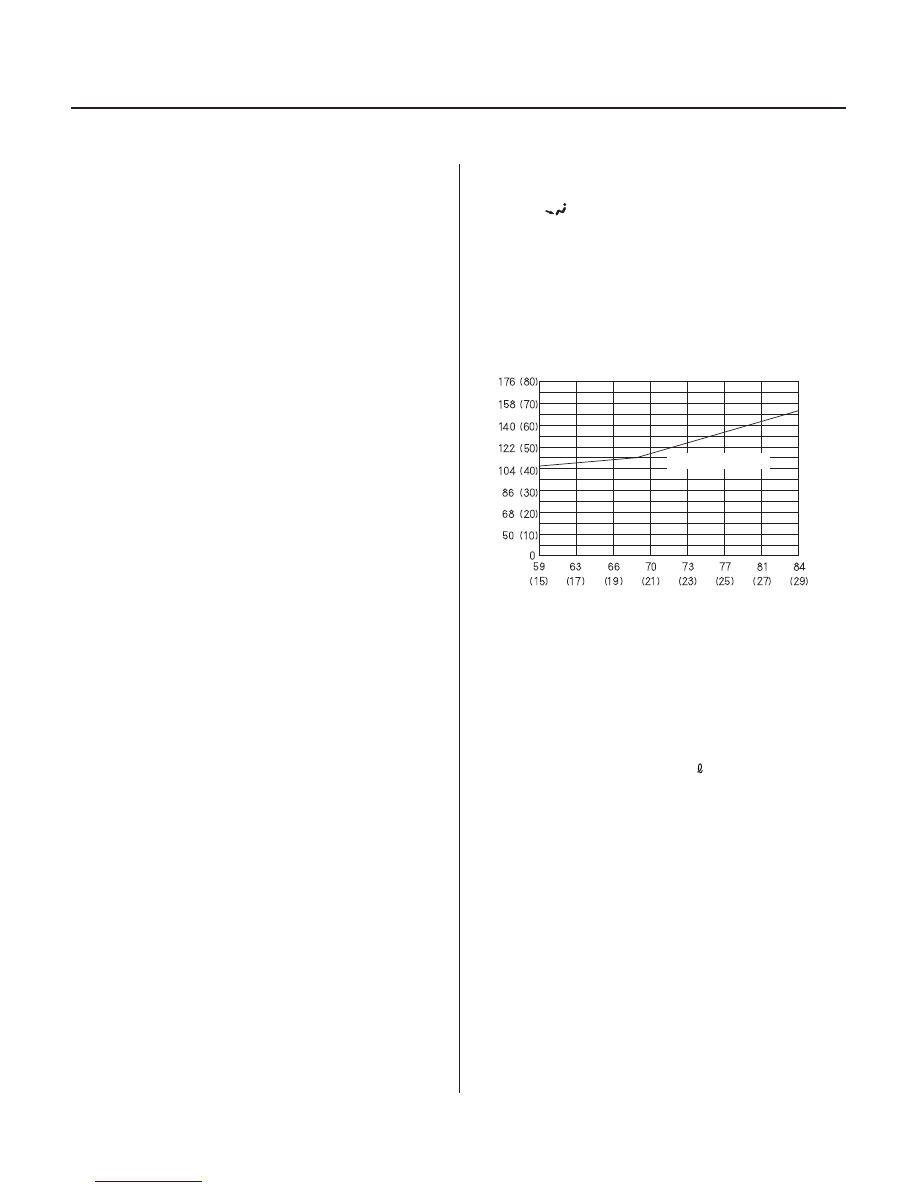

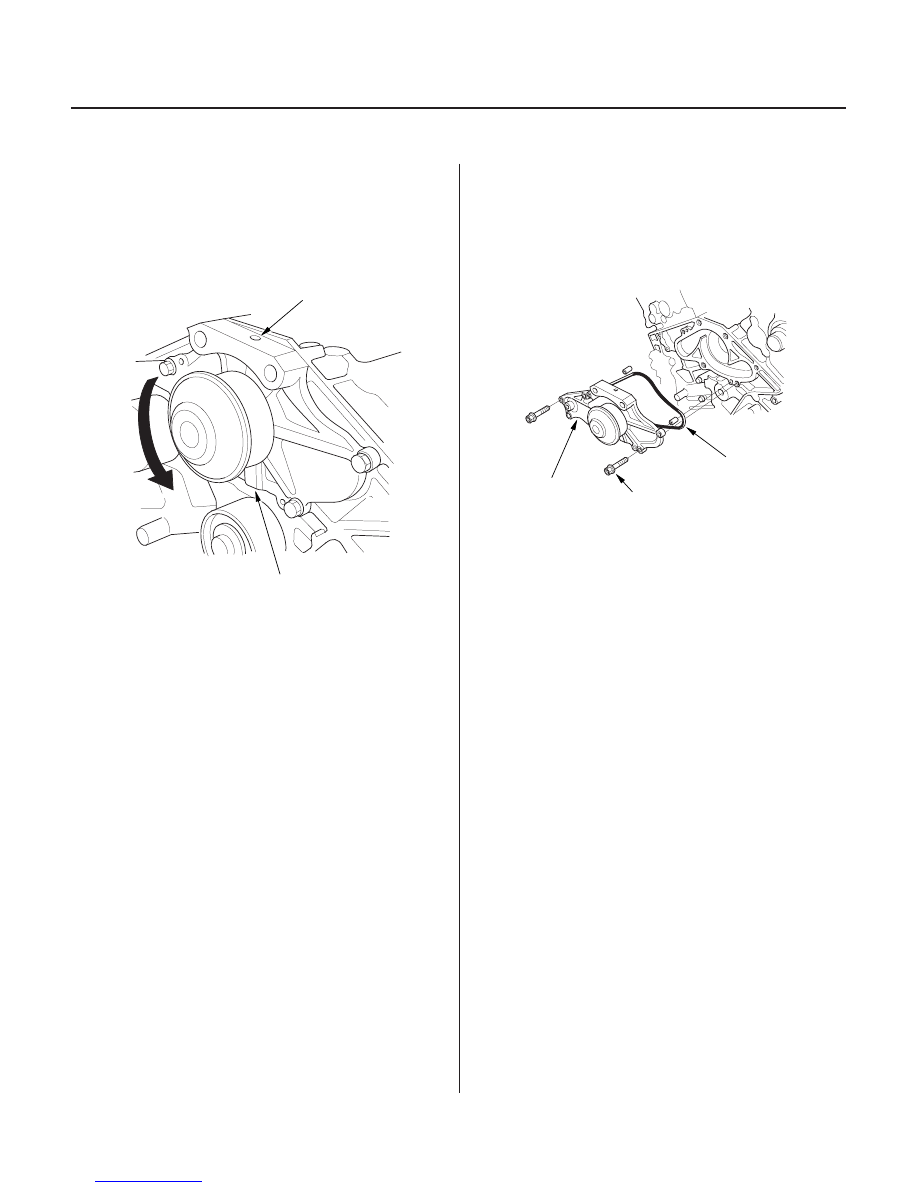

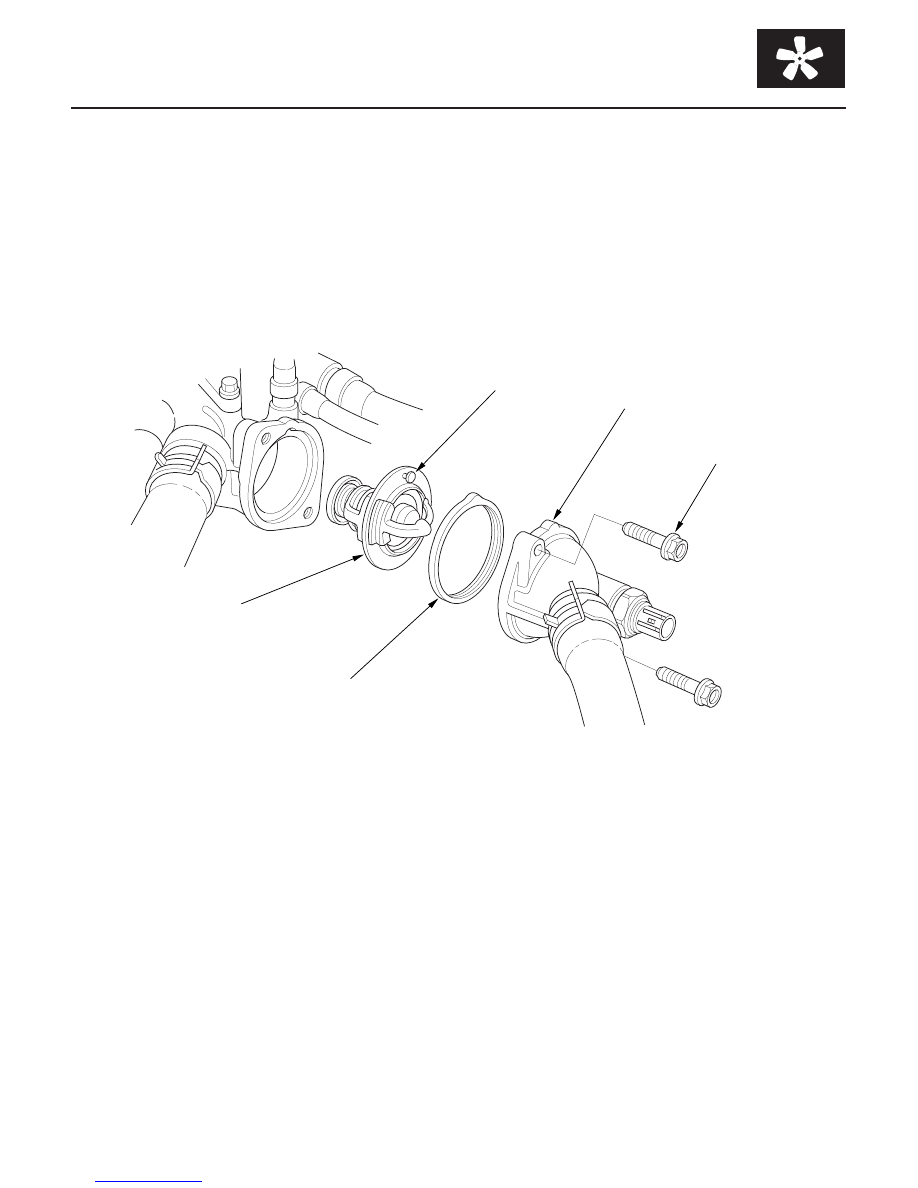

*01 S0X4A00A14400065101MAAT00 *01 S0X4A00A14400065101KBAT00 10-12 10-12 Cooling System Water Pump Inspection Water Pump Replacement A A 6 x 1.0 mm B A 1. Remove the timing belt (see page 6-20). 2. Turn the water pump pulley counterclockwise. Check that it turns freely. 3. Check for signs of seal leakage. A small amount of ‘‘weeping’’ from the bleed holes (A) is normal. 1. Drain the engine coolant (see page 10-13). 2. Remove the timing belt (see page 6-20). 3. Remove the timing belt tensioner. 4. Remove the water pump (A) by removing five bolts. 5. Inspect, repair and clean the O-ring groove and mating surface on the cylinder block. 6. Install the water pump with a new O-ring (B) in the reverse order of removal. 7. Refill the radiator with engine coolant, and bleed the air from the cooling system (see step 8 on page 8. Clean up any spilled engine coolant. 03/07/29 09:15:16 61S0X050_100_0012 |
