Cylinder Head

Timing Belt Installation (cont’d)

6 x 1.0 mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft)

A

B

10 x 1.25 mm
44 N·m (4.5 kgf·m, 33 lbf·ft)

12 x 1.25 mm
54 N·m (5.5 kgf·m, 40 lbf·ft)

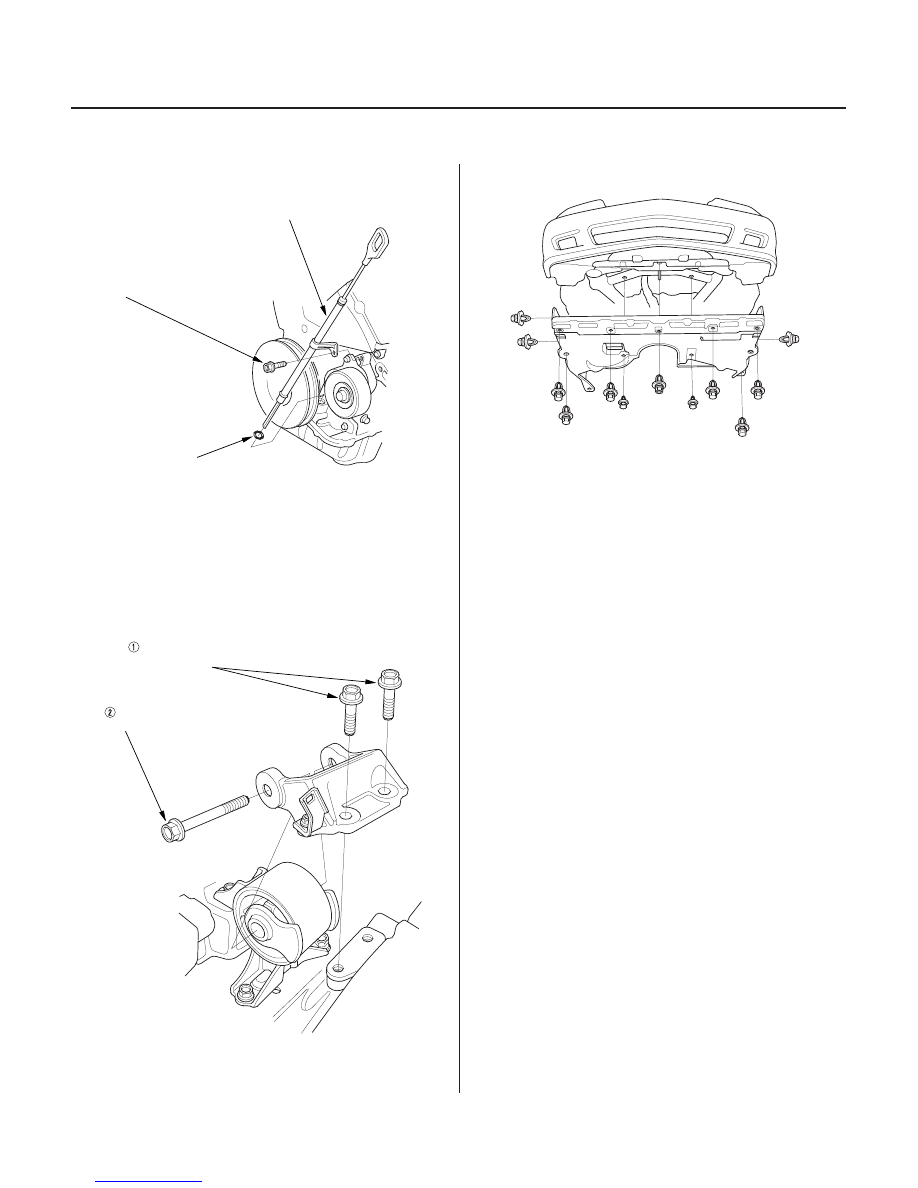

16. Install the dipstick and tube (A) with a new O-ring

(B).

17. Install and adjust the P/S pump belt (see page 17-

12).

18. Install the alternator-compressor belt (see page 4-

26).

19. Install the side engine mount bracket, then tighten

the mounting bolts in the numbered sequence
shown.

20. Install the splash shield.

21. Install the right front tire/wheel.

03/07/29 09:11:39 61S0X050_060_0032

*01

S0X4A00A14673259518KBAT00

*01

S0X4A00A14673259523KBAT00

6-33

6-33

Timing Belt Adjuster Replacement

Timing Belt Drive Pulley
Replacement

A
25 N·m (2.6 kgf·m, 19 lbf·ft)

C

B

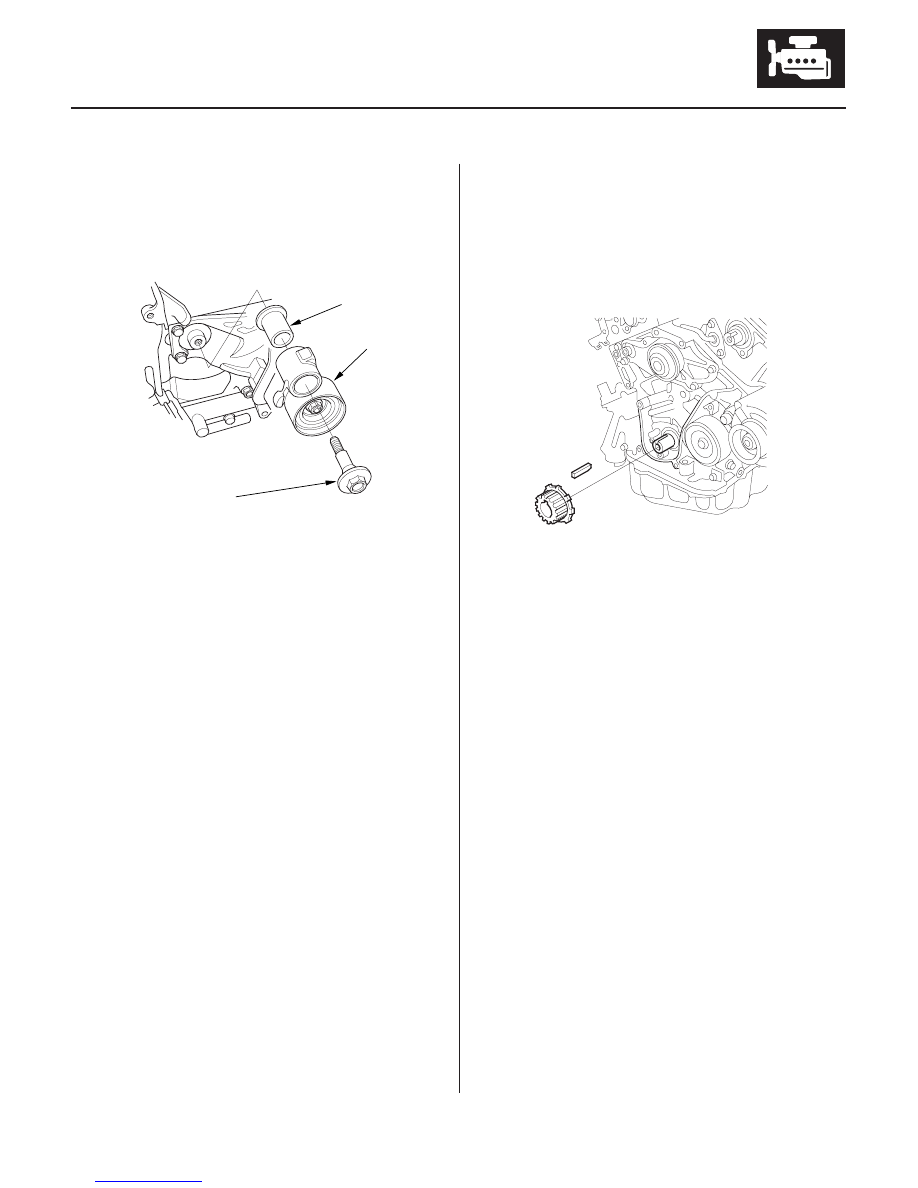

1. Remove the timing belt (see page 6-20).

2. Remove the auto-tensioner.

3. Remove the bolt (A), then remove the timing belt

adjuster (B) and collar (C).

4. Install in the auto-tensioner.

5. Install the timing belt (see page 6-23).

1. Remove the timing belt (see page 6-20).

2. Remove the crankshaft position (CKP) sensor (see

page 6-61).

3. Remove the timing belt drive pulley.

4. Check the timing belt drive pulley for damage. If the

timing belt drive pulley is damaged, replace the
timing belt drive pulley.

5. Install the new timing belt drive pulley.

6. Install the CKP sensor (see page 6-61).

7. Install the timing belt (see page 6-23).

03/07/29 09:11:39 61S0X050_060_0033

*01

S0X4A00A14600017811KAAT00

*01

03

S0X4A00A14600017811KCAT00

6-34

6-34

Cylinder Head

Cylinder Head Cover Removal

Cylinder Head Cover Installation

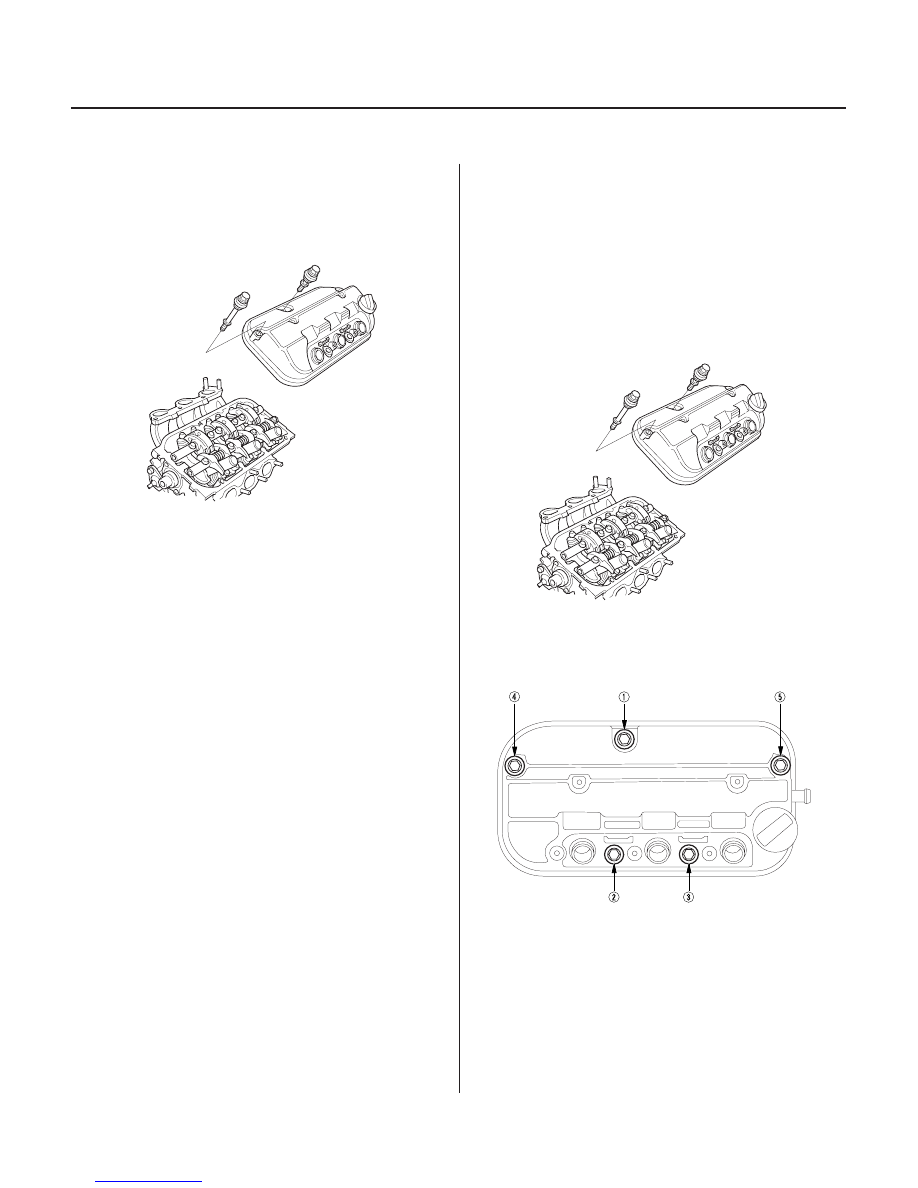

1. Remove the intake manifold (see page 9-4).

2. Remove the six ignition coils (see page 4-17).

3. Remove the cylinder head cover.

1. Install the cylinder head covers.

NOTE:

• Before installing the cylinder head cover, clean

the cylinder head contacting surfaces with a shop
towel.

• Take care not to damage the spark plug seal

when installing the cylinder head cover.

• Visually check the spark plug seals for damage.
• Replace the washer if it is damaged or

deteriorated.

2. Tighten the nuts in two or three steps. In the final

step, tighten all nuts, in sequence, to 12 N·m (1.2
kgf·m, 8.7 lbf·ft).

3. Install the six ignition coils (see page 4-17).

4. Install the intake manifold (see page 9-7).

03/07/29 09:11:40 61S0X050_060_0034

08

07

*01

S0X4A00A14600000000KAAT00

1999-2001 models:

2002-2004 models:

6-35

Cylinder Head Removal

A

E

C

D

B

A

B

C

A

B

NOTE:

• Use fender covers to avoid damaging painted

surfaces.

• To avoid damage, unplug the wiring connectors

carefully while holding the connector portion.

• To avoid damaging the cylinder head, wait until the

engine coolant temperature drops below 100°F (38°C)
before loosening the cylinder head bolts.

• Mark all wiring and hoses to avoid misconnection.

Also, be sure that they do not contact other wiring or
hoses, or interfere with other parts.

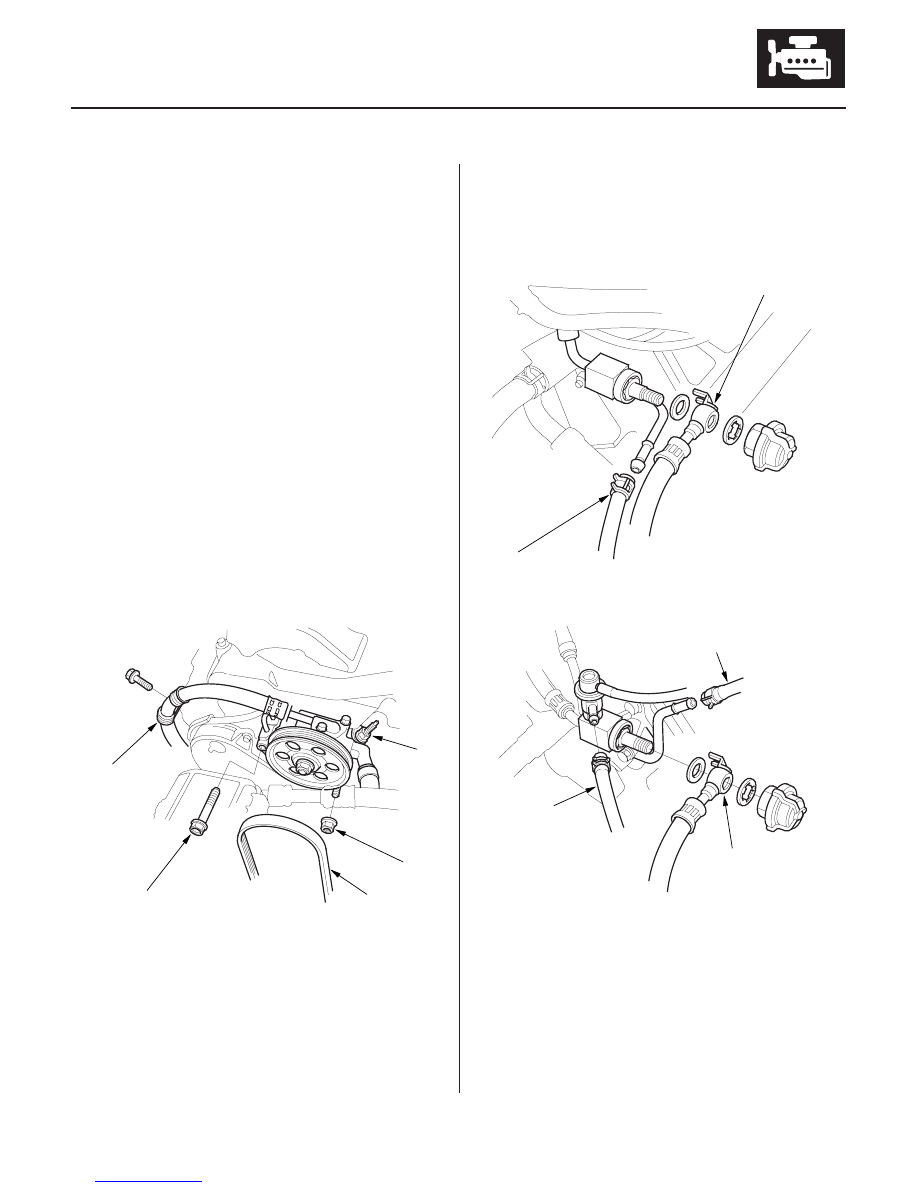

1. Make sure you have the anti-theft code for the radio,

then write down the frequencies for the radio’s
preset buttons.

2. Disconnect the battery negative terminal.

3. Drain the engine coolant (see page 10-13).

4. Remove the alternator-compressor belt (see page

4-26).

5. Loosen the adjusting nut (A), and remove the

locknut (B) and mounting bolt (C), then remove the
power steering (P/S) pump belt (D) and pump
without disconnecting the P/S hoses.

6. Remove the P/S hose clamp (E).

7. Remove the alternator (see page 4-27).

8. Relieve fuel pressure (see page 11-215).

9. Remove the fuel feed hose (A) and fuel return hose

(B).

10. Remove the evaporative emission (EVAP) canister

hose (C) (2002-2004 models).

(cont’d)
