Honda Odyssey 2004. Manual - part 35





01

01

S0X4A00A18223800000KAAT00

5-2

Engine Assembly

Engine Removal

B

A

NOTE:

• Use fender covers to avoid damaging painted

surfaces.

• To avoid damage, unplug the wiring connectors

carefully while holding the connector portion.

• Mark all wiring and hoses to avoid misconnection.

Also, be sure that they do not contact other wiring or
hoses, or interfere with other parts.

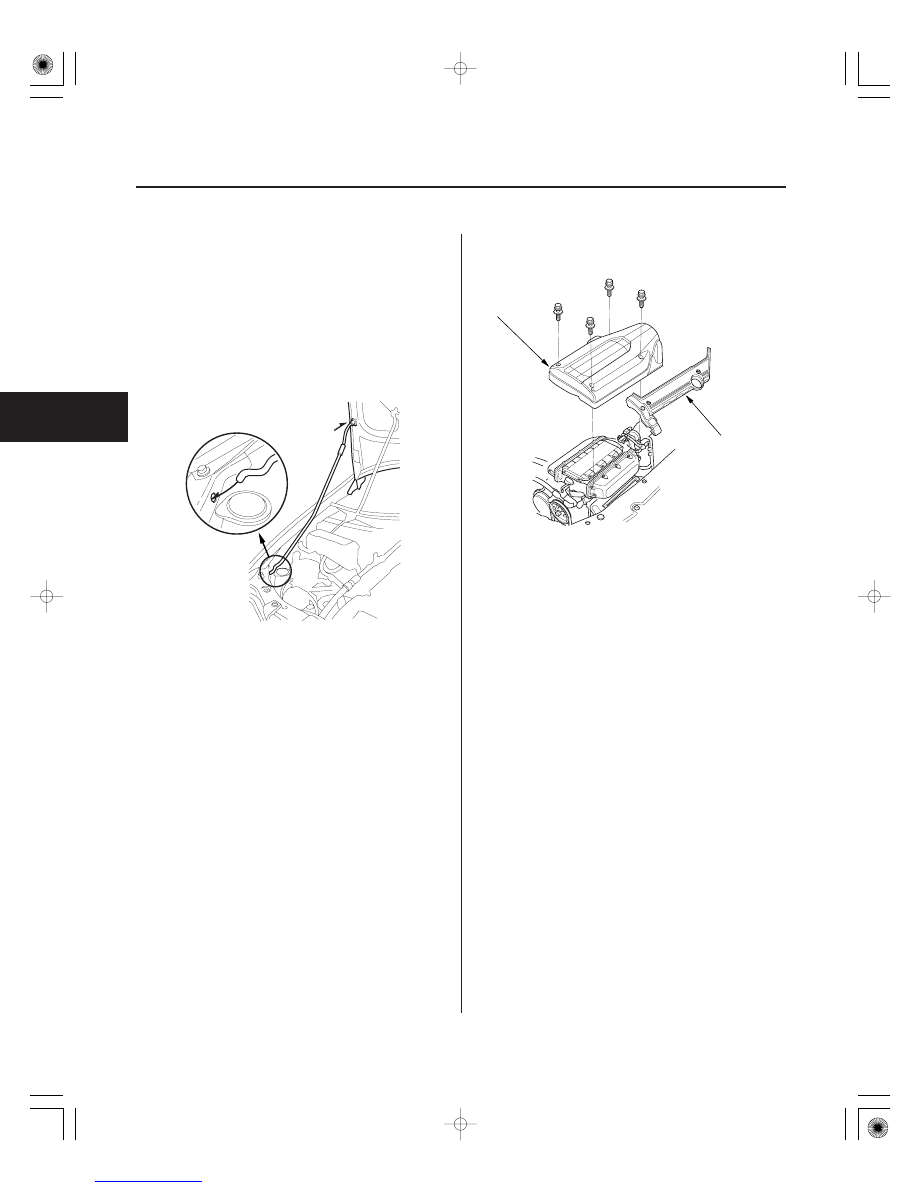

1. Fix the engine hood in a vertical position by using a

support rod as shown.

2. Make sure you have the anti-theft code for the radio

and the navigation system, then write down the
frequencies for the radio’s preset buttons.

3. Disconnect the negative cable from the battery first,

then disconnect the positive cable.

4. Remove the intake manifold cover (A) and ignition

coil cover (B) (2002-2004 models).

03/07/29 09:09:08 61S0X050_050_0002

02

02

03

04

1999-2001 models:

2002-2004 models:

5-3

D

A

C

B

D

A

C

B

B

C

A

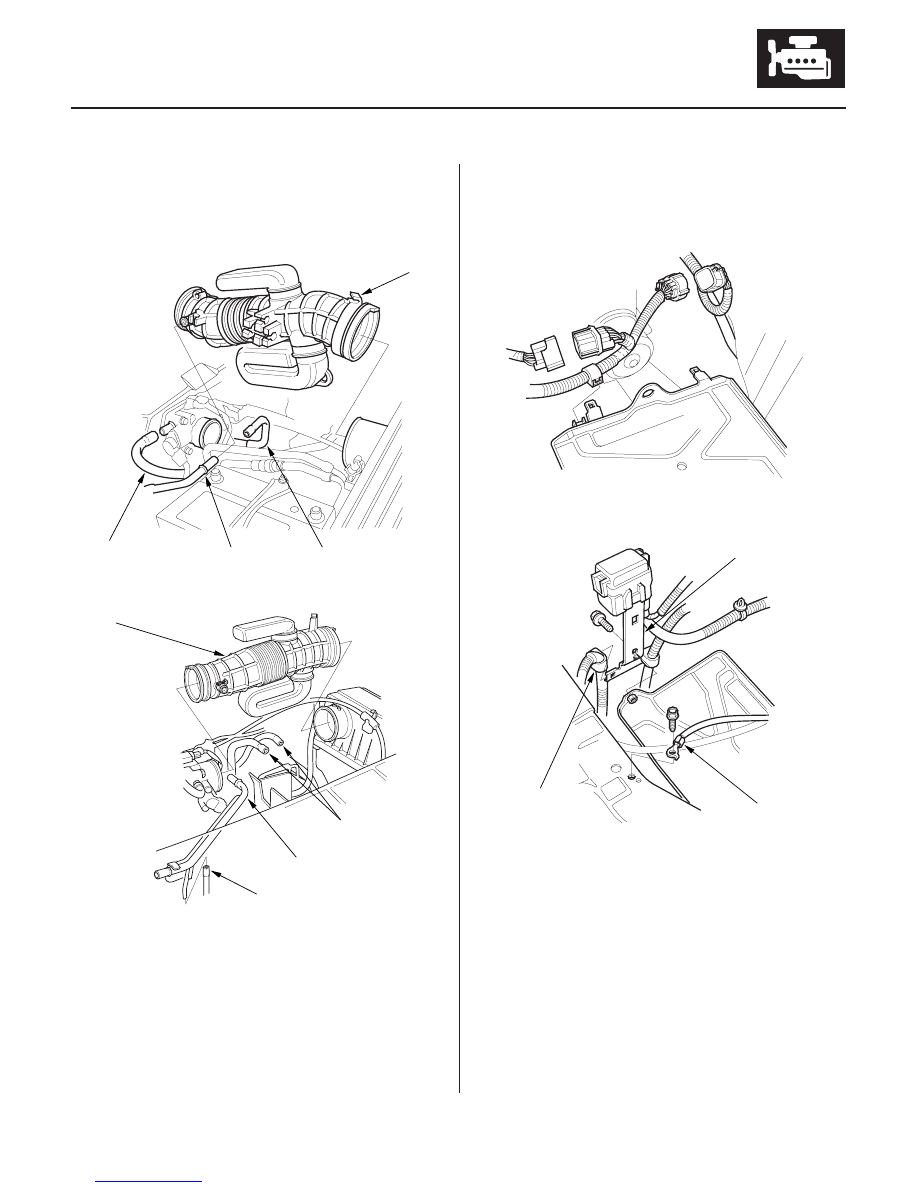

5. Remove the evaporative emission (EVAP) canister

hose (A) (1999-2001 models) or vacuum hose (A)
(2002-2004 models).

6. Remove the vacuum hose(s) (B) and breather pipe

(C), then remove the intake air duct (D).

7. Remove the battery.

8. Disconnect the engine wire harness connectors on

the left side of the engine compartment.

9. Remove the ground cable (A), relay bracket (B) and

harness clamp (C).

(cont’d)

03/07/29 09:09:09 61S0X050_050_0003

05

*01

07

*02

1999-2001 models:

2002-2004 models:

5-4

Engine Assembly

Engine Removal (cont’d)

A

C

B

A

C

B

C

A

A

B

C

A

B

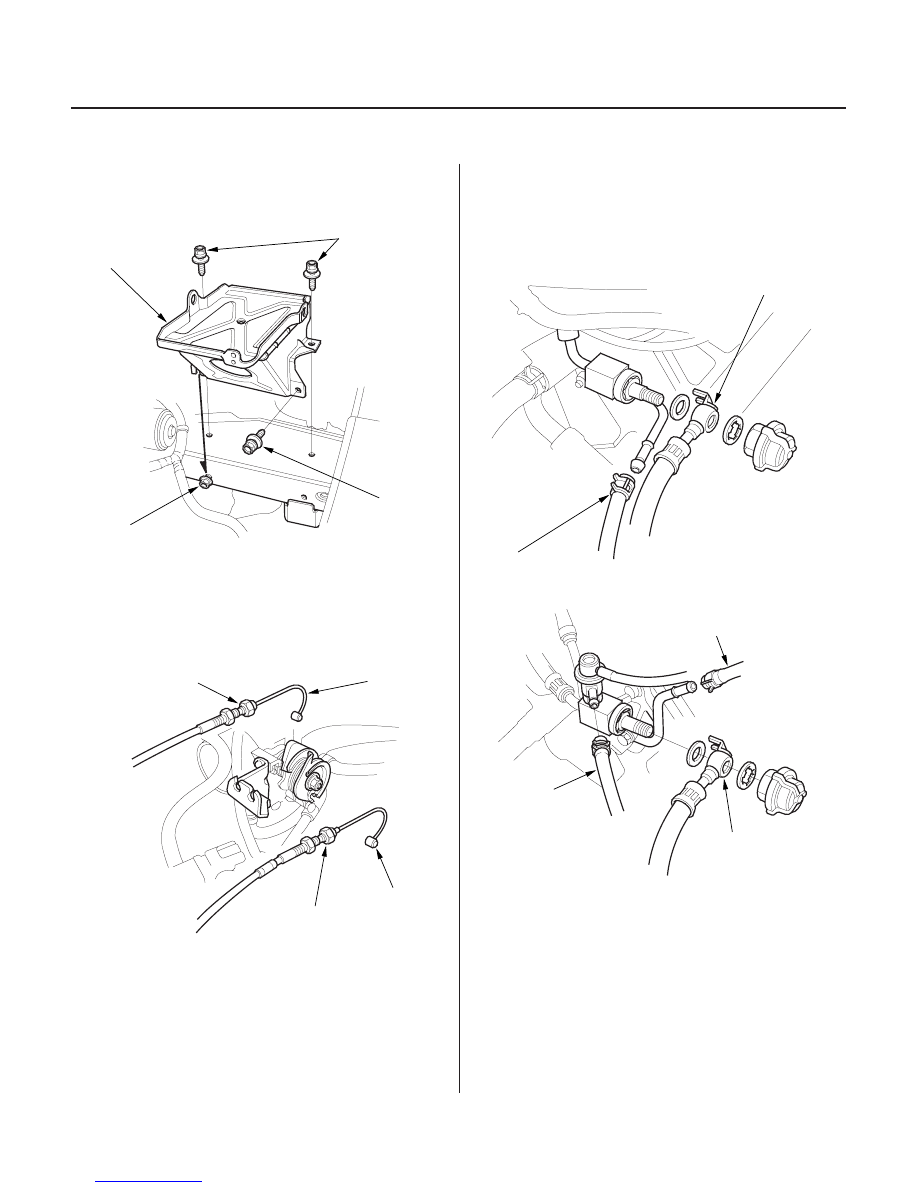

10. Remove the three mounting bolts (A) and loosen

the mounting bolt (B), then remove the battery
base (C).

11. Remove the throttle cable (A) and cruise control

actuator cable (B) by loosening the locknuts (C),
then slip the cable ends out of the accelerator
linkage. Take care not to bend the cables when
removing them. Always replace any kinked cable
with a new one.

12. Relieve fuel pressure (see page 11-215).

13. Remove the fuel feed hose (A) and fuel return hose

(B).

14. Remove the EVAP canister hose (C) (2002-2004

models).

03/07/29 09:09:10 61S0X050_050_0004

08

03

09

10

1999-2001 models:

2002-2004 models:

5-5

B

A

A

B

C

A

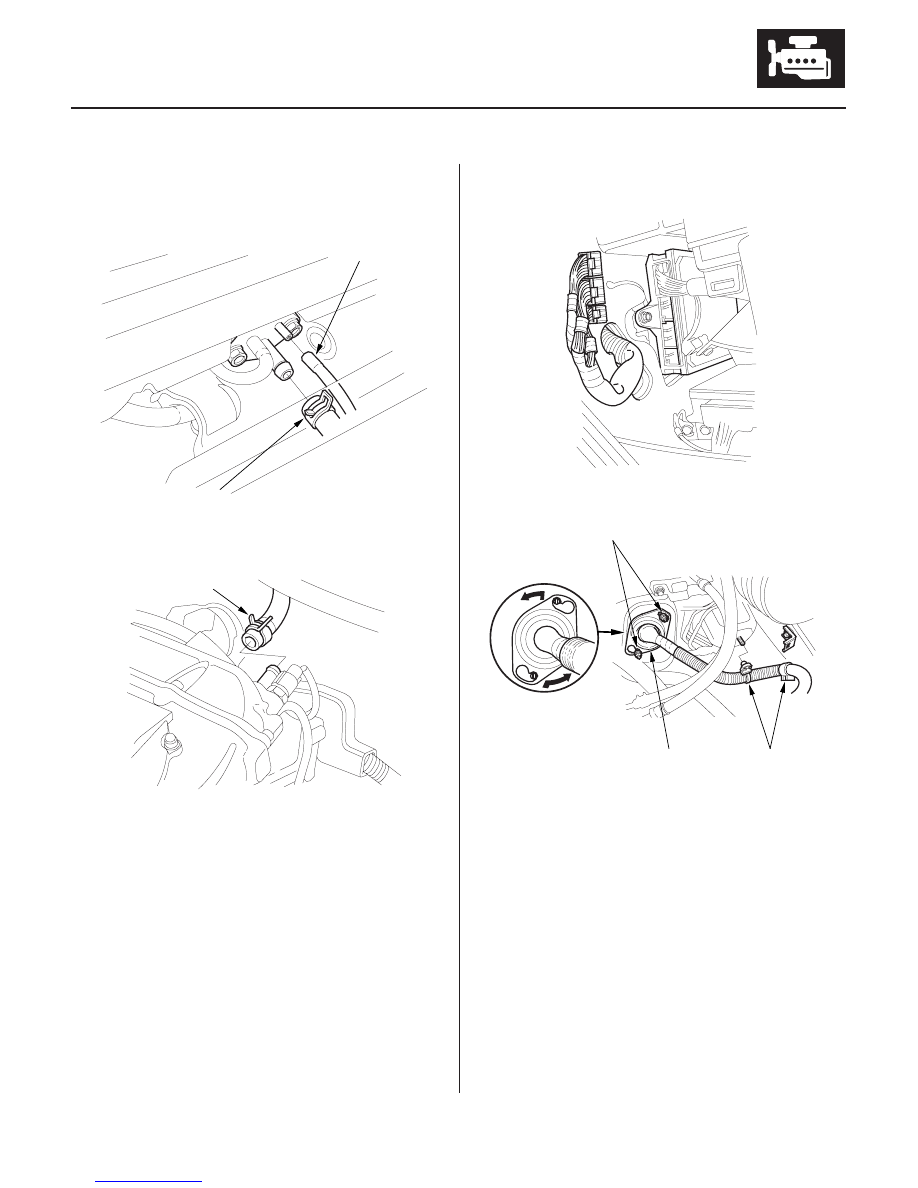

15. Remove the brake booster vacuum hose (A).

16. Remove the vacuum hose (B) (1999-2001 models).

17. Disconnect the powertrain control module (PCM)

connectors from the PCM.

18. Remove the engine wire harness clamps (A).

19. Loosen the grommet mounting nuts (B), and turn

the grommet (C) counterclockwise, then pull out
the PCM connectors.

(cont’d)

03/07/29 09:09:11 61S0X050_050_0005
