Honda Odyssey 2004. Manual - part 27





01

01

*01

*02

S0X4AZ4A14100012925MAAT00

1999-2001 models

23 N·m (2.3 kgf·m, 17 lbf·ft)

4-28

Charging System

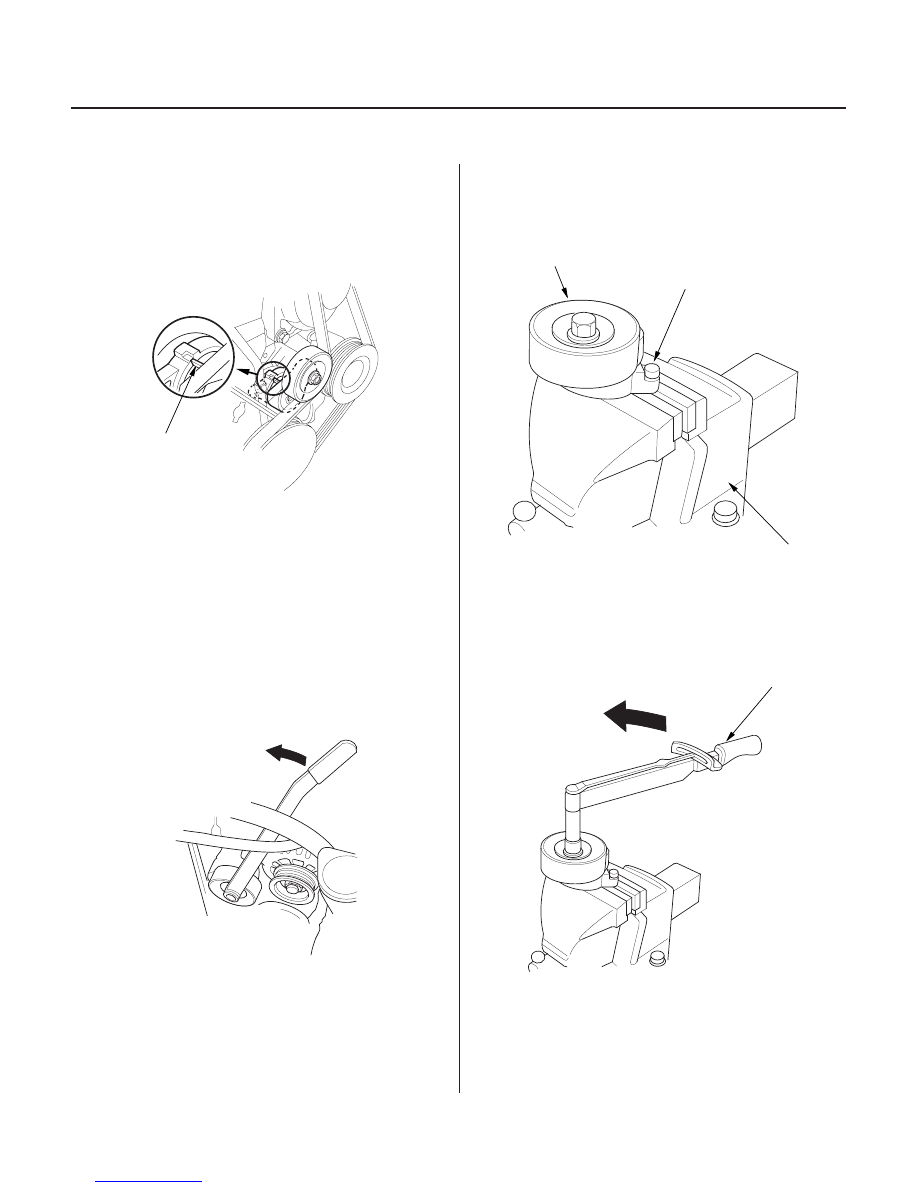

Auto-tensioner Inspection

A

A

B

C

A

1. Check the position of the auto-tensioner indicator’s

pointer (A) with the engine not running. Start the
engine, then check the position of the pointer again.
If the position changes, replace the auto-tensioner.

2. Check for abnormal noise from the tensioner pulley.

If you hear abnormal noise, replace the auto-
tensioner pully (see page 4-31).

3. Remove the alternator-compressor belt (see page

4-26).

4. Move the auto-tensioner back and forth within its

limit with the wrench in the direction shown. Check
that the tensioner moves smoothly and without any
abnormal noise. If the tensioner does not move
smoothly or there is abnormal noise, replace the
auto-tensioner.

5. Remove the auto-tensioner (see page 4-29).

6. Clamp the auto-tensioner (A) by using two bolts

(6 mm diameter) (B) and vise (C) as shown. Do not
clamp the auto-tensioner itself.

7. Attach a torque wrench (A) to the pulley bolt.

Measure the torque when the tensioner is turned
counterclockwise. If the torque is less than
specified value, replace the auto tensioner.

03/07/29 09:07:33 61S0X050_040_0028

02

03

S0X4AZAA14100012925MAAT00

*01

S0X4AZ4A14100012925KBAT00

2002-2004 models

1999-2001 models

4-29

4-29

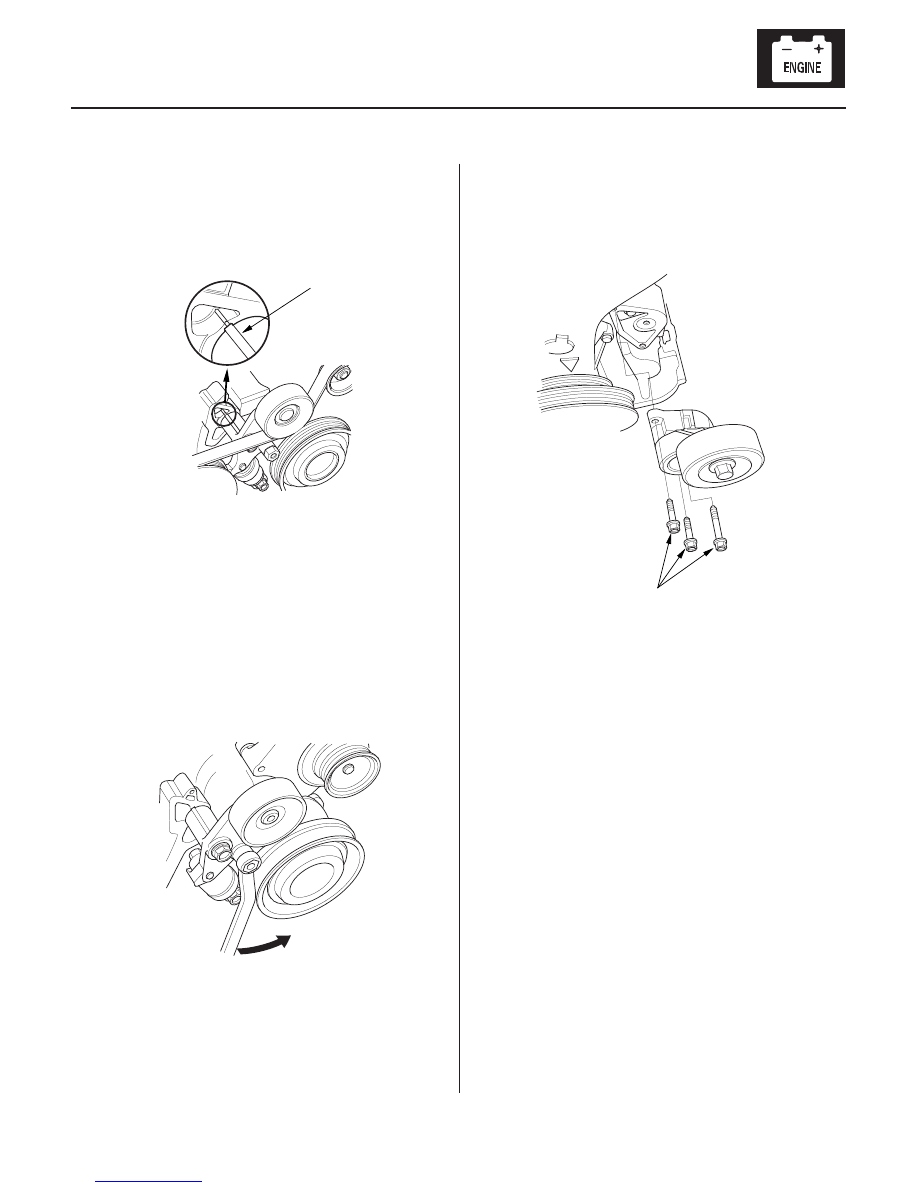

Auto-tensioner Replacement

A

6 x 1.0 mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft)

1. Check the position of the auto-tensioner indicator’s

pointer (A) with the engine not running. Start the
engine, then check the position of the pointer again.
If the position changes, replace the auto-tensioner.

2. Check for abnormal noise from the tensioner pulley.

If you hear abnormal noise, replace the auto-
tensioner.

3. Remove the alternator-compressor belt (see page

4-26).

4. Move the auto-tensioner back and forth within its

limit with the wrench in the direction shown. Check
that the tensioner moves smoothly and without any
abnormal noise. If the tensioner does not move
smoothly or there is abnormal noise, replace the
auto-tensioner.

1. Remove the alternator-compressor belt (see page

4-26).

2. Remove the auto-tensioner.

3. Install the auto-tensioner in the reverse order of

removal.

03/07/29 09:07:34 61S0X050_040_0029

01

02

03

S0X4AZAA14100012925KBAT00

2002-2004 models

Specified Torque:
64 N·m (6.5 kgf·m, 47 lbf·ft)

4-30

Charging System

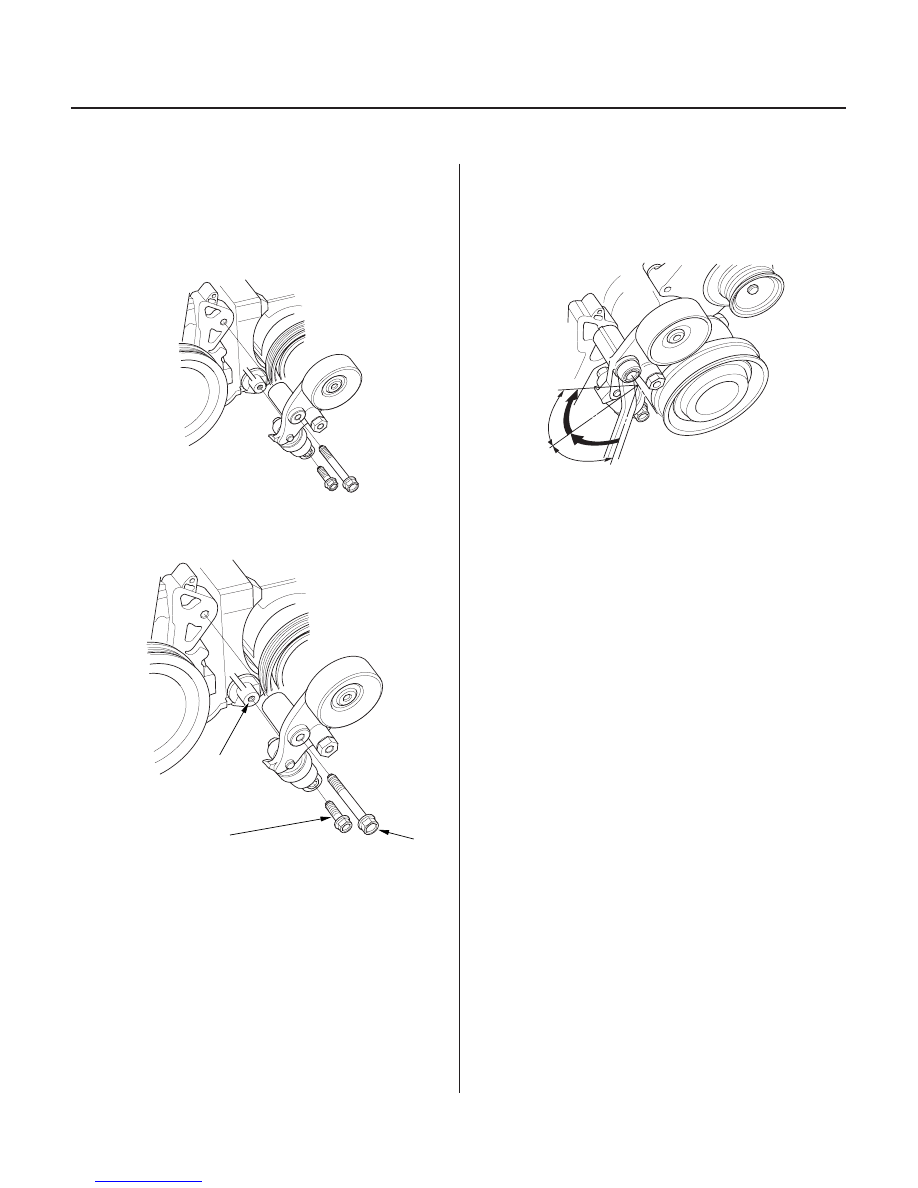

Auto-tensioner Replacement (cont’d)

C
8 x 1.25 mm
22 N·m (2.2 kgf·m,
16 lbf·ft)

A

B

45°

45°

1. Remove the alternator-compressor belt (see page

4-26).

2. Remove the auto-tensioner.

3. Clean the tensioner and pivot bolt (A), and clean the

threads of the pivot bolt hole (B) with a tap.

4. Install the auto-tensioner and tighten the mounting

bolt (C), then screw the pivot bolt in by hand until it
is finger-tight.

5. After tightening, tighten the pivot bolt in two steps

(45° per step).

03/07/29 09:07:35 61S0X050_040_0030

*01

S0X4AZ4A14100012927KBAT00

1999-2001 models

4-31

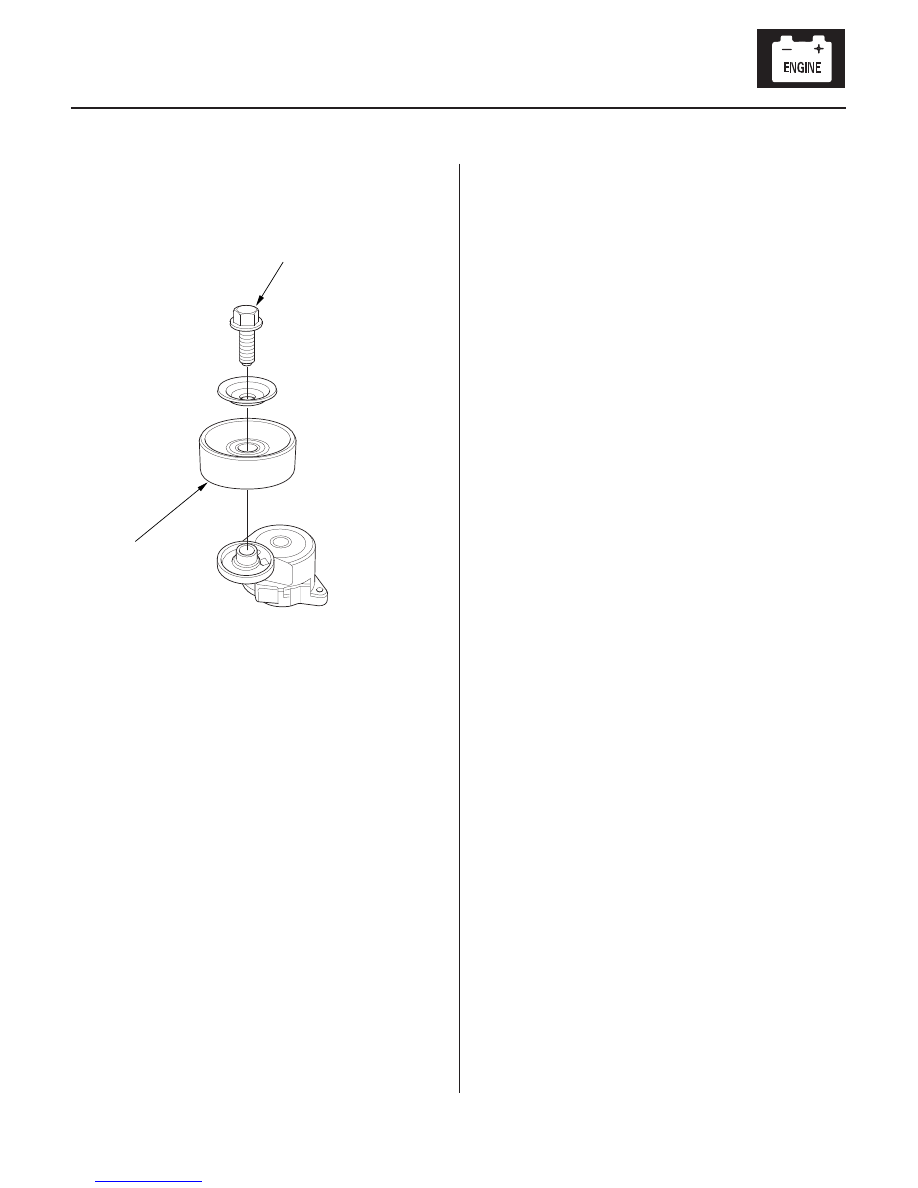

Tensioner Pulley Replacement

A
38 N·m (3.9 kgf·m, 28 lbf·ft)

B

Remove the pulley bolt (A) (left-hand threads), and
replace the tensioner pulley (B).

03/07/29 09:08:08 61S0X050_040_0031
