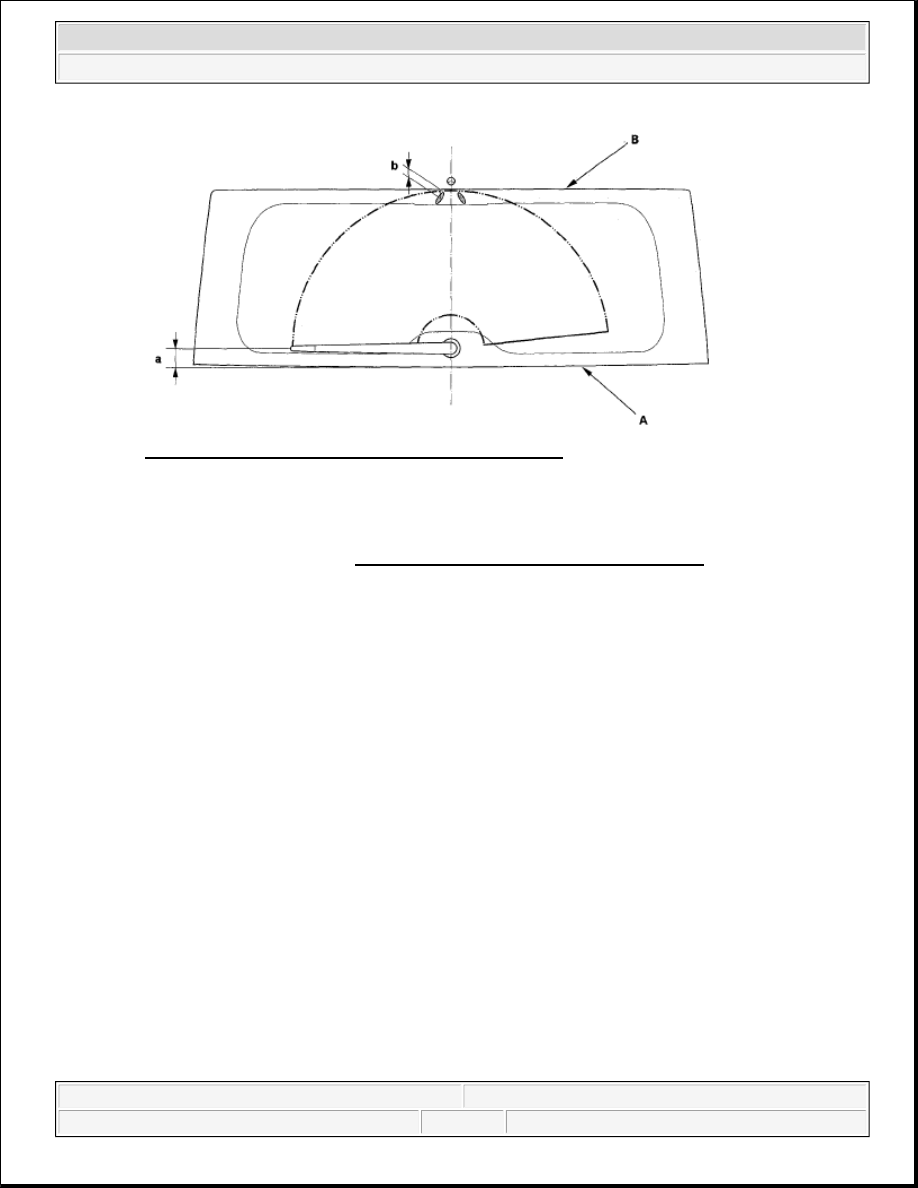

Fig. 26: Identifying Wiper Arm/Nozzle Position - Rear
Courtesy of AMERICAN HONDA MOTOR CO., INC.

WASHER TUBE REPLACEMENT

1. Remove the right inner fender (see FRONT INNER FENDER REPLACEMENT ).

2. Remove the washer nozzles and clips, then remove the tubes.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Wipers/Washers - Element

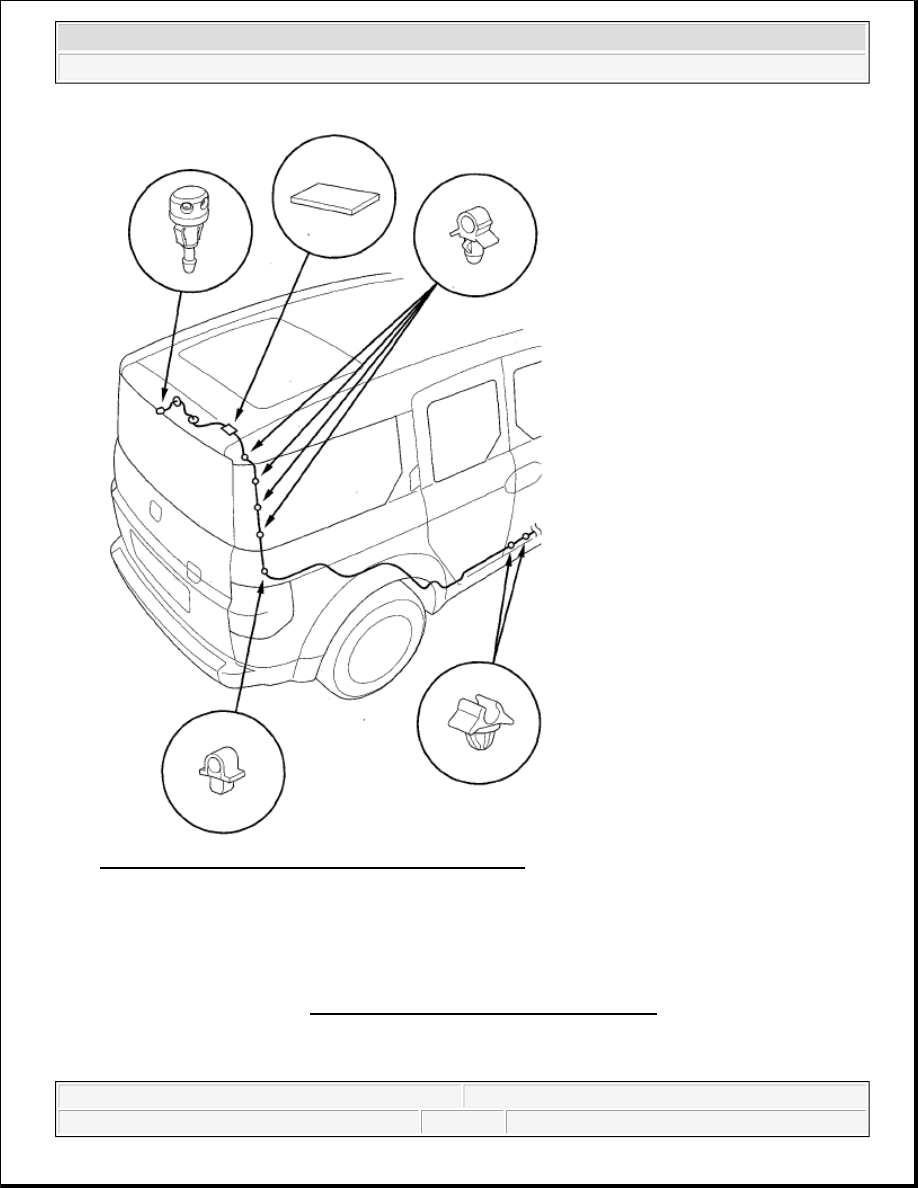

Fig. 27: Identifying Washer Tube Replacement (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Wipers/Washers - Element

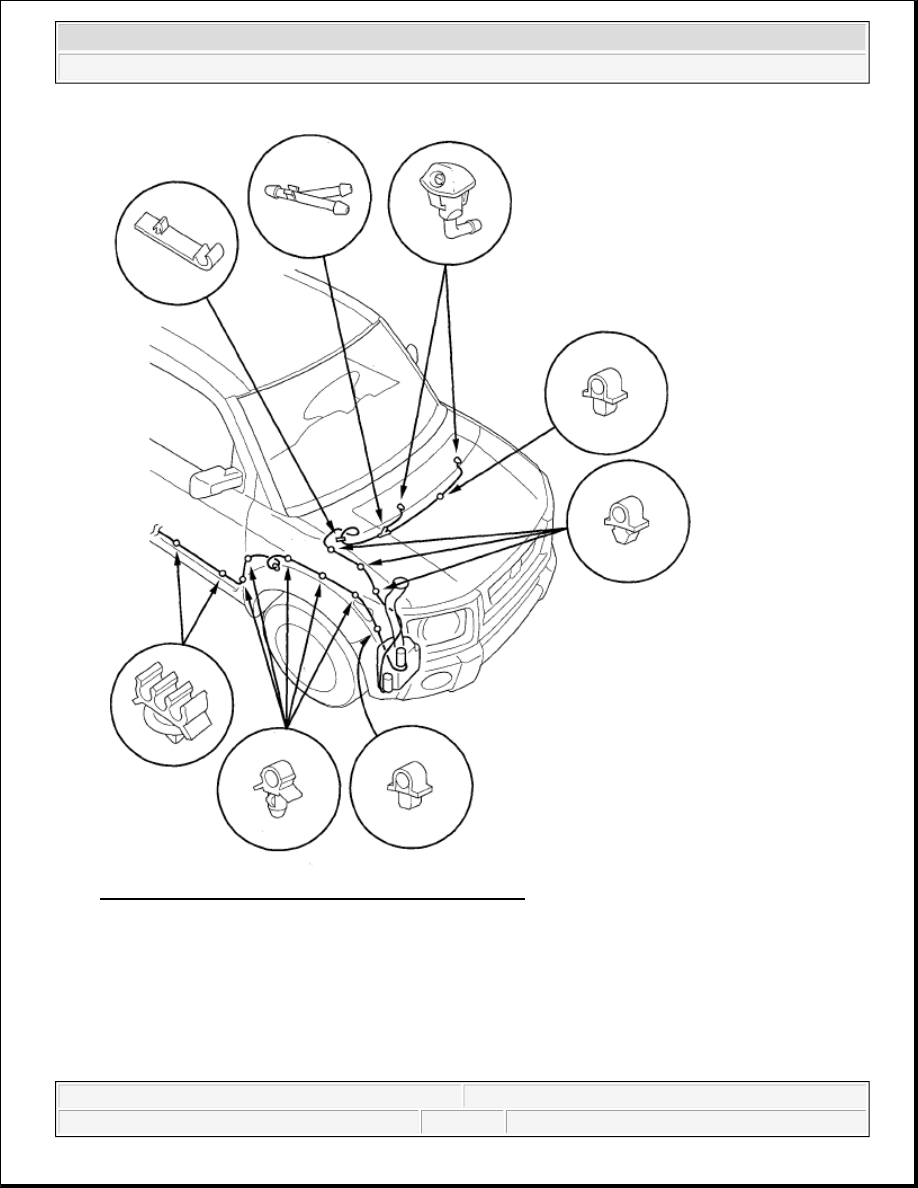

Fig. 28: Identifying Washer Tube Replacement (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install in the reverse order of removal. Take care not to pinch the washer tubes. Check the washer

operation.

WASHER RESERVOIR REPLACEMENT

NOTE:

Make sure the washer tube is routed behind the side curtain airbag tether
strap (see SIDE CURTAIN AIRBAG REPLACEMENT ).



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Wipers/Washers - Element



1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).

2. Disconnect the washer tubes (A).

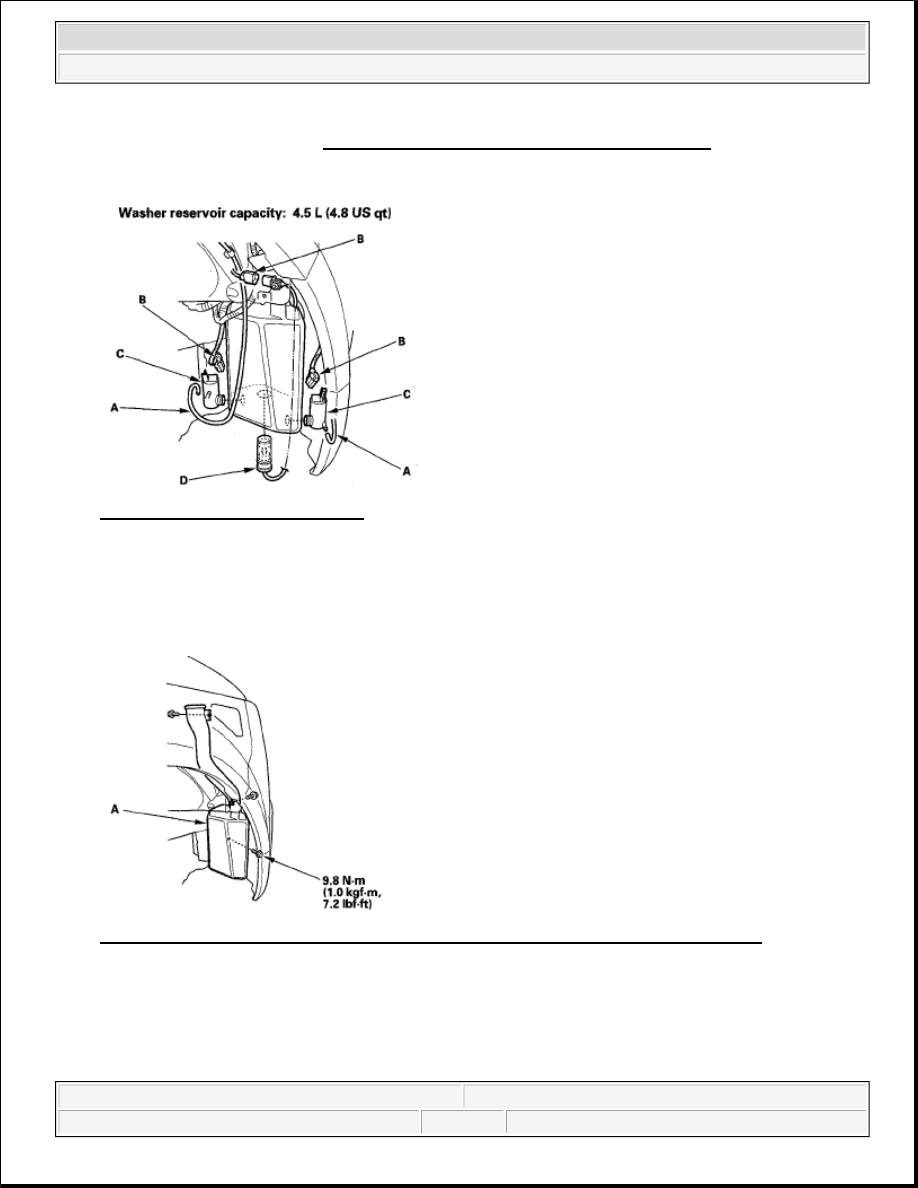

Fig. 29: Identifying Washer Tubes
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Disconnect the 2P connectors (B) from the washer motors (C) and the washer fluid level switch (D)

(Canada models).

4. Remove the three mounting bolts and washer reservoir (A).

Fig. 30: Identifying Mounting Bolts And Washer Reservoir With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Install in the reverse order of removal. Make sure the washer motors operate properly.
