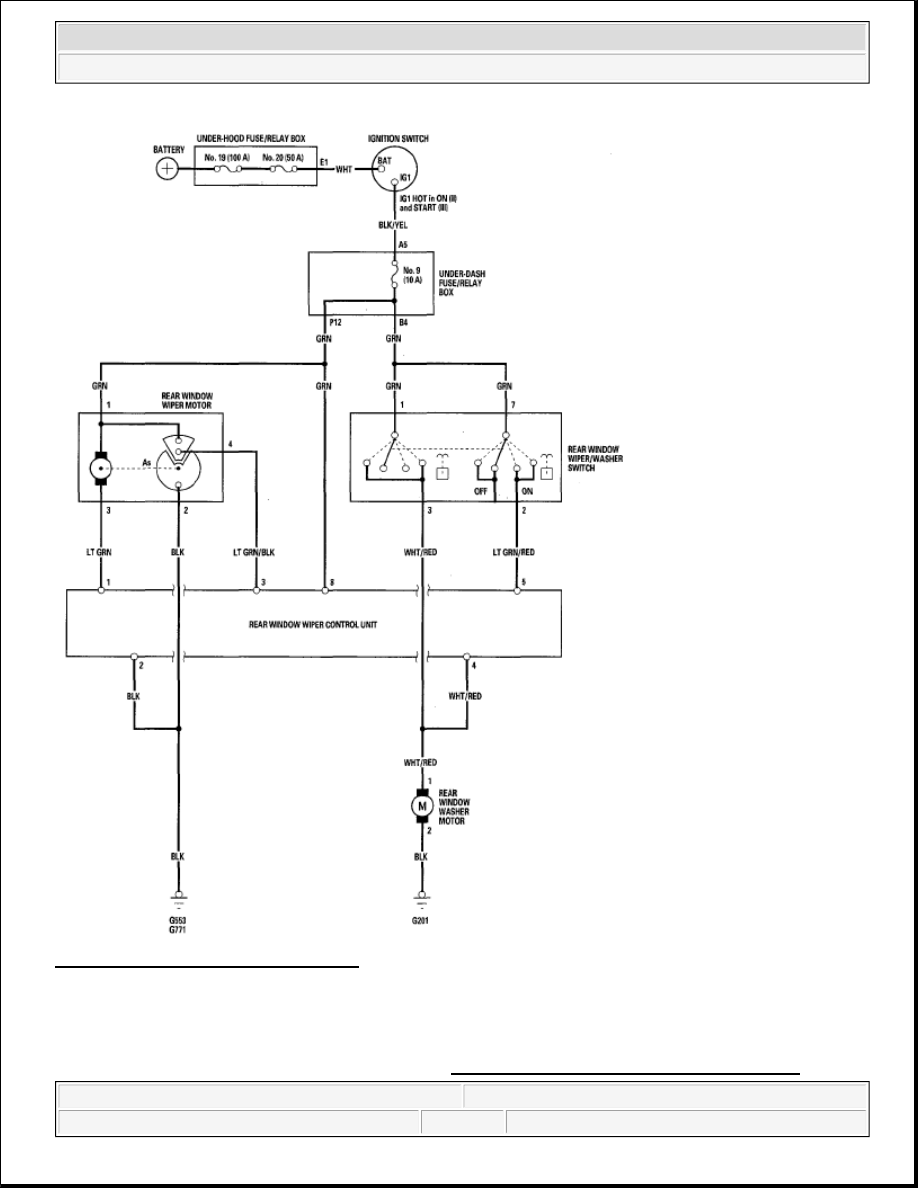

Fig. 4: Rear Window - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

WIPER/WASHER SWITCH TEST/REPLACEMENT

1. Remove the driver's dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Wipers/Washers - Element



REMOVAL/INSTALLATION ).

2. Remove the steering column covers (see STEERING COLUMN REMOVAL AND

INSTALLATION ).

3. Disconnect the 14P connector (A) from the wiper/washer switch (B).

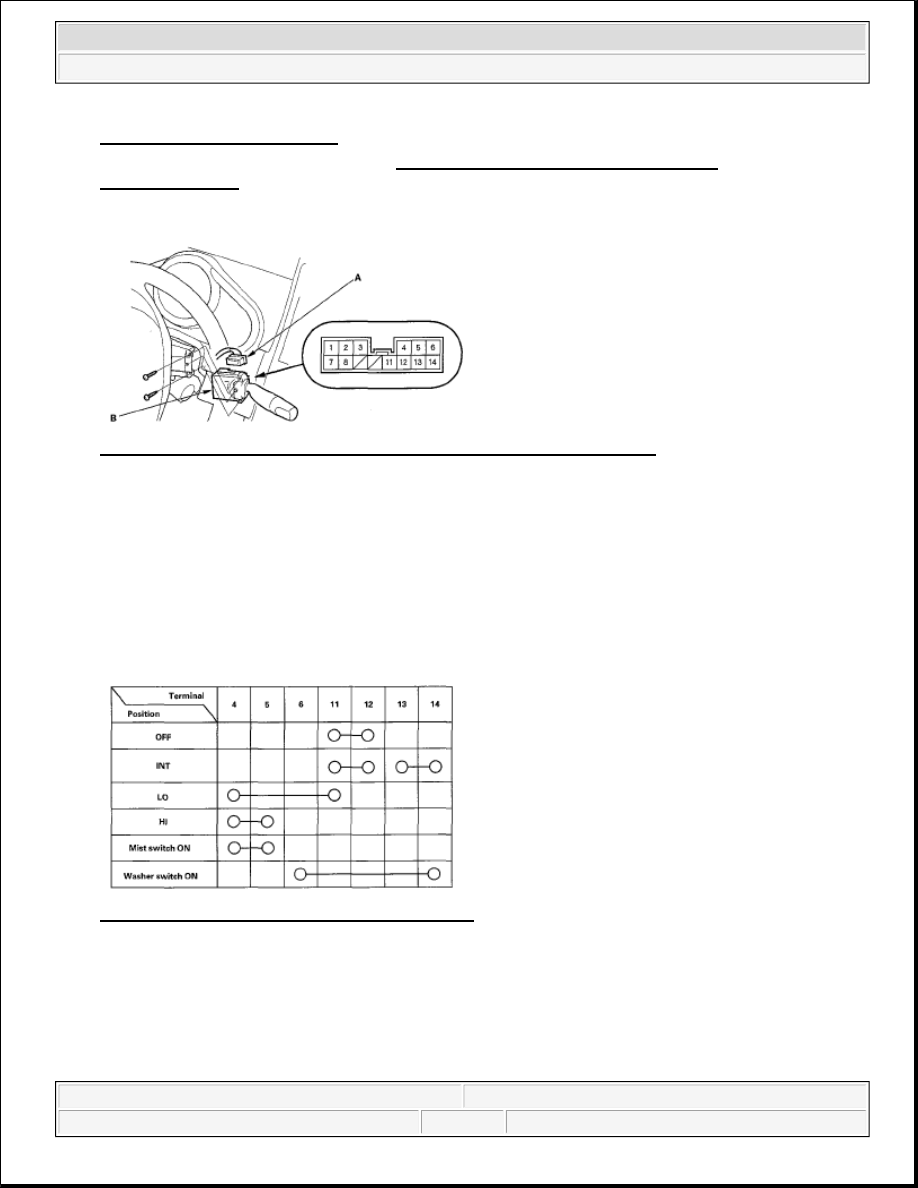

Fig. 5: Identifying 14P Connector And Wiper/Washer Switch Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Remove the two screws, then pull out the wiper/washer switch.

5. Inspect the connector terminals to be sure they are all making good contact.

If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.

If the terminals look OK, check for continuity between the terminals in each switch position
according to the tables. If the continuity is not as specified, replace the switch.

Windshield

Fig. 6: Terminals Continuity Chart - Windshield
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear Window



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Wipers/Washers - Element



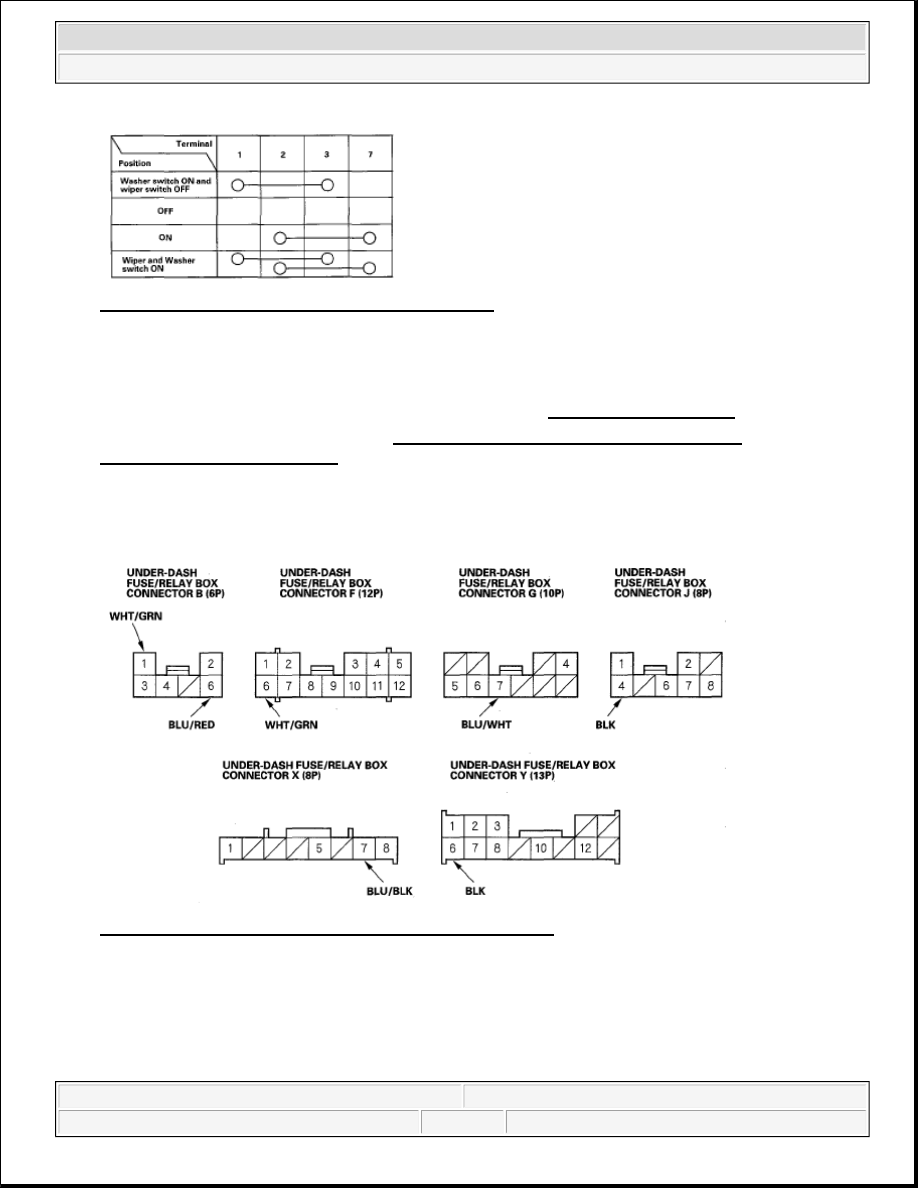

Fig. 7: Terminals Continuity Chart - Rear Window
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CONTROL UNIT INPUT TEST

1. Before testing, troubleshoot the multiplex control system (see TROUBLESHOOTING ).

2. Remove the dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER

REMOVAL/INSTALLATION ).

3. Disconnect the under-dash fuse/relay box connectors B, F, G, J, X and Y.

Fig. 8: Identifying Under-Dash Fuse/Relay Box Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Inspect the connector and socket terminals to be sure they are all making good contact.

If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.

If the terminals are OK, go to step 5.

5. Reconnect the connectors, and make these input tests at the connector.

NOTE:

All connectors are shown from wire side of female terminals.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Wipers/Washers - Element



If any test indicates a problem, find and correct the cause, then recheck the system.

If all the input tests prove OK, the multiplex control unit must be faulty; replace the under-dash
fuse/relay box assembly.

TEST CONDITION

Cavity

Wire

Test condition

Test: Desired result

Possible cause if desired

result is not obtained

J4

BLK

Under all conditions

Measure voltage to
ground: There should
be less than 0.5 V.

Poor ground(G401)

An open in the wire

Y6

BLK

Under all conditions

Measure voltage to
ground: There should
be less than 0.5 V.

Poor ground(G502)

An open in the wire

B1

WHT/GRN

Ignition switch ON (II)
and washer switch ON

Measure voltage to
ground: There should
be battery voltage.

Blown No. 20 (20 A)
fuse in the under-dash
fuse/relay box

Faulty wiper/washer
switch

An open in the wire

X7

BLU/BLK

Ignition switch ON (II)
and wiper switch in INT

Measure voltage to
ground: There should
be battery voltage.

B6

BLU/RED

Ignition switch ON (II),
wiper switch in OFF or
INT, and when the motor
is not in operation.

Measure voltage to
ground: There should
be battery voltage.

Blown No. 20 (20 A)
fuse in the under-dash
fuse/relay box

Faulty wiper/washer
switch

Faulty windshield
wiper motor

An open in the wire

G7

BLU/WHT

Ignition switch ON (II)
and wipers in park
position

Measure voltage to
ground: There should
be battery voltage.

Blown No. 20 (20 A)
fuse in the under-dash
fuse/relay box

Faulty windshield
wiper motor

An open in the wire

B1

F6

WHT/GRN

Jump B1 to F6 terminals,
then ignition switch ON
(II) and washer switch
ON

Check windshield
washer motor
operation: The washer
motor should run.

Poor ground(G201)

Blown No. 20 (20 A)
fuse in the under-dash
fuse/relay box

Faulty wiper/washer
switch

Faulty windshield
washer motor

Faulty under-dash



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Wipers/Washers - Element
