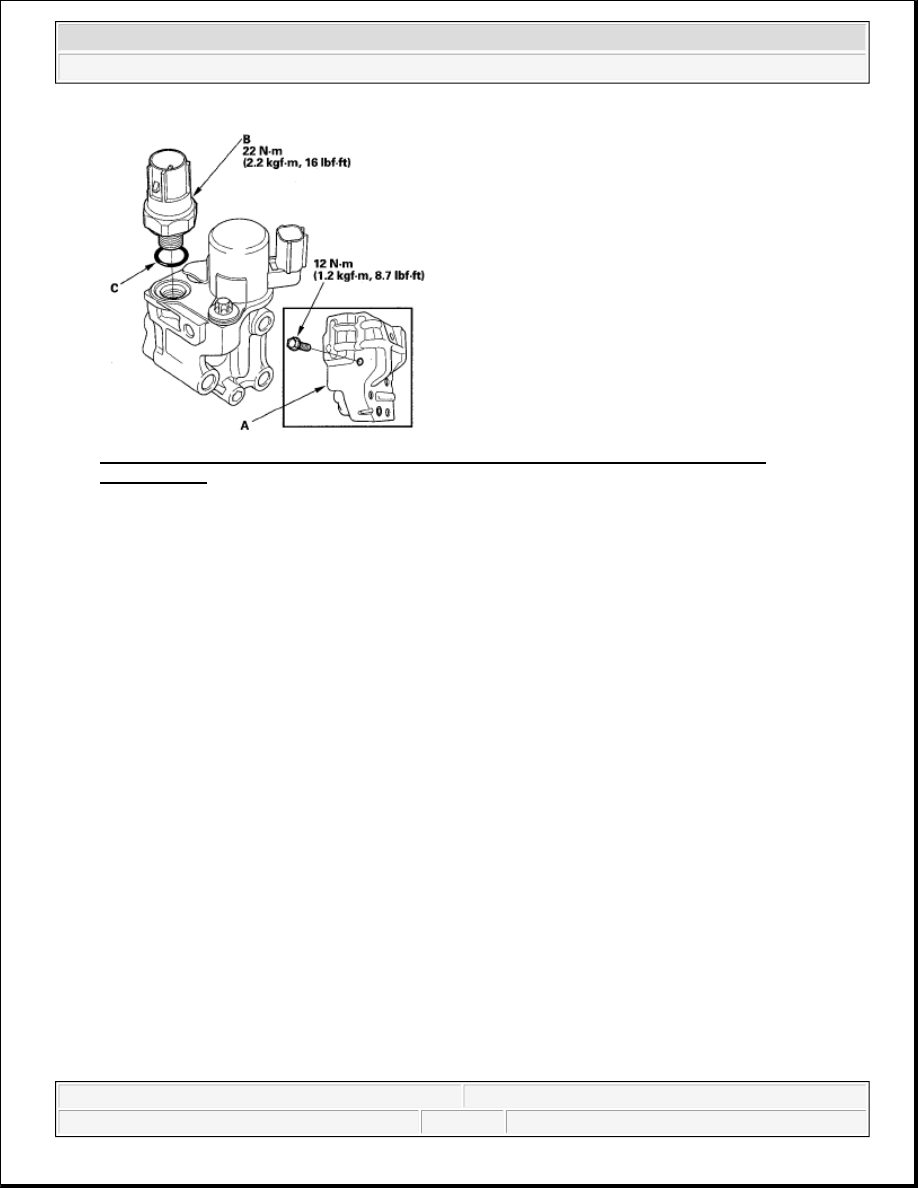

Fig. 32: Identifying Rocker Arm Oil Pressure Switch, O-Ring And Cover With Torque
Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the rocker arm oil pressure switch (B).

4. Install the parts in the reverse order of removal with a new O-ring (C).



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE VTEC/VTC - Element



2007-08 ACCESSORIES AND EQUIPMENT

Wipers/Washers - Element

COMPONENT LOCATION INDEX

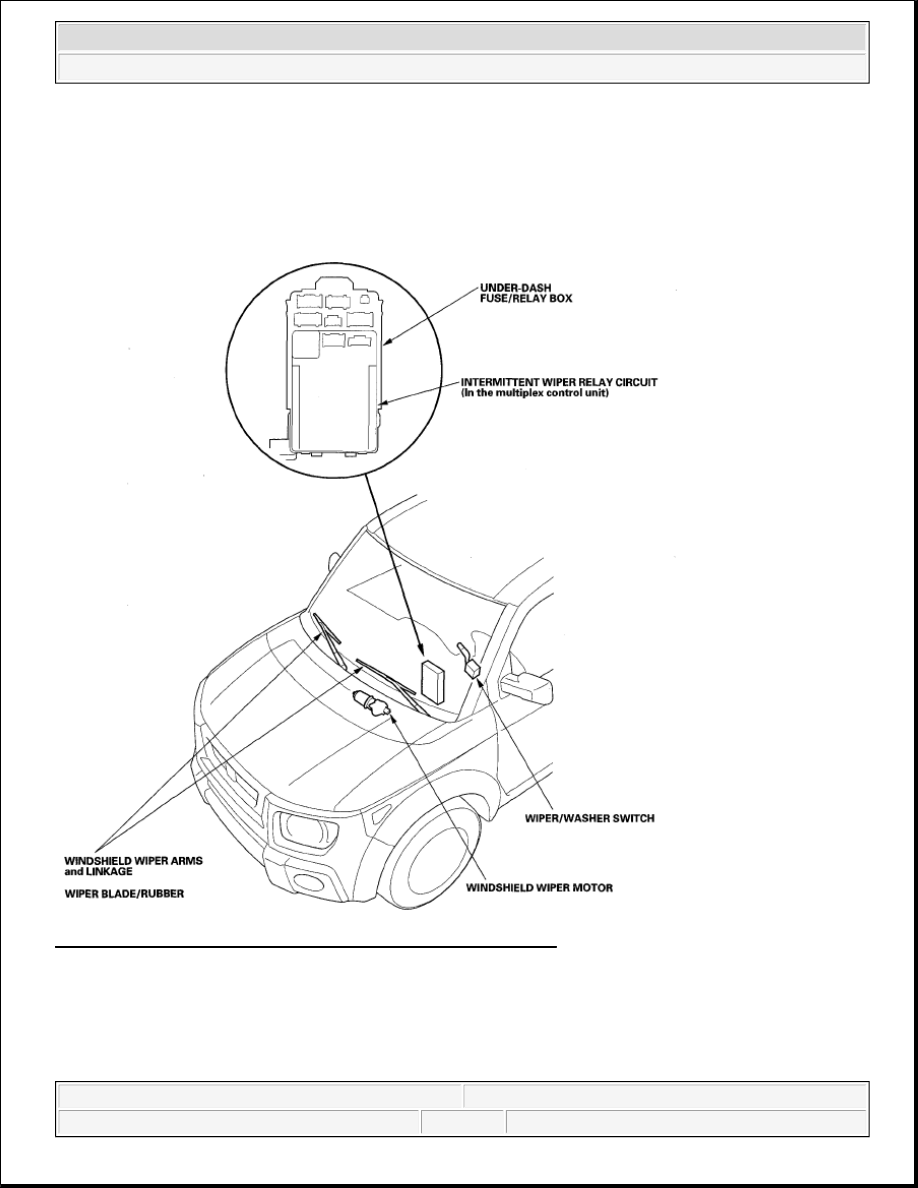

Fig. 1: Identifying Wipers/Washers Component Location (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Wipers/Washers - Element





2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Wipers/Washers - Element

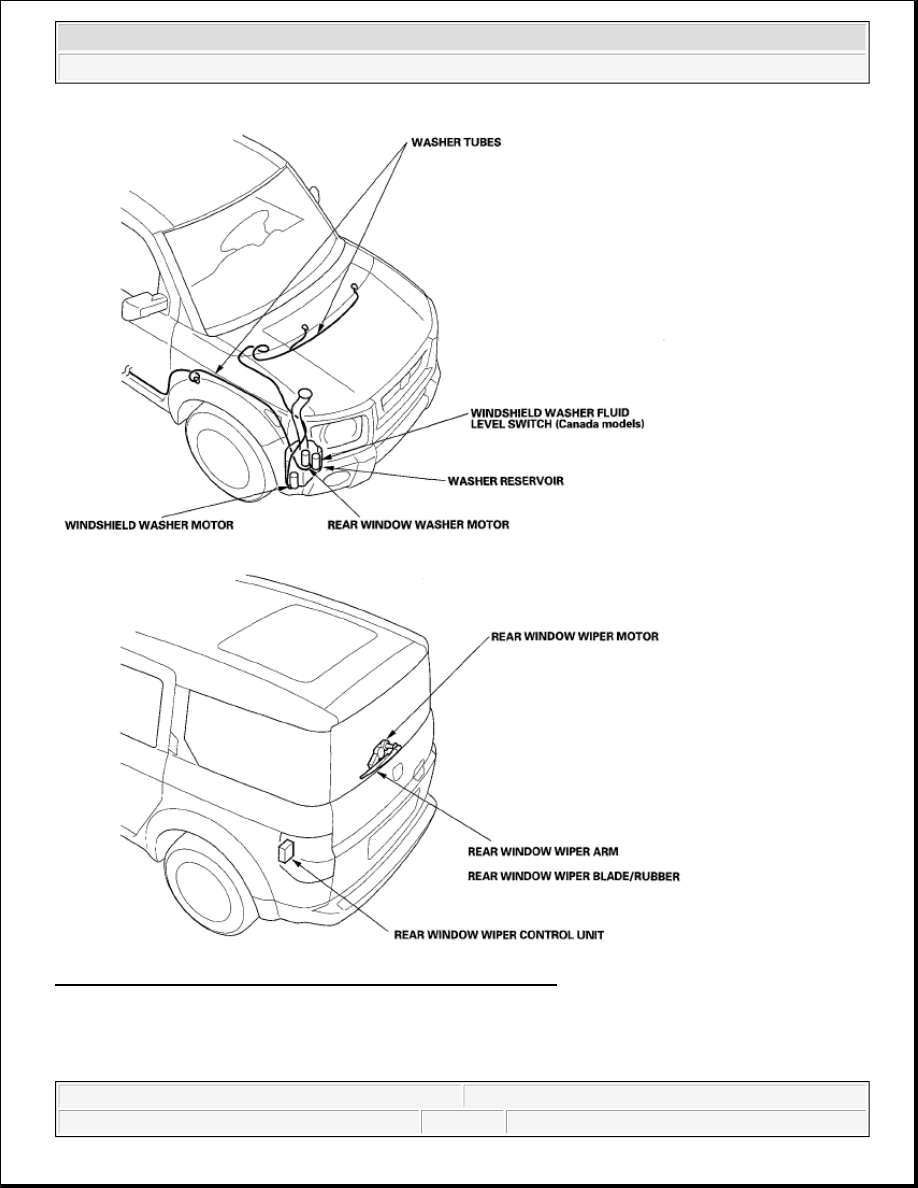

Fig. 2: Identifying Wipers/Washers Component Location (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CIRCUIT DIAGRAM - WINDSHIELD



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Wipers/Washers - Element

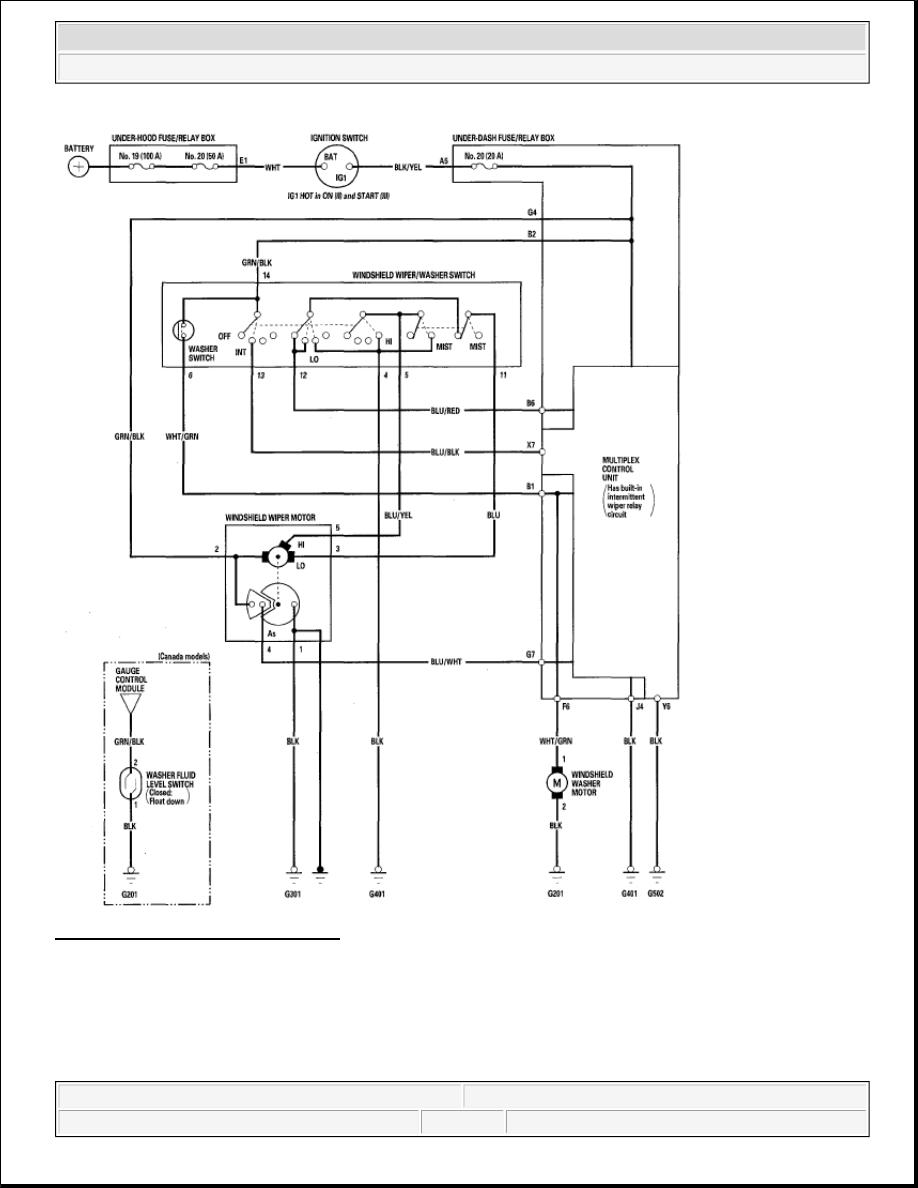

Fig. 3: Windshield - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CIRCUIT DIAGRAM - REAR WINDOW



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Wipers/Washers - Element
