Honda Element. Manual - part 802





REMOVAL AND INSTALLATION ), then go to step 14.

14. Turn the ignition switch ON (II).

15. Reset the ECM/PCM with the HDS.

16. Clear the CKP pattern with the HDS.

17. Do the ECM/PCM idle learn procedure (see ECM/PCM IDLE LEARN PROCEDURE ).

18. Do the CKP pattern learn procedure (see CRANK (CKP) PATTERN CLEAR/CRANK (CKP)

PATTERN LEARN ).

19. Do the VTC TEST in the INSPECTION MENU with the HDS.

20. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P0011 indicated?

YES -Check for poor connections or loose terminals at the VTC oil control solenoid valve and the
ECM/PCM, then go to step 1.

NO -Go to step 21.

21. Monitor the OBD STATUS for DTC P0011 in the DTCs MENU with the HDS.

Does the screen indicate PASSED?

YES -Troubleshooting is complete. If any other Temporary DTCs or DTCs were indicated in step 20, go
to the indicated DTCs troubleshooting.

NO -If the screen indicates FAILED, check for poor connections or loose terminals at the VTC oil control
solenoid valve and the ECM/PCM, then go to step 1. If the screen indicates NOT COMPLETED, go to
step 19.

DTC P0340: CMP SENSOR A NO SIGNAL

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Start the engine.

4. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P0340 indicated?

YES -Go to step 5.

NOTE:

Before you troubleshoot, record all freeze data and any on-board snapshot, and
review the general troubleshooting information (see GENERAL
TROUBLESHOOTING INFORMATION ).



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE VTEC/VTC - Element



NO -Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at
CMP sensor A and the ECM/PCM.

5. Turn the ignition switch OFF.

6. Disconnect the CMP sensor A 3P connector.

7. Turn the ignition switch ON (II).

8. Measure voltage between CMP sensor A 3P connector terminal No. 3 and body ground.

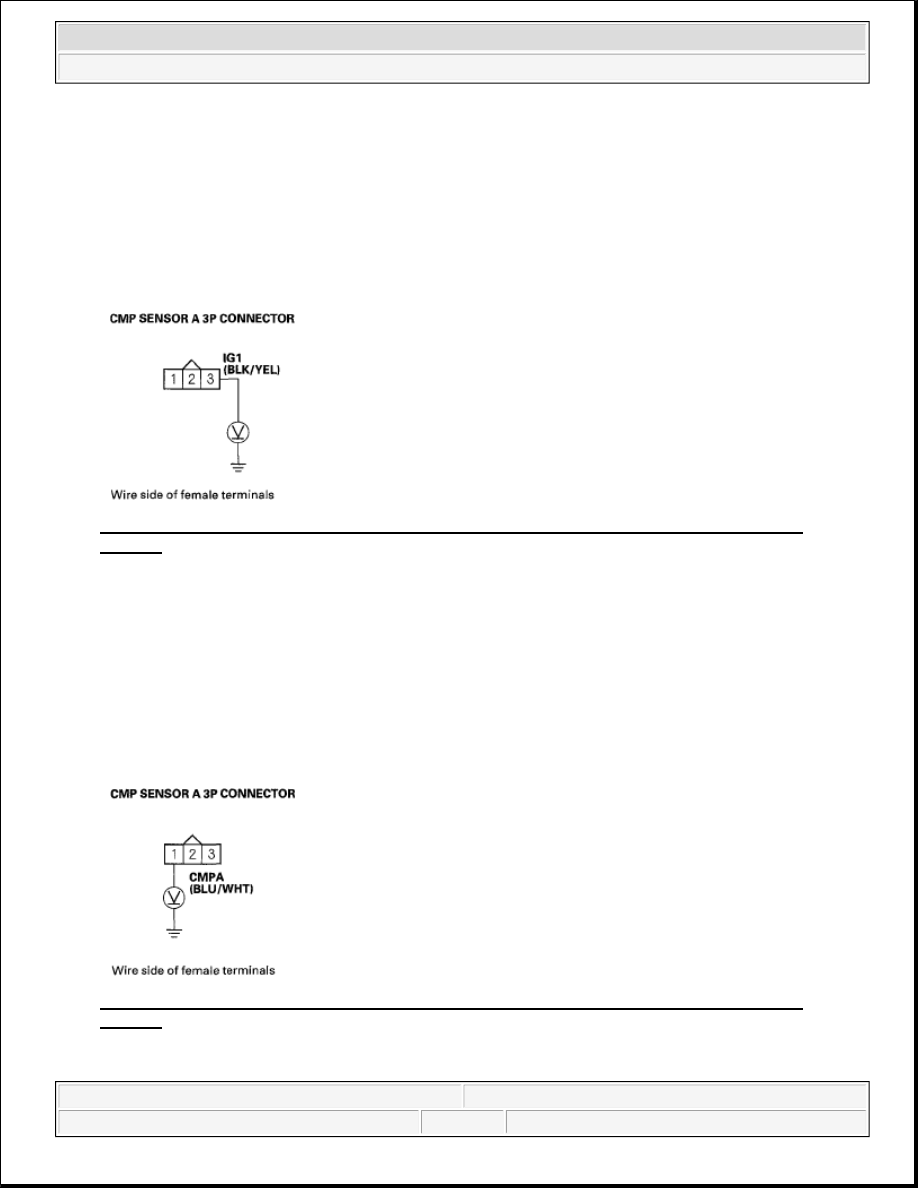

Fig. 8: Measuring Voltage Between CMP Sensor A 3P Connector Terminal No. 3 And Body
Ground

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES -Go to step 9.

NO -Repair open in the wire between the No. 4 ACG (10 A) fuse in the under-dash fuse/relay box and
CMP sensor A, then go to step 18.

9. Measure voltage between CMP sensor A 3P connector terminal No. 1 and body ground.

Fig. 9: Measuring Voltage Between CMP Sensor A 3P Connector Terminal No. 1 And Body
Ground

Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE VTEC/VTC - Element



Is there about 5 V?

YES -Go to step 10.

NO -Go to step 11.

10. Measure voltage between CMP sensor A 3P connector terminals No. 2 and No. 3.

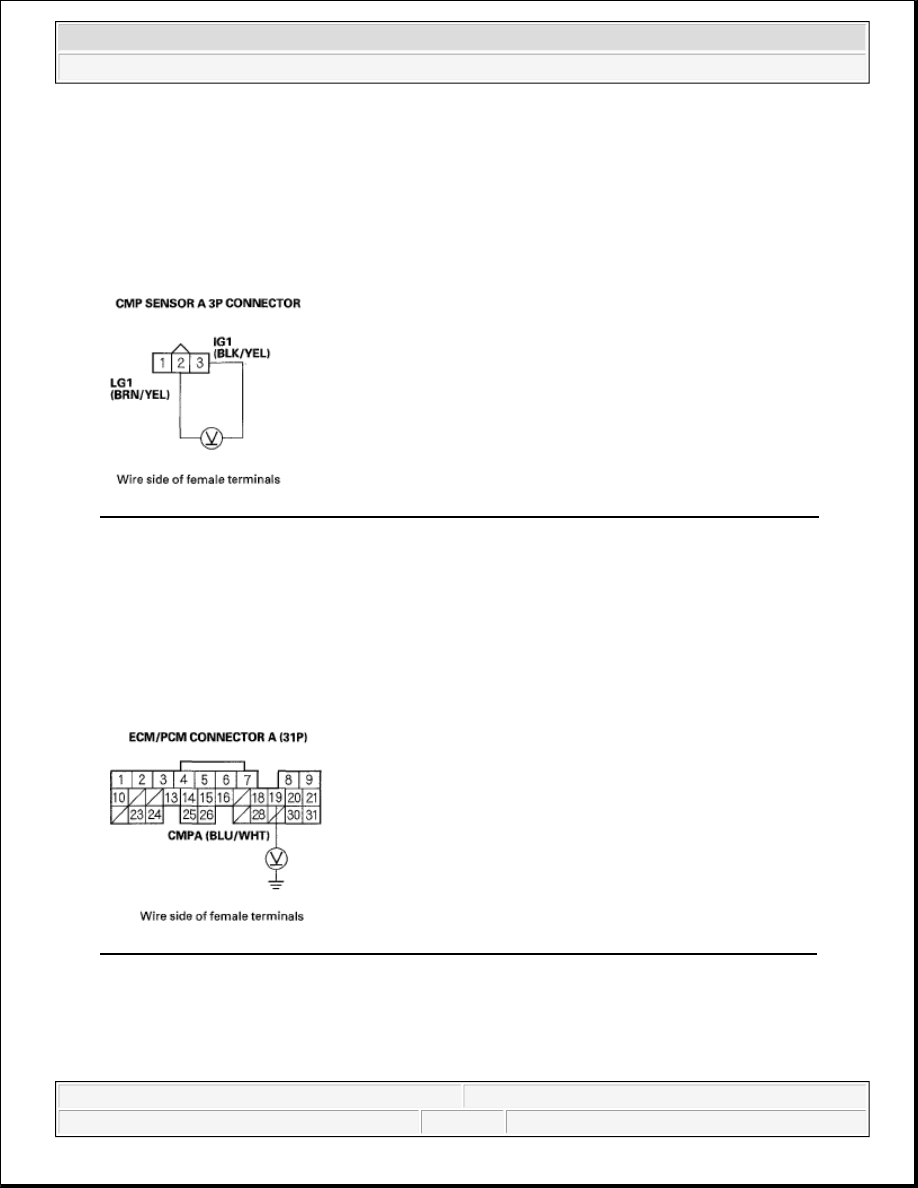

Fig. 10: Measuring Voltage Between CMP Sensor A 3P Connector Terminals No. 2 And No. 3
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES -Go to step 16.

NO -Repair open in the wire between CMP sensor A and G101, then go to step 18.

11. Measure voltage between ECM/PCM connector terminal A19 and body ground.

Fig. 11: Measuring Voltage Between ECM/PCM Connector Terminal A19 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there about 5 V?

YES -Repair open in the wire between the ECM/PCM (A19) and CMP sensor A, then go to step 18.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE VTEC/VTC - Element



NO -Go to step 12.

12. Turn the ignition switch OFF.

13. Jump the SCS line with the HDS.

14. Disconnect ECM/PCM connector A (31P).

15. Check for continuity between ECM/PCM connector terminal A19 and body ground.

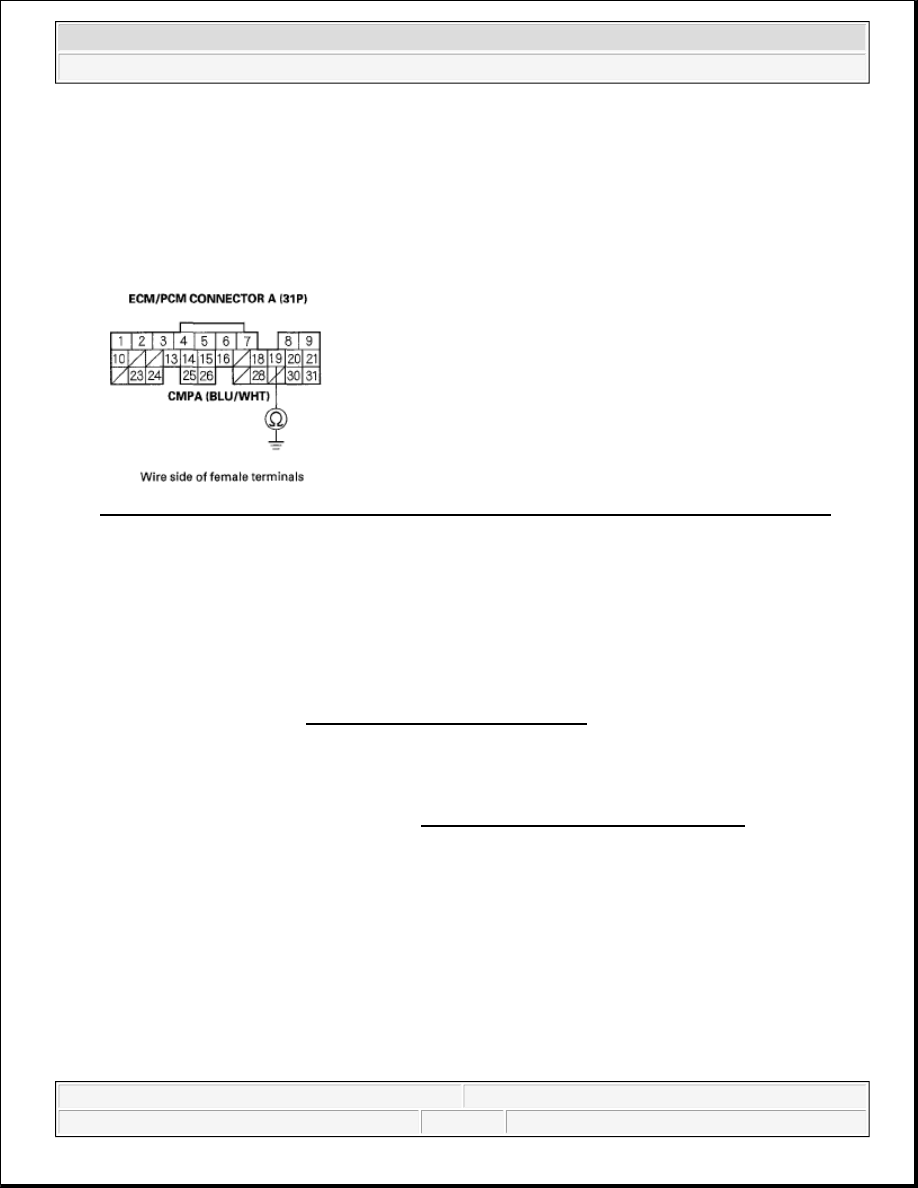

Fig. 12: Checking Continuity Between ECM/PCM Connector Terminal A19 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Repair short in the wire between the ECM/PCM (A19) and CMP sensor A, then go to step 18.

NO -Go to step 24.

16. Turn the ignition switch OFF.

17. Replace CMP sensor A (see CMP SENSOR A REPLACEMENT ).

18. Reconnect all connectors.

19. Turn the ignition switch ON (II).

20. Reset the ECM/PCM with the HDS.

21. Do the ECM/PCM idle learn procedure (see ECM/PCM IDLE LEARN PROCEDURE ).

22. Start the engine.

23. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P0340 indicated?

YES -Check for poor connections or loose terminals at CMP sensor A and the ECM/PCM, then go to step
1.

NO -Troubleshooting is complete. If any other Temporary DTCs or DTCs are indicated, go to the
indicated DTCs troubleshooting.

24. Reconnect all connectors.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE VTEC/VTC - Element
