Fig. 55: Identifying Data Link Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Turn the ignition switch ON (II).

4. Make sure the HDS communicates with the vehicle and the VSA modulator-control unit. If it doesn't,

troubleshoot the DLC circuit (see DLC CIRCUIT TROUBLESHOOTING ).

5. Do the VSA sensor neutral position memorization in the VSA ADJUSTMENT with the HDS.

6. Turn the ignition switch OFF.

VSA OFF SWITCH TEST

1. Make sure the ignition switch OFF.

2. Remove the driver's dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER

REMOVAL/INSTALLATION ).

3. Push out the VSA OFF switch (A) from the back of the instrument panel.

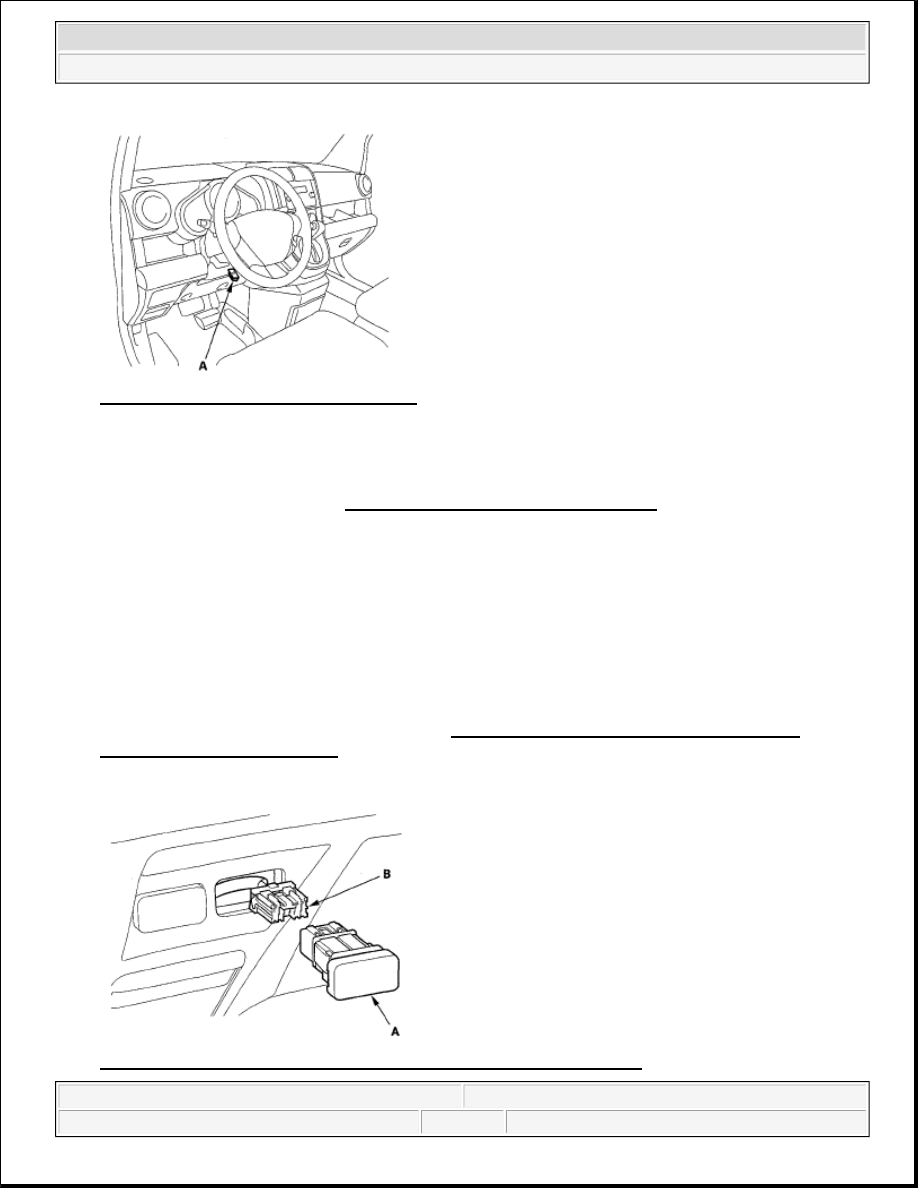

Fig. 56: Pushing Out VSA Off Switch From Back Of Instrument Panel

NOTE:

See the HDS Help menu for specific instructions.



2007 Honda Element EX

2007-2008 BRAKES VSA (Vehicle Stability Assist) System Components - Element



Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Disconnect the VSA OFF switch 10P connector (B).

5. Check for continuity between VSA OFF switch 10P connector terminals No. 2 and No. 3. There should

be continuity when the switch is pressed, and no continuity when the switch is released.

Fig. 57: Identifying VSA Off Switch 10P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Check for continuity between VSA OFF switch 10P connector terminals No. 5 and No. 6. There should

be continuity at all times.

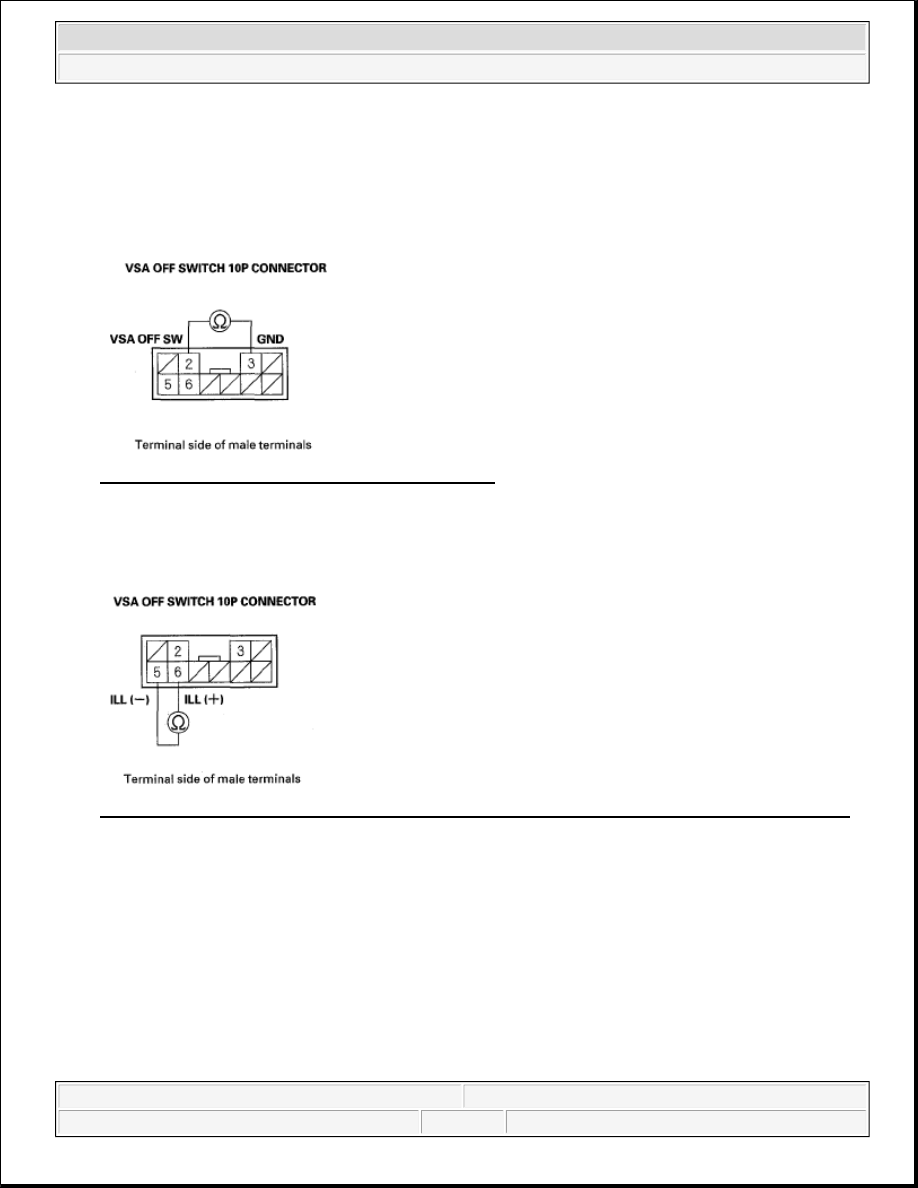

Fig. 58: Checking Continuity Between VSA Off Switch 10P Connector Terminals No. 5 And No. 6
Courtesy of AMERICAN HONDA MOTOR CO., INC.

VSA MODULATOR-CONTROL UNIT REMOVAL AND INSTALLATION

NOTE:

Do not spill brake fluid on the vehicle; it may damage the paint; if brake
fluid gets on the paint, wash it off immediately with water.

Be careful not to damage or deform the brake lines during removal and
installation.

To prevent the brake fluid from flowing, plug and cover the hose ends and
joints with a shop towel or equivalent material.



2007 Honda Element EX

2007-2008 BRAKES VSA (Vehicle Stability Assist) System Components - Element



REMOVAL

1. Make sure the ignition switch OFF.

2. Disconnect the VSA modulator-control unit 47P connector (A) by pushing the lock (B) and pulling up the

lever (C); the connector disconnects itself.

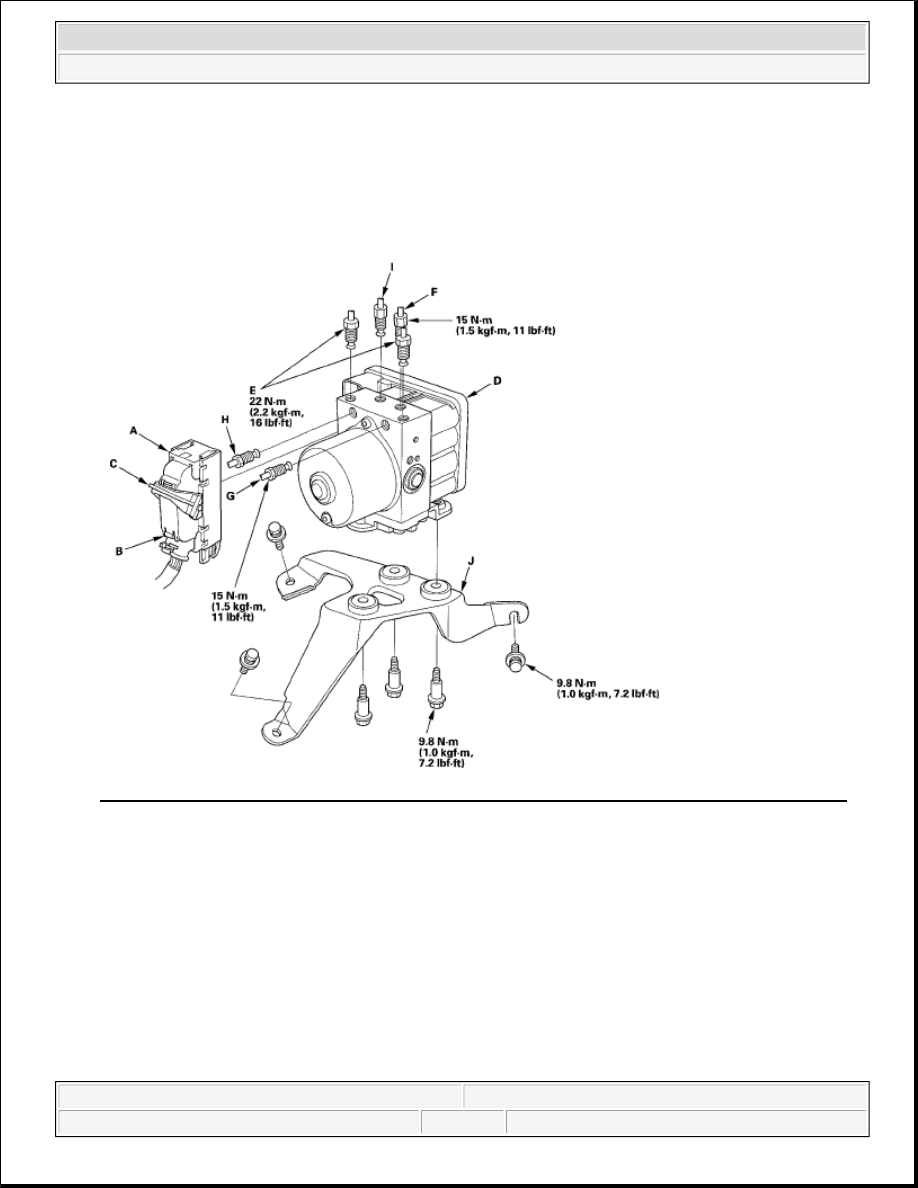

Fig. 59: Disconnecting VSA Modulator - Control Unit 47P Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Disconnect the six brake lines from the VSA modulator-control unit (D).

4. Remove the VSA modulator-control unit with the bracket (J) from the body.

5. Remove the VSA modulator-control unit from the bracket.

Installation

1. Install the VSA modulator-control unit on the bracket.

NOTE:

Brake lines are connected to the master cylinder (E) and to the right-front
(F), the left-rear (G), the right-rear (H), and the left-front (I) brake systems.



2007 Honda Element EX

2007-2008 BRAKES VSA (Vehicle Stability Assist) System Components - Element



2. Install the bracket with the VSA modulator-control unit to the body.

3. Reconnect the six brake lines, then tighten the flare nuts to the specified torque.

4. Align the connecting surface of the VSA modulator-control unit 47P connector to the VSA modulator-

control unit.

5. Lower the lock of the VSA modulator-control unit 47P connector, then confirm the connector is fully

seated.

6. Bleed the brake system (see BRAKE SYSTEM BLEEDING ).

7. Do the VSA sensor neutral position memorization (see VSA SENSOR NEUTRAL POSITION

MEMORIZATION ).

8. Start the engine, and check that the ABS and VSA indicators go off.

9. Test-drive the vehicle, and check that the ABS and VSA indicators do not come on.

WHEEL SENSOR REPLACEMENT

FRONT

1. Make sure the ignition switch OFF.

2. Remove the bracket (A), then disconnect the wheel sensor connector (B).

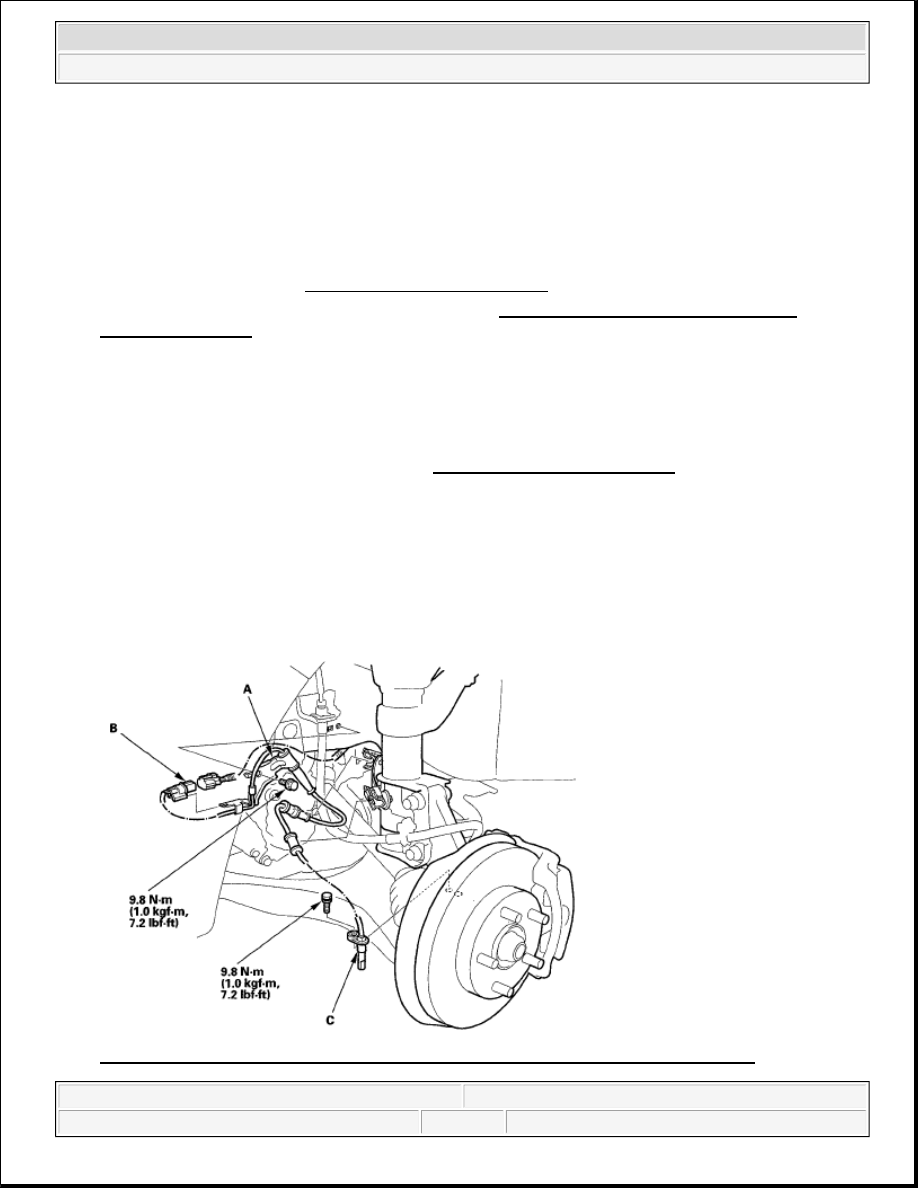

Fig. 60: Removing Bracket And Wheel Sensor Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE:

If the brake pedal is spongy, there may be air trapped in the modulator and
then induced into the normal brake system during modulation. Bleed the
brake system again (see BRAKE SYSTEM BLEEDING ).



2007 Honda Element EX

2007-2008 BRAKES VSA (Vehicle Stability Assist) System Components - Element
