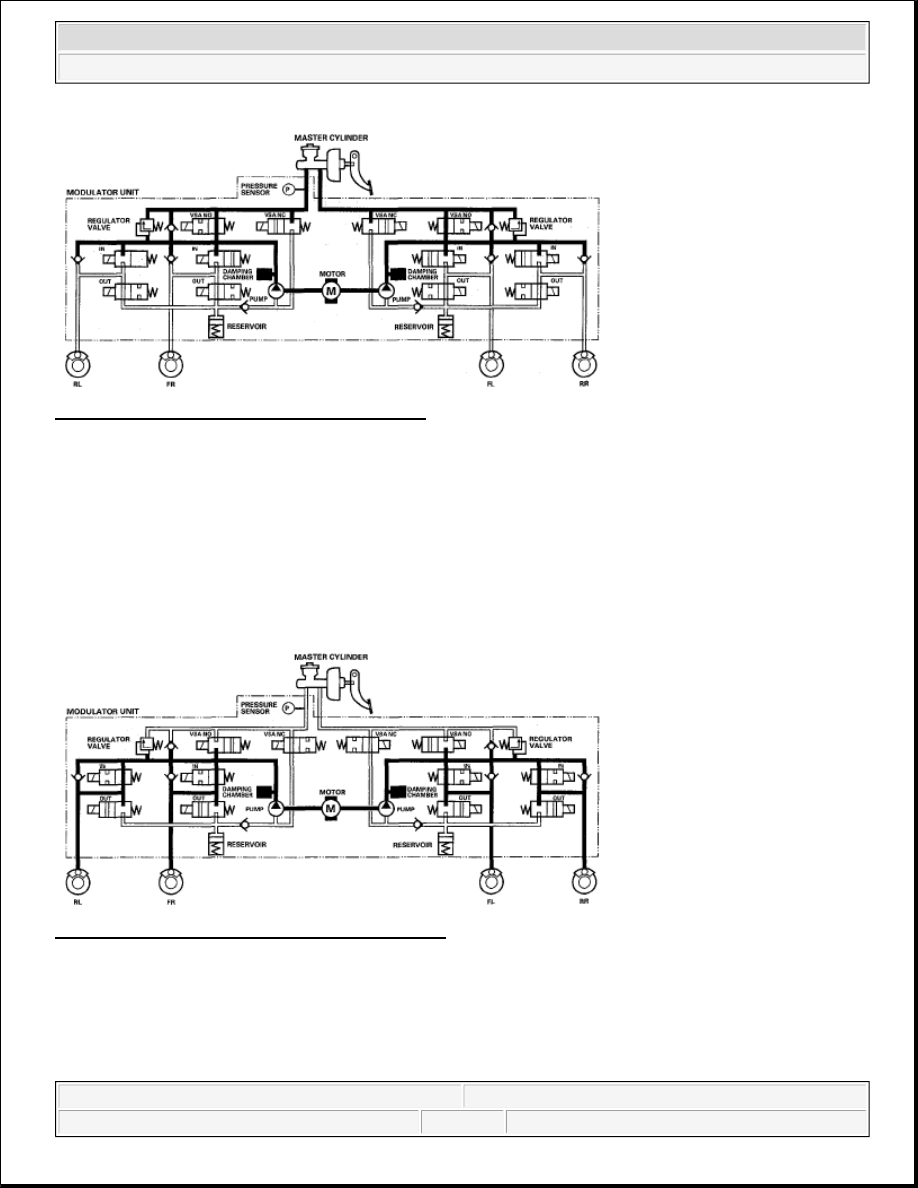

Fig. 17: TCS Control - Pressure Reducing Mode
Courtesy of AMERICAN HONDA MOTOR CO., INC.

VSA CONTROL

Pressure Intensifying Mode

VSA NO valve closed, VSA NC valve open, inlet valve open, outlet valve closed, pump motor ON.

The reservoir and master cylinder fluid is pumped out by the pump, through the damping chamber, to the front
and rear calipers.

Fig. 18: VSA Control - Pressure Intensifying Mode
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Pressure Retaining Mode

VSA NO valve closed, VSA NC valve open, inlet valve closed, outlet valve closed, pump motor ON.

Front and rear caliper fluid is retained by the inlet valve and outlet valve.



2007 Honda Element EX

2007-2008 BRAKES VSA (Vehicle Stability Assist) System Components - Element

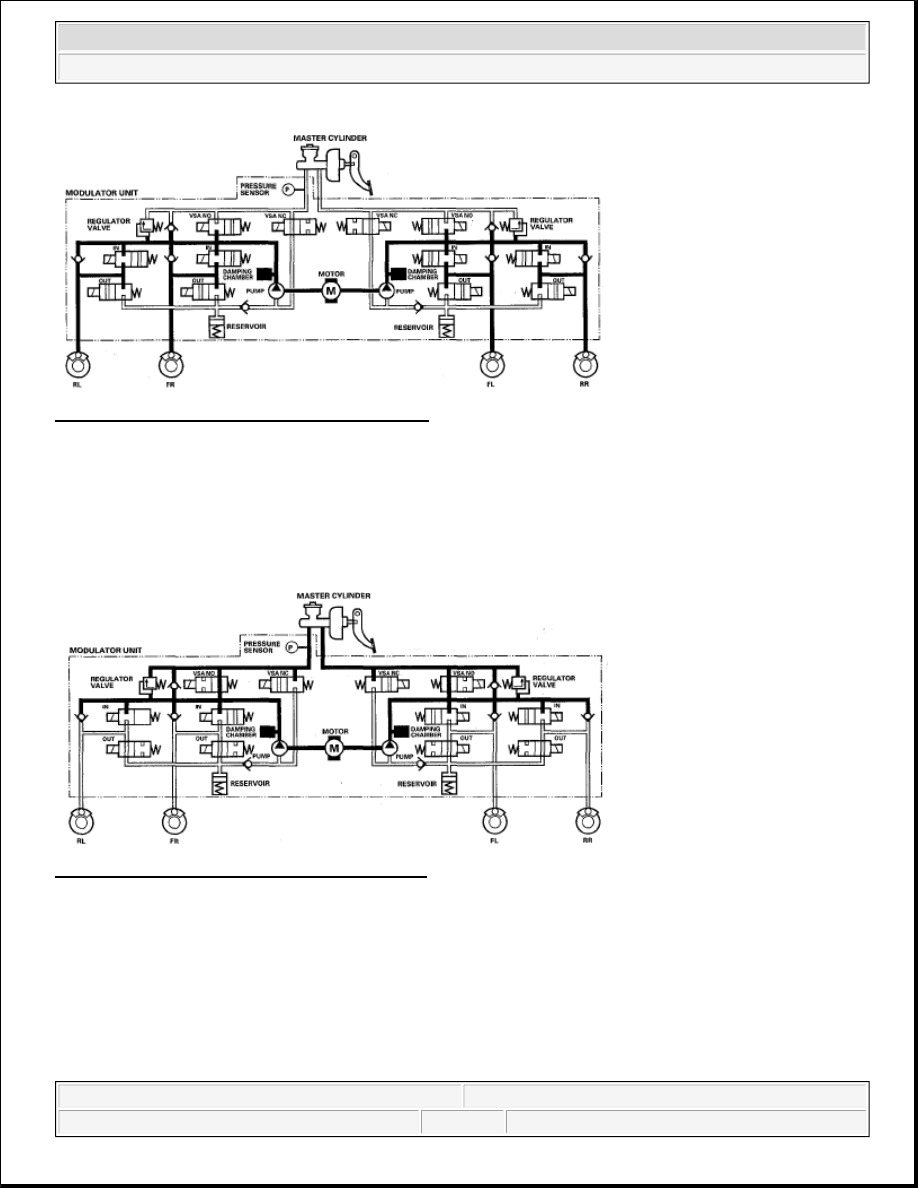

Fig. 19: VSA Control - Pressure Retaining Mode
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Pressure Reducing Mode

VSA NO valve open, VSA NC valve closed, inlet valve closed, outlet valve open, pump motor ON.

Caliper fluid flows through the outlet valve to the reservoir.

Fig. 20: VSA Control - Pressure Reducing Mode
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CIRCUIT DIAGRAM



2007 Honda Element EX

2007-2008 BRAKES VSA (Vehicle Stability Assist) System Components - Element

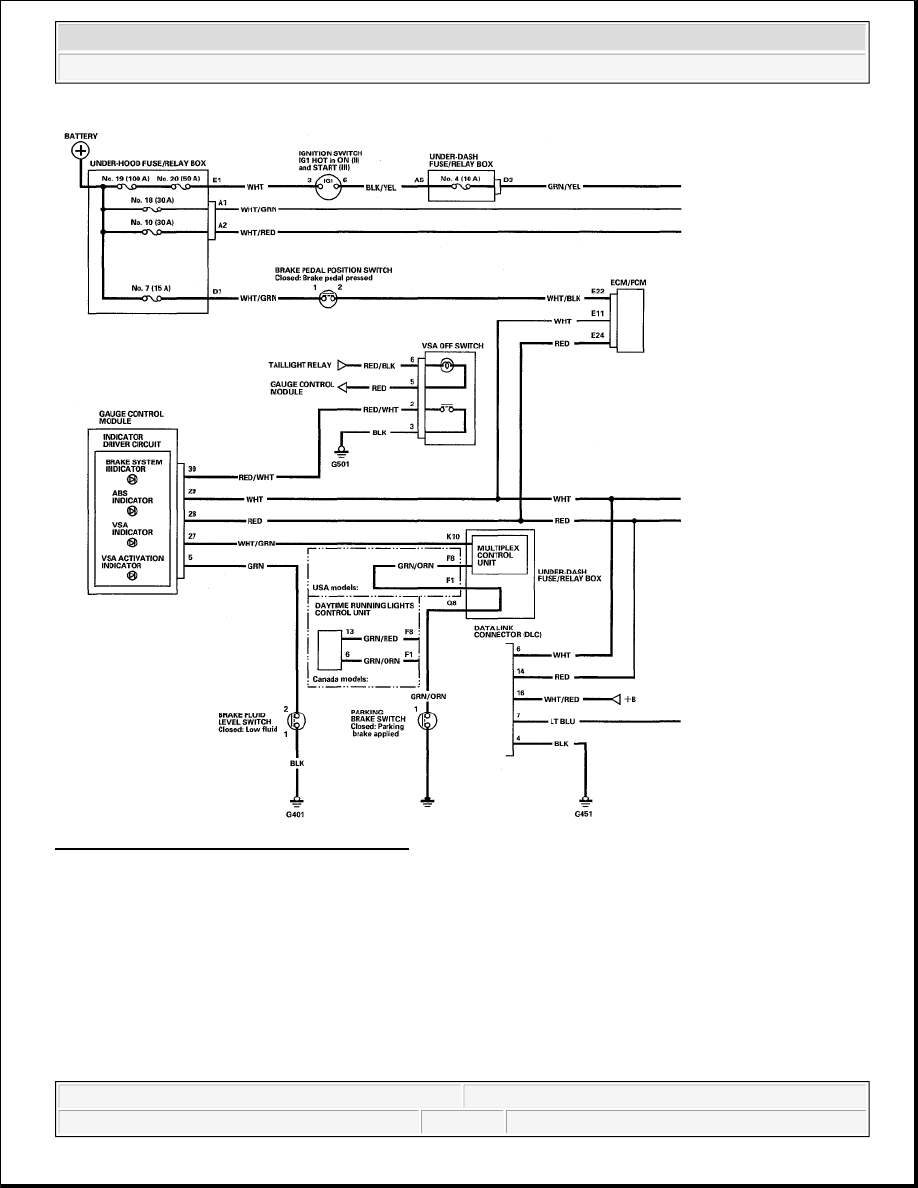

Fig. 21: VSA System Circuit Diagram (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-2008 BRAKES VSA (Vehicle Stability Assist) System Components - Element

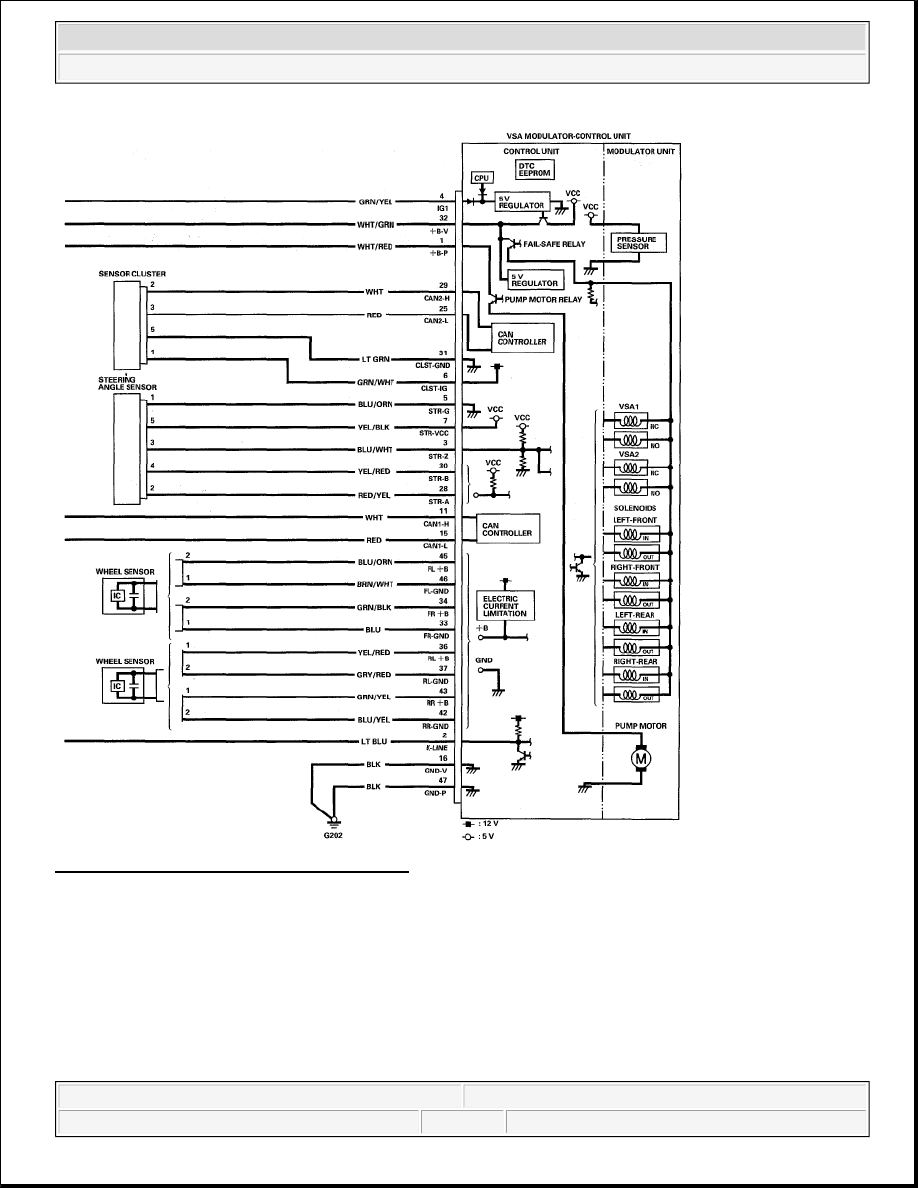

Fig. 22: VSA System Circuit Diagram (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-2008 BRAKES VSA (Vehicle Stability Assist) System Components - Element
