Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Check for loose terminals and poor connections at the TPMS control unit. If necessary, substitute a
known-good TPMS control unit (see TPMS CONTROL UNIT REPLACEMENT ), and recheck.

NO -Repair open in the wire between TPMS control unit and the ECM/PCM.

DTC 91,93,95,97: TIRE PRESSURE SENSOR INTERNAL ERROR

1. Turn the ignition switch ON (II).

2. Check for DTCs with the HDS.

3. Note the tire pressure sensor(s) number by the indicated DTC.

DTC CHART

4. Determine the affected tire location by the tire pressure sensor number (see TIRE PRESSURE SENSOR

LOCATION ).

Did the sensors respond to the TPMS initializer tool?

YES -Go to step 5.

NO -Check that the tire pressure sensor is properly mounted. If necessary, replace the appropriate tire
pressure sensor (see TIRE PRESSURE SENSOR REPLACEMENT ).

5. Clear the DTC with the HDS.

6. Test-drive the vehicle at 28 mph (45 km/h) or more for at least 1 minute.

7. Check for DTCs with the HDS.

Is DTC 91, 93, 95, or 97 indicated?

YES -Replace the appropriate tire pressure sensor (see TIRE PRESSURE SENSOR
REPLACEMENT
 ) and retest. If DTCs are still present, substitute a known-good TPMS control unit
(see TPMS CONTROL UNIT REPLACEMENT ), and retest.

NO -If any other DTCs are indicated, troubleshoot the appropriate DTC. If no DTCs are indicated, the
system is OK at this time.

DTC Tire Pressure Sensor

91

No. 1

93

No. 2

95

No. 3

97

No. 4



2007 Honda Element EX

2007-2008 SUSPENSION TPMS (Tire Pressure Monitoring System) - Element



SYMPTOM TROUBLESHOOTING

LOW TIRE PRESSURE INDICATOR DOES NOT COME ON, AND NO DTCS ARE STORED

1. Turn the ignition switch ON (II).

2. Check the low tire pressure indicator for several seconds when the ignition switch is turned ON (II).

Did the indicator come on and then go off?

YES -Go to step 3.

NO -Go to step 8.

3. Turn the ignition switch OFF.

4. Check the pressure in all four tires.

Is the tire pressure Except SC model: 190 kPa (1.9 kgf/cm

2

 , 28 psi), SC model 175 kPa (1.8 kgf/cm

2

 , 25

psi) or less?

YES -Go to step 5.

NO -The system is OK at this time.

5. Turn the ignition switch ON (II).

6. Determine the affected tire location by the tire pressure sensor number (see TIRE PRESSURE SENSOR

LOCATION ).

Did the sensors respond to the TPMS initializer tool?

YES -Go to step 7.

NO -Check that the tire pressure sensor is properly mounted. If necessary, replace the appropriate tire
pressure sensor (see TIRE PRESSURE SENSOR REPLACEMENT ).

7. Check the Tire 1, Tire 2, Tire 3, or Tire 4 Air Pressure in the TPMS DATA LIST with the HDS, and

compare with the actual measured tire pressure.

Is the indicated tire pressure on the HDS within 40 kPa (0.4 kgf/cm

2

 , 6 psi) of the actual tire pressure?



YES -Go to step 8.

NO -Replace the appropriate tire pressure sensor (see TIRE PRESSURE SENSOR
REPLACEMENT
 ).

8. Wait about 5 seconds with the ignition switch turned ON (II).



2007 Honda Element EX

2007-2008 SUSPENSION TPMS (Tire Pressure Monitoring System) - Element



9. Check for gauges DTC with the HDS (see WIRE COLOR CODES ).

Is any gauge DTC indicated?

YES -Troubleshoot the indicated gauge DTC.

NO -Go to step 10.

10. Turn the ignition switch OFF.

11. Disconnect TPMS control unit connector A (14P).

12. Measure voltage between TPMS control unit connector A (14P) terminals No. 3 and No. 5.

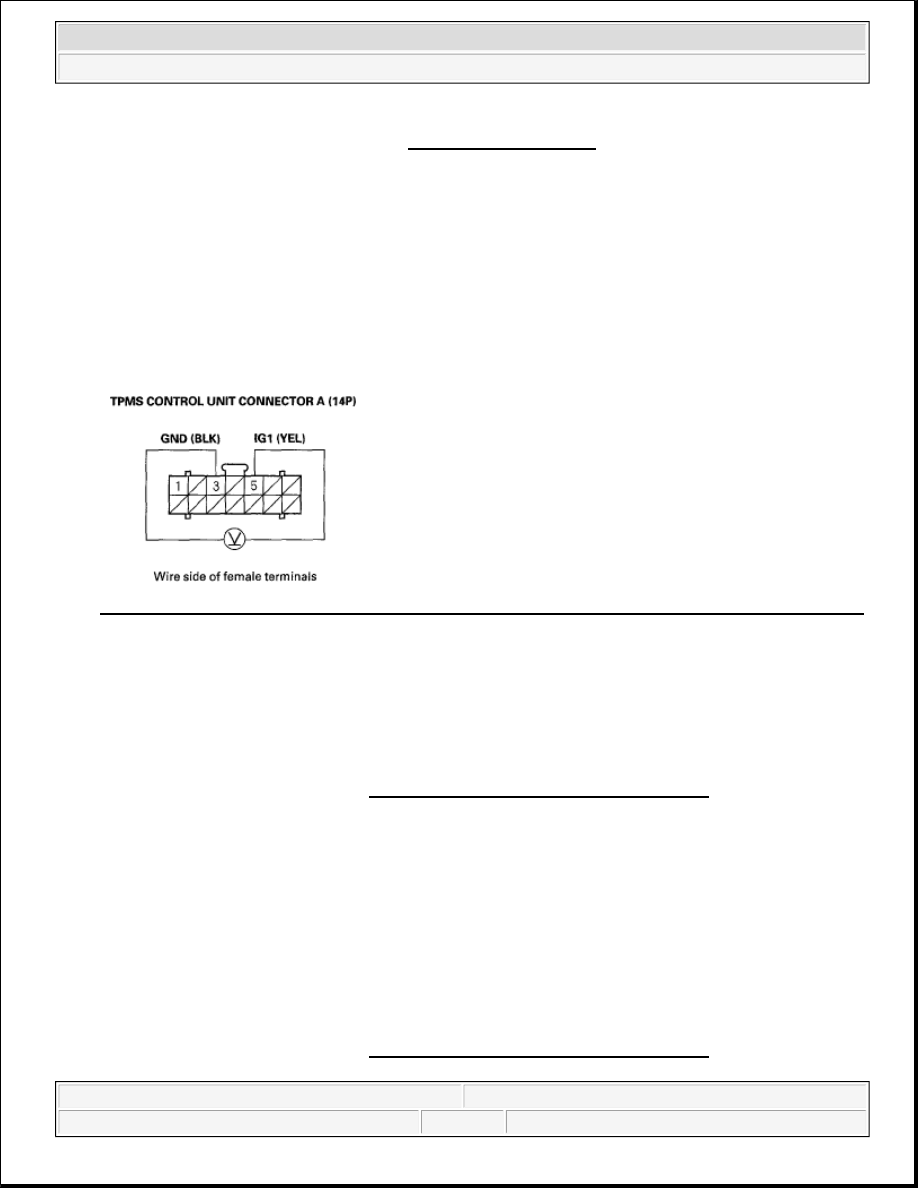

Fig. 19: Measuring Voltage Between TPMS Control Unit Connector A (14P) Terminals No. 3 And 5
Courtesy of AMERICAN HONDA MOTOR CO., INC.


Is there battery voltage?

YES -Repair short to power in the wire between the TPMS control unit and the No. 10 (7.5 A) fuse in the
under-dash fuse/relay box.

NO -Check for loose terminals and poor connections at the TPMS control unit. If necessary, substitute a
known-good TPMS control unit (see TPMS CONTROL UNIT REPLACEMENT ), and recheck.

LOW TIRE PRESSURE INDICATOR DOES NOT GO OFF, AND NO DTCS ARE STORED

1. Turn the ignition switch OFF.

2. Disconnect TPMS control unit connector B (20P).

3. Turn the ignition switch ON (II).

4. Check the low tire pressure indicator for several seconds when the ignition switch is turned ON (II).

Did the indicator come on and then go off?

YES -Check for loose terminals and poor connections at the TPMS control unit. If necessary, substitute a
known-good TPMS control unit (see TPMS CONTROL UNIT REPLACEMENT ), and recheck.



2007 Honda Element EX

2007-2008 SUSPENSION TPMS (Tire Pressure Monitoring System) - Element



NO -Do the troubleshooting for the gauge control module (see WIRE COLOR CODES ). If necessary,
substitute a known-good gauge control module (see REWRITING THE ODO DATA AND
TRANSFERRING MAINTENANCE MINDER ON A NEW GAUGE CONTROL MODULE
 ), and
recheck.

TPMS INDICATOR DOES NOT COME ON, AND NO DTCS ARE STORED

1. Turn the ignition switch OFF.

2. Disconnect TPMS control unit connector B (20P).

3. Turn the ignition switch ON (II).

4. Check the TPMS indicator for several seconds when the ignition switch is turned ON (II).

Did the indicator come on and then go off?

YES -Check for loose terminals and poor connections at the TPMS control unit. If necessary, substitute a
known-good TPMS control unit (see TPMS CONTROL UNIT REPLACEMENT ), and recheck.

NO -Do the troubleshooting for the gauge control module (see WIRE COLOR CODES ). If necessary,
substitute a known-good gauge control module (see REWRITING THE ODO DATA AND
TRANSFERRING MAINTENANCE MINDER ON A NEW GAUGE CONTROL MODULE
 ), and
recheck.

TPMS INDICATOR DOES NOT GO OFF, AND NO DTCS ARE STORED

1. Turn the ignition switch ON (II).

2. Check the TPMS indicator for several seconds when the ignition switch is turned ON (II).

Did the indicator come on and then go off?

YES -The system is OK at this time.

NO -Go to step 3.

3. Turn the ignition switch OFF.

4. Check the No. 3(10 A) fuse in the under-dash f use/relay box.

Is the fuse blown?

YES -Replace the No. 3 (10 A) fuse, and recheck.

NO -Reinstall the fuse, then go to step 5.

NOTE:

Check for gauges DTCs with the HDS (see WIRE COLOR CODES ). If gauges
DTCs are stored, troubleshoot those DTCs first.



2007 Honda Element EX

2007-2008 SUSPENSION TPMS (Tire Pressure Monitoring System) - Element
