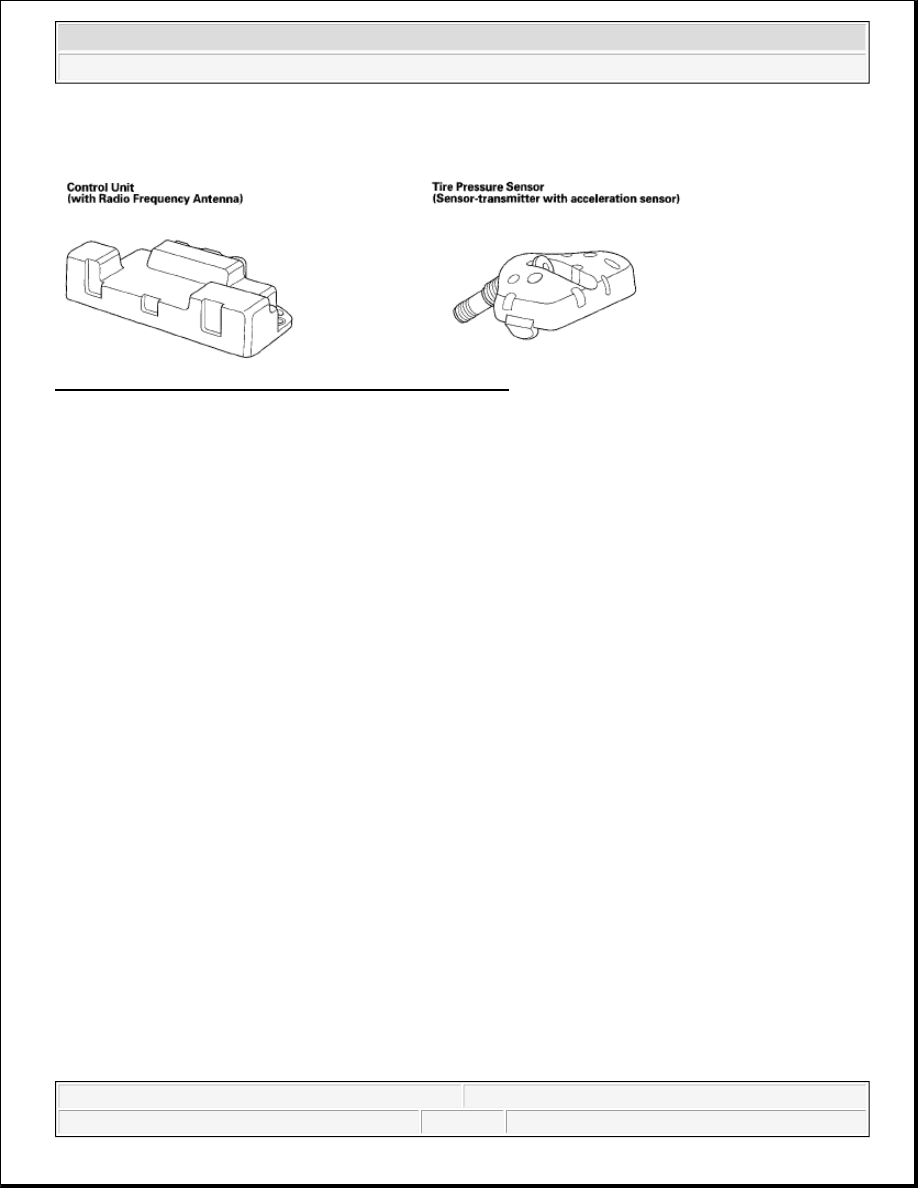

Fig. 15: Identifying Control Unit And Tire Pressure Sensor
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CIRCUIT DIAGRAM

the control unit could interfere with sending and receiving signals.



2007 Honda Element EX

2007-2008 SUSPENSION TPMS (Tire Pressure Monitoring System) - Element

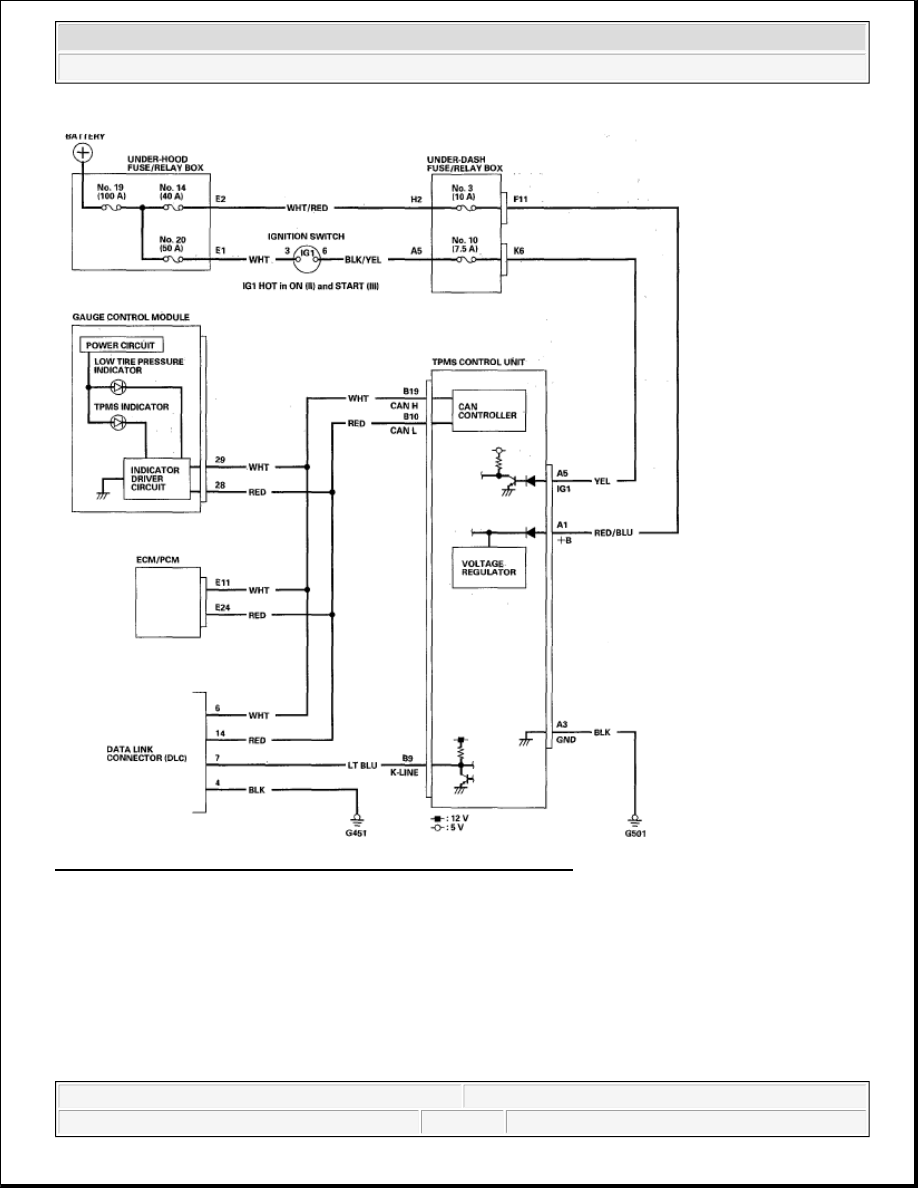

Fig. 16: TPMS (Tire Pressure Monitoring System) Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-2008 SUSPENSION TPMS (Tire Pressure Monitoring System) - Element

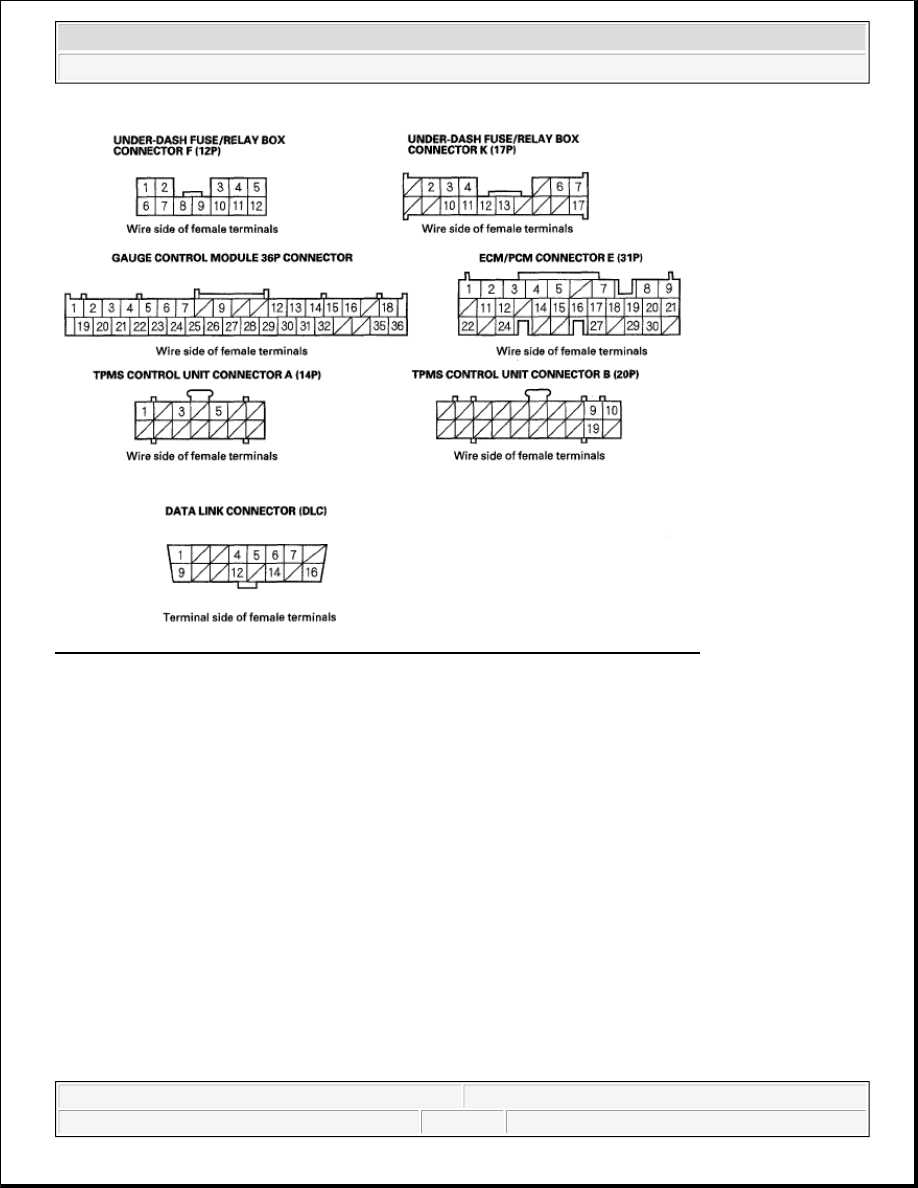

Fig. 17: Identifying TPMS (Tire Pressure Monitoring System) Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

DTC TROUBLESHOOTING

DTC 11,13,15,17: LOW AIR PRESSURE

1. Turn the ignition switch OFF.

2. Check the pressure of all four tires.

Is there: Except SC model 190 kPa (1.9 kgf/cm

2

 , 28 psi), SC model 175 kPa (1.8 kgf/cm

2

 , 25 psi) or

less?

YES -Go to step 3.

NOTE:

If low tire pressure is detected, the control unit sets one or more of these DTCs,
and turns on the low tire pressure indicator. If the low tire pressure indicator
comes on due to true low tire pressure, and the customer corrects it before
bringing the vehicle in, the DTCs will have been stored, but the indicator will be
off.



2007 Honda Element EX

2007-2008 SUSPENSION TPMS (Tire Pressure Monitoring System) - Element



NO -Go to step 5.

3. Check for and repair the cause of air loss, and then inflate the tire (see WHEEL ALIGNMENT ).

4. Test-drive the vehicle at 28 mph (45 km/h) or more for at least 1 minute.

Does the low tire pressure indicator go off?

YES -The system is OK at this time. Clear the DTC with the HDS.

NO -Go to step 6.

5. Turn the ignition switch ON (II).

6. Check for DTCs with the HDS.

7. Note the tire pressure sensor(s) number by the indicated DTC.

DTC CHART

8. Determine the affected tire location by the tire pressure sensor number (see TIRE PRESSURE SENSOR

LOCATION ).

9. Check the Tire 1, Tire 2, Tire 3, or Tire 4 Air Pressure in the TPMS DATA LIST with the HDS, and

compare it with the actual measured tire pressure.

Is the indicated tire pressure on the HDS within 40 kPa (0.4 kgf/cm

2

 , 6 psi) of the actual tire pressure?



YES -Go to step 10.

NO -Replace the appropriate tire pressure sensor (see TIRE PRESSURE SENSOR
REPLACEMENT ).

10. Clear the DTC with the HDS.

11. Test-drive the vehicle at 28 mph (45 km/h) or more for at least 1 minute.

12. Check for DTCs with the HDS.

Is DTC 11, 13, 15, or 17 indicated?

YES -Go to step 13.

NO -If any other DTCs are indicated, troubleshoot the appropriate DTC. If no DTCs are indicated, the
system is OK at this time.

DTC Tire pressure sensor

11

No. 1

13

No. 2

15

No. 3

17

No. 4
