Note these items during disassembly:



Inspect the ball bearing (C) by rotating the outer race slowly. If there is any excessive play or wear,
replace the pinion shaft and sleeve as an assembly.



The pinion shaft and sleeve are a precise fit; do not intermix old and new pinion shafts and sleeves.

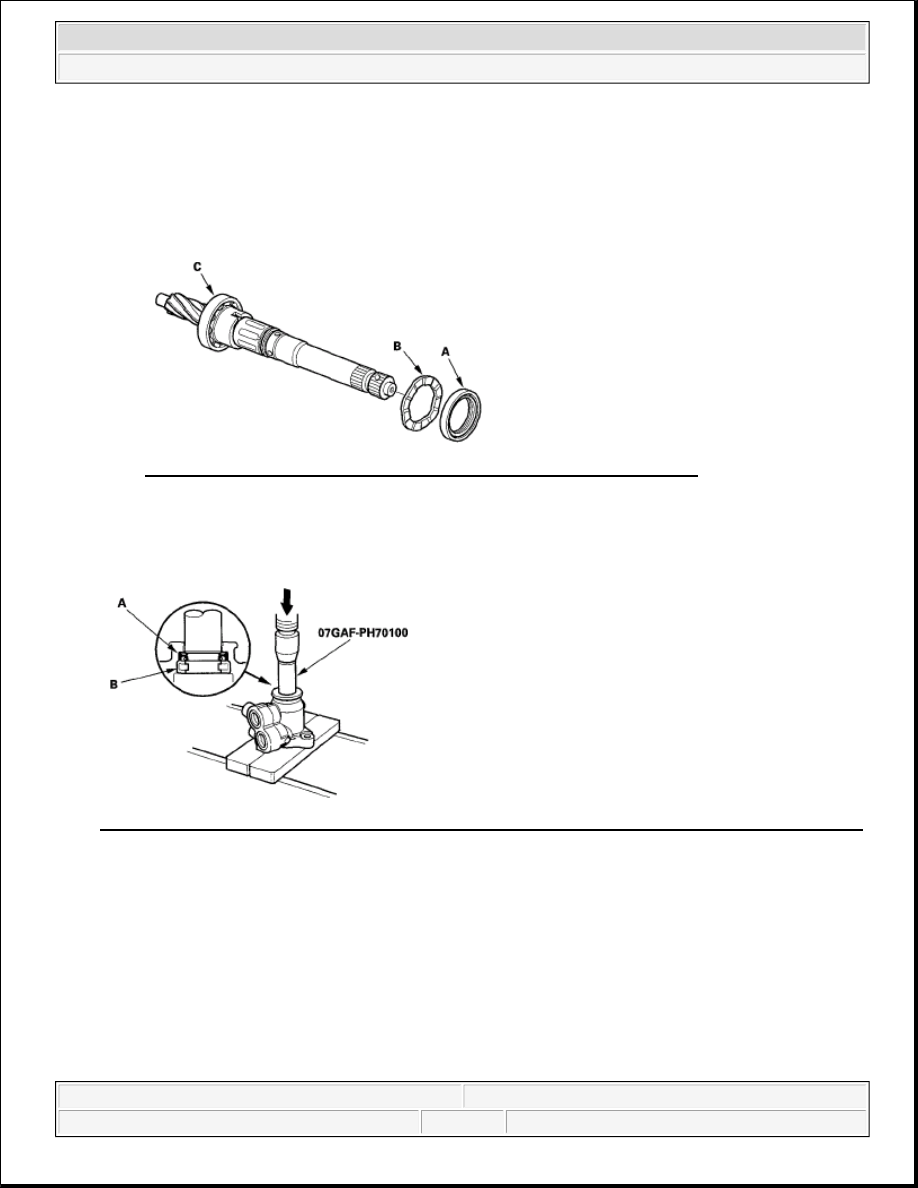

Fig. 92: Removing Valve Oil Seal And Wave Washer From Pinion Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

32. Remove the valve oil seal (A) and roller bearing (B) out of the valve housing using a hydraulic press and

a pilot collar.

Fig. 93: Removing Valve Oil Seal And Roller Bearing Out Of Valve Housing Using Hydraulic Press
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Reassembly

33. Apply vinyl tape (A) to the stepped portion of the pinion shaft, and coat the surface of the vinyl tape with

power steering fluid.



2007 Honda Element EX

2007-2008 STEERING Steering - Element



Fig. 94: Applying Vinyl Tape To Stepped Portion Of Pinion Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

34. Install the wave washer (B). Coat the inside surface of the new valve oil seal (C) with power steering

fluid, and install the seal with its grooved side facing opposite the bearing, then slide it over the pinion
shaft, being careful not to damage its sealing lip (D). Remove the vinyl tape.

35. Install the valve seal ring guide over the pinion, and coat the surface of the tool with power steering fluid.

Slip the new O-ring (A) and new valve seal ring (B) over the valve seal ring guide, and expand them.

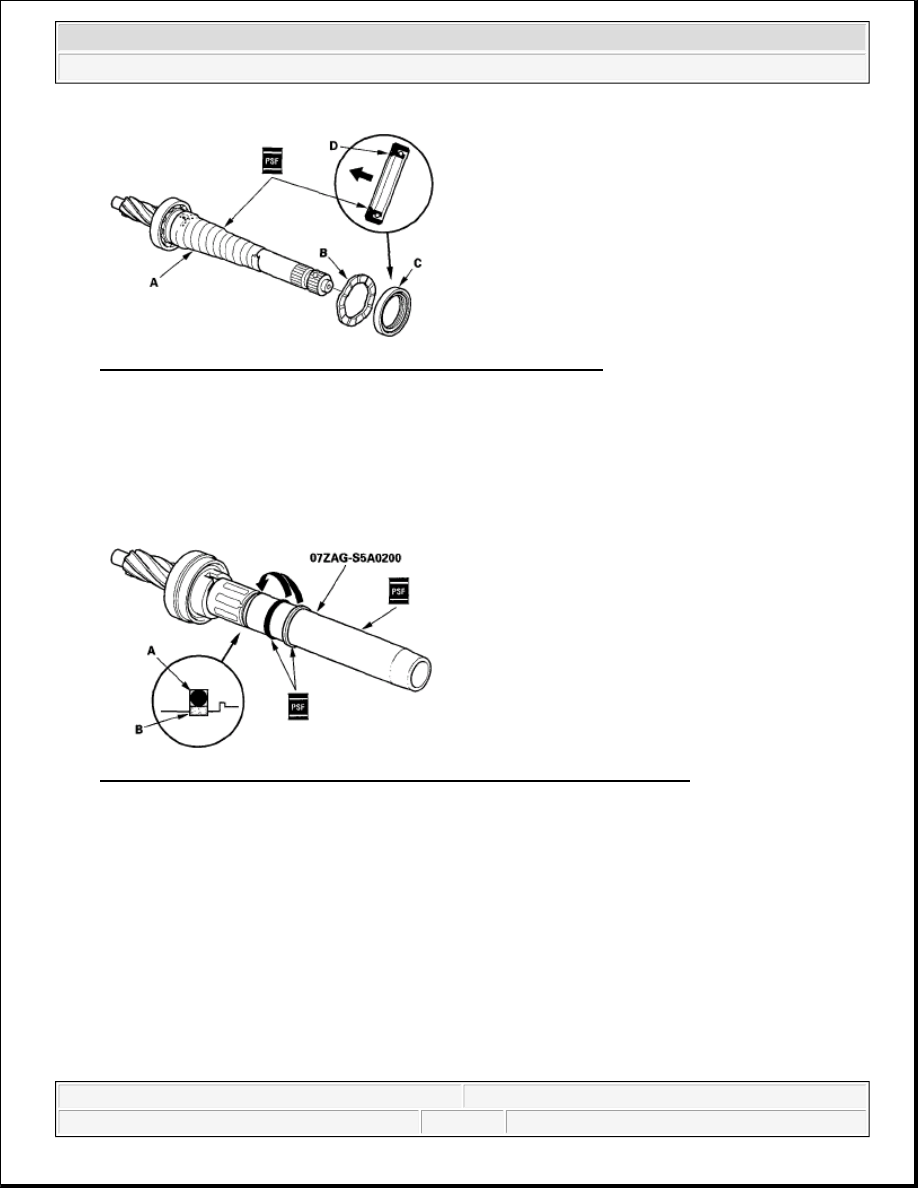

Fig. 95: Identifying Wave Washer And Inside Surface Of New Valve Oil Seal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

36. Fit the O-ring in the groove of the pinion shaft. Then slide the valve seal ring over the shaft and in the

groove on the pinion shaft.

37. Remove the valve seal ring guide, and apply power steering fluid to the surface of the valve seal ring (A).



2007 Honda Element EX

2007-2008 STEERING Steering - Element



Fig. 96: Applying Power Steering Fluid To Surface Of Valve Seal Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.

38. Apply power steering fluid to the inside of the valve seal ring sizing tool. Set the larger diameter end of

the valve seal ring sizing tool over the valve seal ring, and move the valve seal ring sizing tool up and
down several times to make the valve seal ring fit in the pinion shaft groove.

39. Remove the valve seal ring sizing tool, turn it over, and slide the smaller diameter end over the valve seal

ring. Move it up and down several times to make sure the valve seal ring fits snugly in the pinion shaft
groove.

40. Apply power steering fluid to the surface of the sleeve seal ring guide. Slip two new seal rings (A) over

the sleeve seal ring guide from the smaller diameter end, and expand them. Install only two rings at a time
from each end of the pinion shaft sleeve (B).

Note these items when installing the seal rings:



Do not over-expand the seal rings. Install the resin seal rings with care so as not to damage them.
After installation, make sure you contract the seal rings using the sleeve seal ring sizing tool.



There are two types of sleeve seal rings; black and brown. Do not mix the different types of seal
rings as they are not compatible.

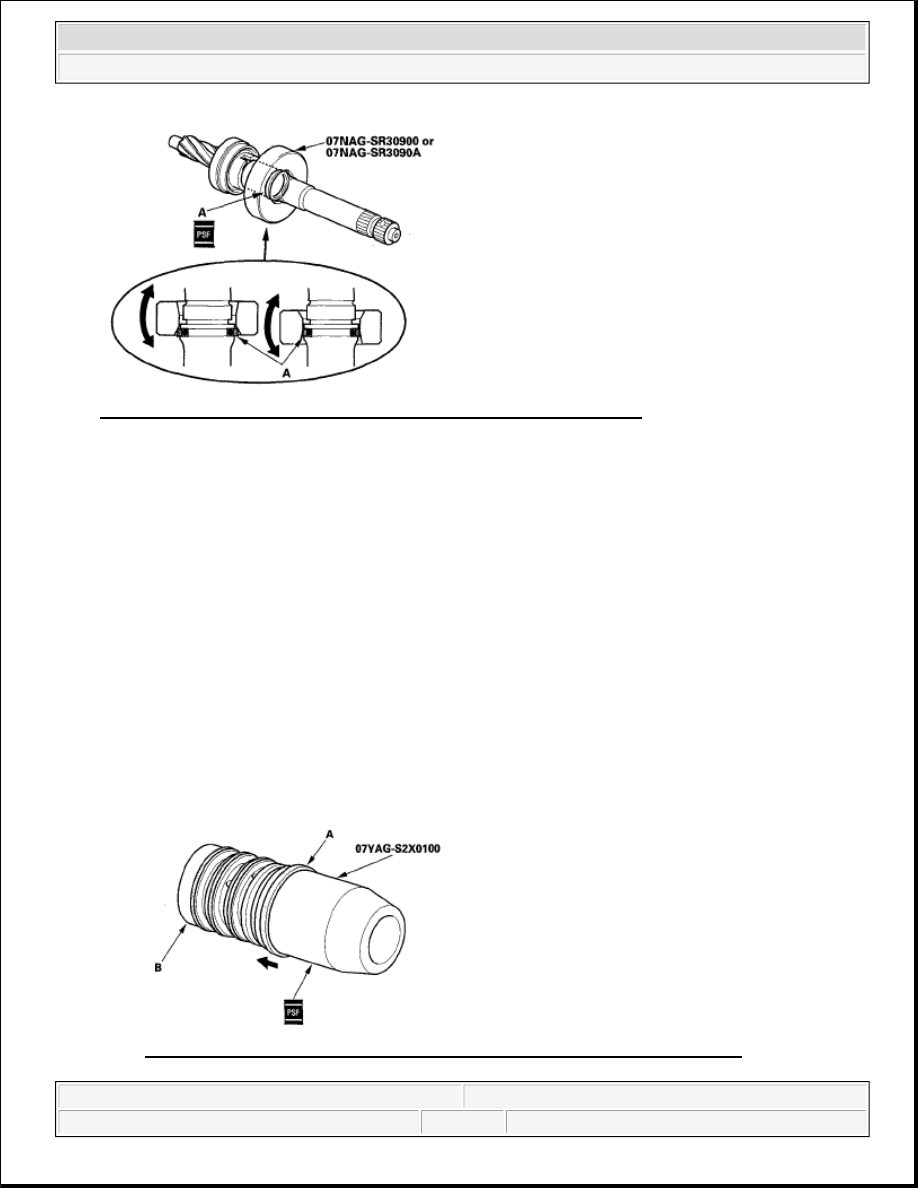

Fig. 97: Applying Power Steering Fluid To Surface Of Sleeve Seal Ring Guide
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-2008 STEERING Steering - Element



41. Align the sleeve seal ring guide with each groove in the sleeve, and slide a sleeve seal ring into each

groove. After installation, compress the seal rings with your fingers temporarily.

42. Apply power steering fluid to the seal rings on the sleeve, and to the entire inside surface of the sleeve

seal ring sizing tool, then slowly insert the sleeve into the sleeve seal ring sizing tool.

Fig. 98: Applying Power Steering Fluid To Seal Rings On Sleeve
Courtesy of AMERICAN HONDA MOTOR CO., INC.

43. Move the sleeve back and forth several times to make the seal rings fit snugly in the sleeve. Make sure

the seal rings are not twisted.

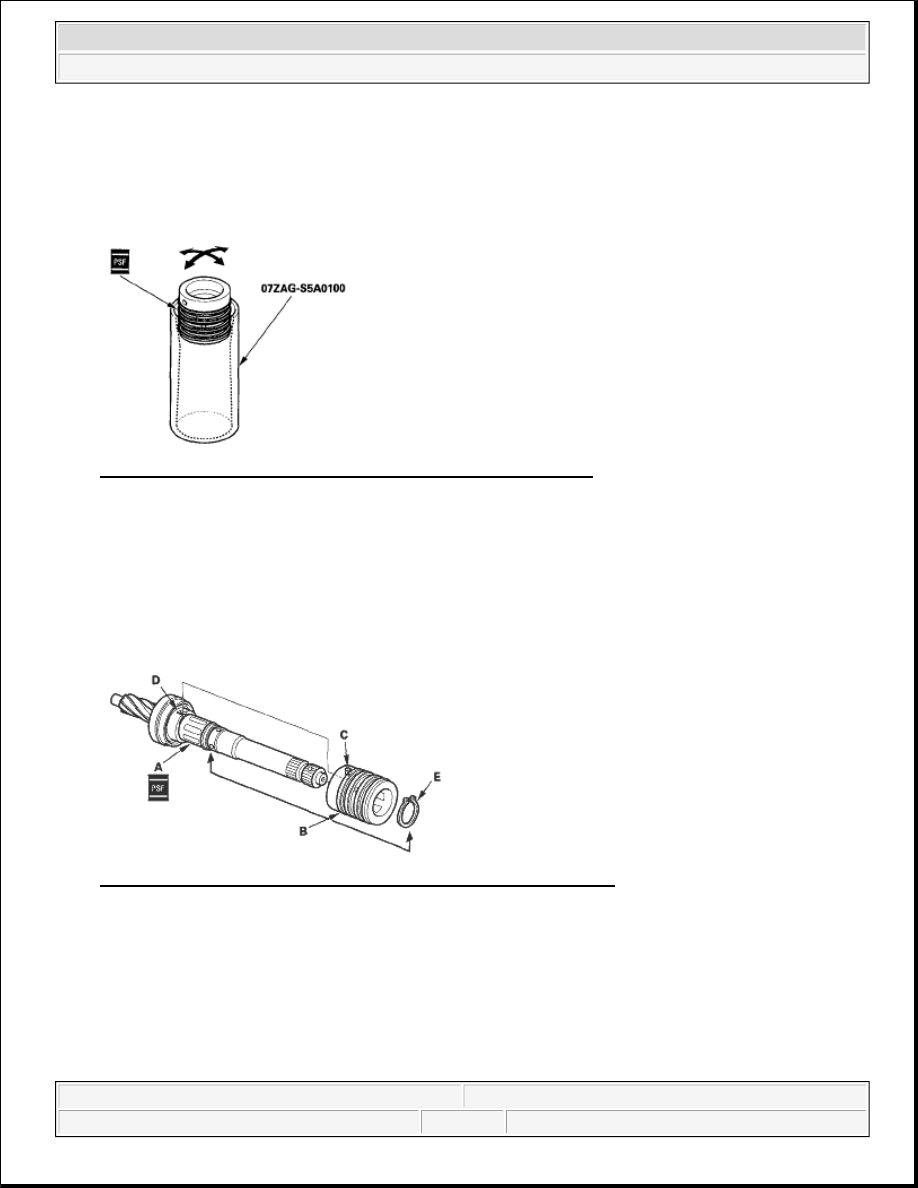

44. Apply power steering fluid to the surface of the pinion shaft (A). Slide the sleeve (B) onto the pinion shaft

by aligning the locating pin (C) on the inside of the sleeve with the cutout (D) in the shaft. Then install
the new external snap ring (E) securely in the pinion shaft groove. Be careful not to damage the valve seal
ring when inserting the sleeve.

Fig. 99: Applying Power Steering Fluid To Surface Of Pinion Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

45. Apply power steering fluid to the seal ring lip of the new valve oil seal (A), then install the seal in the

valve housing (B) using a hydraulic press, driver, and attachment. Install the seal with its grooved side
facing the tool.
