2. Make sure the ignition switch is OFF, then disconnect the negative cable from the battery.

3. Align the front wheels straight ahead, then remove the driver's airbag from the steering wheel (see

DRIVER'S AIRBAG REPLACEMENT ).

4. Disconnect the horn switch connector (A), audio remote switch connector (B), and the cruise control

set/decel, Resume/accel, Cancel switch connector (C).

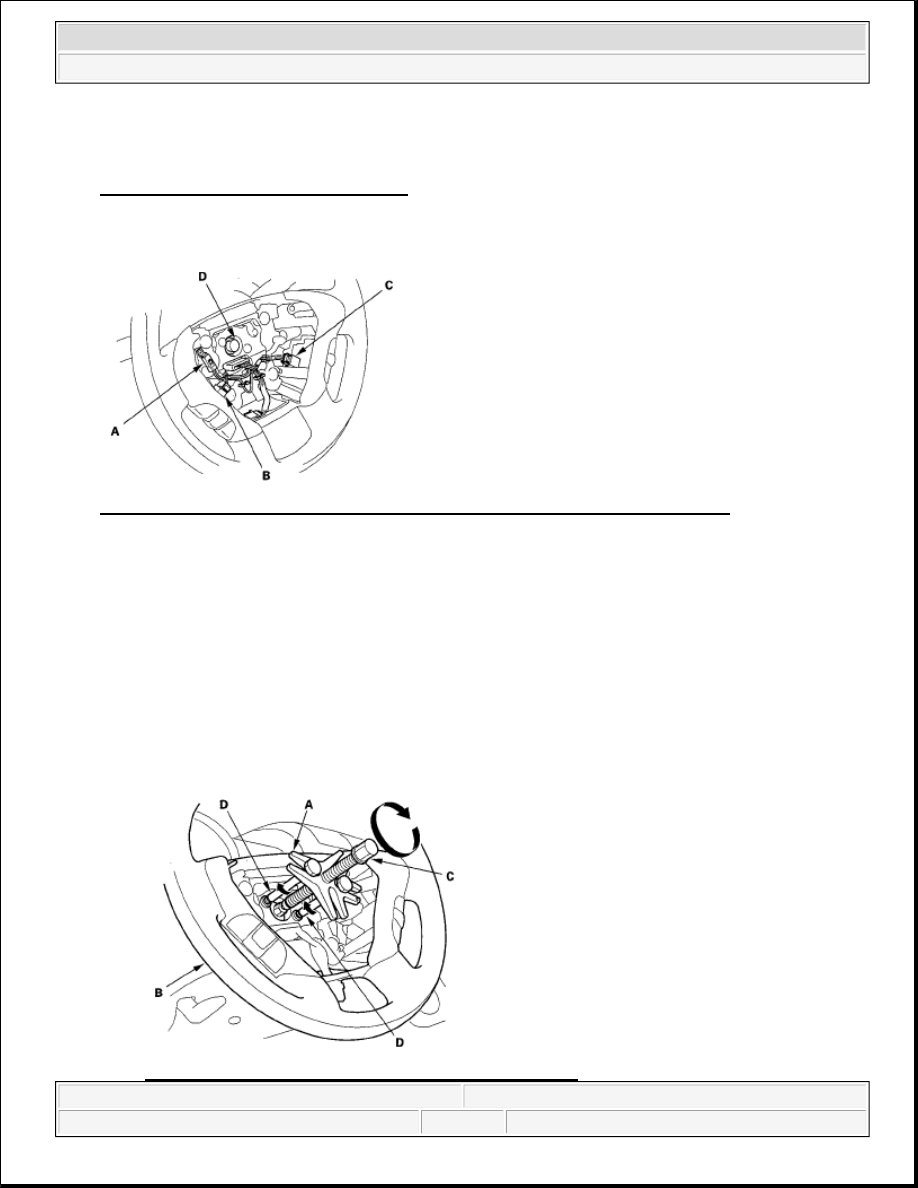

Fig. 37: Identifying Horn Switch Connector And Audio Remote Switch Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Loosen the steering wheel bolt (D).

6. Install a commercially available steering wheel puller (A) on the steering wheel (B). Free the steering

wheel from the steering column shaft by turning the pressure bolt (C) of the puller.

Note these items when removing the steering wheel:

Do not tap on the steering wheel or the steering column shaft when removing the steering wheel.

If you thread the puller bolts (D) into the wheel hub more than five threads, the bolts will hit the
cable reel and damage it. To prevent this, install a pair of jam nuts five threads up on each puller
bolt.

Fig. 38: Turning Pressure Bolt Of Steering Wheel Puller



2007 Honda Element EX

2007-2008 STEERING Steering - Element



Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Remove the steering wheel puller, then remove the steering wheel bolt and steering wheel from the

steering column.

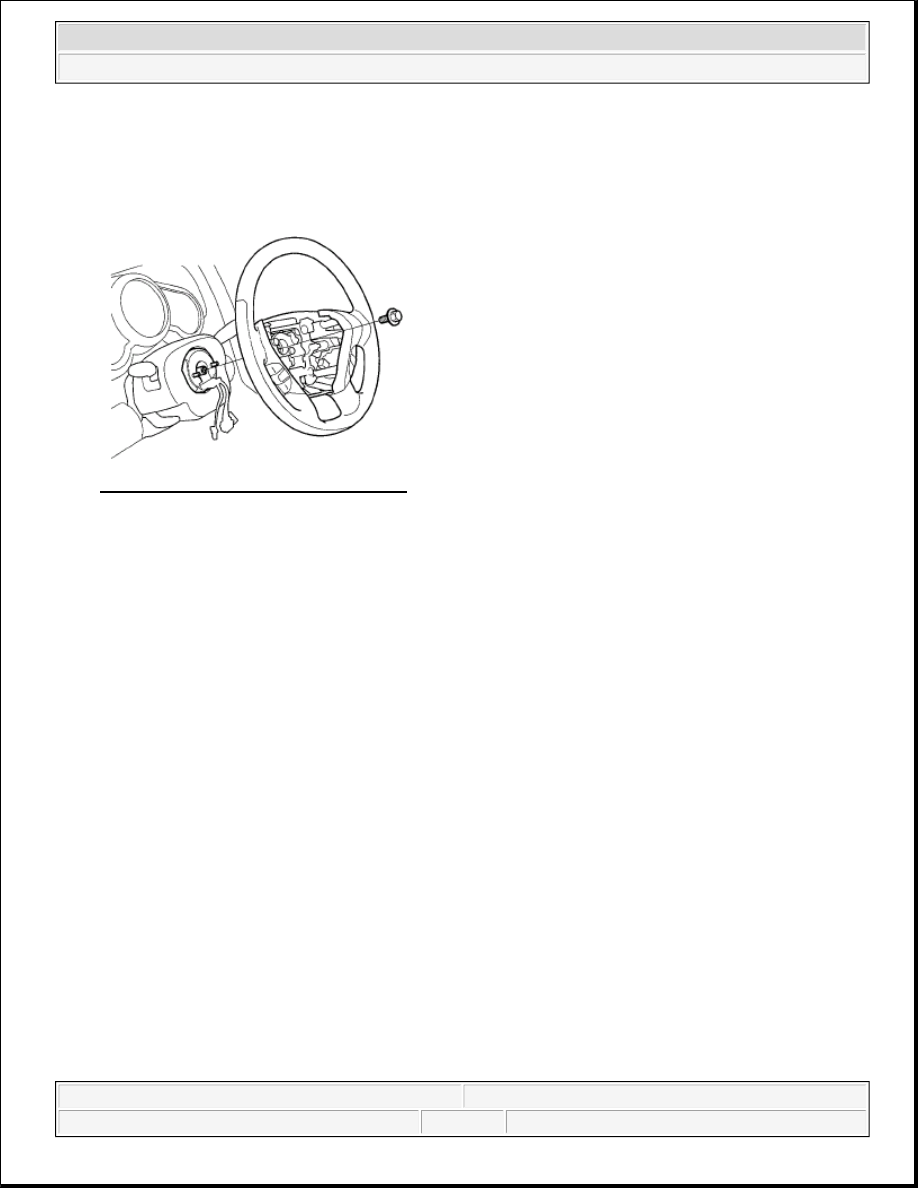

Fig. 39: Identifying Steering Wheel Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.

STEERING WHEEL DISASSEMBLY/REASSEMBLY



2007 Honda Element EX

2007-2008 STEERING Steering - Element



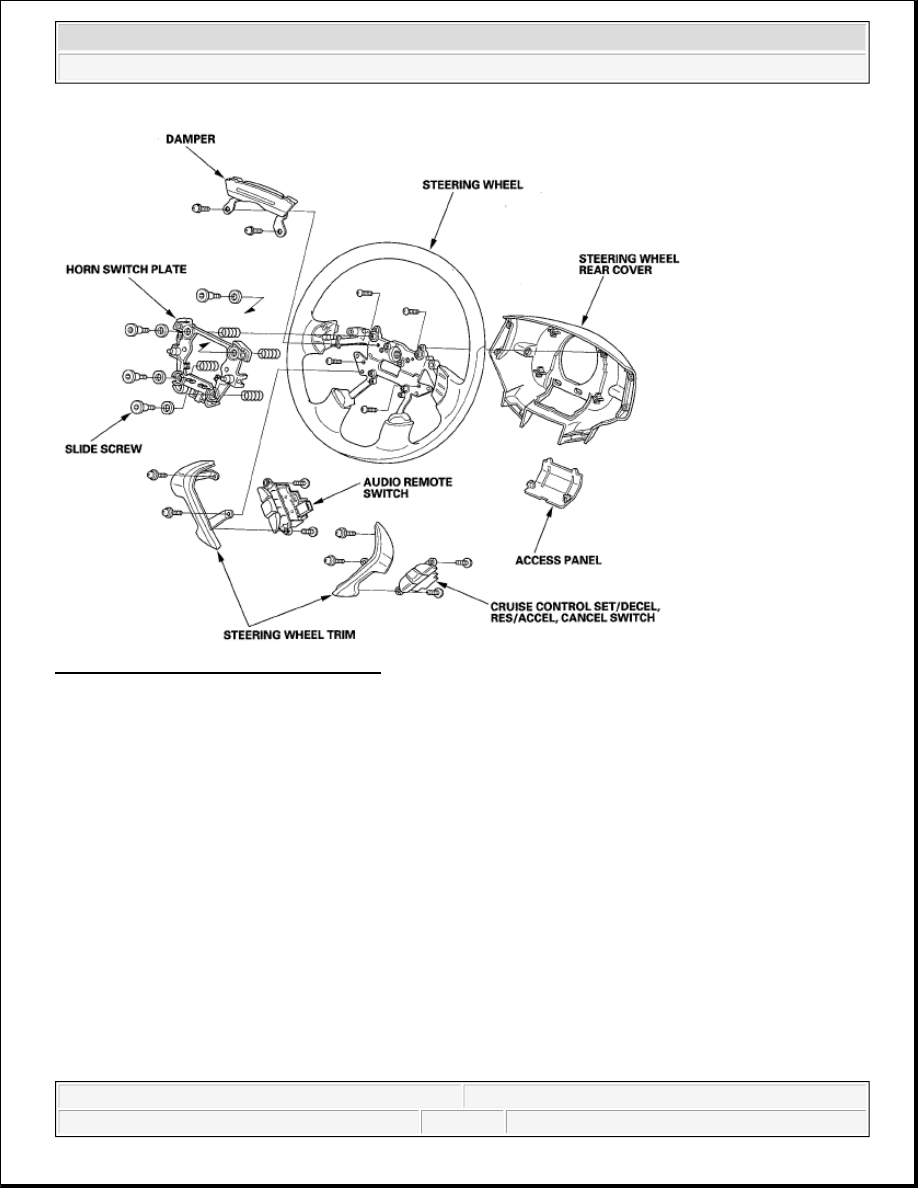

Fig. 40: Exploded View Of Steering Wheel
Courtesy of AMERICAN HONDA MOTOR CO., INC.

STEERING WHEEL INSTALLATION

1. Before installing the steering wheel, make sure the front wheels are aligned straight ahead, then center the

cable reel (A). Do this by first rotating the cable reel clockwise until it stops. Then rotate it
counterclockwise about two and a half turns. The arrow mark (B) on the cable reel label should point
straight up.



2007 Honda Element EX

2007-2008 STEERING Steering - Element



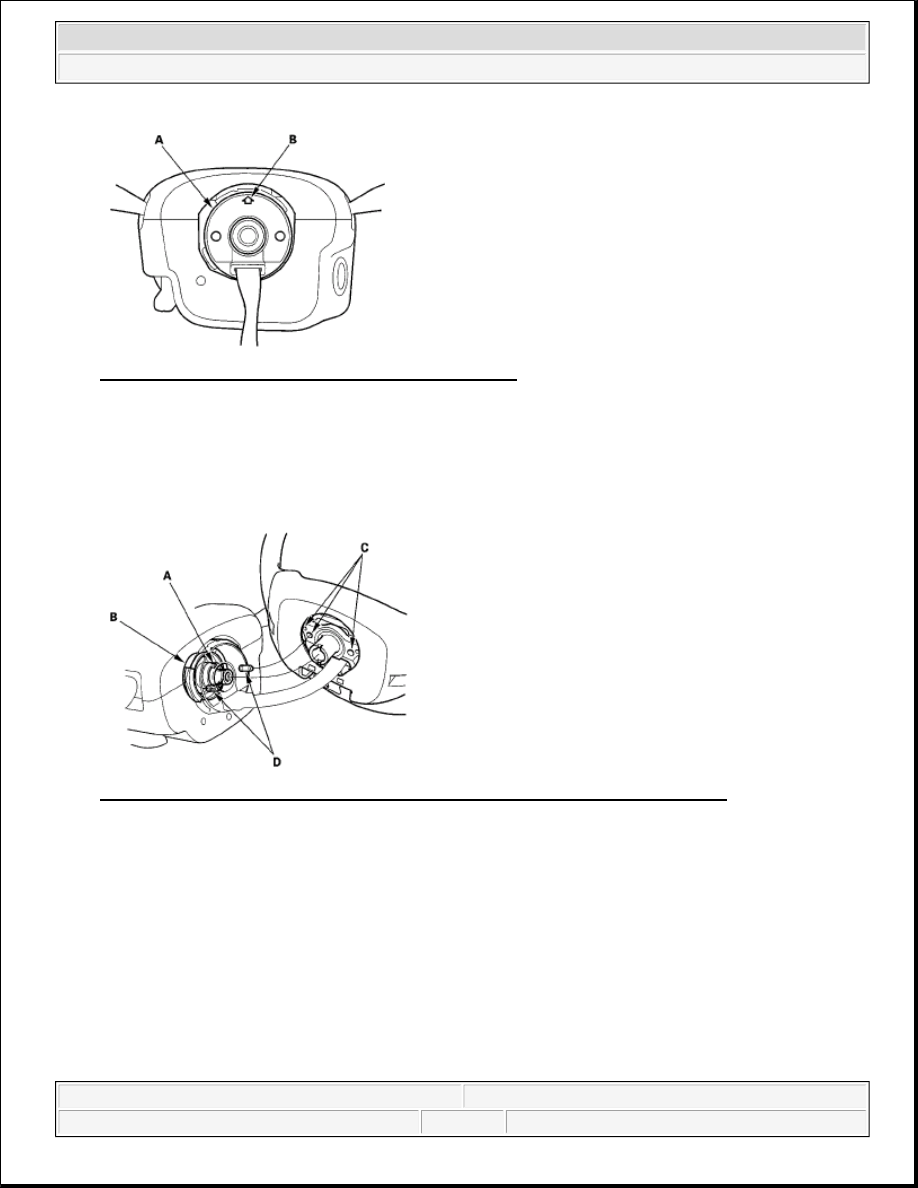

Fig. 41: Identifying Arrow Mark On Cable Reel Label
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Position the two tabs (A) of the turn signal canceling sleeve (B) as shown. Install the steering wheel on to

the steering column shaft, making sure the steering wheel hub (C) engages the pins (D) of the cable reel
and tabs of the turn signal cancelling sleeve. Do not tap on the steering wheel or steering column shaft
when installing the steering wheel.

Fig. 42: Engaging Pins Of Cable Reel And Tabs Of Turn Signal Cancelling Sleeve
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install the steering wheel bolt (A), and tighten it to the specified torque. Connect the horn switch

connector (B), audio remote switch connector (C), and Set/decel, Resume/accel, Cancel switch connector
(D). Make sure the wire harness is routed and fastened properly.
