Honda Element. Manual - part 751

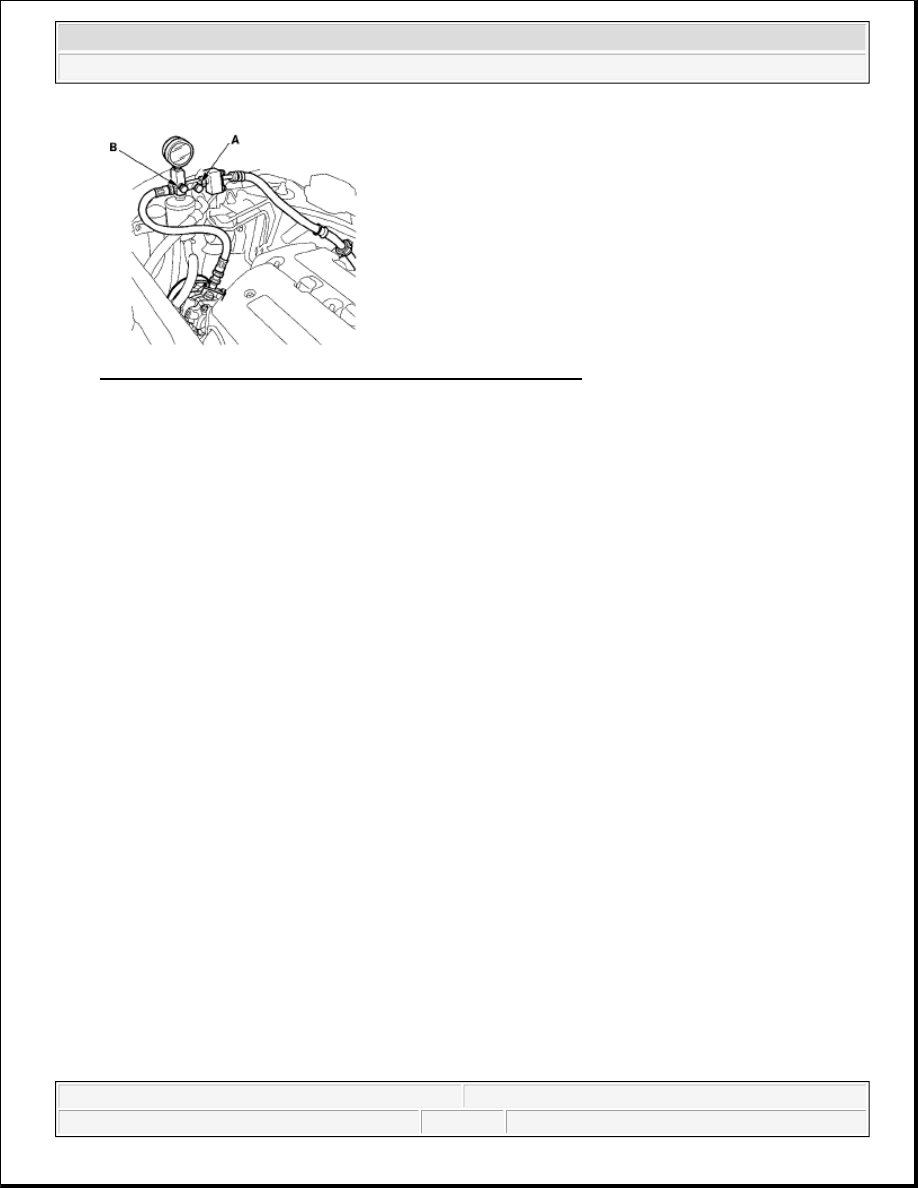

Fig. 7: Identifying Shut-Off Valve And Pressure Control Valve
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Fully open the pressure control valve (B).

7. Start the engine and let it idle.

8. Turn the steering wheel from lock-to-lock several times to warm the fluid to operating temperature at

158°F (70°C).

9. Measure steady-state fluid pressure while the engine is idling. If the pump is in good condition, the

pressure should be no more than 1,470 kPa (15.0 kgf/cm

2

 , 213 psi). If the pressure is too high, check the

outlet hose or valve body unit (see Steering System Troubleshooting).

10. Raise the engine speed to 3,000 rpm, and measure the fluid pressure. If the pump is in good condition, the

pressure should be at least 1,470 kPa (15.0 kgf/cm

2

, 213 psi). If the pressure is too high, repair or replace

the pump.

11. Lower the engine speed, and let it idle. Close the shut-off valve, then close the pressure control valve

gradually until the pressure gauge needle is stable. Read the pressure.

12. Immediately open the shut-off valve fully. If the pump is in good condition, the gauge should read at least

7,460-8,140 kPa (76-83 kgf/cm

2

 , 1,080-1,180 psi). A low reading means pump output is too low for full

assist. Repair or replace the pump.

PUMP PRESSURE TEST WITH T/N 07406-001000A OR T/N 07406-001A101

Special Tools Required



P/S joint adapter (pump) 07VAK-P8A011A



P/S joint adapter plate (pump) 07ZAK-S7CA100



P/S joint adapter (hose) 07ZAK-S7CA200



P/S pressure gauge 07406-001000A or 07406-001A101

NOTE:

Do not keep the shut-off valve closed more than 5 seconds, or the pump
could be damaged by over-heating.



2007 Honda Element EX

2007-2008 STEERING Steering - Element



Check the fluid pressure as follows to determine whether the trouble is in the pump or gearbox.

1. Check the power steering fluid level (see FLUID REPLACEMENT ).

2. Disconnect the pump outlet hose (A) from the pump outlet with care so as not to spill the power steering

fluid on the frame and other parts, then install the P/S joint adapter (pump) on the pump outlet (B) with
the P/S joint outlet plate.

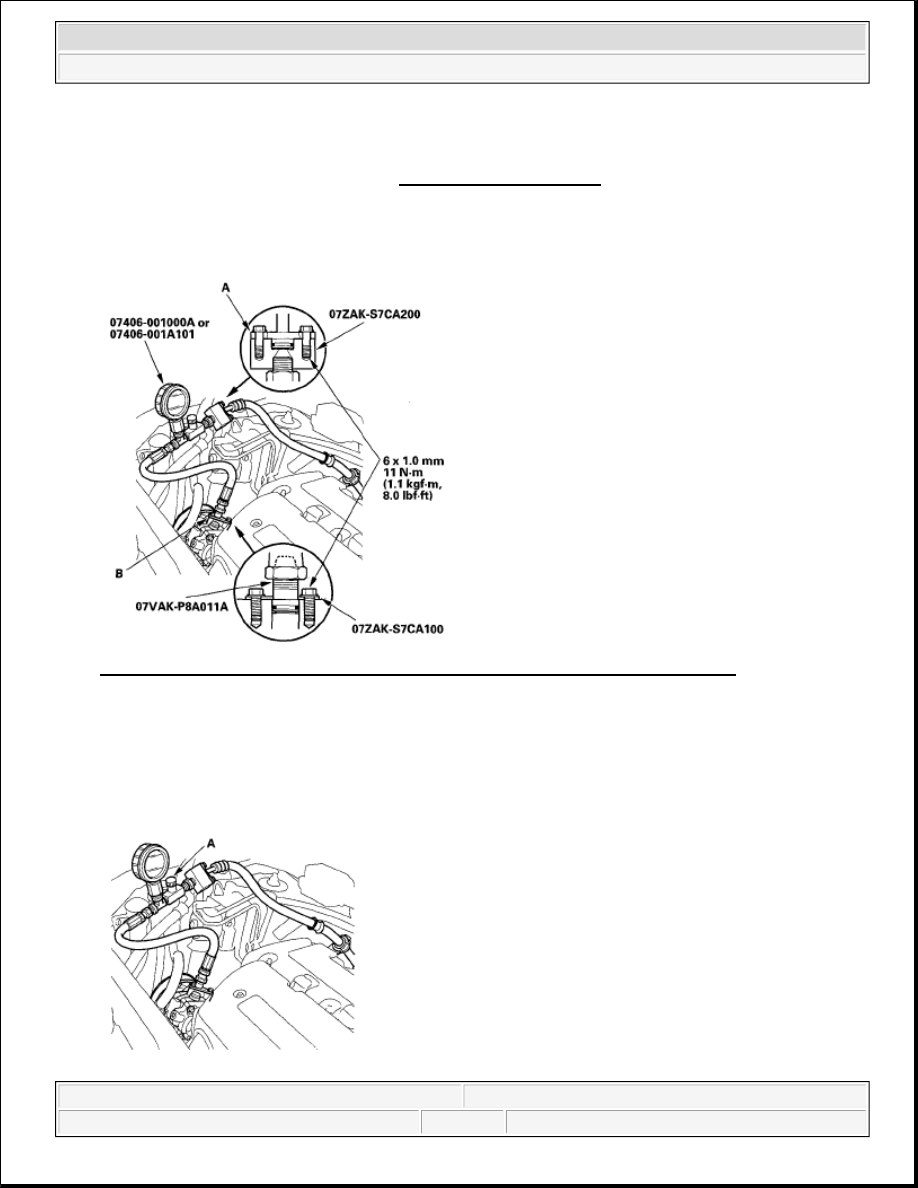

Fig. 8: Identifying Pump Outlet Hose And Pump Outlet With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Connect the P/S joint adapter (hose) to the P/S pressure gauge, then connect the pump outlet hose to the

P/S joint adapter (hose).

4. Install the P/S pressure gauge to the P/S joint adapter (pump).

5. Open the pressure control valve (A) fully.

Fig. 9: Identifying Pressure Control Valve



2007 Honda Element EX

2007-2008 STEERING Steering - Element



Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Start the engine and let it idle.

7. Turn the steering wheel from lock-to-lock several times to warm the fluid to operating temperature at

158°F (70°C).

8. Measure steady-state fluid pressure while the engine is idling. If the pump is in good condition, the

pressure should be no more than 1,470 kPa (15.0 kgf/cm

2

 , 213 psi). If the pressure is too high, check the

outlet hose or valve body unit (see Steering System Troubleshooting).

9. Raise the engine speed to 3,000 rpm, and measure the fluid pressure. If the pump is in good condition, the

pressure should be at least 1,470 kPa (15.0 kgf/cm

2

, 213 psi). If the pressure is too high, repair or replace

the pump.

10. Lower the engine speed, and let it idle. Close the shut-off valve gradually until the pressure gauge needle

is stable. Read the pressure.

11. Immediately open the shut-off valve fully. If the pump is in good condition, the gauge should read at least

7,460-8,140 kPa (76-83 kgf/cm

2

 , 1,080-1,180 psi). A low reading means pump output is too low for full

assist. Repair or replace the pump.

FLUID LEAKAGE INSPECTION

NOTE:

Do not keep the shut-off valve closed more than 5 seconds, or the pump
could be damaged by over-heating.



2007 Honda Element EX

2007-2008 STEERING Steering - Element

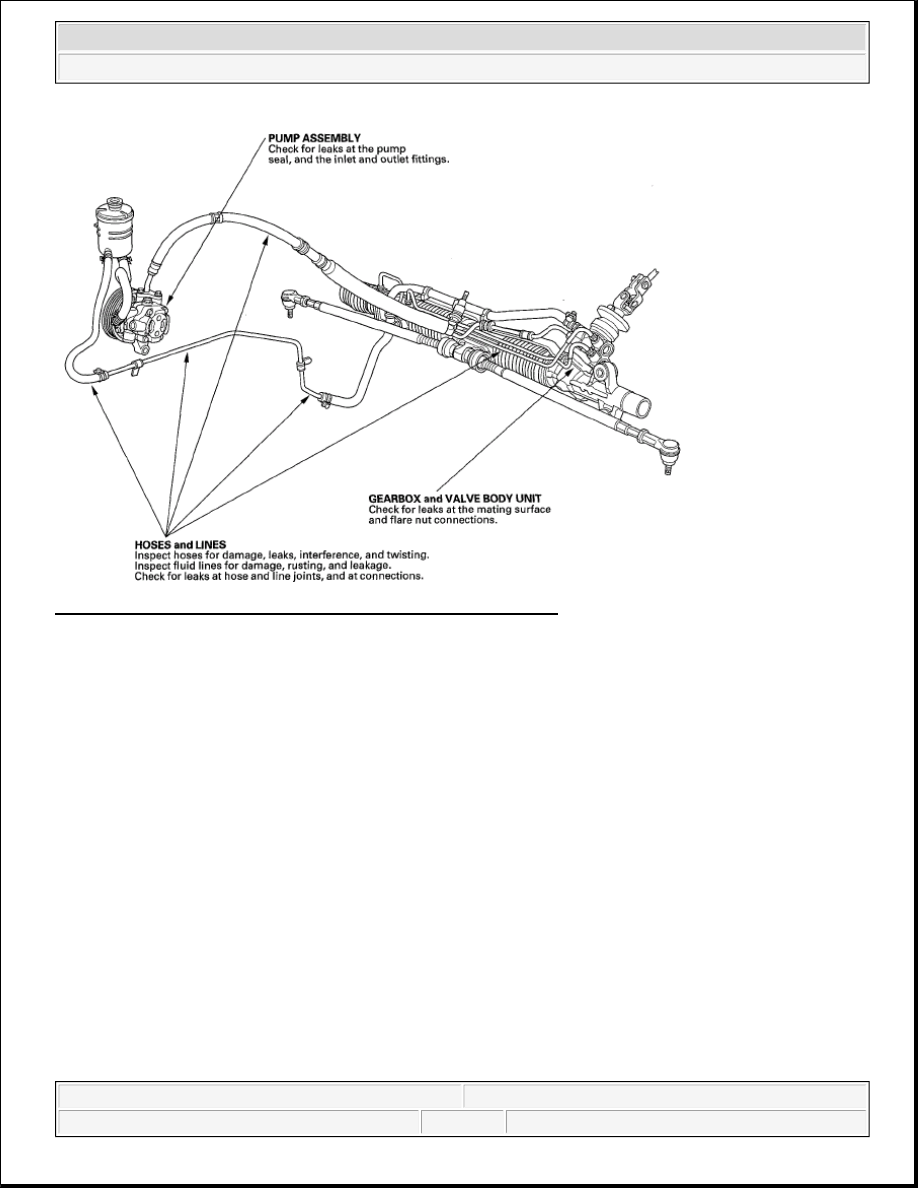

Fig. 10: Identifying Power Steering Fluid Leakage Parts Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

FLUID REPLACEMENT

Check the reservoir (A) at regular intervals, and add the recommended fluid as necessary. Always use Honda
Power Steering Fluid. Using any other type of power steering fluid or automatic transmission fluid can cause
increased wear and poor steering in cold weather.

System capacity: 0.83 L (0.87 US. qt) at disassembly

Reservoir capacity: 0.27 L (0.28 US. qt)

NOTE:

If the fluid is contaminated, the screen in the reservoir may be partially blocked.
Replace the reservoir if necessary.
