Honda Element. Manual - part 748

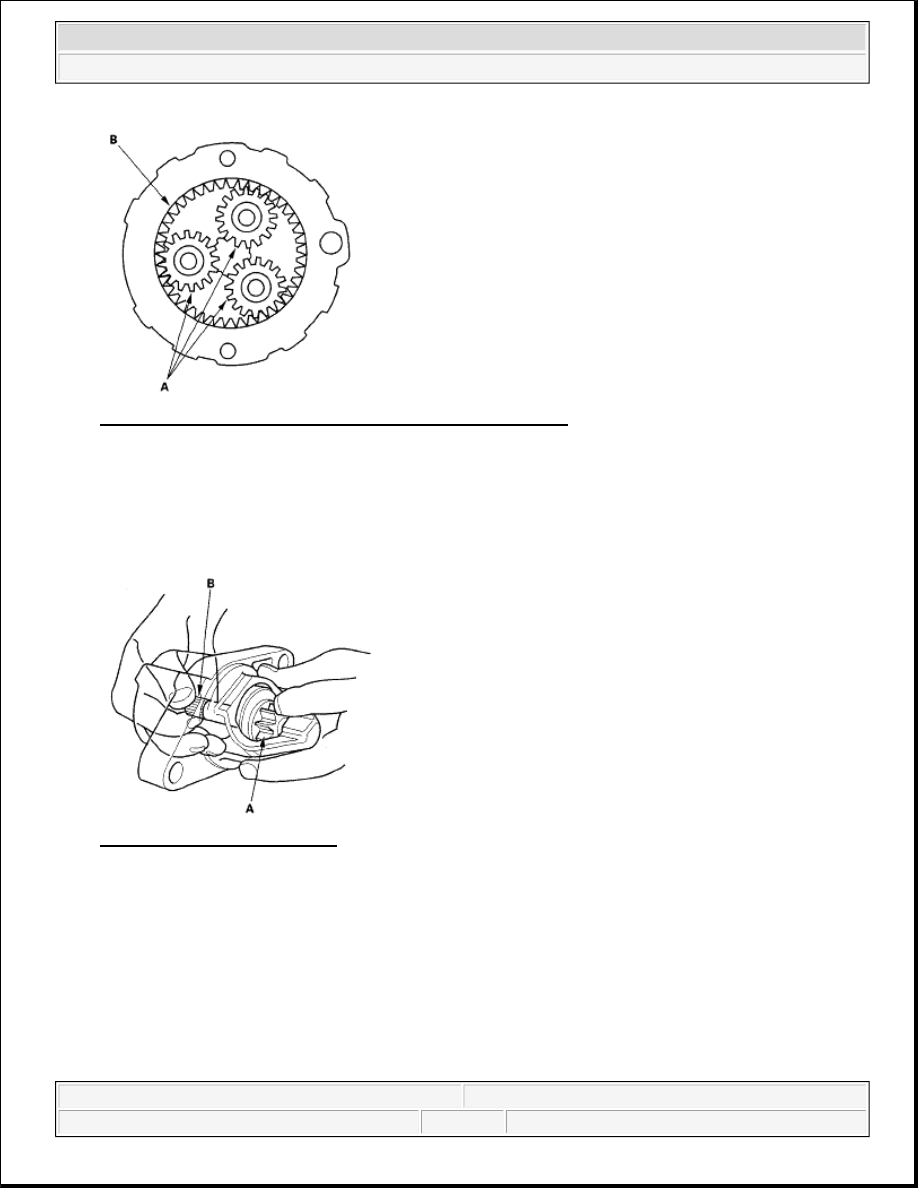

Fig. 23: Identifying Planetary Gears And Internal Ring Gear
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Overrunning Clutch Inspection

14. While holding the drive gear (A), turn the gear shaft (B) counterclockwise. Check that the drive gear

comes out to the other end. If the drive gear does not move smoothly, replace the gear cover assembly.

Fig. 24: Identifying Gear Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

15. While holding the drive gear, turn the gear shaft clockwise. The gear shaft should rotate freely. If the gear

shaft does not rotate smoothly, replace the gear cover assembly.

16. If the starter drive gear is worn or damaged, replace the overrunning clutch assembly, the gear is not

available separately.

Check the condition of the torque converter ring gear to see if the starter drive gear teeth are damaged.

Starter Reassembly



2007 Honda Element EX

2007-08 ENGINE Starting System - Element



17. Install the brush into the brush holder, and set the armature (A) in the brush holder (B).

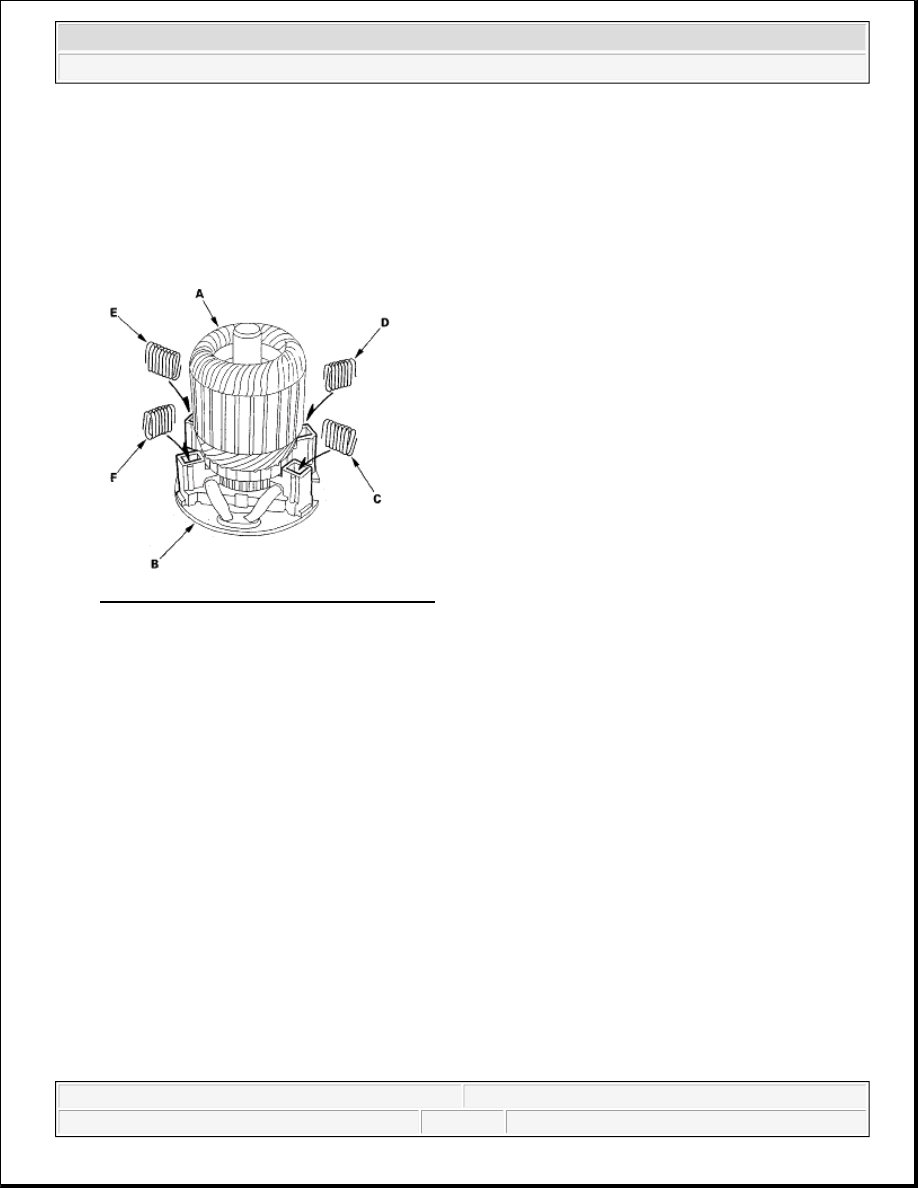

Fig. 25: Identifying Brush To Brush Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.

18. While squeezing a spring (C), insert it in the hole on the brush holder, and push it until it bottoms. Repeat

this for the other three springs (D, E, and F).

19. Install the armature and brush holder assembly into the housing.

NOTE:

To seat the new brushes, slip a strip of #500 or #600 sandpaper, with the
grit side up, between the commutator and each brush, and smoothly rotate
the armature. The contact surface of the brushes will be sanded to the
same contour as the commutator.

NOTE:

Make sure the armature stays in the holder.



2007 Honda Element EX

2007-08 ENGINE Starting System - Element



2007-2008 STEERING

Steering - Element

SPECIAL TOOLS

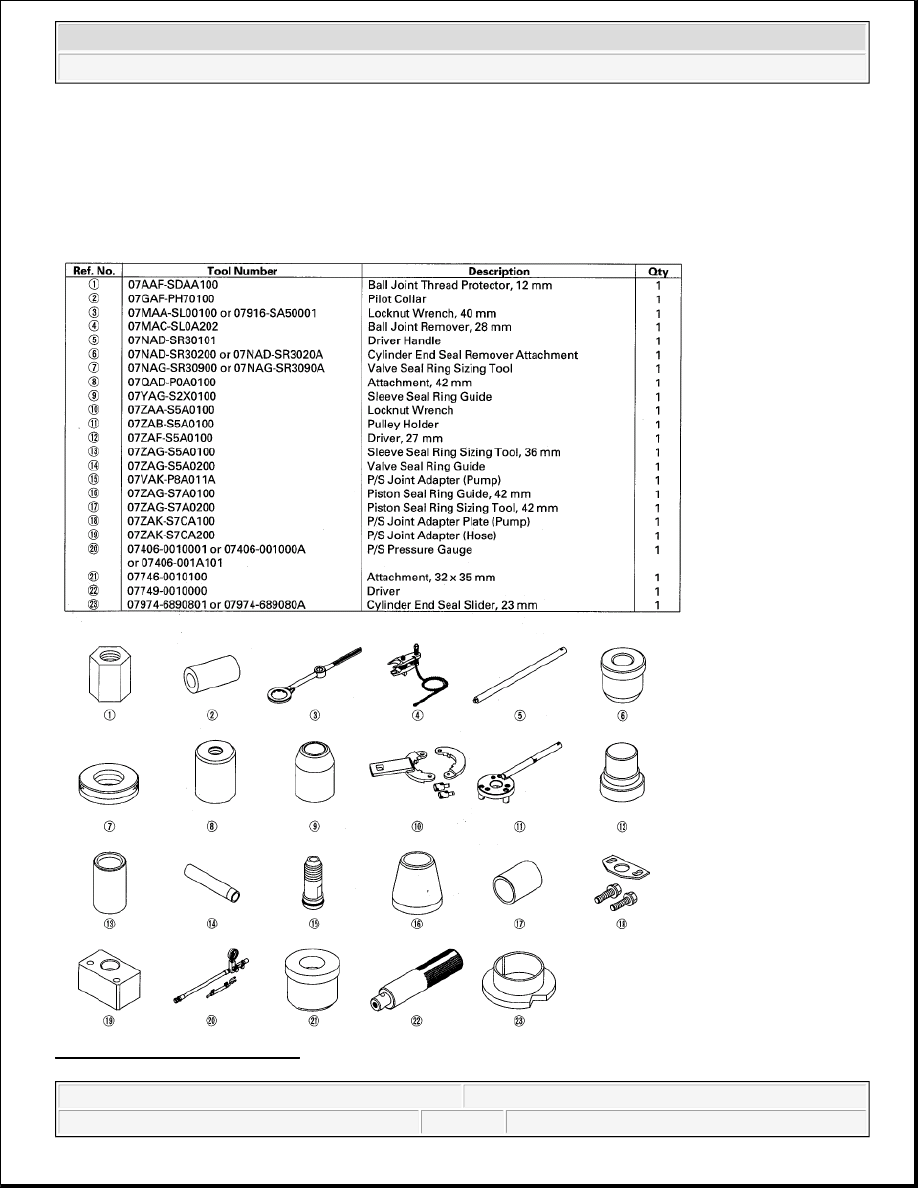

Fig. 1: Identifying Special Tools
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-2008 STEERING Steering - Element





2007 Honda Element EX

2007-2008 STEERING Steering - Element



COMPONENT LOCATION INDEX

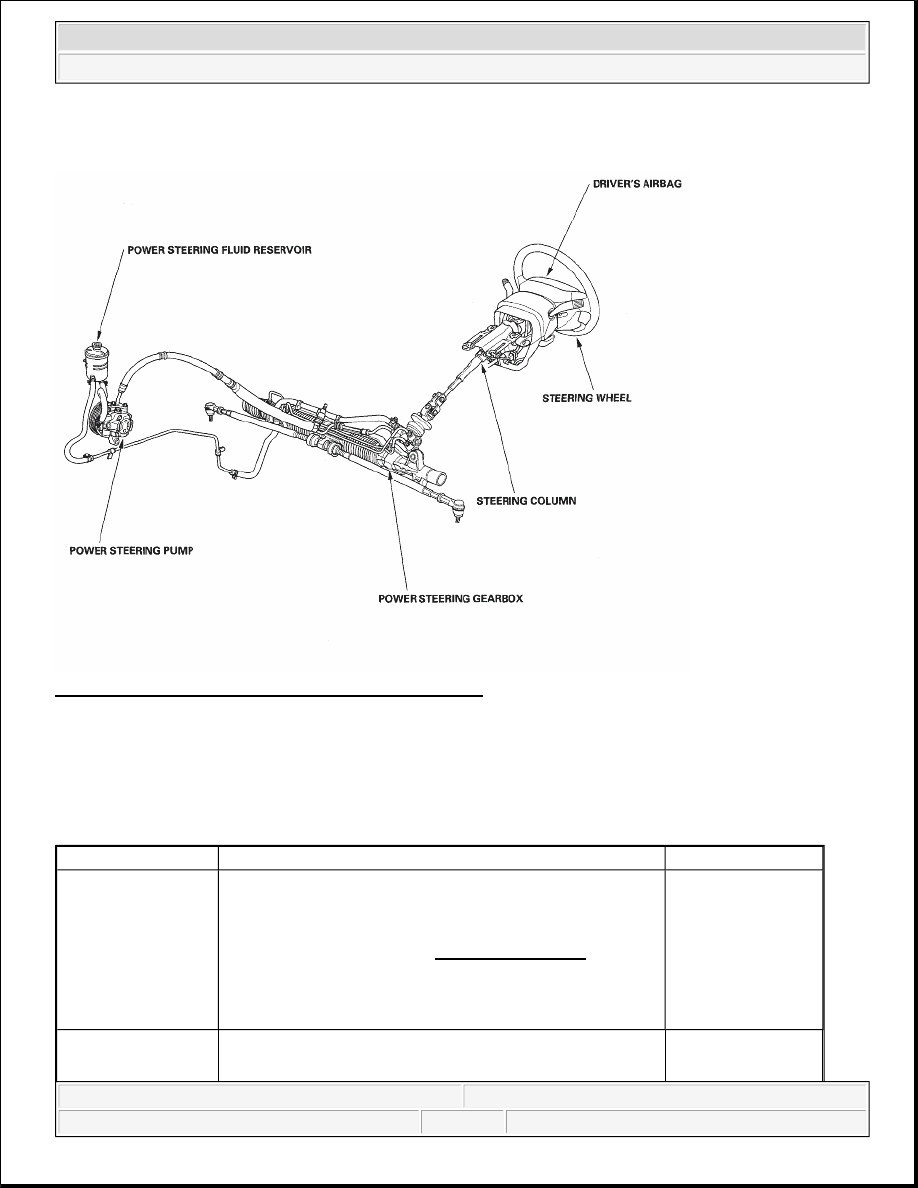

Fig. 2: Identifying Power Steering Component Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

SYMPTOM TROUBLESHOOTING INDEX

Find the symptom in the chart below, and do the related procedures in the order listed until you find the cause.

SYMPTOM TROUBLESHOOTING INDEX

Symptom

Procedure(s)

Also check for

Hard steering

Troubleshoot the system (see HARD STEERING ).



Modified
suspension



Damaged
suspension



Tire sizes, tire
varieties, and
air pressure

Assist (excessively
light steering at high  Check the rack guide adjustment (see RACK GUIDE

Front wheel
alignment (see
