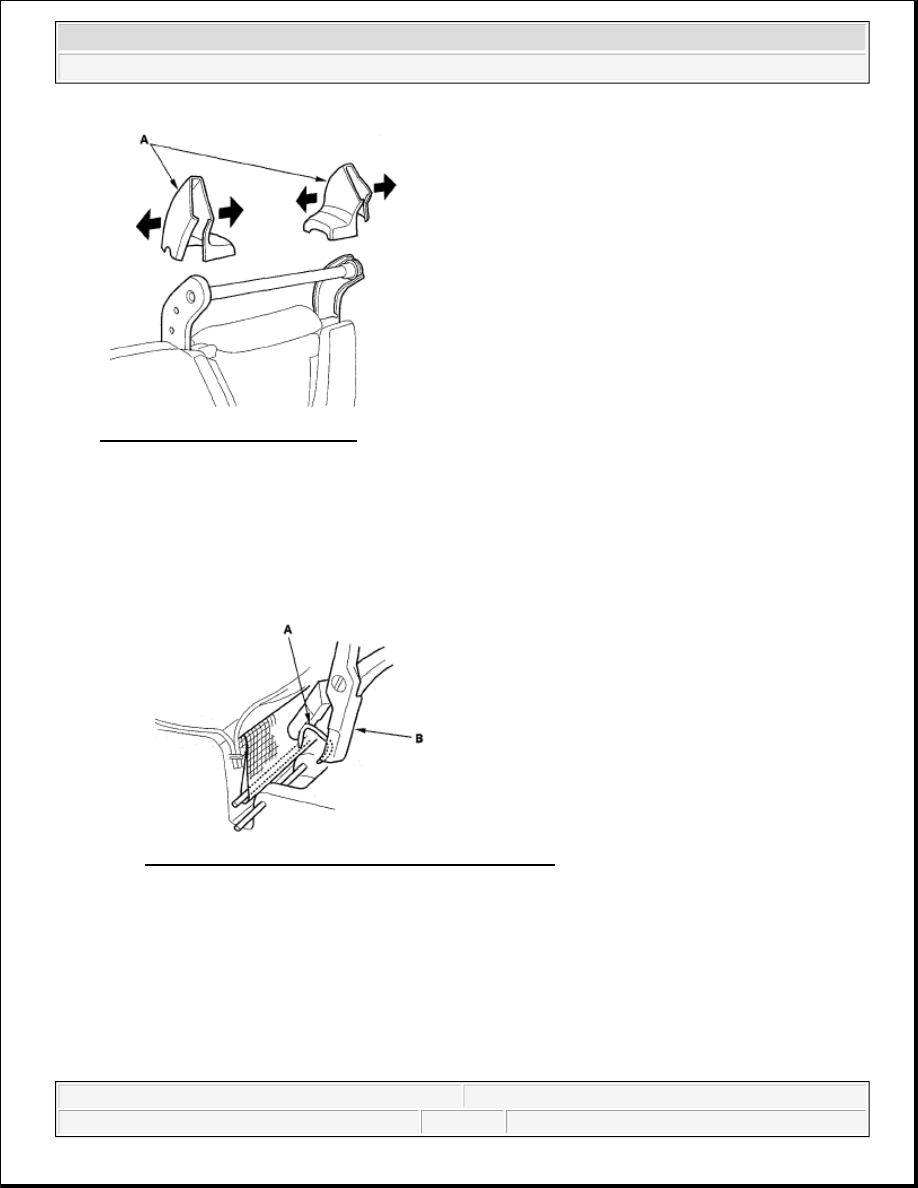

Fig. 63: Identifying Hinge Covers
Courtesy of AMERICAN HONDA MOTOR CO., INC.

14. Install the seat cushion cover in the reverse order of removal, and note these items:



To prevent wrinkles when installing a seat cushion cover, make sure the material is stretched
evenly over the pad before securing the clips and hooks.



Replace any clips you removed with new ones (A). Install them with commercially available
upholstery ring pliers (B).

Fig. 64: Identifying Upholstery Ring Pliers And Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.

REAR SEAT STRIKER REPLACEMENT

1. Remove the rear seat.

2. Remove the bolts (A) and nut (B), then remove the seat striker (C).



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Seats - Element

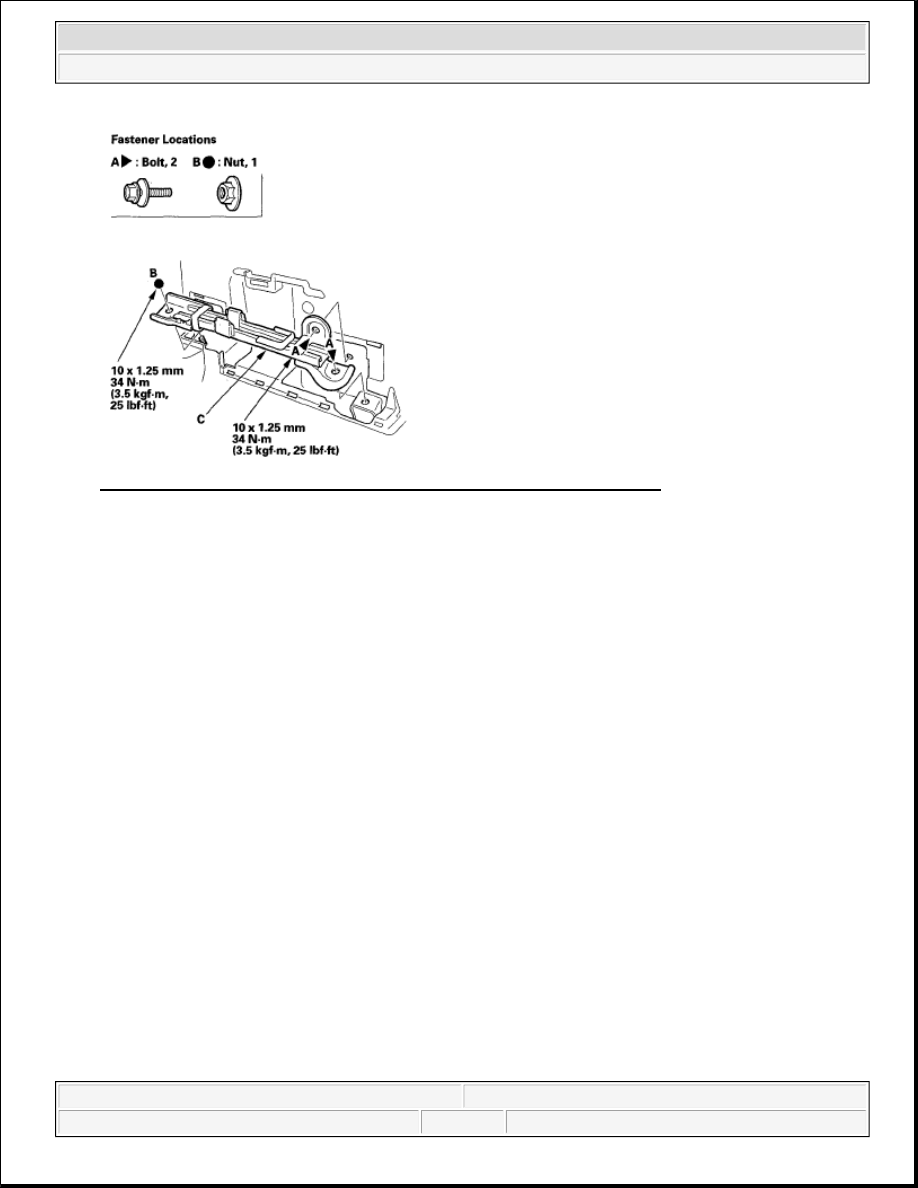

Fig. 65: Removing Seat Striker Bolts And Nut With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install the seat striker in the reverse order of removal.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Seats - Element



2007-08 ACCESSORIES AND EQUIPMENT

Skylight - Element

COMPONENT LOCATION INDEX

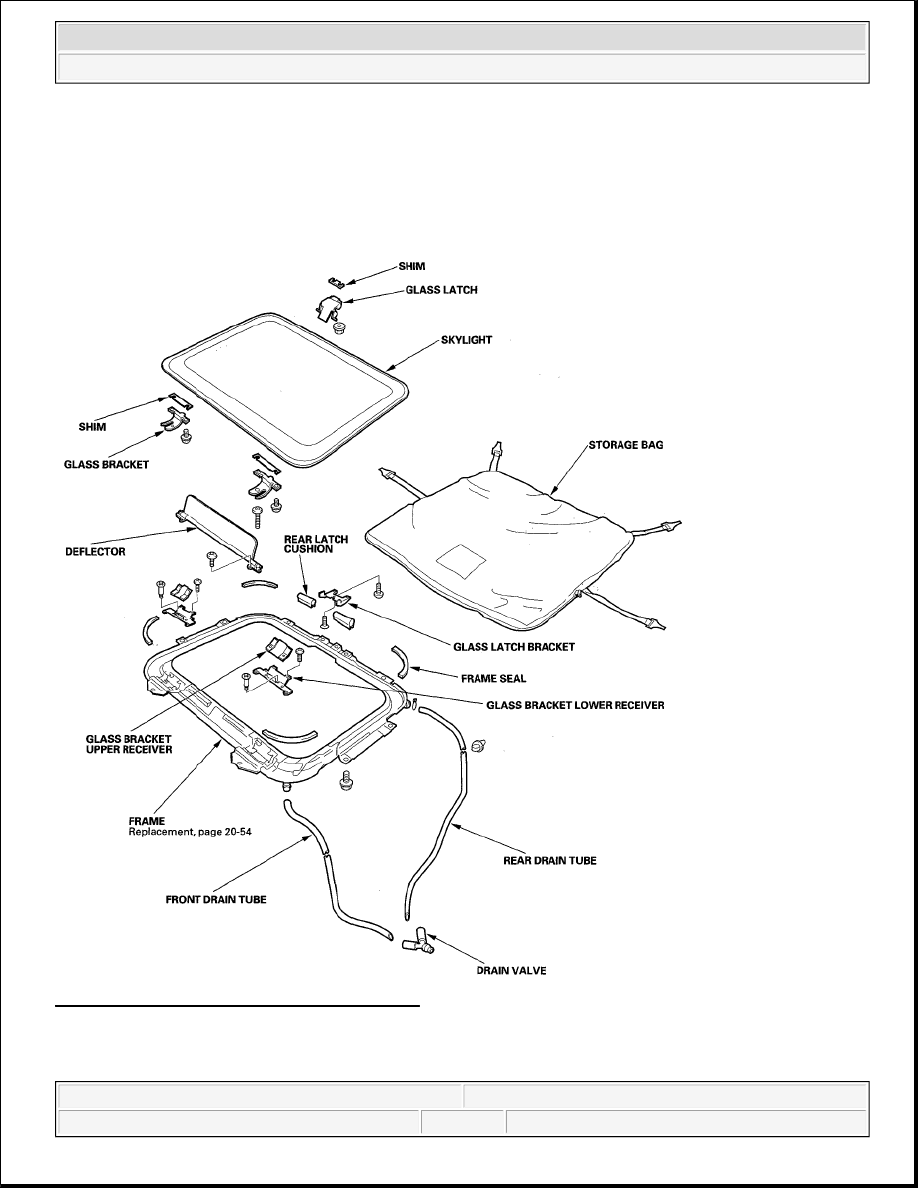

Fig. 1: Exploded View Of Skylight Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.

GLASS POSITION ADJUSTMENT



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Skylight - Element





2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Skylight - Element



The roof panel (A) should be even with the glass weatherstrip (B), to within 2+0.5/-1 mm (0.08+0.02/-0.04 in.)
at the center of the glass opening. If not, make the following adjustment:

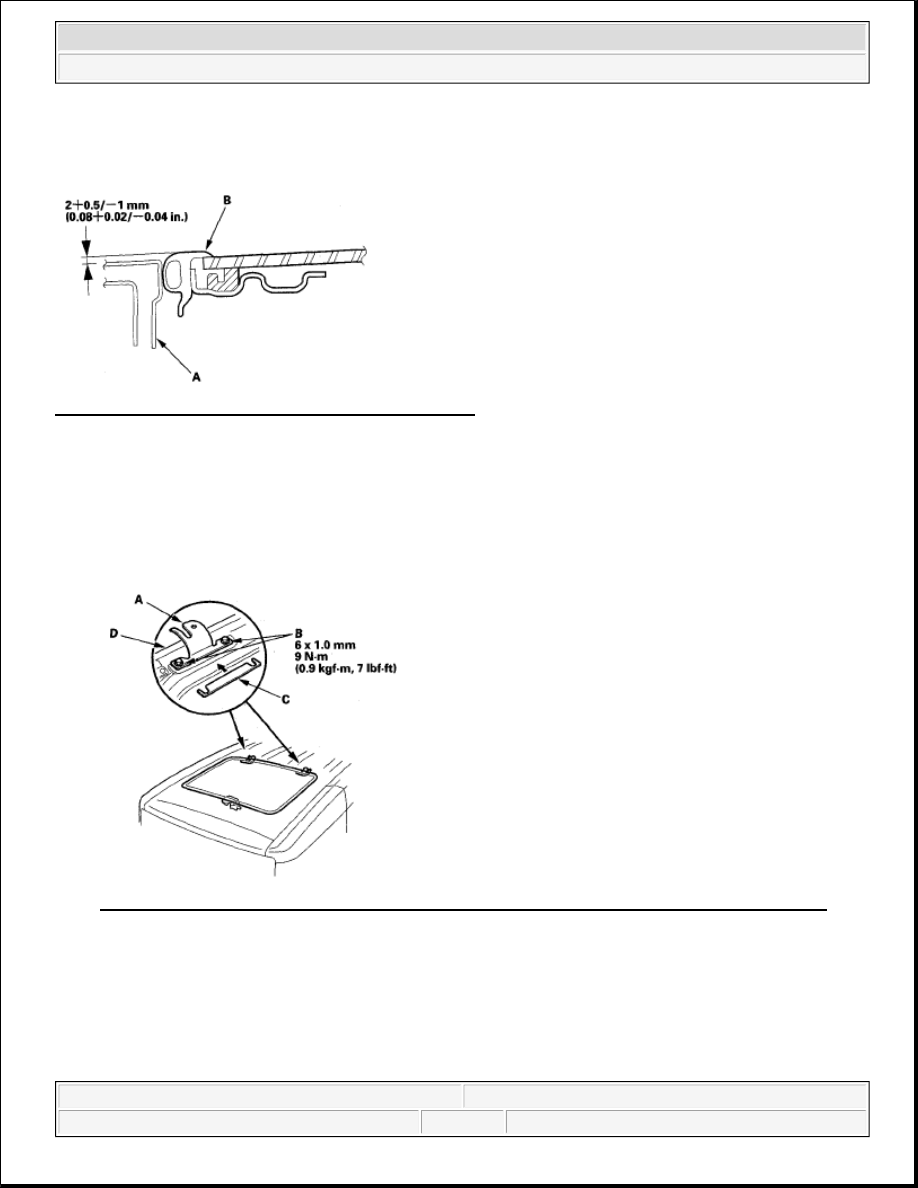

Fig. 2: Identifying Roof Panel And Glass Weatherstrip
Courtesy of AMERICAN HONDA MOTOR CO., INC.

1. Remove the skylight.

2. For front height: On both glass brackets (A), using a TORXT30 bit, loosen the bolts (B), and install a

shims (C) between the glass frame (D) and glass bracket.

Shim: Thickness 2 mm (0.08 in.) max. A.

Fig. 3: Identifying Shims Between Glass Frame And Glass Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. For rear height: On the glass latch (A), loosen the nuts (B), and install a shim (C) between the glass frame

(D) and glass latch.

Shim: Thickness 1 mm (0.04 in.) max.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Skylight - Element
