11. Stake the lock nut shoulder (A) into the groove in the clutch guide.

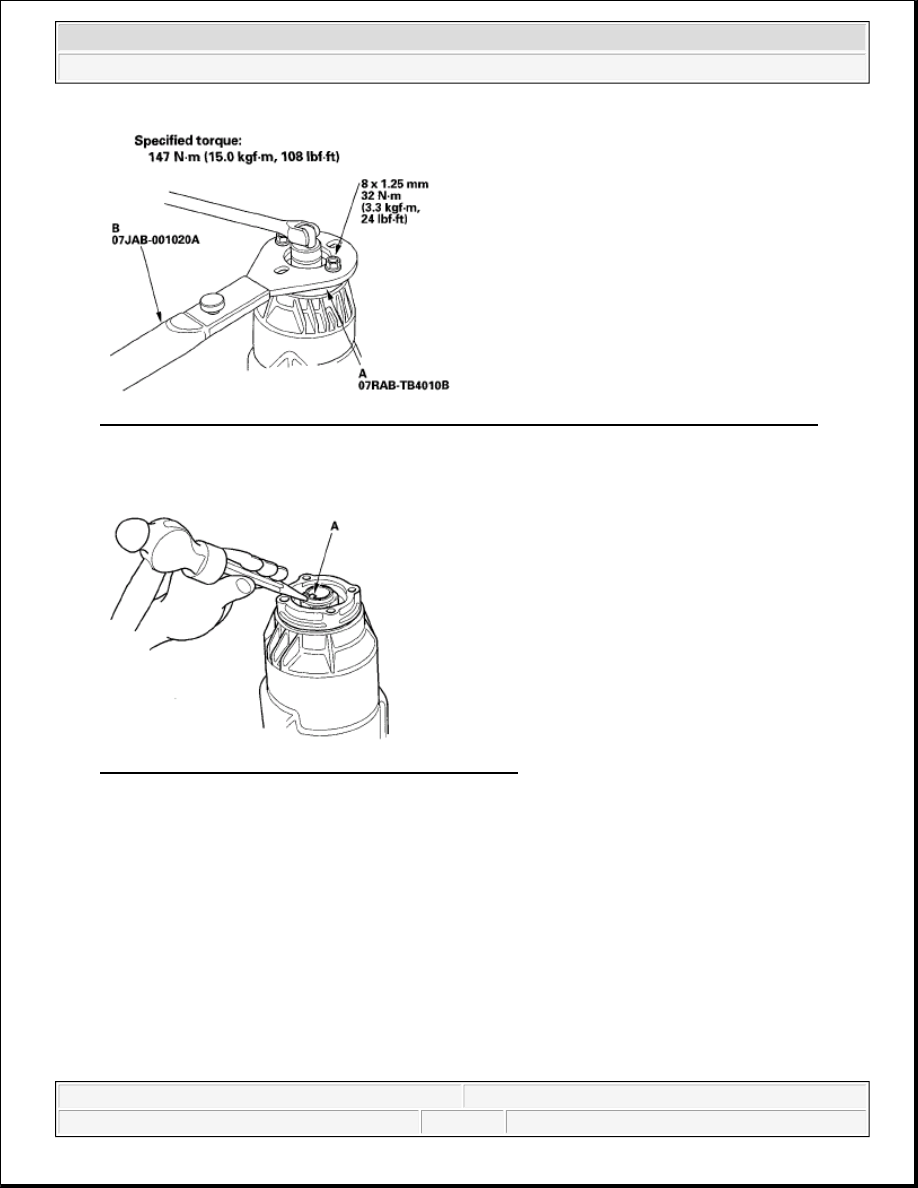

Fig. 52: Staking Lock Nut Shoulder Into Clutch Guide
Courtesy of AMERICAN HONDA MOTOR CO., INC.

12. Install the drain plug (A) and the filler plug (B) with new washers (C).



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Rear Differential - Element



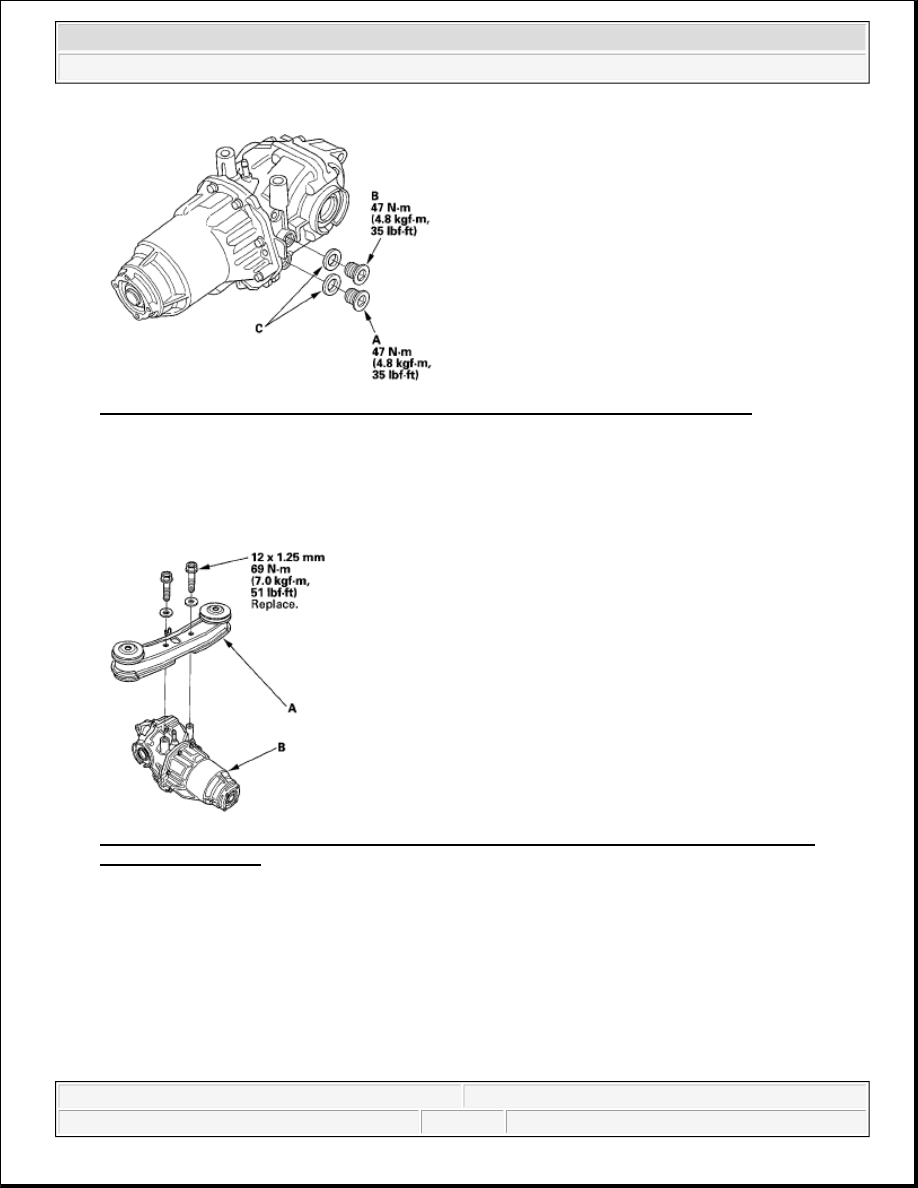

Fig. 53: Identifying Drain Plug, Filler Plug And Washers With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

REAR DIFFERENTIAL INSTALLATION

1. Install the rear differential mount assembly A to the rear differential assembly (B).

Fig. 54: Identifying Rear Differential Mount Assembly And Rear Differential Assembly With
Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Jack up the rear differential.

3. Install the new set rings (A) onto the driveshafts, then insert the driveshafts into the rear differential (B).



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Rear Differential - Element



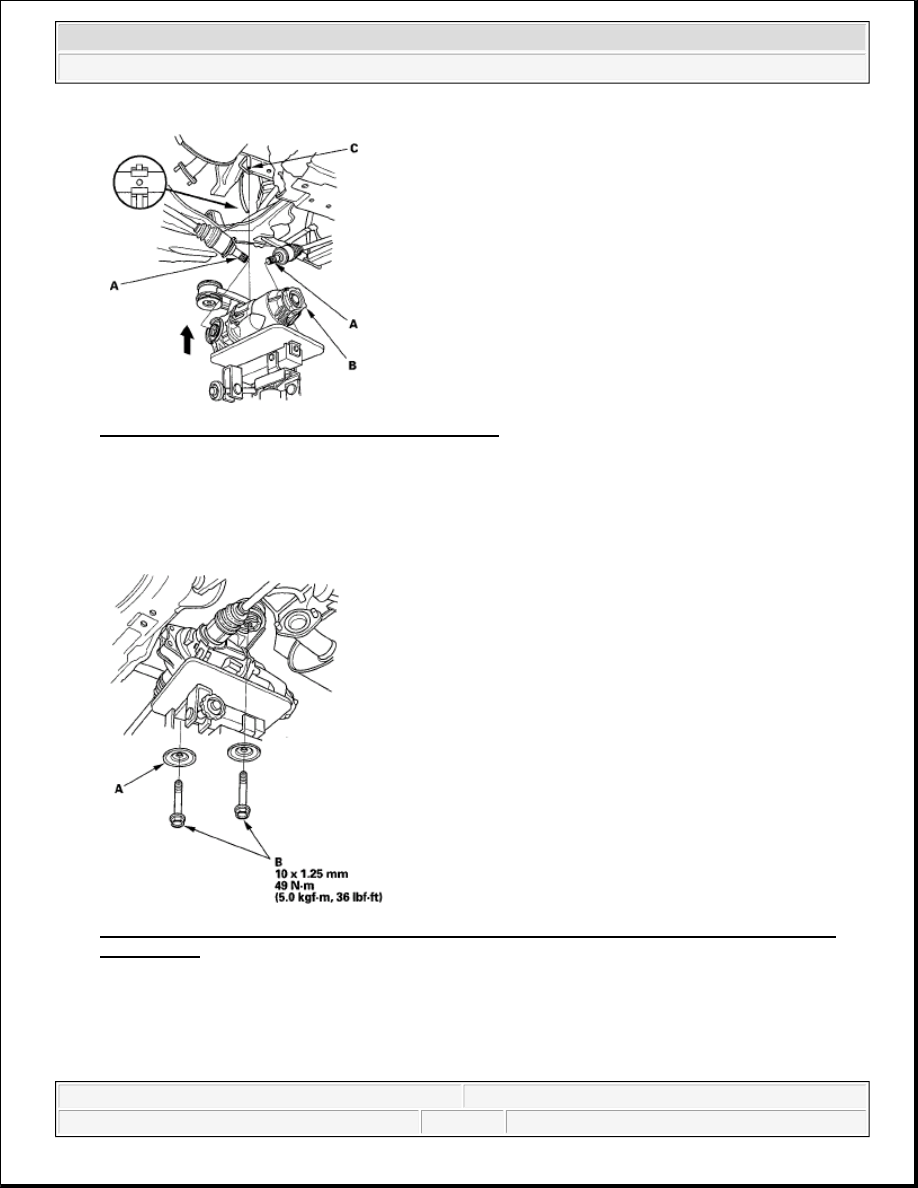

Fig. 55: Inserting Drivershaft Into Rear Differential
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Lift the rear differential up into position, then push on both driveshafts to lock the set rings into place.

Connect the breather tube (C).

5. Install the plates (A) and the rear differential mount assembly mounting bolts (B).

Fig. 56: Identifying Plates And Rear Differential Mount Assembly Mounting Bolts With Torque
Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Install the rear differential damper (A) (M/T model) and right and left rear differential mount brackets B.



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Rear Differential - Element



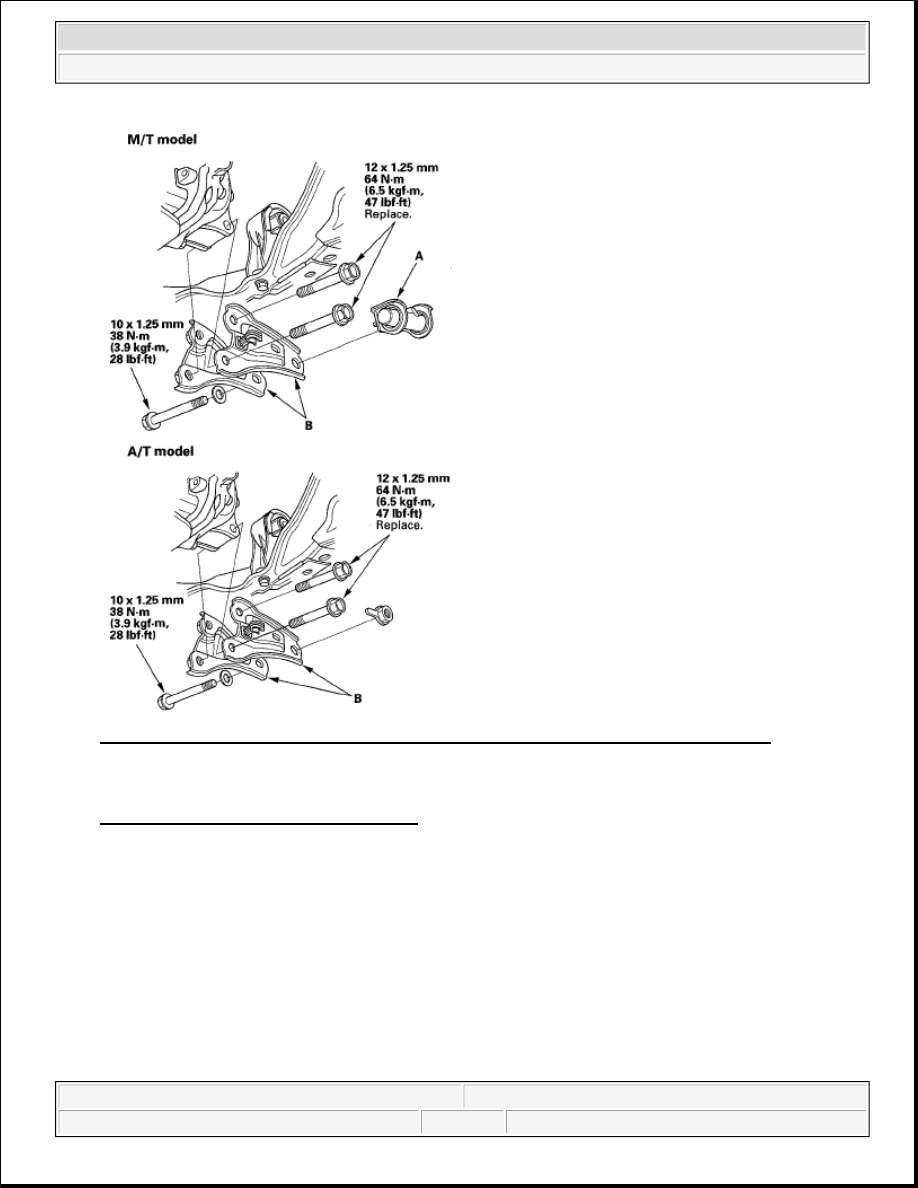

Fig. 57: Identifying Rear Differential Damper (M/T Model) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Connect the No. 2 propeller shaft onto the rear differential by aligning the reference mark (see step 1 on

PROPELLER SHAFT INSTALLATION ).

8. Install the tail pipe (A).
