Honda Element. Manual - part 700

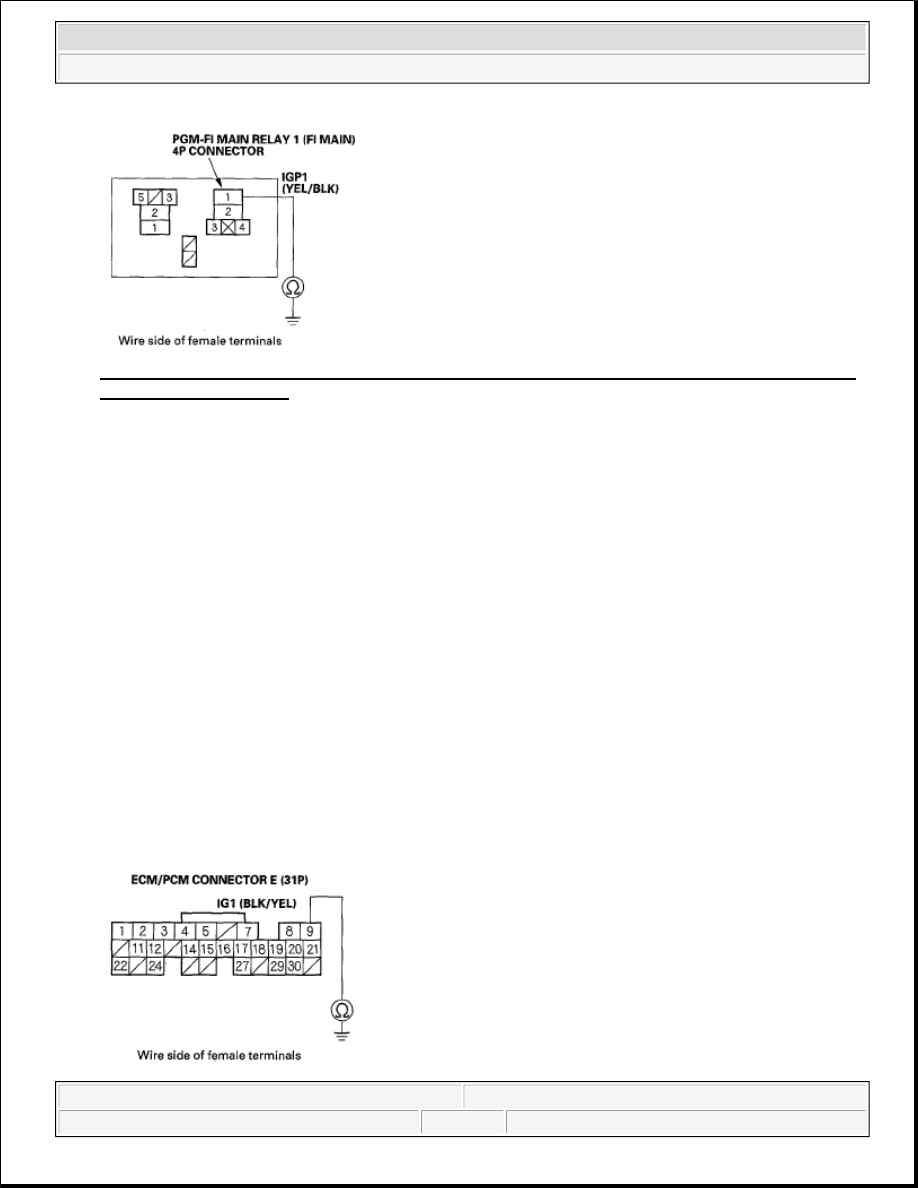

Fig. 151: Checking Continuity Between PGM-FI Main Relay 1 (FI MAIN) 4P Connector Terminal
No. 1 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Repair short in the wire between PGM-FI main relay 1 (FI MAIN) and each item. Also replace the
No. 6 FI ECU (15 A) fuse.

NO -Replace PGM-FI main relay 1 (FI MAIN). Also replace the No. 6 FI ECU (15 A) fuse.

45. Inspect the No. 17 FUEL PUMP (15 A) fuse in the under-dash fuse/relay box.

Is the fuse OK?

YES -Go to step 56.

NO -Go to step 46.

46. Remove the blown No. 17 FUEL PUMP (15 A) fuse from the under-dash fuse/relay box.

47. Jump the SCS line with the HDS.

48. Disconnect ECM/PCM connector E (31P).

49. Check for continuity between ECM/PCM connector terminal E9 and body ground.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element



Fig. 152: Checking Continuity Between ECM/PCM Connector Terminal E9 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Repair the short in the wire between the No. 17 FUEL PUMP (15 A) fuse and the ECM/PCM (E9),
or between the No. 17 FUEL PUMP (15 A) fuse and PGM-FI main relay 2 (FUEL PUMP). Also replace
the No. 17 FUEL PUMP (15 A) fuse.

NO -Go to step 50.

50. Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ), then remove PGM-FI

main relay 2 (FUEL PUMP) (A).

Fig. 153: Identifying PGM-FI Main Relay 2 (Fuel Pump)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

51. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).

52. Remove the access panel from the floor (see step 4 in FUEL TANK UNIT

REMOVAL/INSTALLATION ).

53. Disconnect the fuel pump 5P connector.

54. Check for continuity between fuel pump 5P connector terminal No. 5 and body ground.

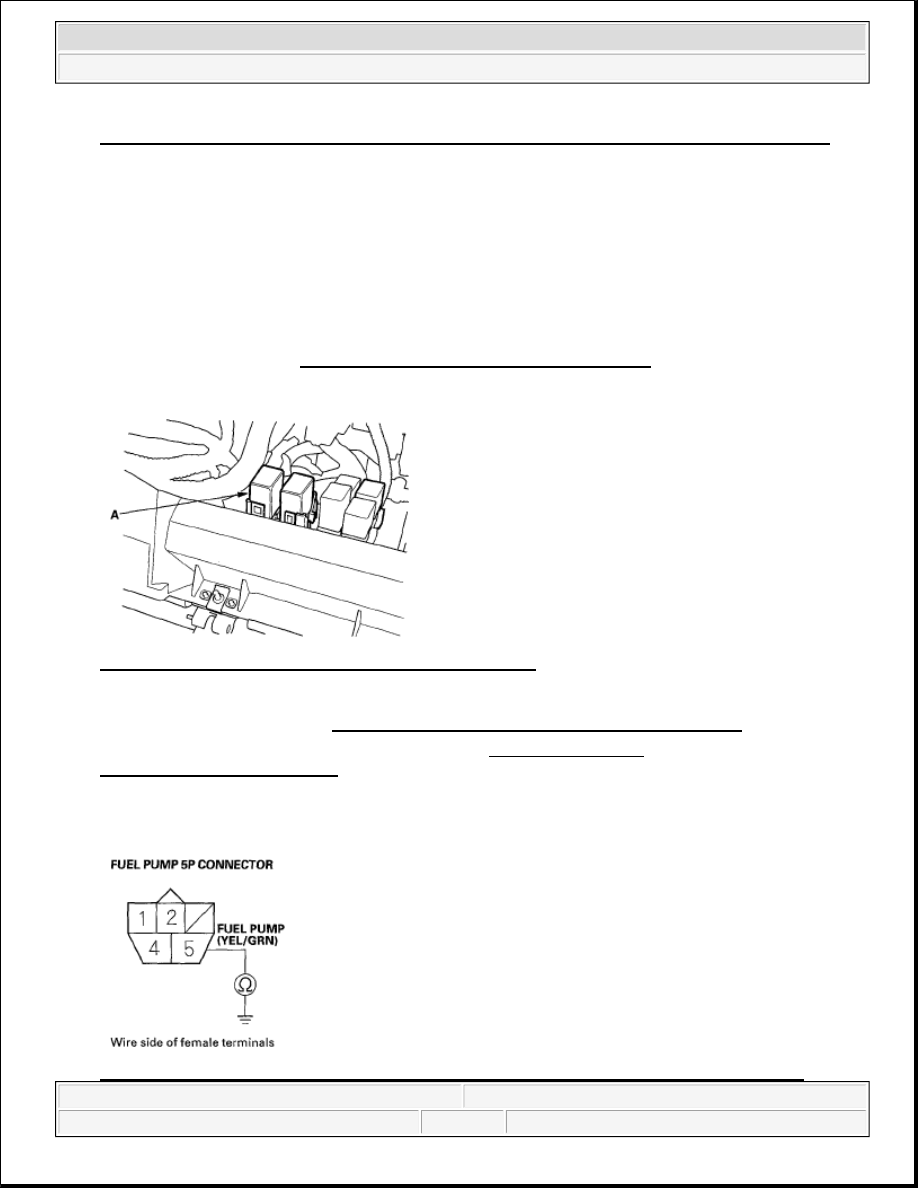

Fig. 154: Checking Continuity Between Fuel Pump 5P Connector Terminal No. 5 And Body



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element



Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Repair short in the wire between the fuel pump and PGM-FI main relay 2 (FUEL PUMP). Also
replace the No. 17 FUEL PUMP (15 A) fuse.

NO -Go to step 55.

55. Test PGM-FI main relay 2 (FUEL PUMP) (see POWER RELAY TEST ).

Is the relay OK?

YES -Check the fuel pump, and replace it if necessary. Also replace the No. 17 FUEL PUMP (15 A)
fuse.

NO -Replace the PGM-FI main relay 2 (FUEL PUMP). Also replace the No. 17 FUEL PUMP (15 A)
fuse.

56. Jump the SCS line with the HDS.

57. Disconnect ECM/PCM connector E (31P).

58. Turn the ignition switch ON (II).

59. Measure voltage between ECM/PCM connector terminal E9 and body ground.

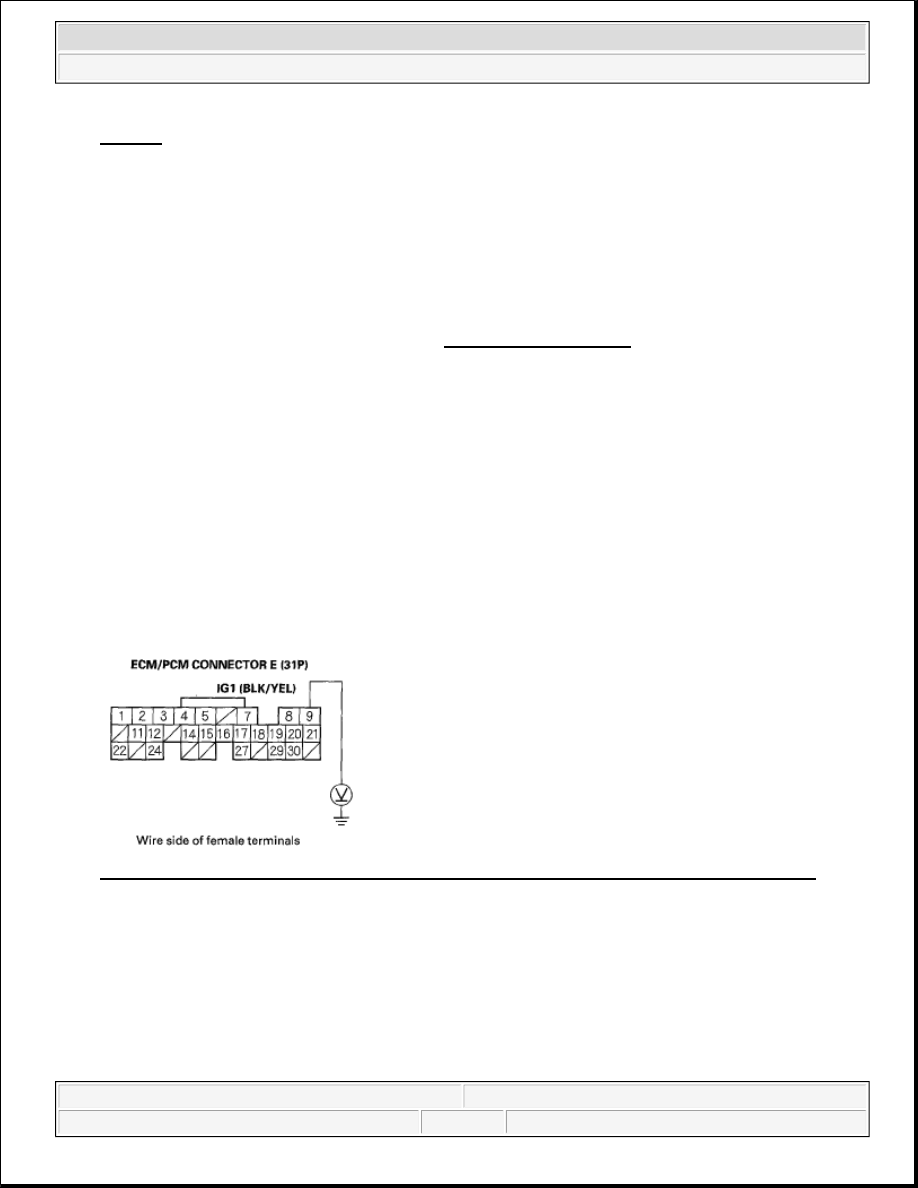

Fig. 155: Measuring Voltage Between ECM/PCM Connector Terminal E9 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES -Go to step 60.

NO -Repair open in the wire between the No. 17 FUEL PUMP (15 A) fuse and the ECM/PCM (E9).

60. Measure voltage between ECM/PCM connector terminal E7 and body ground.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element



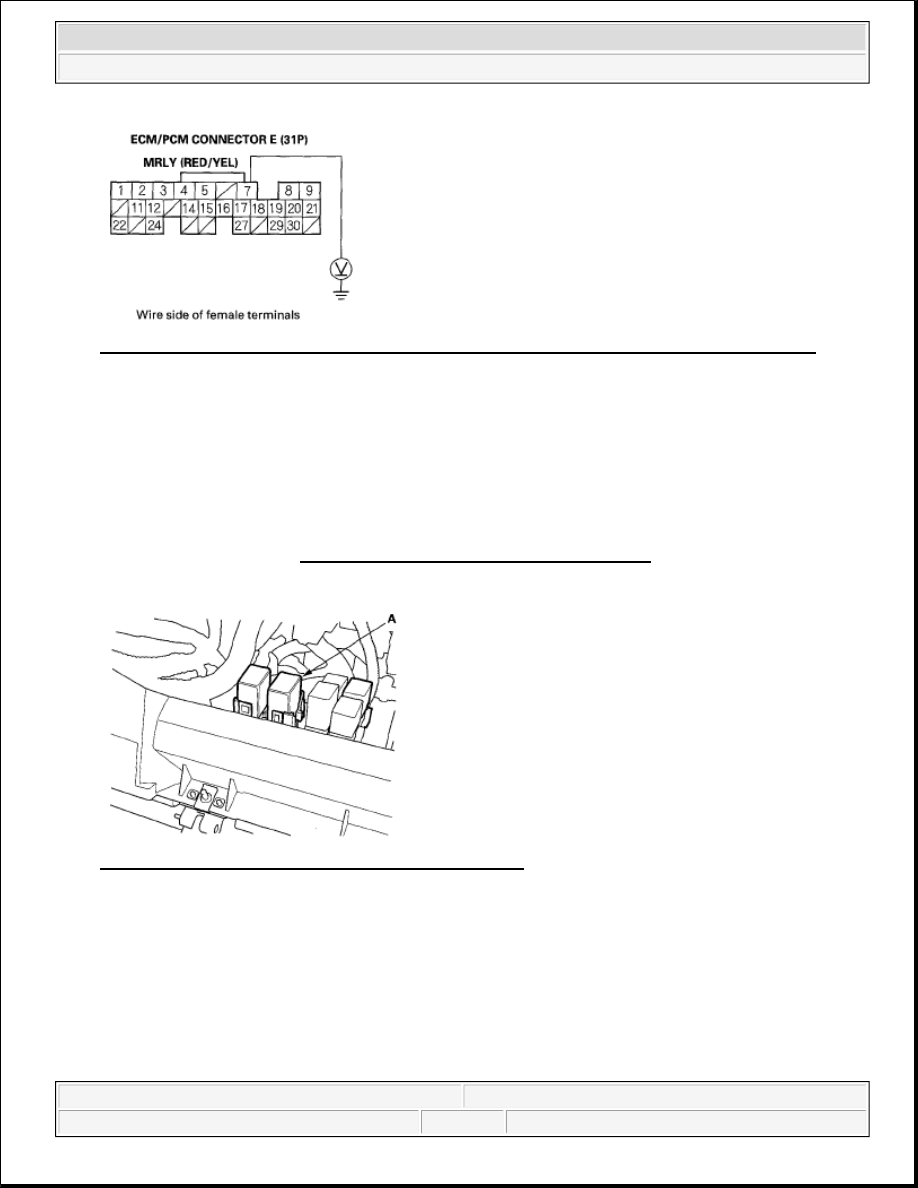

Fig. 156: Measuring Voltage Between ECM/PCM Connector Terminal E7 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES -Go to step 65.

NO -Go to step 61.

61. Turn the ignition switch OFF.

62. Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ), then remove PGM-FI

main relay 1 (FI MAIN) (A).

Fig. 157: Identifying PGM-FI Main Relay 1 (FI MAIN)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

63. Measure voltage between PGM-FI main relay 1 (FI MAIN) 4P connector terminal No. 4 and body

ground.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element
