Honda Element. Manual - part 680





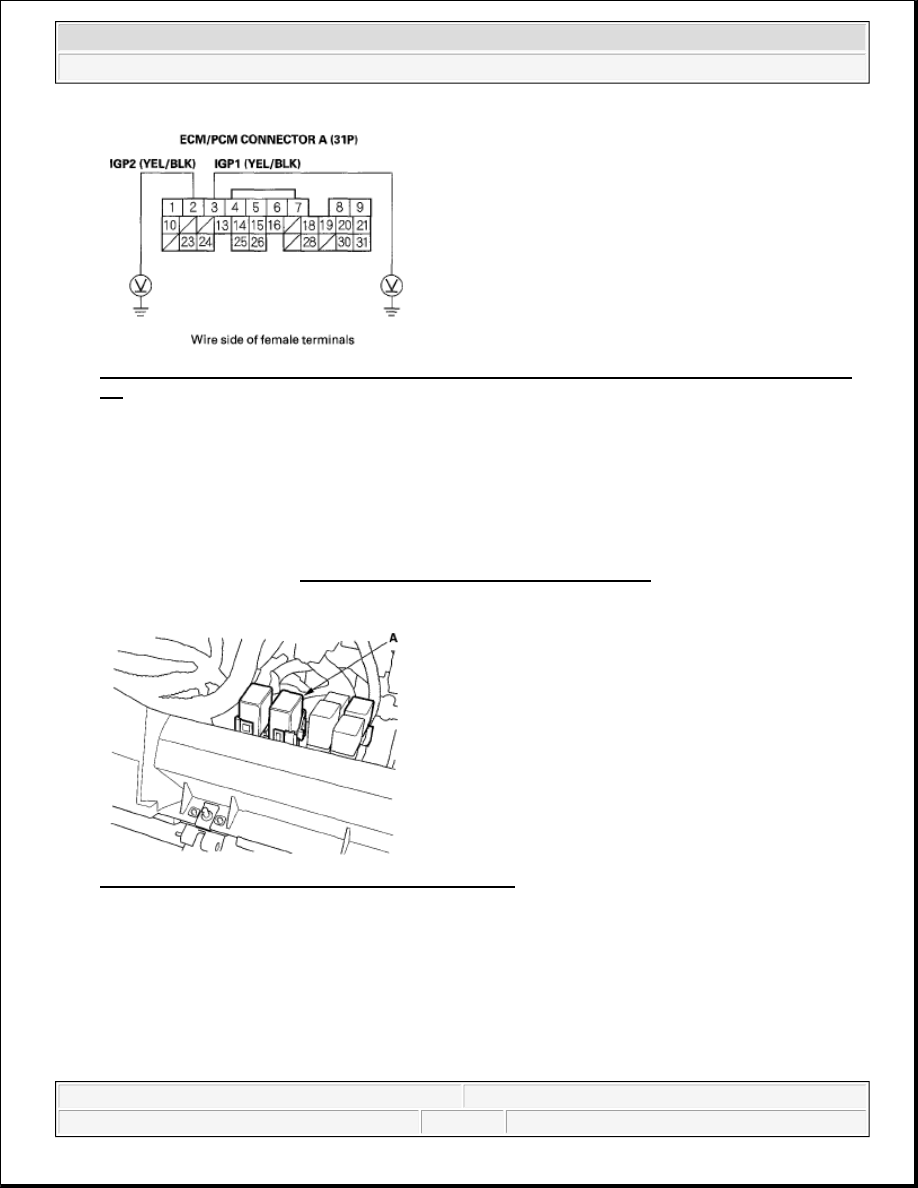

Fig. 84: Measuring Voltage Between Body Ground And ECM/PCM Connector Terminals A3 And
A2

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES -Go to step 17.

NO -Go to step 27.

17. Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ), then remove PGM-FI

main relay 1 (FI MAIN) (A).

Fig. 85: Identifying PGM-FI Main Relay 1 (FI MAIN)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

18. Measure voltage between body ground and ECM/PCM connector terminals A3 and A2 individually.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element



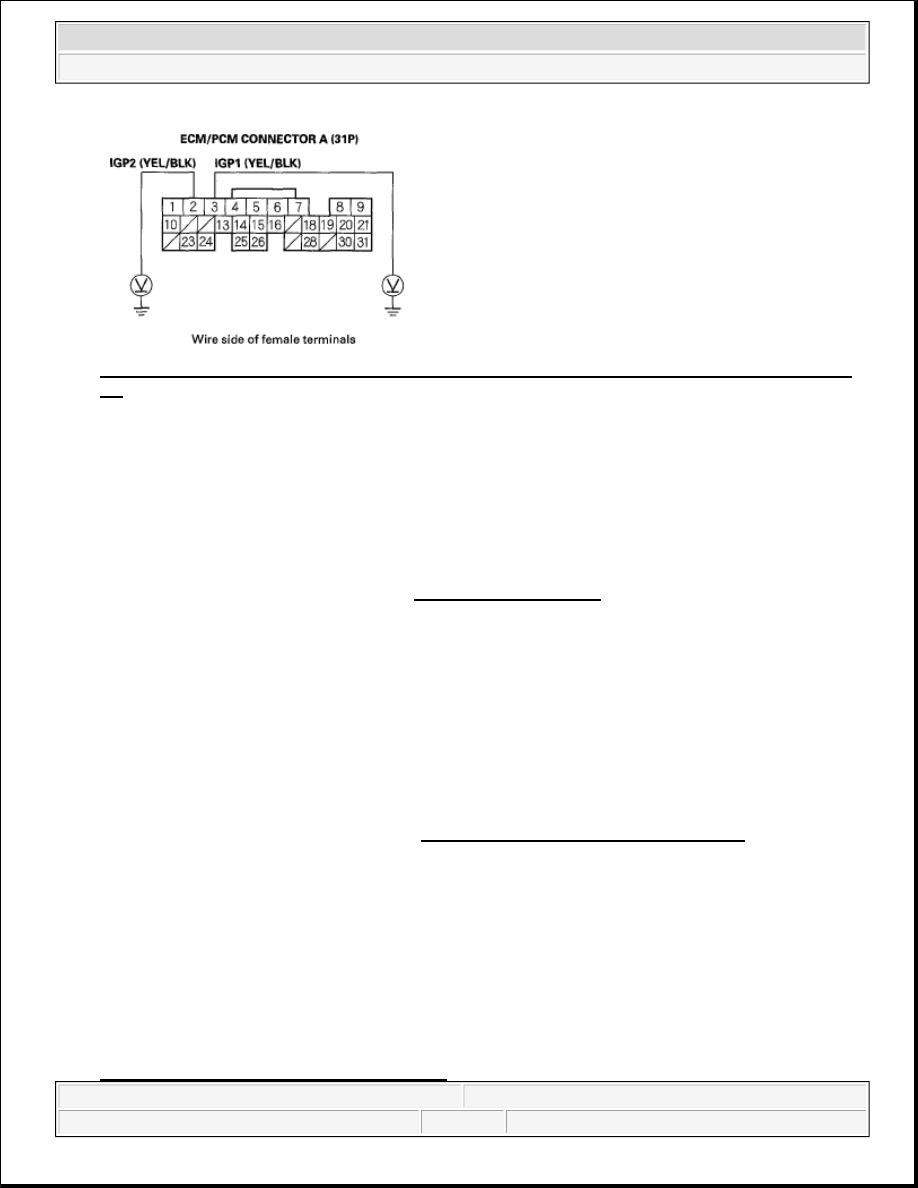

Fig. 86: Measuring Voltage Between Body Ground And ECM/PCM Connector Terminals A3 And
A2

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES -Repair short to power in the wire between the ECM/PCM (A2, A3) and PGM-FI main relay 1 (FI
MAIN), then go to step 20.

NO -Go to step 19.

19. Test PGM-FI main relay 1 (FI MAIN) (see POWER RELAY TEST ).

Is PGM-FI main relay 1 (FI MAIN) OK?

YES -Go to step 27.

NO -Replace PGM-FI main relay 1 (FI MAIN), then go to step 20.

20. Reconnect all connectors.

21. Turn the ignition switch ON (II).

22. Reset the ECM/PCM with the HDS.

23. Do the ECM/PCM idle learn procedure (see ECM/PCM IDLE LEARN PROCEDURE ).

24. Turn the ignition switch OFF.

25. Wait 10 seconds.

26. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P0563 indicated?

YES -Check for poor connections or loose terminals at PGM-FI main relay 1 (FI MAIN) and the
ECM/PCM, then go to step 1.

NO -Troubleshooting is complete. If any other Temporary DTCs or DTCs are indicated, go to the
INDICATED DTCS TROUBLESHOOTING.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element



27. Reconnect all connectors.

28. Update the ECM/PCM if it does not have the latest software (see UPDATING THE ECM/PCM ), or

substitute a known-good ECM/PCM (see SUBSTITUTING THE ECM/PCM ).

29. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P0563 indicated?

YES -Check for poor connections or loose terminals at PGM-FI main relay 1 (FI MAIN) and the
ECM/PCM. If the ECM/PCM was updated, substitute a known-good ECM/PCM (see SUBSTITUTING
THE ECM/PCM
 ), then recheck. If the ECM/PCM was substituted, go to step 1.

NO -If the ECM/PCM was updated, troubleshooting is complete. If the ECM/PCM was substituted,
replace the original ECM/PCM (see ECM/PCM REPLACEMENT ). If any other Temporary DTCs or
DTCs are indicated, go to the INDICATED DTCS TROUBLESHOOTING

DTC P0602: ECM/PCM PROGRAMMING ERROR

1. Do the ECM/PCM update procedure (see UPDATING THE ECM/PCM ).

2. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P0602 indicated?

YES -Replace the original ECM/PCM (see ECM/PCM REPLACEMENT ).

NO -Updating is complete. If any other Temporary DTCs or DTCs are indicated, go to the INDICATED
DTCS TROUBLESHOOTING

DTC P0603: ECM/PCM INTERNAL CONTROL MODULE KEEP ALIVE MEMORY (KAM) ERROR

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Check for Temporary DTCs or DTCs with the HDS.

NOTE:

Before you troubleshoot, record all freeze data and any on-board
snapshot, and review the general troubleshooting information (see
GENERAL TROUBLESHOOTING INFORMATION ).

This DTC is indicated when the ECM/PCM update is not completed.

Do not turn the ignition switch OFF while updating the ECM/PCM. If you
turn the ignition switch OFF before completion, the ECM/PCM can be
damaged.

NOTE:

Before you troubleshoot, record all freeze data and any on-board snapshot, and
review the general troubleshooting information (see GENERAL
TROUBLESHOOTING INFORMATION ).



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element



Are any Temporary DTCs or DTCs indicated?

YES -Go to step 4.

NO -Intermittent failure, the system is OK at this time.

4. Update the ECM/PCM if it does not have the latest software (see UPDATING THE ECM/PCM ), or

substitute a known-good ECM/PCM (see SUBSTITUTING THE ECM/PCM ).

5. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P0603 indicated?

YES -If the ECM/PCM was updated, substitute a known-good ECM/PCM (see SUBSTITUTING THE
ECM/PCM
 ), then recheck. If the ECM/PCM was substituted, go to step 1.

NO -If the ECM/PCM was updated, troubleshooting is complete. If the ECM/PCM was substituted,
replace the original ECM/PCM (see ECM/PCM REPLACEMENT ). If any other Temporary DTCs or
DTCs are indicated, go to the INDICATED DTCS TROUBLESHOOTING

DTC P0606: ECM/PCM PROCESSOR MALFUNCTION

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Turn the ignition switch OFF.

4. Turn the ignition switch ON (II).

5. Wait 40 seconds.

6. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P0606 indicated?

YES -Go to step 7.

NO -Intermittent failure, the system is OK at this time.

7. Update the ECM/PCM if it does not have the latest software (see UPDATING THE ECM/PCM ), or

substitute a known-good ECM/PCM (see SUBSTITUTING THE ECM/PCM ).

8. Turn the ignition switch OFF.

9. Turn the ignition switch ON (II).

10. Wait 40 seconds.

11. Check for Temporary DTCs or DTCs with the HDS.

NOTE:

Before you troubleshoot, record all freeze data and any on-board snapshot, and
review the general troubleshooting information (see GENERAL
TROUBLESHOOTING INFORMATION ).



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element
