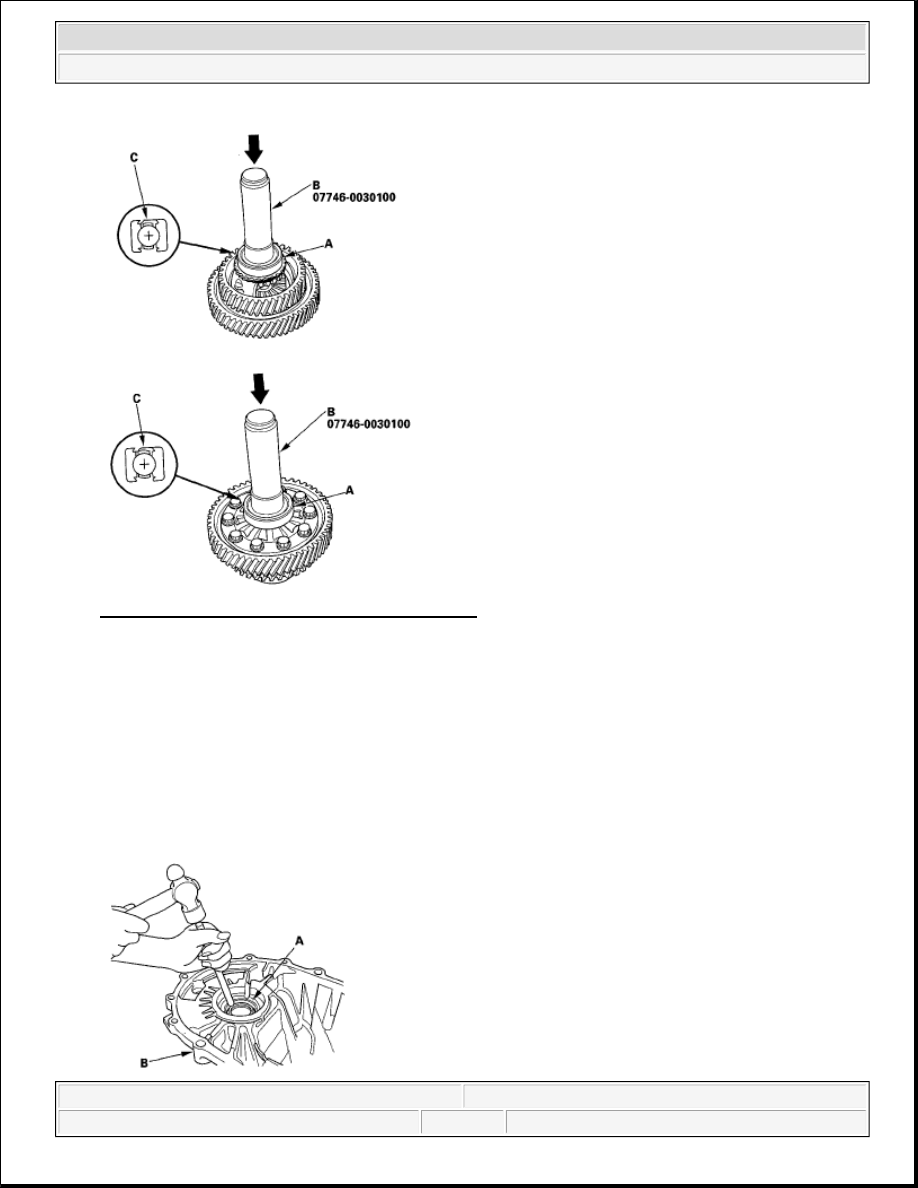

Fig. 162: Installing Bearings With Driver Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.

OIL SEAL REPLACEMENT

Special Tools Required



Oil seal driver attachment 07NAD-P20A100



Driver 07749-0010000

1. Remove the oil seal (A) from the transmission housing (B).



2007 Honda Element EX

2007-2008 TRANSMISSION Manual Transmission - Element



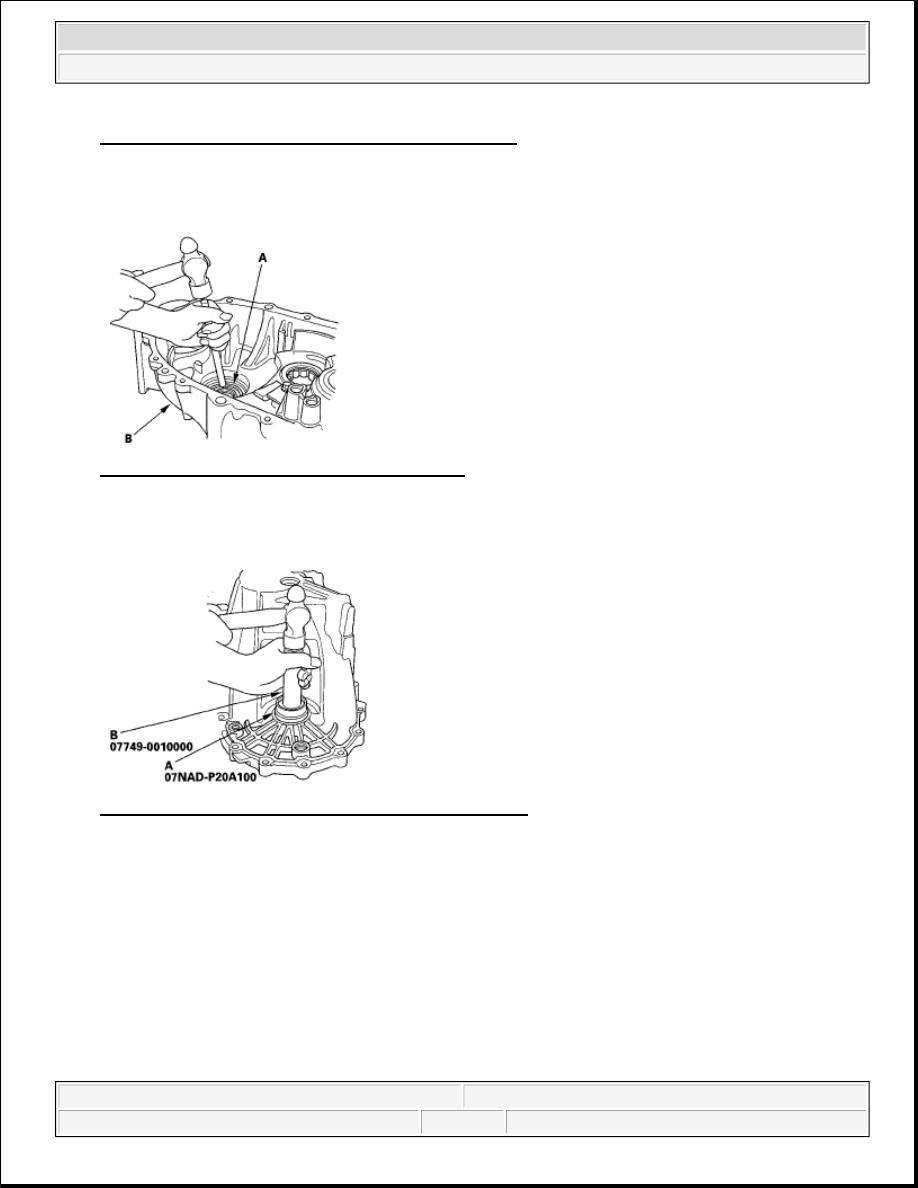

Fig. 163: Removing Oil Seal Of Transmission Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Remove the oil seal (A) from the clutch housing (B).

Fig. 164: Removing Oil Seal Of Clutch Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install the new oil seal in the transmission housing with the oil seal driver attachment (A) and driver (B).

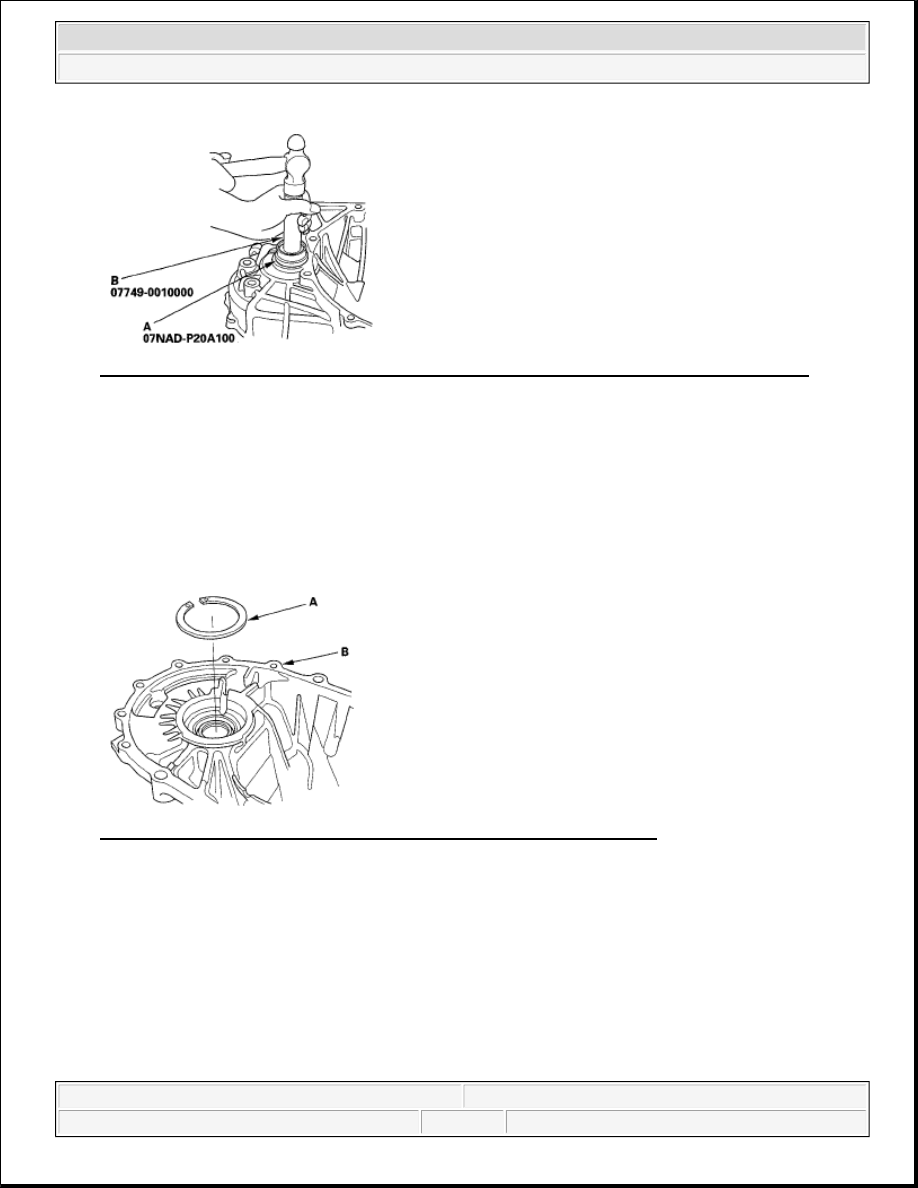

Fig. 165: Installing Oil Seal, Oil Seal Driver And Driver
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Install the new oil seal in the clutch housing with the oil seal driver attachment (A) and driver (B).



2007 Honda Element EX

2007-2008 TRANSMISSION Manual Transmission - Element



Fig. 166: Installing Oil Seal In Clutch Housing With Oil Seal Driver Attachment And Driver
Courtesy of AMERICAN HONDA MOTOR CO., INC.

DIFFERENTIAL THRUST CLEARANCE ADJUSTMENT

Special Tools Required

Driver handle 07746-0030100

1. If you removed the 80 mm shim (A) from the transmission housing (B), reinstall the same sized shim.

Fig. 167: Identifying Shim, Transmission Housing And Same Sized Shim
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install the differential assembly (A) into the clutch housing (B).



2007 Honda Element EX

2007-2008 TRANSMISSION Manual Transmission - Element



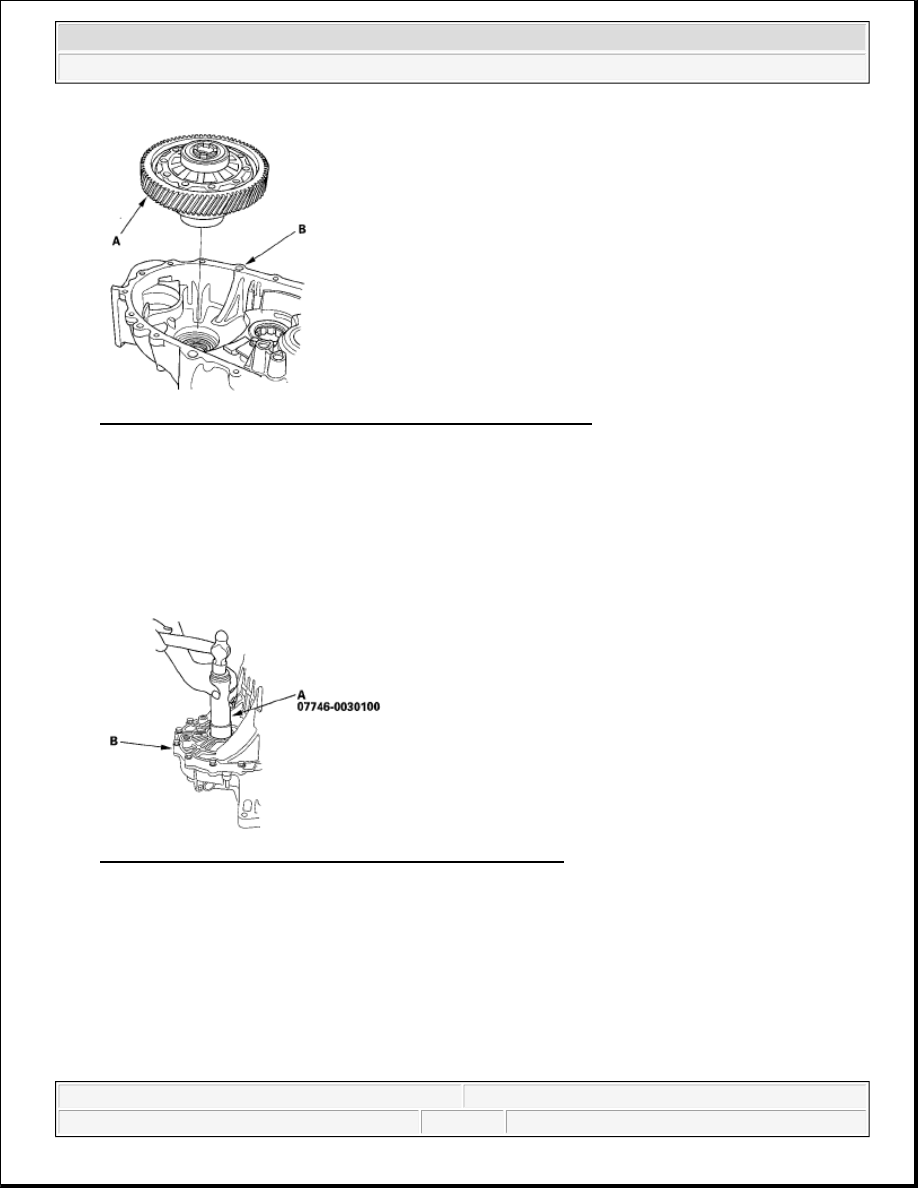

Fig. 168: Identifying Differential Assembly And Clutch Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install the transmission housing onto the clutch housing, then tighten the 8 mm flange bolts in a crisscross

pattern in several steps (see step 16 ).

Specified Torque: 8 x 1.25 mm 27 N.m (2.8 kgf.m, 20 lbf.ft)

4. Use the driver handle (A) to bottom the differential assembly in the clutch housing (B).

Fig. 169: Installing Differential Assembly In Clutch Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Measure the clearance between the 80 mm shim and the bearing outer race in the transmission housing.

Standard: 0-0.10 mm (0-0.0039 in.)
