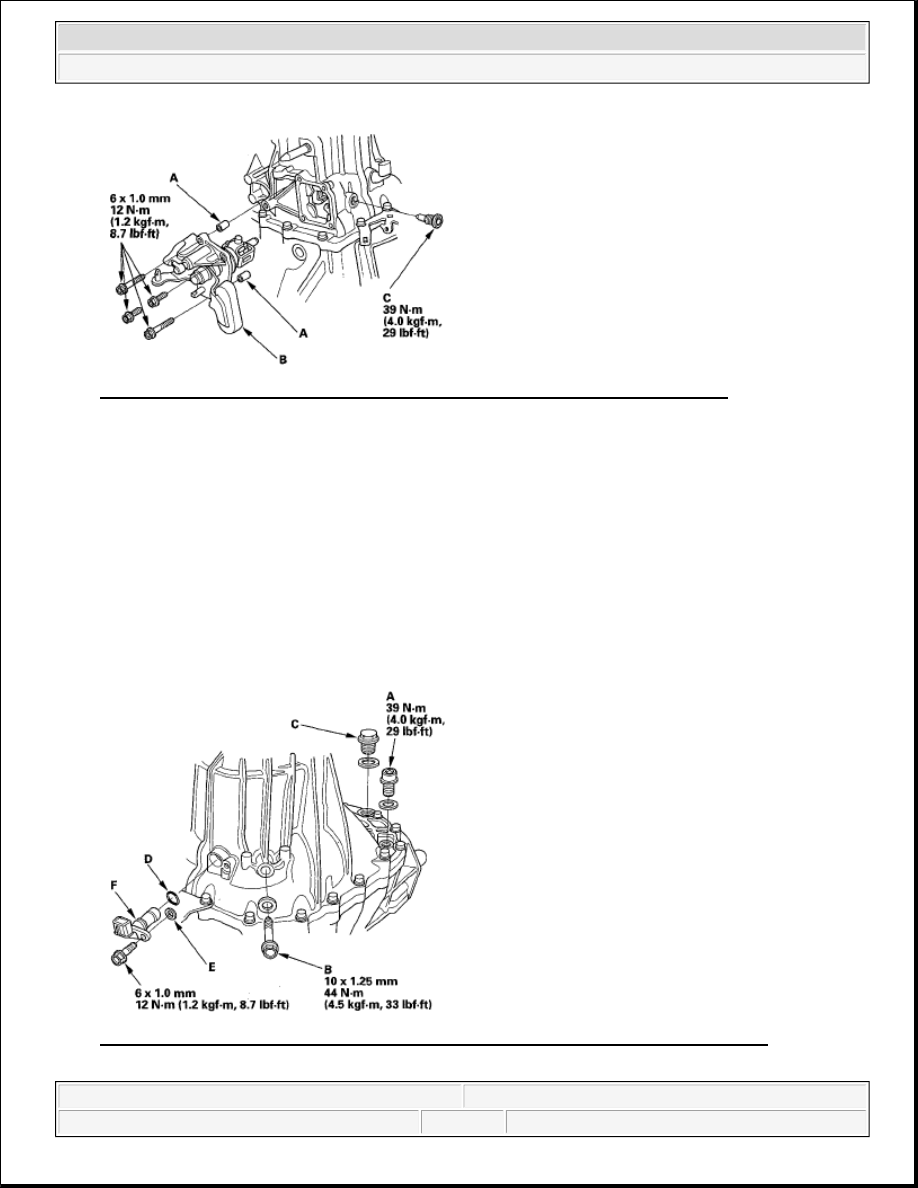

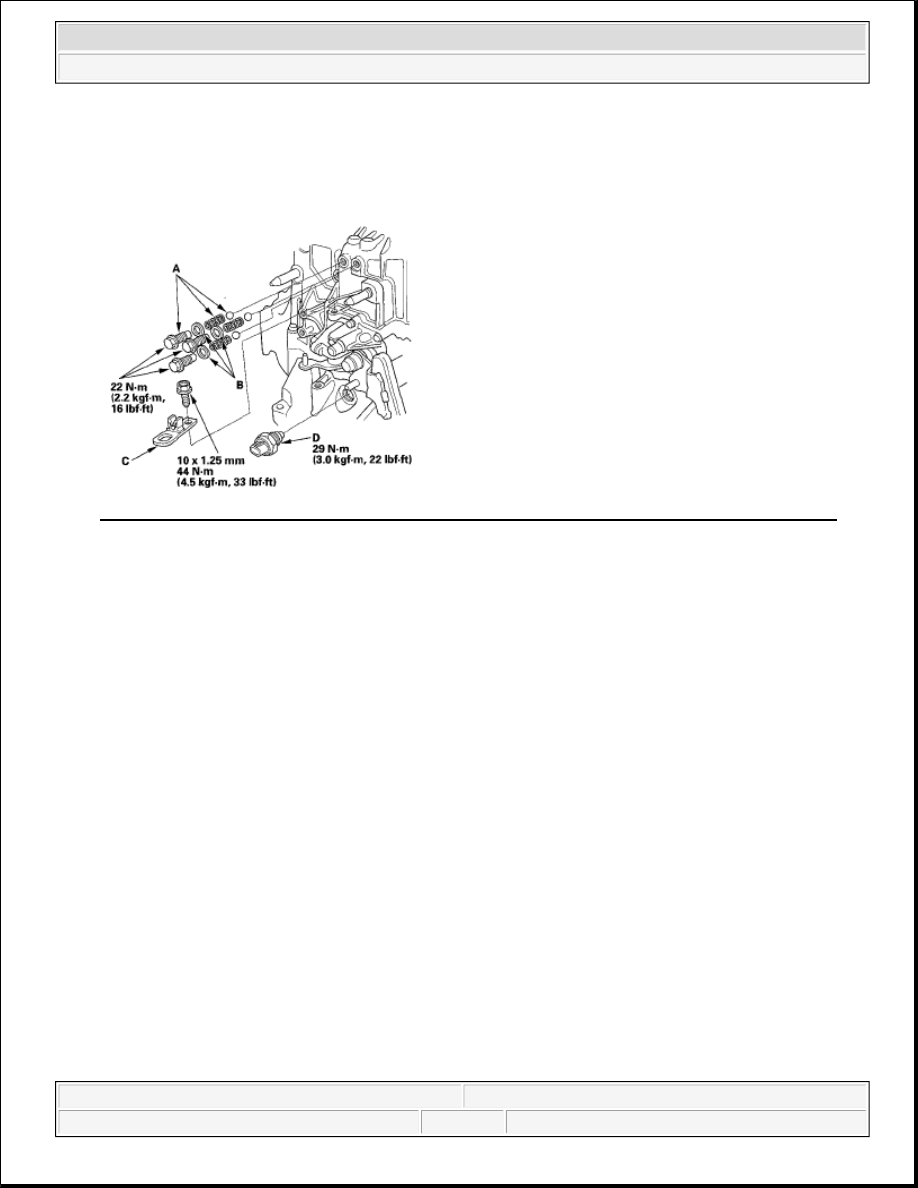

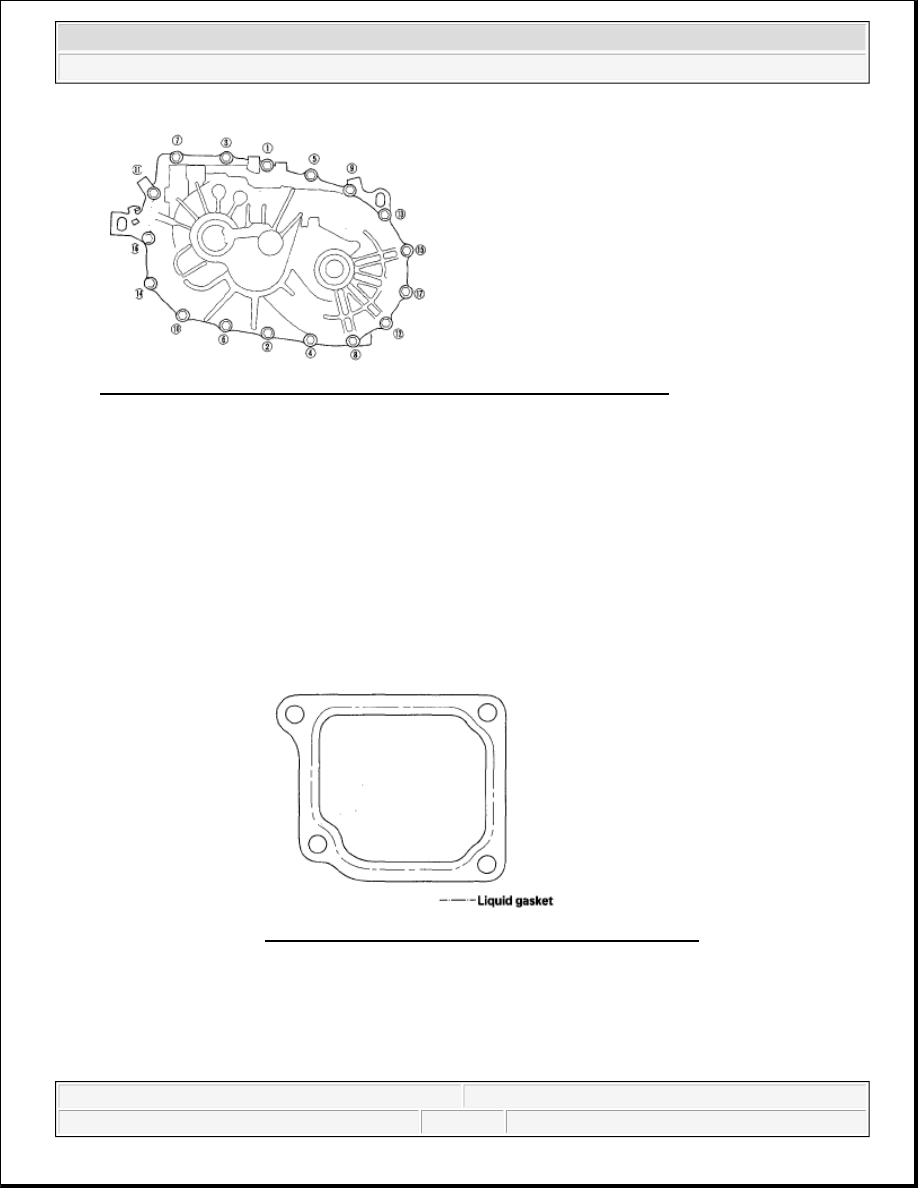

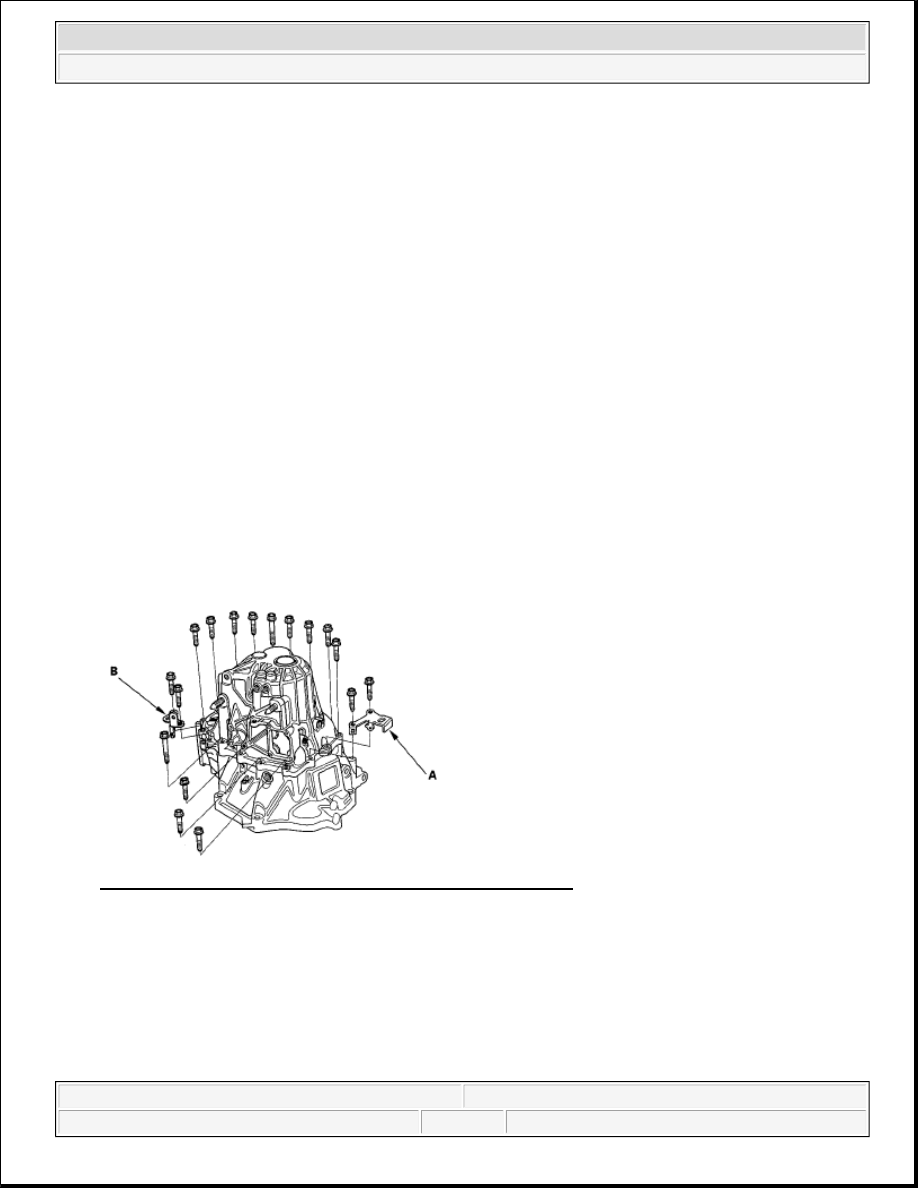

Courtesy of AMERICAN HONDA MOTOR CO., INC. 11. Set the tapered cone ring (B) as shown. Place the transmission housing over the clutch housing, being careful to line up the shafts. 12. Lower the transmission housing the rest of the way as you expand the 72 mm snap ring (C). Release the snap ring so it seats in the groove of the countershaft bearing. 13. Make sure the 72 mm snap ring is securely seated in the groove of the countershaft bearing. Dimension (1) as installed: 3.3-6.0 mm (0.13-0.24 in.) 14. Apply liquid gasket, P/N 08718-0001, evenly to the threads of the 32 mm searing cap (D) mating surface of the transmission housing. Install the component within 5 minutes of applying the liquid gasket. 15. Install transmission hangers A, B, and the 8 mm flange bolts, finger-tight. Fig. 146: Identifying Transmission Hangers And Flange Bolts 16. Tighten the 8 mm flange bolts in a crisscross pattern in several steps. Specified Torque: 8 x 1.25 mm 27 N.m (2.8 kgf.m, 20 lbf.ft) NOTE: If you apply liquid gasket P/N 08718-0012, the component must be If too much time has passed after applying the liquid gasket, remove
