Honda Element. Manual - part 634

Fig. 113: Pressing 5th Gear
Courtesy of AMERICAN HONDA MOTOR CO., INC.

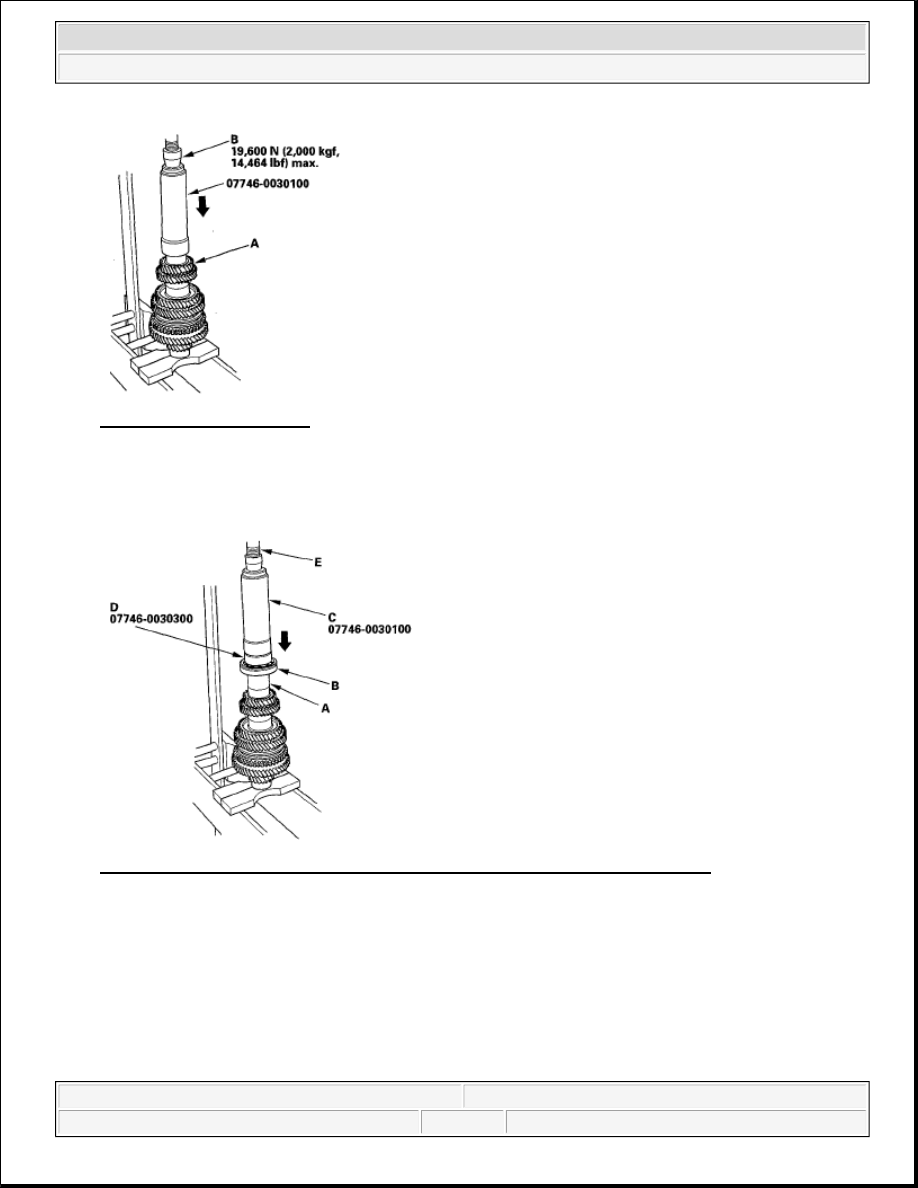

14. Install the distance collar (A), 35 mm shim, and old ball bearing (B) using the driver handle (C), 30 mm

I.D. attachment (D), and a press (E).

Fig. 114: Installing Distance Collar, Shim, Old Ball Bearing And Driver Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.

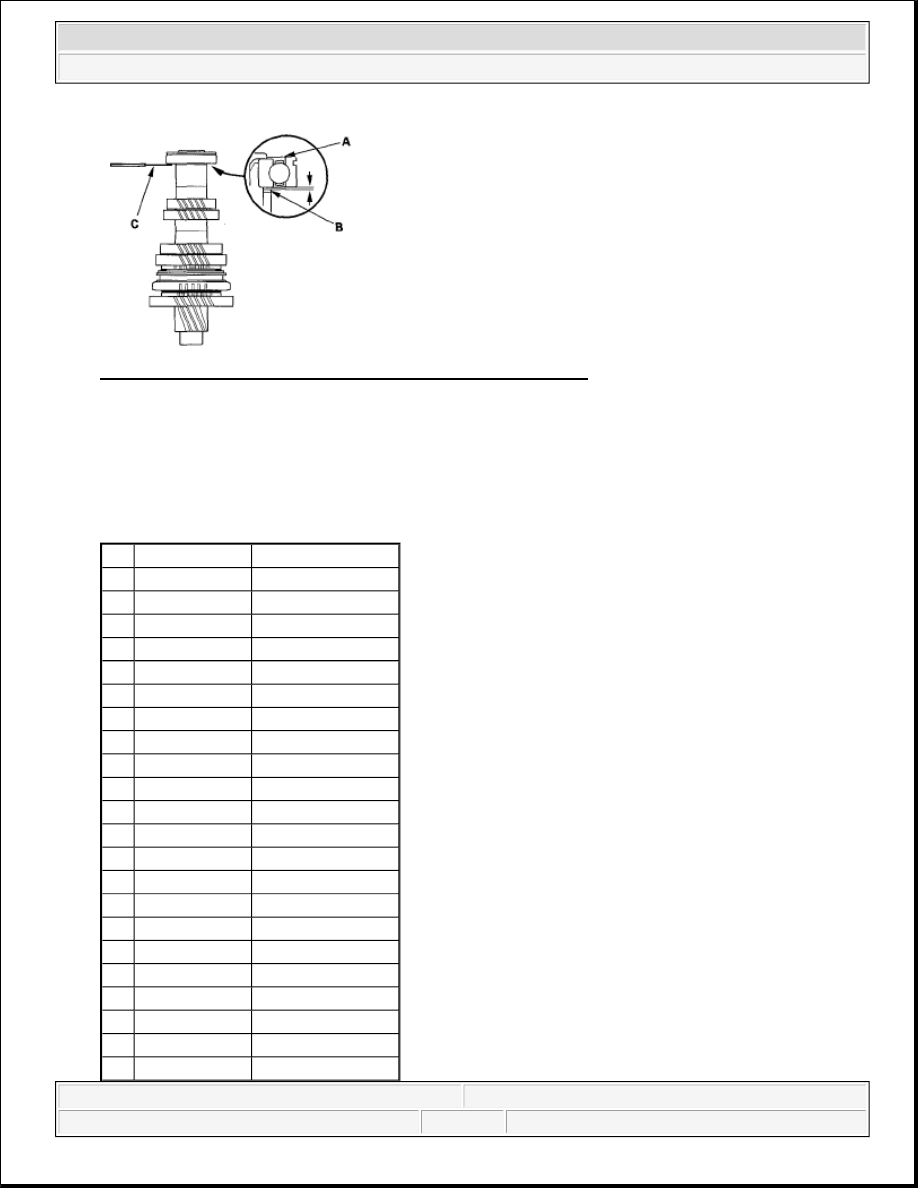

15. Measure the clearance between the old bearing (A) and the 35 mm shim (B) with a feeler gauge (C).

Standard: 0.04-0.10 mm (0.0016-0.0039 in.)



2007 Honda Element EX

2007-2008 TRANSMISSION Manual Transmission - Element



Fig. 115: Measuring Clearance Between Old Bearing And Shim
Courtesy of AMERICAN HONDA MOTOR CO., INC.

16. If the clearance is more than the standard, select a new shim from the following table. If the clearance

measured in step 15 is within the standard, replace only the ball bearing.

35 mm Shim

SHIM THICKNESS CHART



Part Number

Thickness

A 23981-PPP-000 0.87 mm (0.034 in.)

AA 23981-PPP-900 0.91 mm (0.036 in.)

B 23982-PPP-000 0.95 mm (0.037 in.)

AB 23982-PPP-900 0.99 mm (0.039 in.)

C 23983-PPP-000 1.03 mm (0.041 in.)

AC 23983-PPP-900 1.07 mm (0.042 in.)

D 23984-PPP-000 1.11 mm (0.044 in.)

AD 23984-PPP-900 1.15 mm (0.045 in.)

E 23985-PPP-000 1.19 mm (0.047 in.)

AE 23985-PPP-900 1.23 mm (0.048 in.)

F 23986-PPP-000 1.27 mm (0.050 in.)

AF 23986-PPP-900 1.31 mm (0.052 in.)

G 23987-PPP-000 1.35 mm (0.053 in.)

AG 23987-PPP-900 1.39 mm (0.055 in.)

H 23988-PPP-000 1.43 mm (0.056 in.)

AH 23988-PPP-900 1.47 mm (0.058 in.)

J 23989-PPP-000 1.51 mm (0.060 in.)

AJ 23989-PPP-900 1.55 mm (0.061 in.)

K 23990-PPP-000 1.59 mm (0.063 in.)

AK 23990-PPP-900 1.63 mm (0.064 in.)

L 23991-PPP-000 1.67 mm (0.066 in.)

AL 23991-PPP-900 1.71 mm (0.067 in.)



2007 Honda Element EX

2007-2008 TRANSMISSION Manual Transmission - Element



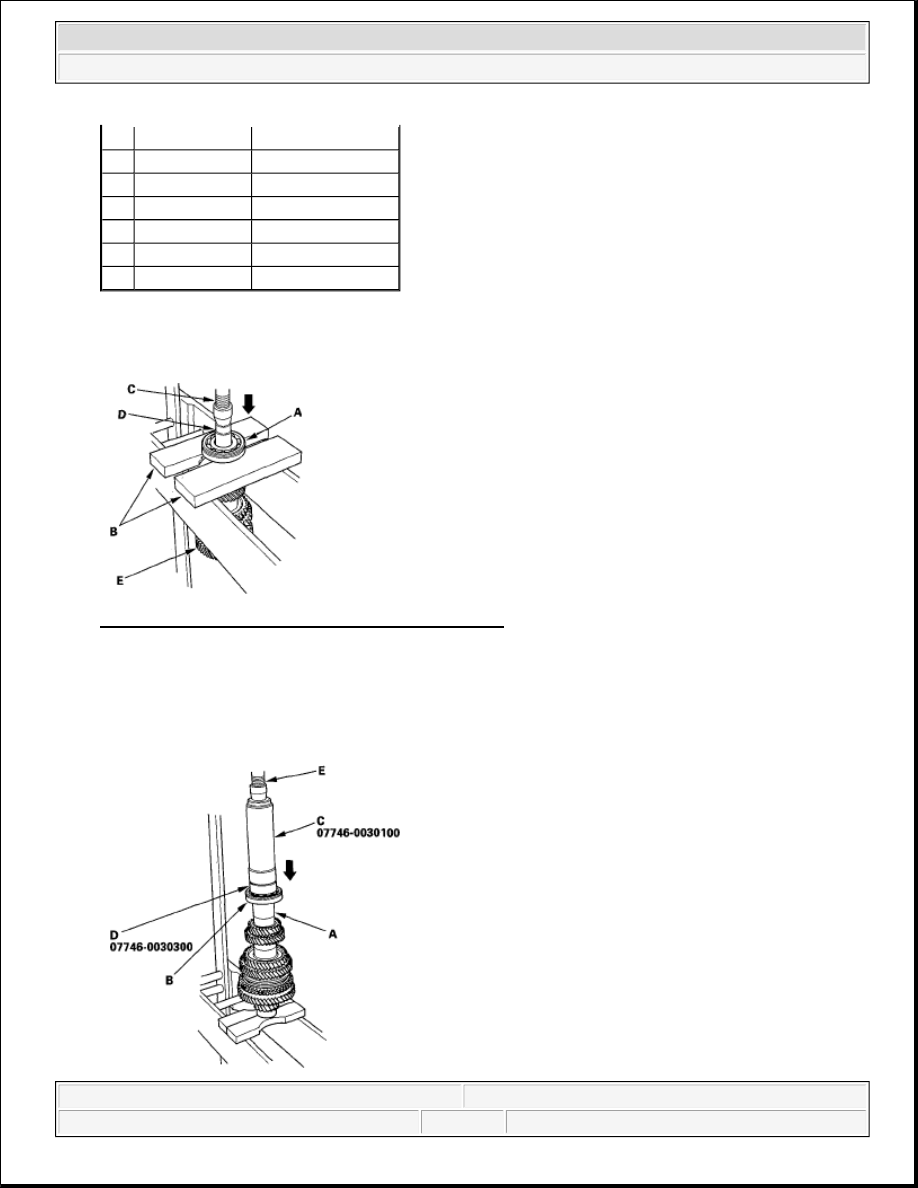

17. Support the ball bearing (A) on steel blocks (B), then use a press (C) and an attachment (D) to press the

countershaft (E) out of the ball bearing.

Fig. 116: Pressing Countershaft Out Of Ball Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

18. If necessary, install the 35 mm shim selected in step 16.

19. Install the distance collar (A), 35 mm shim, and new ball bearing (B) using the driver handle (C), 30 mm

I.D. attachment (D), and a press (E), then recheck the clearance.

M 23992-PPP-000 1.75 mm (0.069 in.)

AM 23992-PPP-900 1.79 mm (0.070 in.)

N 23993-PPP-000 1.83 mm (0.072 in.)

AN 23993-PPP-900 1.87 mm (0.074 in.)

P 23994-PPP-000 1.91 mm (0.075 in.)

AP 23994-PPP-900 1.95 mm (0.077 in.)

Q 23995-PPP-000 1.99 mm (0.078 in.)



2007 Honda Element EX

2007-2008 TRANSMISSION Manual Transmission - Element



Fig. 117: Installing Distance Collar, Shim And Ball Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

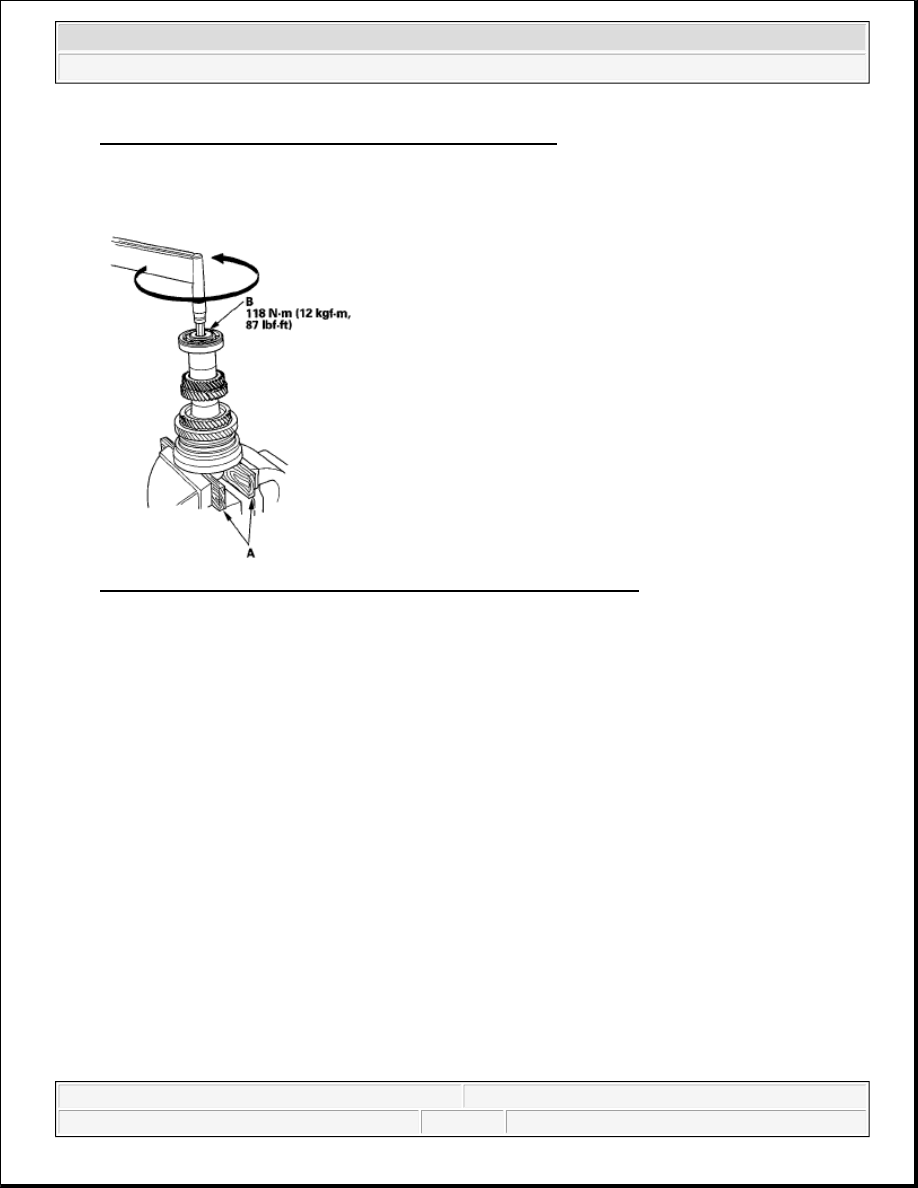

20. Securely clamp the countershaft assembly in a bench vise with wood blocks (A).

Fig. 118: Installing Countershaft Assembly With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

21. Apply MTF to the new special bolt (B), then tighten it (left-hand threads).

SYNCHRO SLEEVE AND HUB INSPECTION AND REASSEMBLY

1. Inspect gear teeth on all synchro hubs and synchro sleeves for wear (rounded off corners).

2. Install each synchro hub (A) in its mating synchro sleeve (B), and check for free movement. Make sure to

match the three sets of longer teeth (C) (120 degrees apart) on the synchro sleeve with the three sets of
deeper grooves (D) in the synchro hub.

NOTE:



If replacement is required, always replace the synchro sleeve and
synchro hub as a set.



Do not install the synchro sleeve with its longer teeth in the 1st/2nd
synchro hub slots (E) because it will damage the spring ring.



2007 Honda Element EX

2007-2008 TRANSMISSION Manual Transmission - Element
