Standard: 24.03-24.08 mm (0.946-0.948 in.)

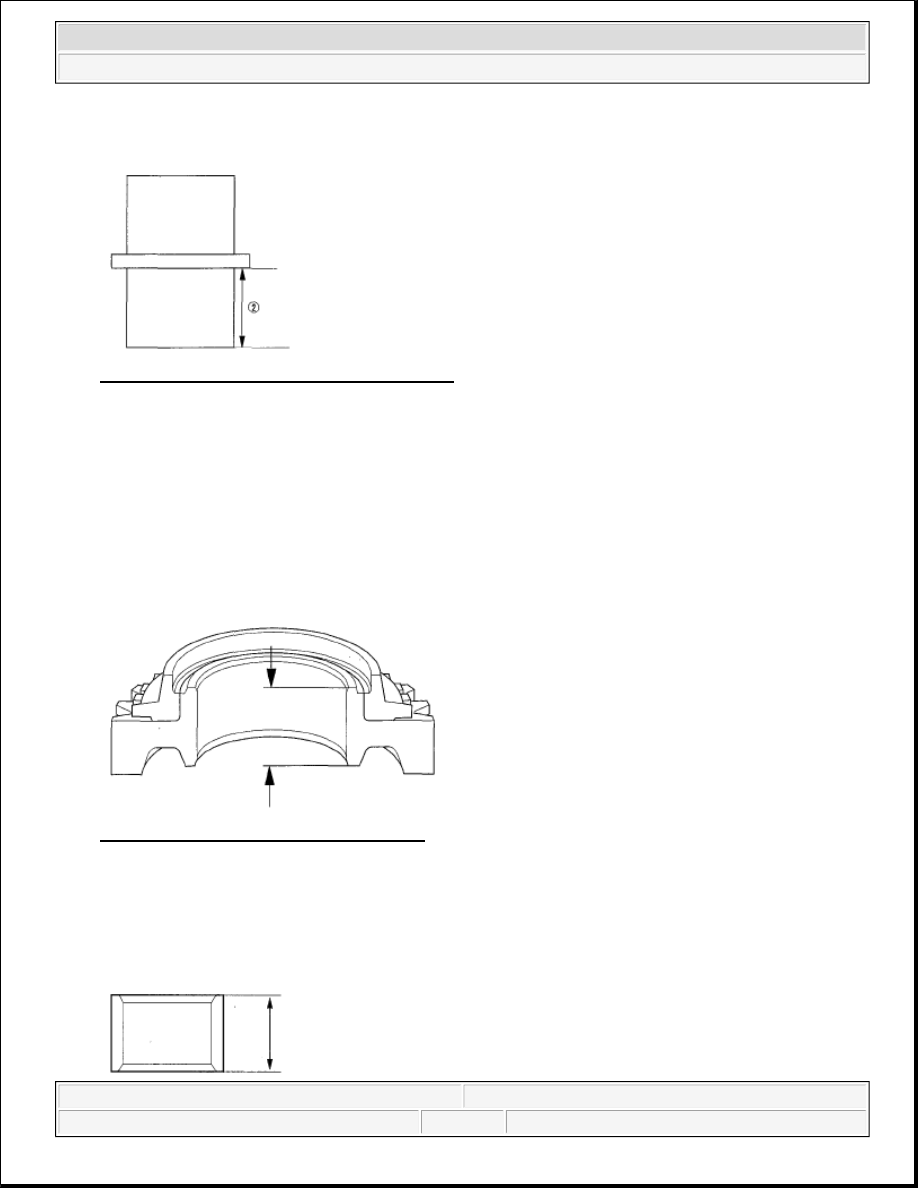

Fig. 74: Measuring Length Of Distance Collar
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Measure the thickness of 5th gear.



If the thickness is less than the service limit, replace 5th gear.



If the thickness is within the service limit, replace the 5th synchro hub and 5th synchro sleeve as a
set.

Standard: 23.92-23.97 mm (0.941-0.944 in.)

Service Limit: 23.80 mm (0.937 in.)

Fig. 75: Measuring Thickness Of 5th Gear
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Measure the length of the MBS distance collar as shown. If the length is not within standard, replace the

MBS distance collar.

Standard: 23.95-24.05 mm (0.943-0.947 in.)



2007 Honda Element EX

2007-2008 TRANSMISSION Manual Transmission - Element



Fig. 76: Measuring Length Of MBS Distance Collar
Courtesy of AMERICAN HONDA MOTOR CO., INC.

MAINSHAFT DISASSEMBLY

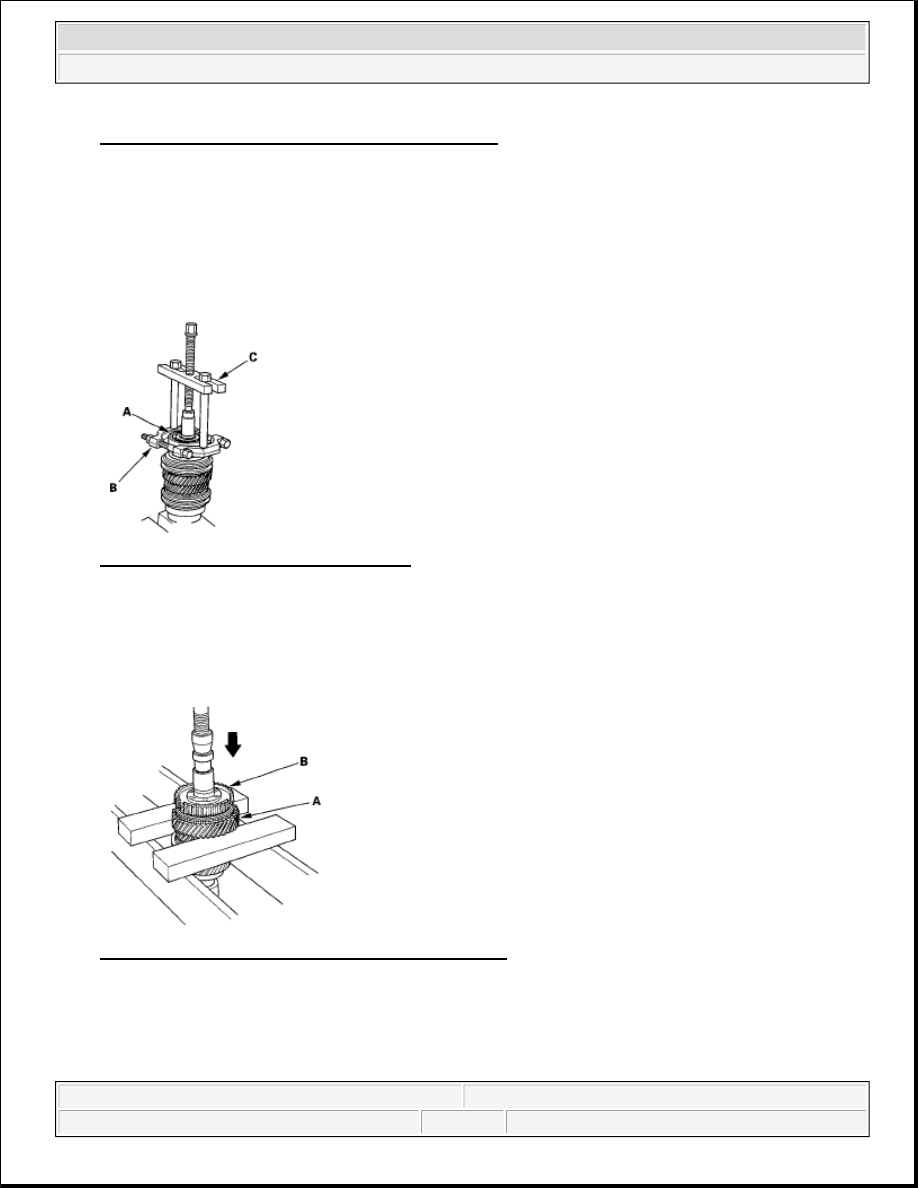

1. Remove the angular ball bearing (A) and the tapered cone ring using a commercially available bearing

separator (B) and a commercially available bearing puller (C). Make sure the bearing separator is under
the tapered cone ring.

Fig. 77: Removing Angular Ball Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Support 5th gear (A) on steel blocks, and press the mainshaft out of the 5th synchro hub (B).

Fig. 78: Pressing Mainshaft Out Of 5th Synchro Hub
Courtesy of AMERICAN HONDA MOTOR CO., INC.

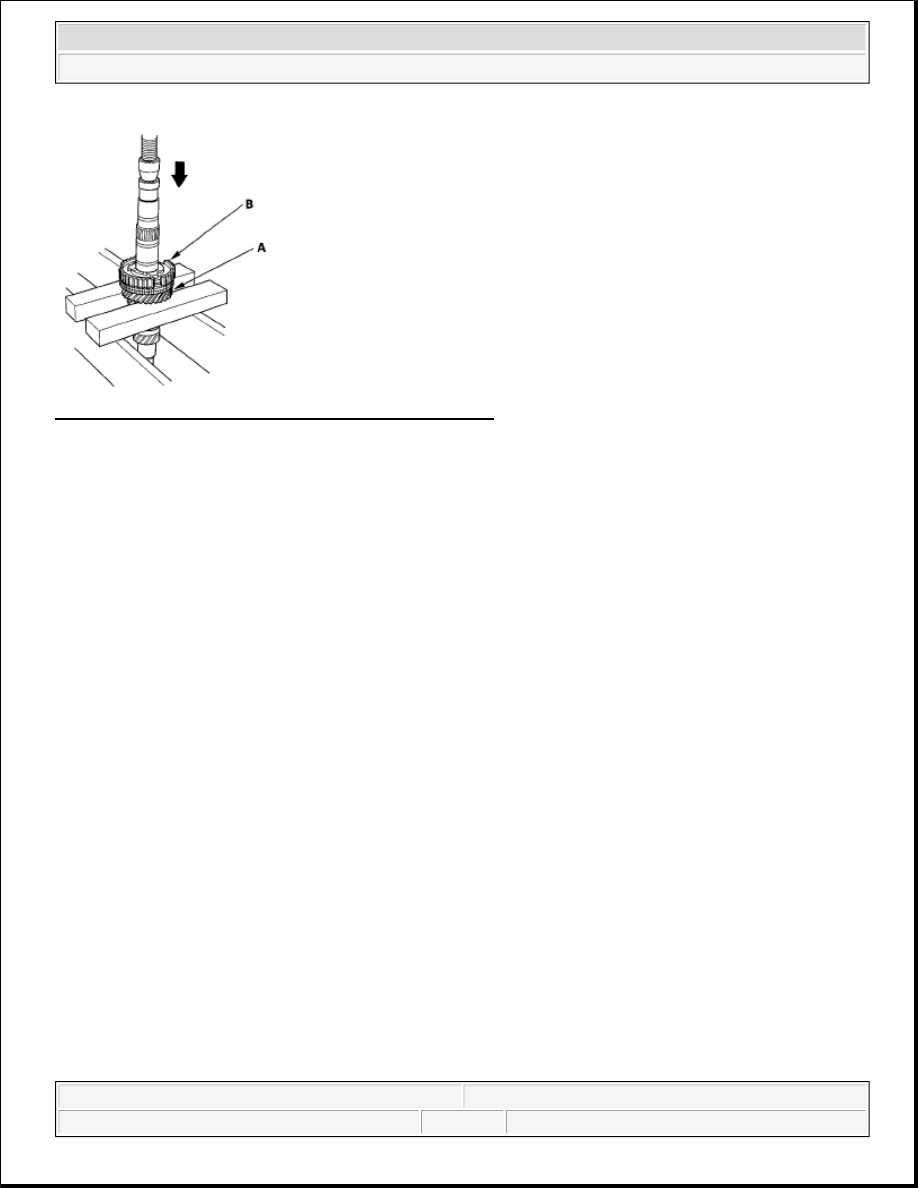

3. Support 3rd gear (A) on steel blocks, and press the mainshaft out of the 3rd/4th synchro hub (B).

NOTE:

Do not use a jaw-type puller; it can damage the gear teeth.

NOTE:

Do not use a jaw-type puller; it can damage the gear teeth.



2007 Honda Element EX

2007-2008 TRANSMISSION Manual Transmission - Element



Fig. 79: Pressing Mainshaft Out Of 3rd/4th Synchro Hub
Courtesy of AMERICAN HONDA MOTOR CO., INC.

MAINSHAFT INSPECTION

1. Inspect the gear and bearing contact areas for wear and damage, then measure the mainshaft at points A,

B, C, D, and E. If any part of the mainshaft is less than the service limit, replace it.

Standard:

A Ball Bearing Contact Area (Transmission Housing Side): 27.987-28.000 mm (1.1019-1.1024 in.)

B Distance Collar Contact Area: 31.984-32.000 mm (1.2594-1.2598 in.)

C Needle Bearing Contact Area: 38.984-39.000 mm (1.5348-1.5354 in.)

D Ball Bearing Contact Area (Clutch Housing Side): 27.977-27.990 mm (1.1015-1.1020 in.)

E Bushing Contact Area: 20.80-20.85 mm (0.8189-0.8209 in.)

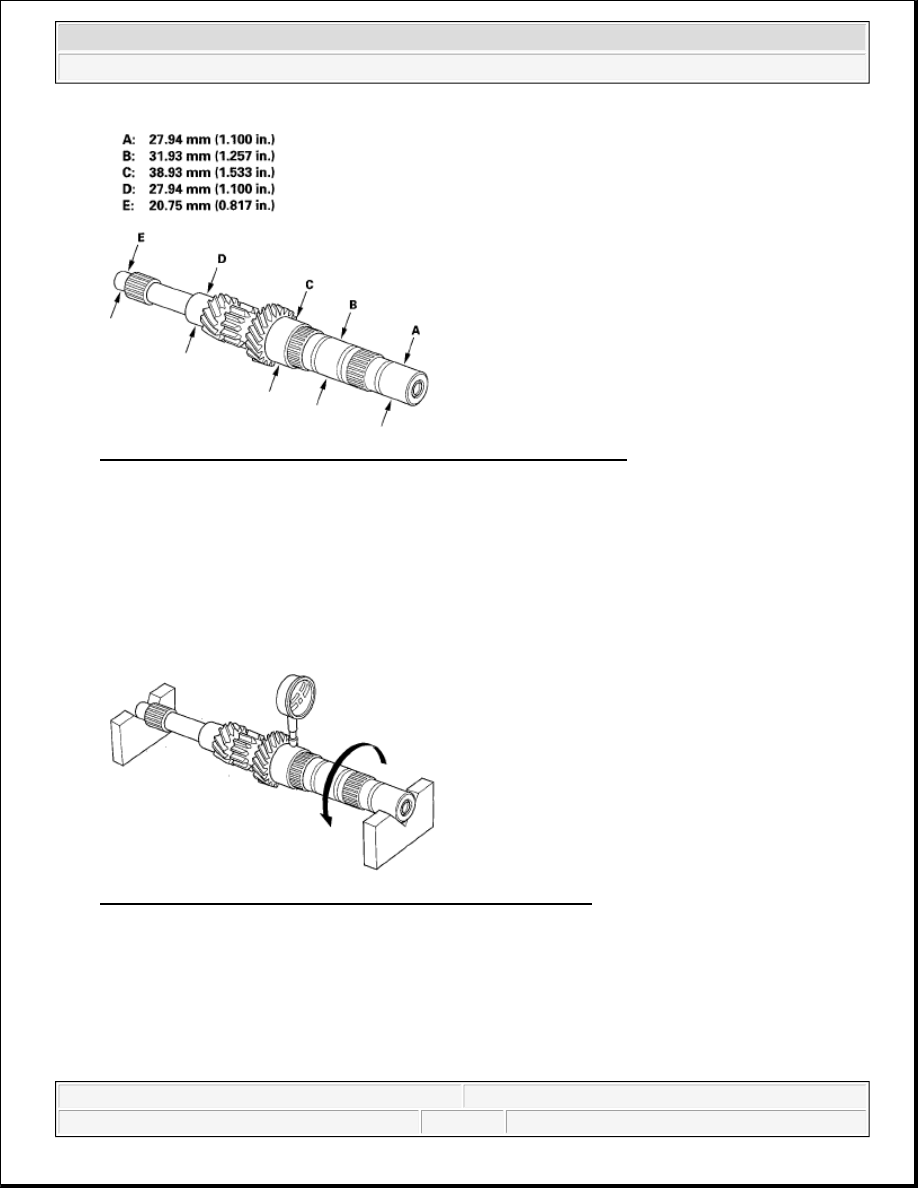

Service Limit:



2007 Honda Element EX

2007-2008 TRANSMISSION Manual Transmission - Element



Fig. 80: Inspecting Mainshaft Gear And Bearing With Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Inspect the runout by supporting both ends of the mainshaft. Then rotate the mainshaft two complete

turns while measuring with a dial gauge. If the runout is more than the service limit, replace the
mainshaft.

Standard: 0.02 mm (0.001 in.) max.

Service Limit: 0.05 mm (0.002 in.)

Fig. 81: Inspecting Runout With Supporting Ends Of Mainshaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

MAINSHAFT REASSEMBLY

EXPLODED VIEW
