rear door closed

There should be battery
voltage.

switch

Short to ground in the
wire

Q4

GRY/BLK

Passenger's door or
right rear door open

Measure voltage to
ground:
There should be less
than 0.5 V.

Faulty passenger's door
switch

Faulty right rear door
switch

An open in the wire

Passenger's door and

right rear door closed

Measure voltage to
ground:
There should be battery
voltage.

Faulty passenger's door
switch

Faulty right rear door
switch

Short to ground in the
wire

X5

RED/WHT

Ignition key inserted
into the ignition
switch

Measure voltage to
ground:
There should be less
than 0.5 V.

Poor ground (G401)

Faulty ignition key
switch

An open in the wire

Ignition key removed

from the ignition

switch

Measure voltage to
ground:
There should be battery
voltage.

Faulty ignition key
switch

Short to ground in the
wire

Y7

WHT/BLK

Driver's door lock
knob switch unlocked

Measure voltage to
ground:
There should be less
than 0.5 V.

Poor ground (G501)

Faulty driver's door
lock knob switch

An open in the wire

Driver's door lock

knob switch locked

Measure voltage to
ground:
There should be battery
voltage.

Faulty driver's door
lock knob switch

Short to ground in the
wire

Y8

YEL/RED

Driver's door lock
knob switch locked

Measure voltage to
ground:
There should be less
than 0.5 V.

Poor ground (G501)

Faulty driver's door
lock knob switch

An open in the wire

Driver's door lock

knob switch unlocked

Measure voltage to
ground:
There should be battery
voltage.

Faulty driver's door
lock knob switch

Short to ground in the
wire

Driver's door lock

Measure voltage to

Poor ground (G501)



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Keyless/Power Door Lock System - Element



5. Disconnect the connectors, and make these input tests at the connectors.

If any test indicates a problem, find and correct the cause, then recheck the system.

If all the input tests prove OK, the multiplex control unit must be faulty, replace the under-dash
fuse/relay box assembly.

PROBLEM SYMPTOM CHART

Y10 WHT/GRN

switch UNLOCK
position

ground:
There should be less
than 0.5 V.

Faulty driver's door
lock switch

An open in the wire

Driver's door lock

switch in neutral or

LOCK position

Measure voltage to
ground:
There should be battery
voltage.

Faulty driver's door
lock switch

Short to ground in the
wire

Y12 WHT/BLU

Driver's door lock
switch LOCK
position

Measure voltage to
ground:
There should be less
than 0.5 V.

Poor ground (G501)

Faulty driver's door
lock switch

An open in the wire

Driver's door lock

switch in neutral or

UNLOCK position

Measure voltage to
ground:
There should be battery
voltage.

Faulty driver's door
lock switch

Short to ground in the
wire

Cavity

Wire

Test condition

Test: Desired result

Possible cause if

desired result is not

obtained

J7

WHT

Under all conditions

Measure voltage to ground:
There should be battery voltage.

Blown No. 16 (15
A) fuse in the
under-hood
fuse/relay box

An open in the
wire

M7

YEL/BLK Connect J7 terminal

to M7 [M9] terminal,
and M9 [M7]
terminal to J4
terminal.

Check actuator operation:
The driver's door lock actuator
should lock [unlock].

Blown No. 16 (15
A) fuse in the
under-hood
fuse/relay box

Faulty driver's
door lock actuator

An open in the
wire

M9

YEL/GRN

Blown No. 16 (15
A) fuse in the



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Keyless/Power Door Lock System - Element



DOOR LOCK ACTUATOR TEST

DRIVER'S DOOR

1. Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

2. Disconnect the 2P connector (A) from the actuator (B).

M6

YEL/BLK

Connect J7 terminal
to M6 [M8] terminal,
and M8 [M6]
terminal to J4
terminal.

Check actuator operation:
The front passenger's door lock
actuator should lock [unlock].

under-hood
fuse/relay box

Faulty front
passenger's door
lock actuator

An open in the
wire

M8

YEL

P16

YEL

Connect J7 terminal
to P17 [P16]
terminal, and P16
[P17] terminal to J4
terminal.

Check actuator operation:
The hatch lock actuator should
lock [unlock].

Blown No. 16 (15
A) fuse in the
under-hood
fuse/relay box

Faulty hatch lock
actuator

An open in the
wire

P17

YEL/BLK

J6

ORN

Under all conditions

Attach to ground:
The horn should sound.

Blown No. 7 (15
A) fuse in the
under-hood
fuse/relay box

Faulty horn relay

Faulty horn

An open in the
wire

K2

BLU/ORN

Disconnect the
keyless receiver unit
5P connector

Check for continuity between
the K2 terminal and the keyless
receiver unit 5P connector No. 2
terminal with the 5P connector
disconnected:
There should be continuity.

An open in the wire

Check for continuity to ground:

There should be no continuity.

Short to ground in the
wire



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Keyless/Power Door Lock System - Element



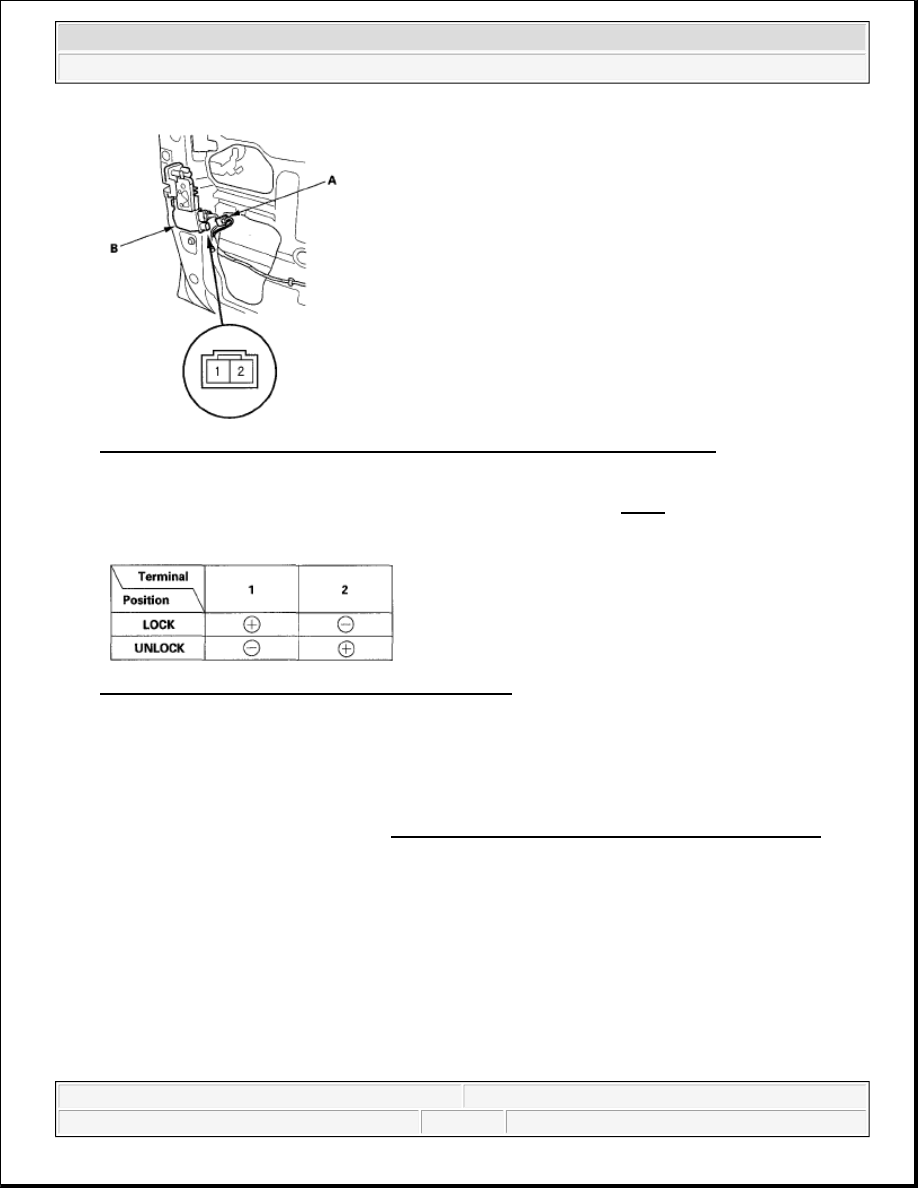

Fig. 7: Identifying Door Lock Actuator 2P Connector Terminals (Driver's Door)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Check actuator operation by connecting power and ground according to Fig. 8. To prevent damage to the

actuator, apply battery voltage only momentarily.

Fig. 8: Battery Power And Ground Connection Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. If the actuator does not work as specified, replace it.

PASSENGER'S DOOR

1. Remove the passenger's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

2. Disconnect the 2P connector (A) from the actuator (B).



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Keyless/Power Door Lock System - Element
