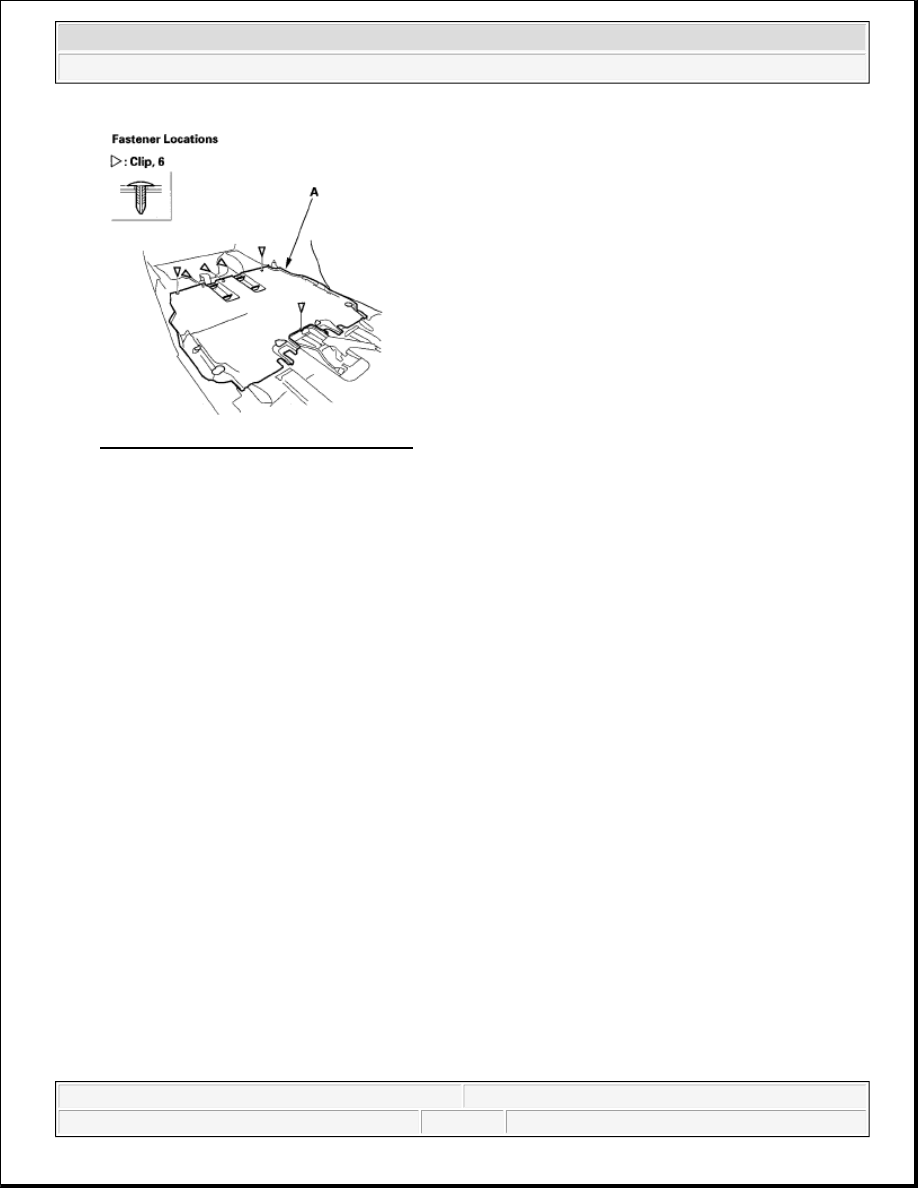

Fig. 47: Identifying Rear Floor Covering
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install the floor covering in the reverse order of removal, and note these items:



Take care not to damage, wrinkle or twist the floor covering.



Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.



Push the clips into place securely.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Interior Trim - Element



2007-08 ACCESSORIES AND EQUIPMENT

Keyless/Power Door Lock System - Element

COMPONENT LOCATION INDEX

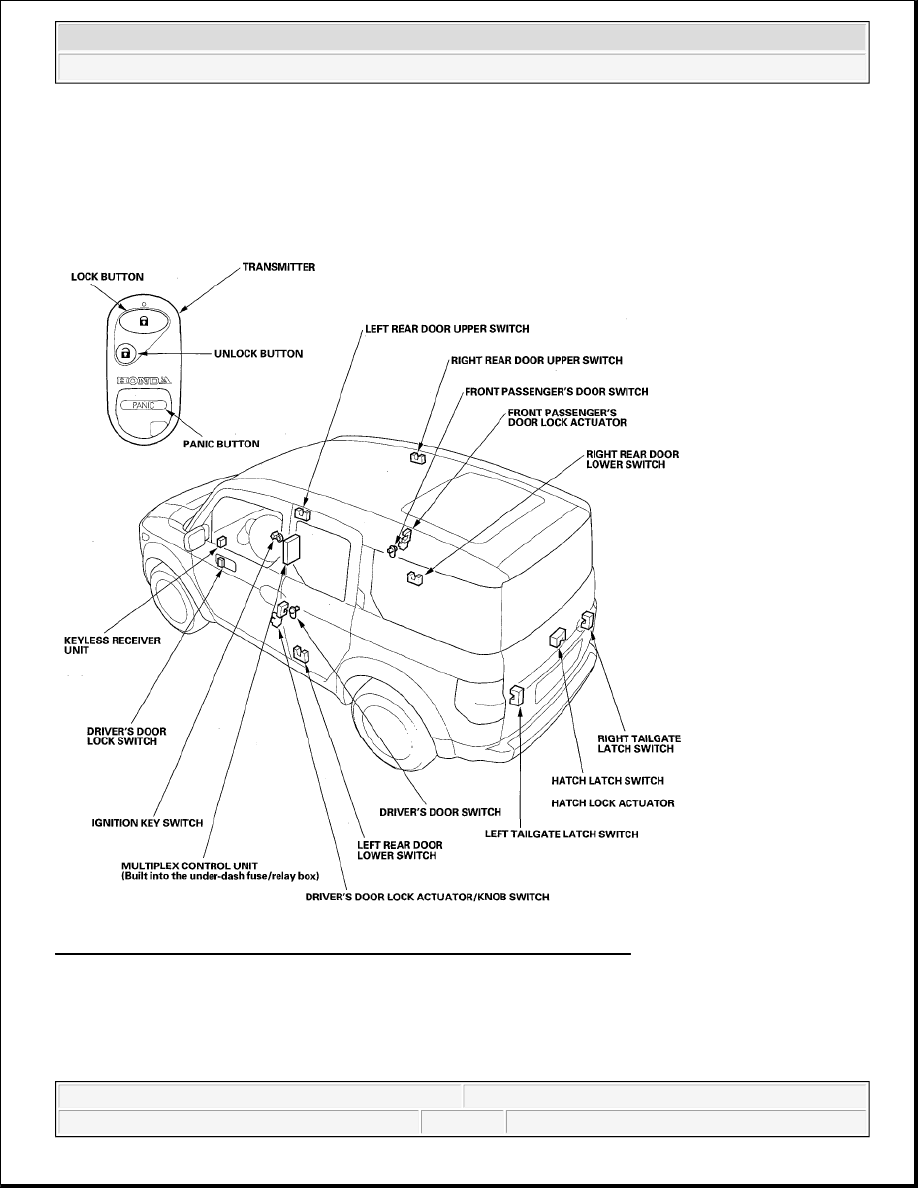

Fig. 1: Identifying Keyless/Power Door Lock System Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CIRCUIT DIAGRAM



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Keyless/Power Door Lock System - Element





2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Keyless/Power Door Lock System - Element

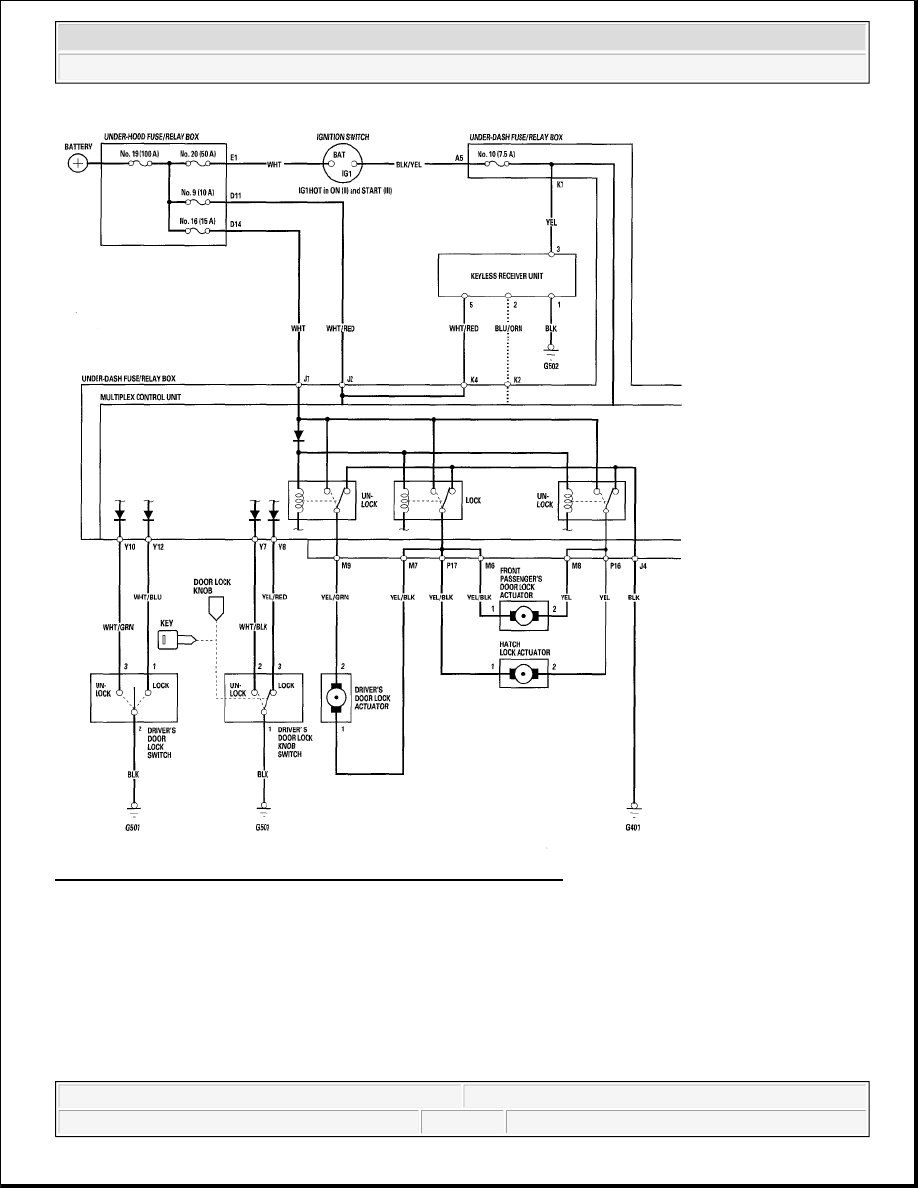

Fig. 2: Keyless/Power Door Lock System Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Keyless/Power Door Lock System - Element

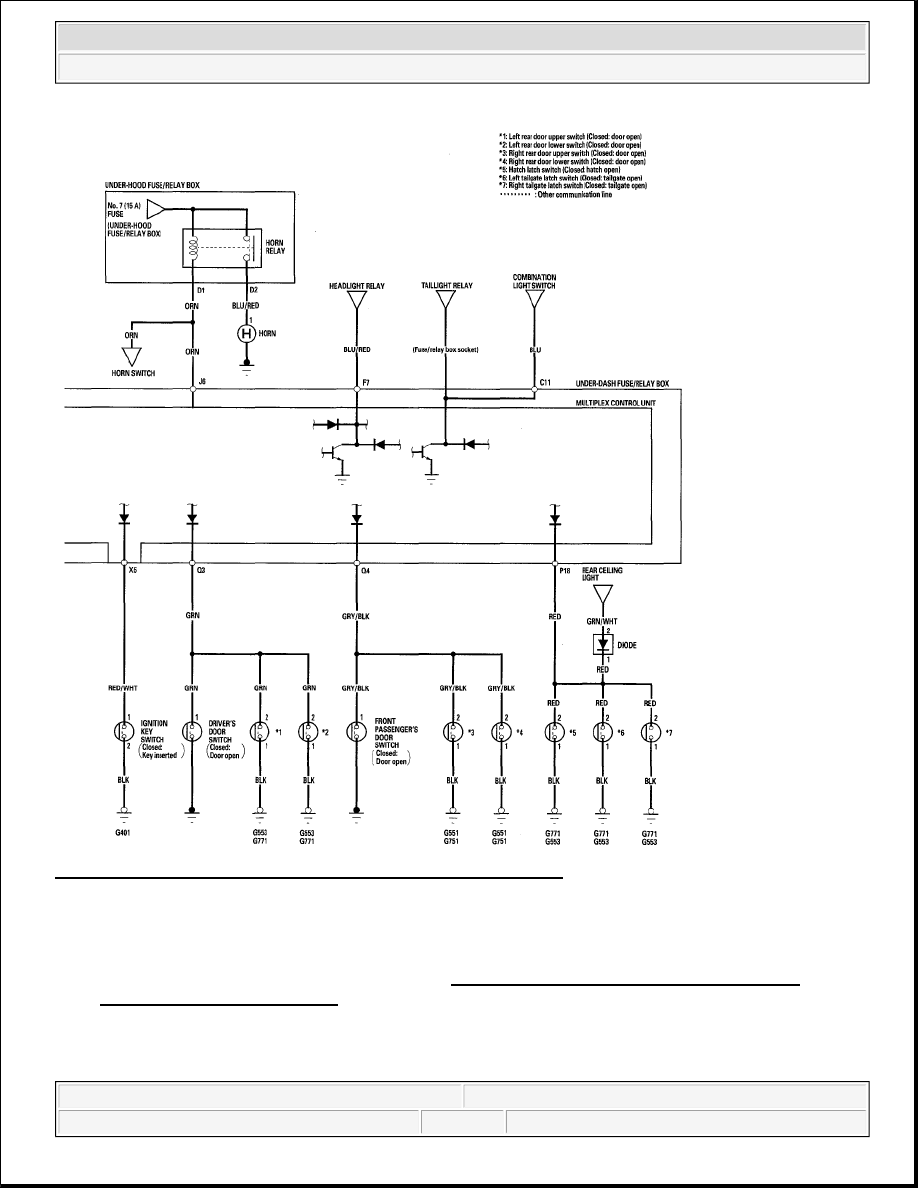

Fig. 3: Keyless/Power Door Lock System Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

KEYLESS RECEIVER UNIT INPUT TEST

1. Remove the driver's dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER

REMOVAL/INSTALLATION ).
