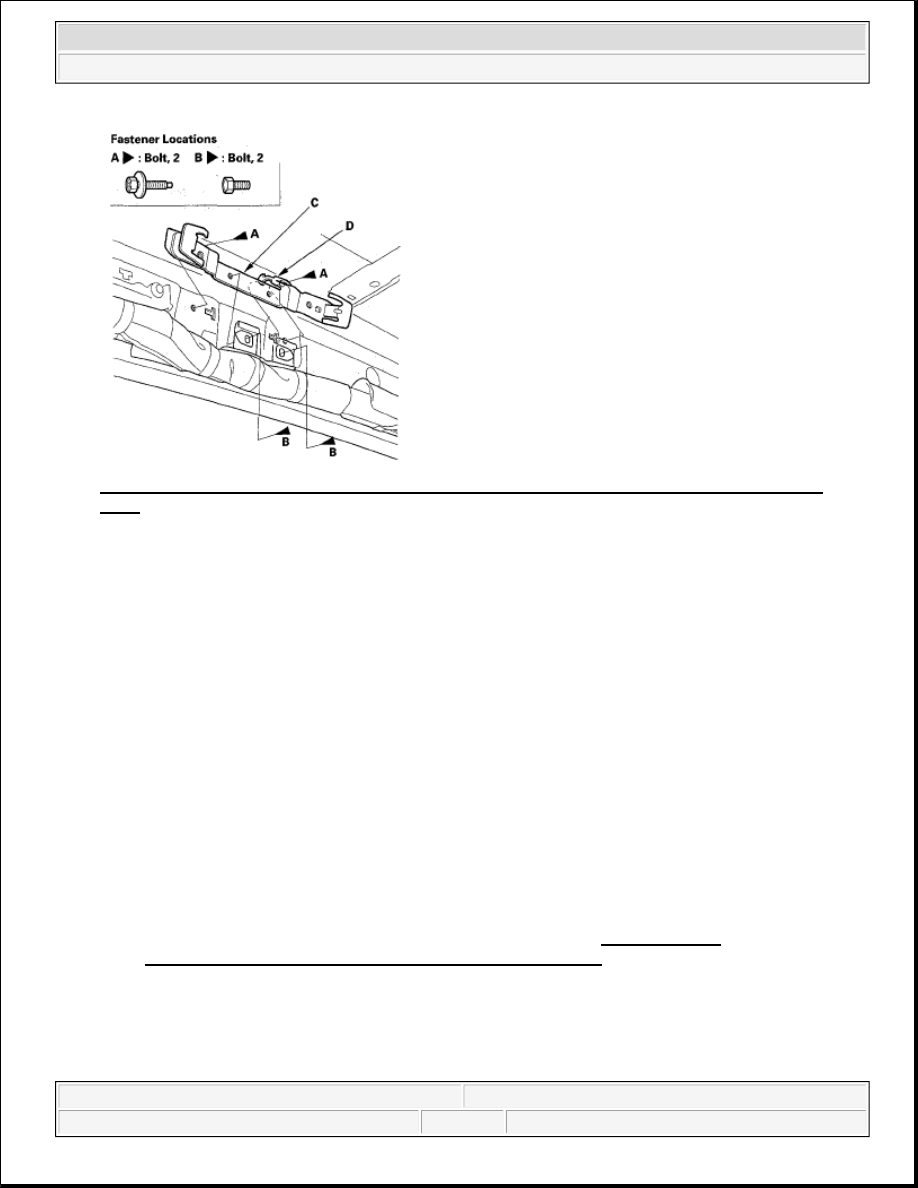

Fig. 41: Identifying Side Curtain Airbag Mounting Bolts And Grab Handle Bracket Mounting
Bolts

Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Install the headliner in the reverse order of removal, and note these items:

If the side curtain airbag has deployed, replace the headliner and removed trim pieces with new
ones.

To prevent the side curtain airbags from deploying improperly and possibly causing injury, inspect
removed pieces and replace them if they have any of these types of damage:

Any crease or tears in the headliner (A)

Any deformations in the grab handle (B)

Any damage around the grab handle holes (C) or Sunvisor holes in the headliner

Any cracks in the sunvisor stay base (D)

Any bends or cracks in the sunvisor stay shaft (E)

Any cracks in the sunvisor base (F)

Any Velcro fasteners (G) which have come off the headliner

Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.

Replace the removed cushion tape with new ones.

Check that both sides of the headliner are securely attached to the trim.

Make sure the headliner overlaps the trim pieces correctly (see COMPONENT
REPLACEMENT/INSPECTION AFTER DEPLOYMENT
 ).

When reinstalling the headliner through the tailgate opening, be careful not to fold or bent it. Also,
be careful not to scratch the body.

With skylight: When installing the roof trim (H), align the roof trim ends with the opening flange of
the skylight frame as shown.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Interior Trim - Element



Headliner

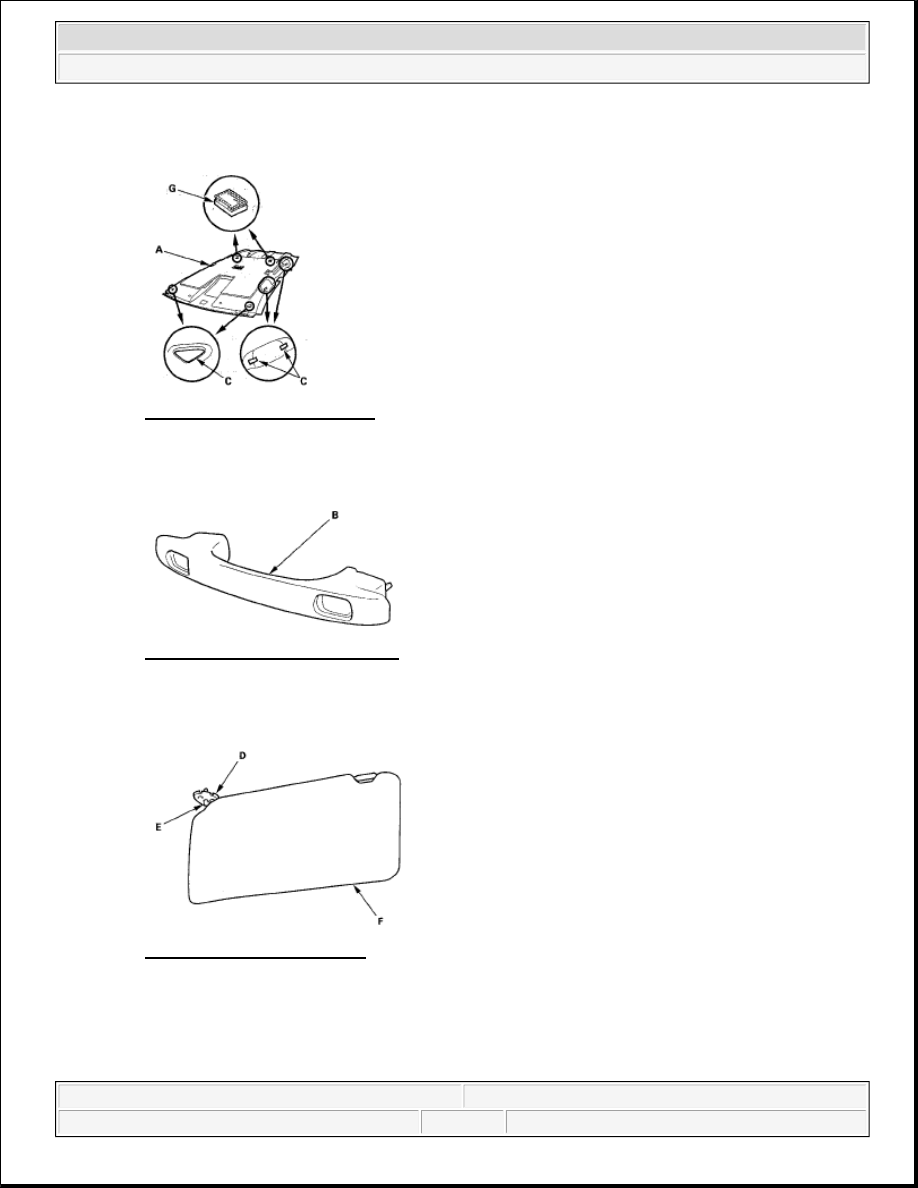

Fig. 42: Identifying Headliner
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Grab handle

Fig. 43: Identifying Grab Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Sunvisor

Fig. 44: Identifying Sunvisor
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Skylight (some models)



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Interior Trim - Element



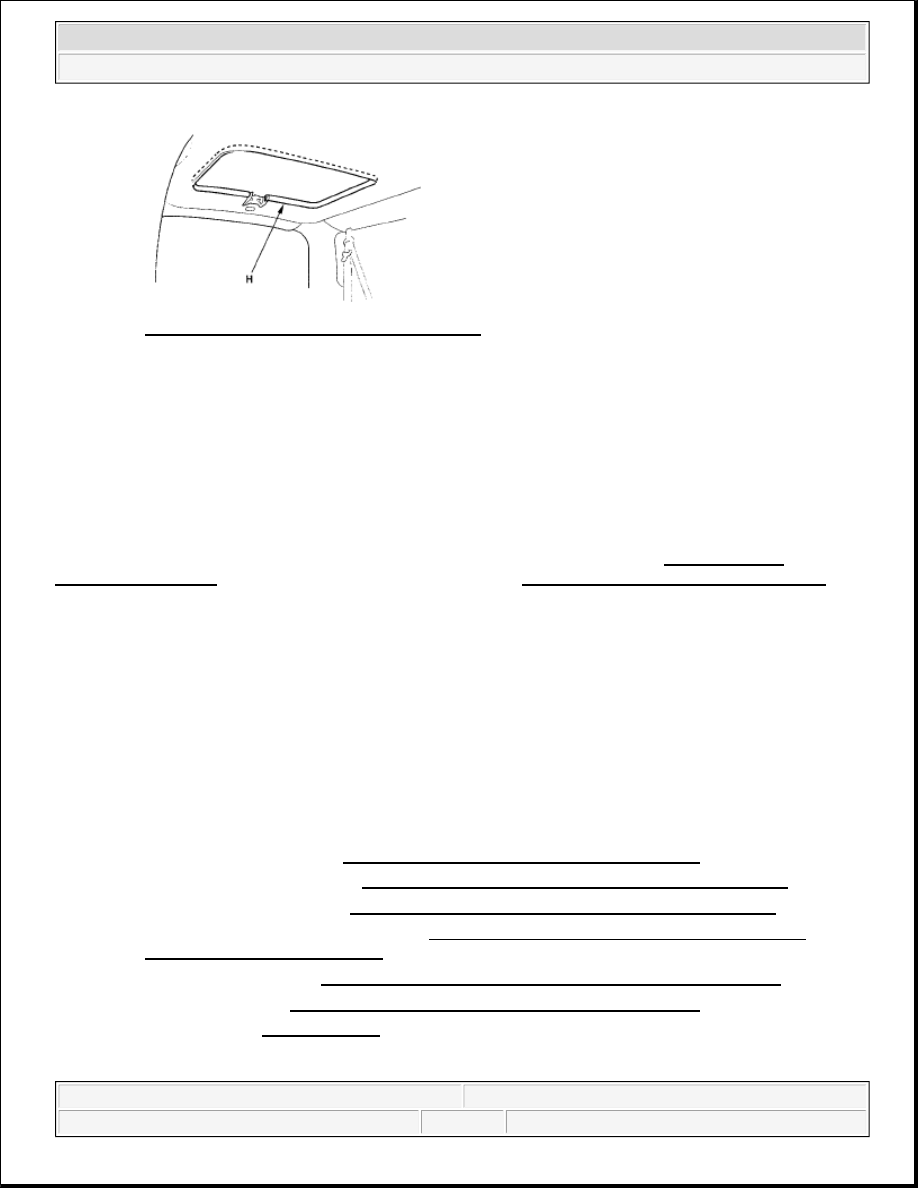

Fig. 45: Identifying Skylight (Some Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

FLOOR COVERING REPLACEMENT

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

SRS components are located in this area. Review the SRS component locations (see COMPONENT
LOCATION INDEX
 ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES )
before doing repairs or service.

FRONT FLOOR COVERING

1. Remove these items:

Front seats, both sides (see FRONT SEAT REMOVAL/INSTALLATION )

Door sill trim, both sides (see TRIM REMOVAL/INSTALLATION - DOOR AREAS )

Kick panels, both sides (see TRIM REMOVAL/INSTALLATION - DOOR AREAS )

Passenger's dashboard undercover (see PASSENGER'S DASHBOARD UNDERCOVER
REMOVAL/INSTALLATION
 )

Center lower cover (see CENTER LOWER COVER REMOVAL/INSTALLATION )

Center console (see CENTER CONSOLE REMOVAL/INSTALLATION )

Subwoofer (see SUBWOOFER )

2. Remove the front floor covering (A).

NOTE:

Put on gloves to protect your hands.

Use the appropriate tool from the KTC trim tool set to avoid damage when
prying components.

Take care not to damage, wrinkle or twist the floor covering.

Be careful not to damage the dashboard or other interior trim pieces.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Interior Trim - Element



-1 Remove the clips.

-2 Release the Velcro fastener (B), then pull back the floor covering from under the heater unit.

-3 Release the Velcro fasteners (C) on the front edge of the floor covering, then pull back the floor
covering from under the dashboard.

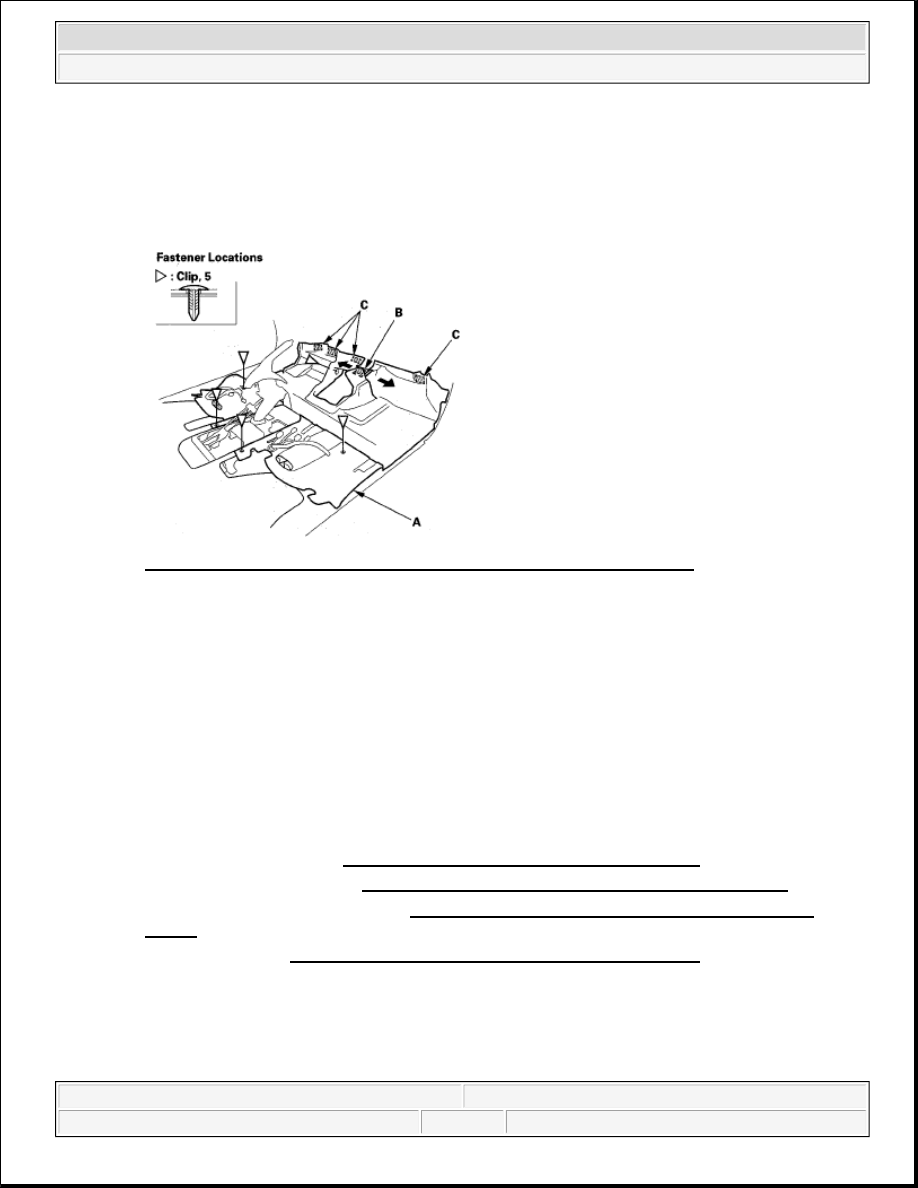

Fig. 46: Identifying Velcro Fasteners On Front Edge Of Floor Covering
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the front floor covering.

4. Install the floor covering in the reverse order of removal, and note these items:

Take care not to damage, wrinkle or twist the floor covering.

Make sure the seat harnesses are routed correctly.

Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.

Push the clips into place securely.

REAR FLOOR COVERING

1. Remove these items:

Front seats, both sides (see FRONT SEAT REMOVAL/INSTALLATION )

Door sill trim, both sides (see TRIM REMOVAL/INSTALLATION - DOOR AREAS )

Rear side trim panel, both sides (see TRIM REMOVAL/INSTALLATION - REAR SIDE
AREA
 )

Center console (see CENTER CONSOLE REMOVAL/INSTALLATION )

2. Remove the clips, then remove the rear floor covering (A).



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Interior Trim - Element
