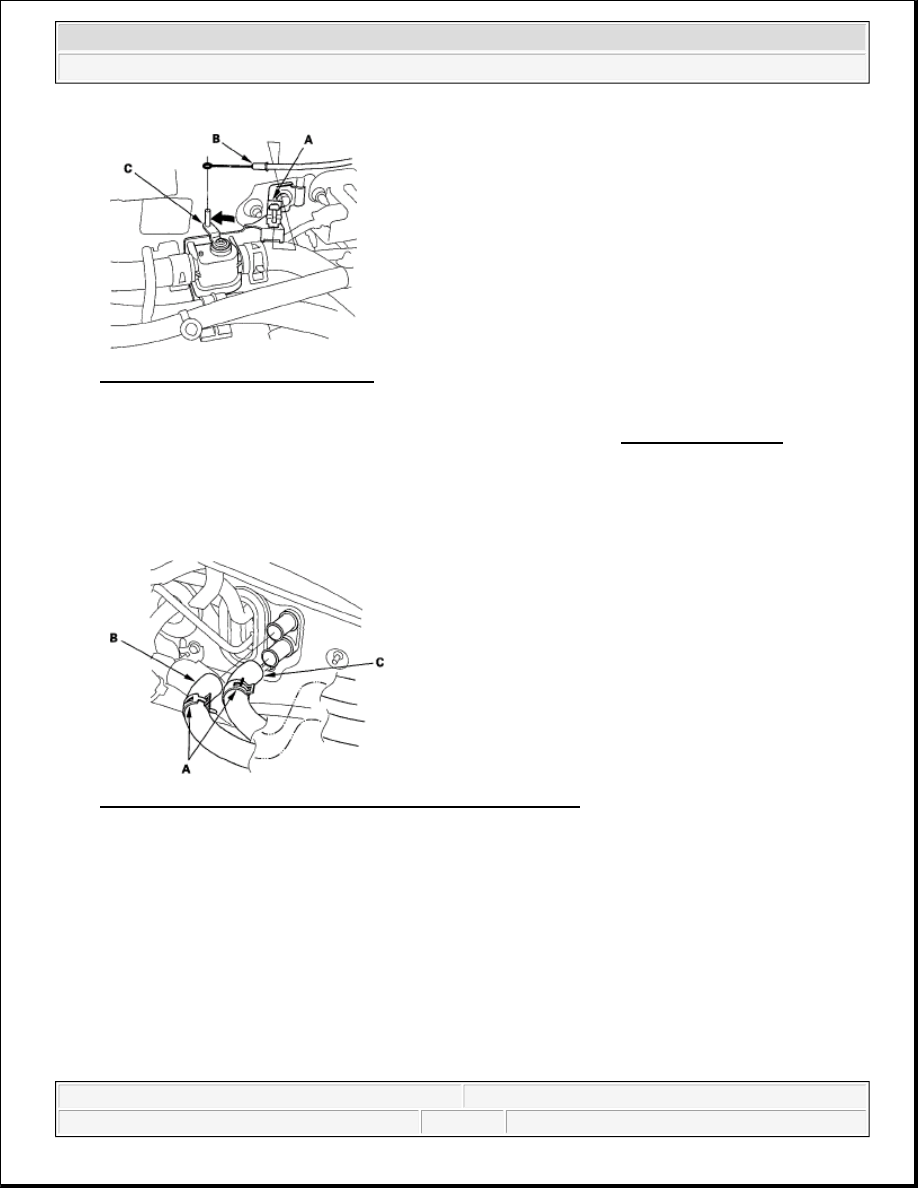

Fig. 76: Turning Heater Valve Arm
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. When the engine is cool, drain the engine coolant from the radiator (see COOLANT CHECK ).

6. Slide the hose clamps (A) back, then disconnect the inlet heater hose (B) and the outlet heater hose (C)

from the heater core. Engine coolant will run out when the hoses are disconnected; drain it into a clean
drip pan. Be sure not to let engine coolant spill on the electrical parts or the painted surfaces. If any
coolant spills, rinse it off immediately.

Fig. 77: Identifying Inlet Heater Hose And Outlet Heater Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Remove the mounting bolt and the heater valve as shown. Remove the mounting nut from the heater unit.

Take care not to damage or bend the fuel lines and the brake lines, etc..



2007 Honda Element EX

2007-2008 HVAC HVAC - Element



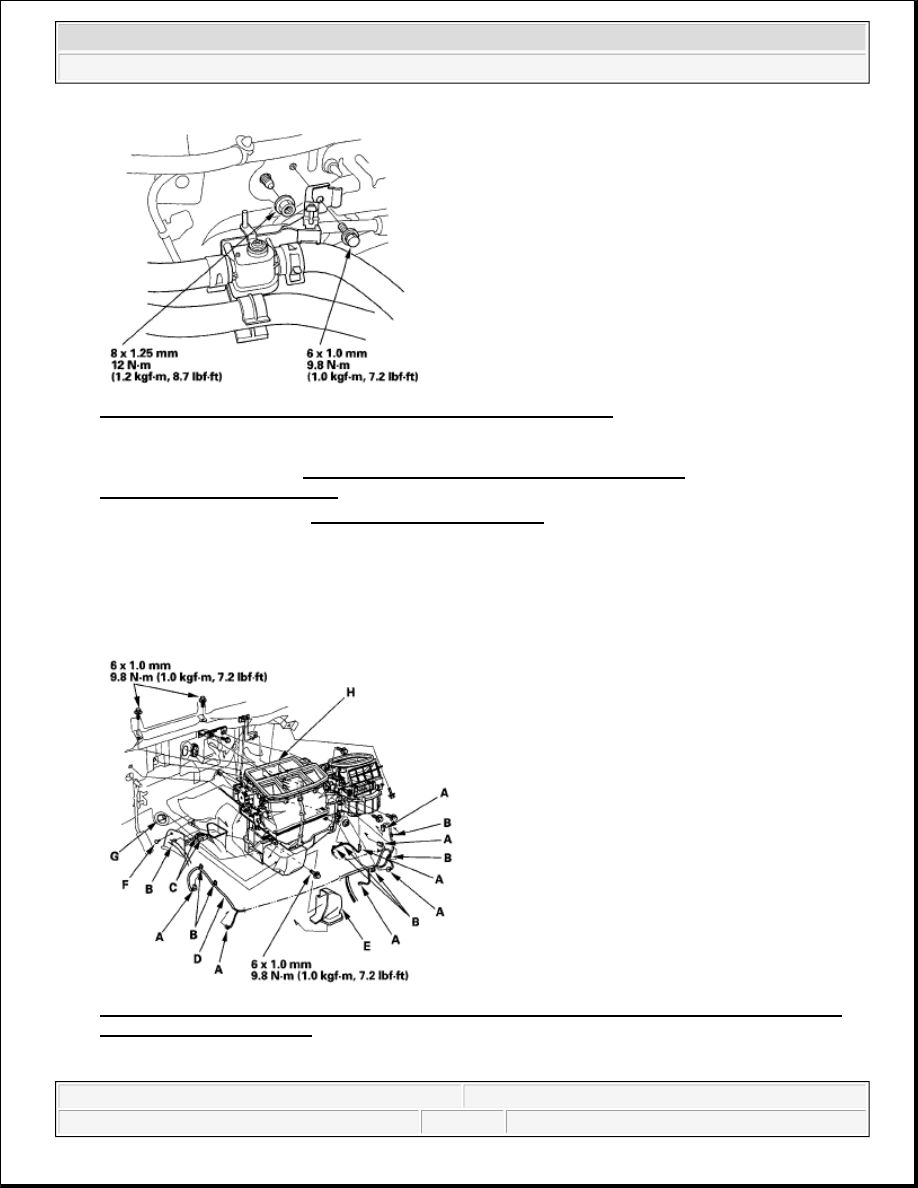

Fig. 78: Identifying Heater Valve Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Remove the dashboard (see PASSENGER'S DASHBOARD LOWER PANEL

REMOVAL/INSTALLATION ).

9. Remove the ECM/PCM (see ECM/PCM REPLACEMENT ).

10. Disconnect the connectors (A) from the dashboard wire harness, the air mix control motor, the evaporator

temperature sensor, the power transistor, the mode control motor, the blower motor, and the recirculation
control motor, then remove the wire harness clips (B), the connector clips (C), the wire harness (D), the
heater duct (E), and the clip (F). Disconnect the drain hose (G), then remove the mounting nuts and the
blower-heater unit(H).

Fig. 79: Identifying Air Mix Control Motor, Evaporator Temperature Sensor And Wire Harness
With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-2008 HVAC HVAC - Element



11. Remove the self-tapping screws and the expansion valve cover (A). With air conditioning; carefully pull

out the evaporator core (B) so you don't bend the inlet and outlet pipes. Remove the self-tapping screws
and the flange cover (C), then remove the grommet (D), and carefully pull out the heater core (E) so you
don't bend the inlet and outlet pipes.

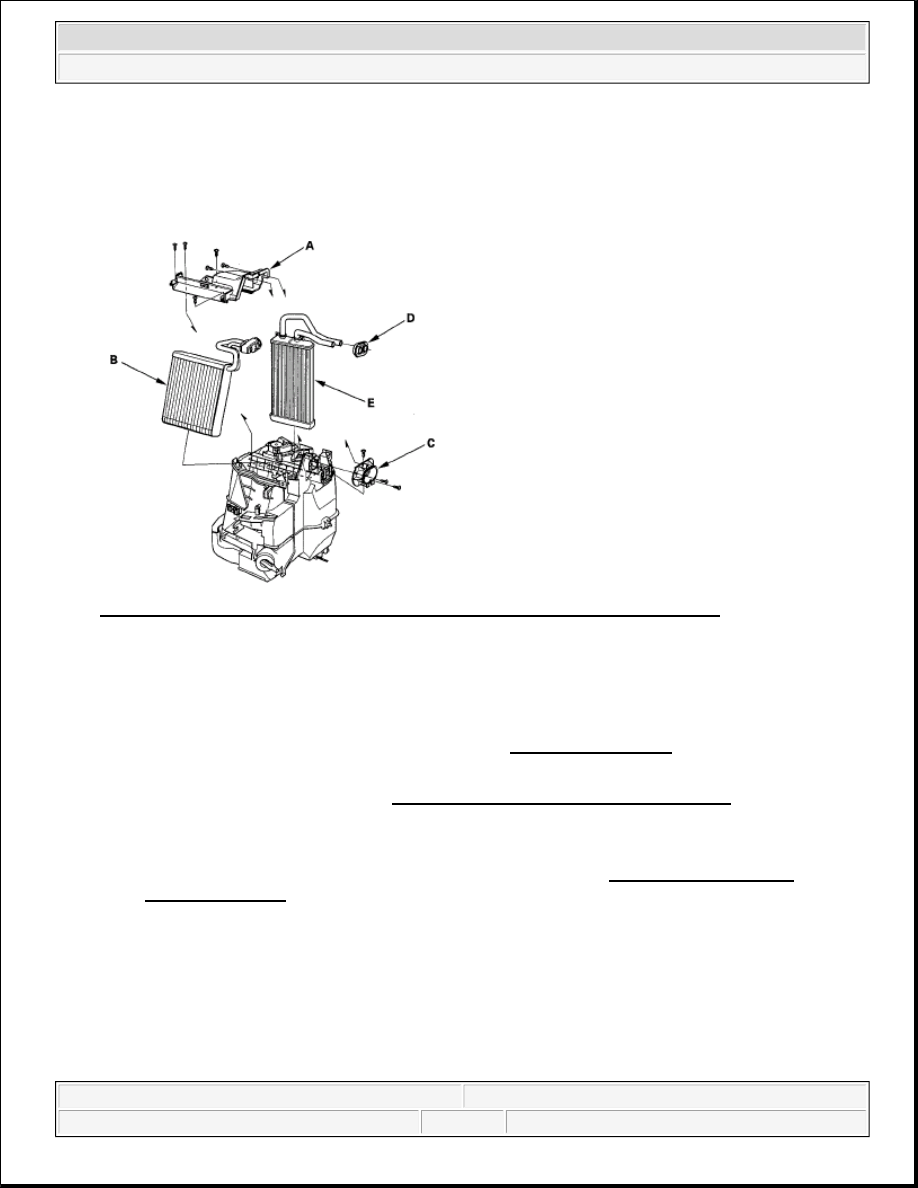

Fig. 80: Identifying Expansion Valve Cover, Evaporator Core And Flange Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

12. Install the heater core and the evaporator core in the reverse order of removal.

13. Install the heater unit in the reverse order of removal, and note these items:



Do not interchange the inlet and outlet heater hoses, and install the hose clamps securely.



Refill the cooling system with engine coolant (see COOLANT CHECK ).



Be sure to connect the drain hose securely.



Adjust the heater valve cable (see HEATER VALVE CABLE ADJUSTMENT ).



Make sure that there is no engine coolant leakage.



Make sure that there is no air leakage.



With air conditioning, refer to evaporator core replacement (see EVAPORATOR CORE
REPLACEMENT ).



Enter the anti-theft codes for the audio system, then enter the audio presets.

HEATER VALVE CABLE ADJUSTMENT

1. From under the hood, open the cable clamp (A), then disconnect the heater valve cable (B) from the

heater valve arm (C).



2007 Honda Element EX

2007-2008 HVAC HVAC - Element



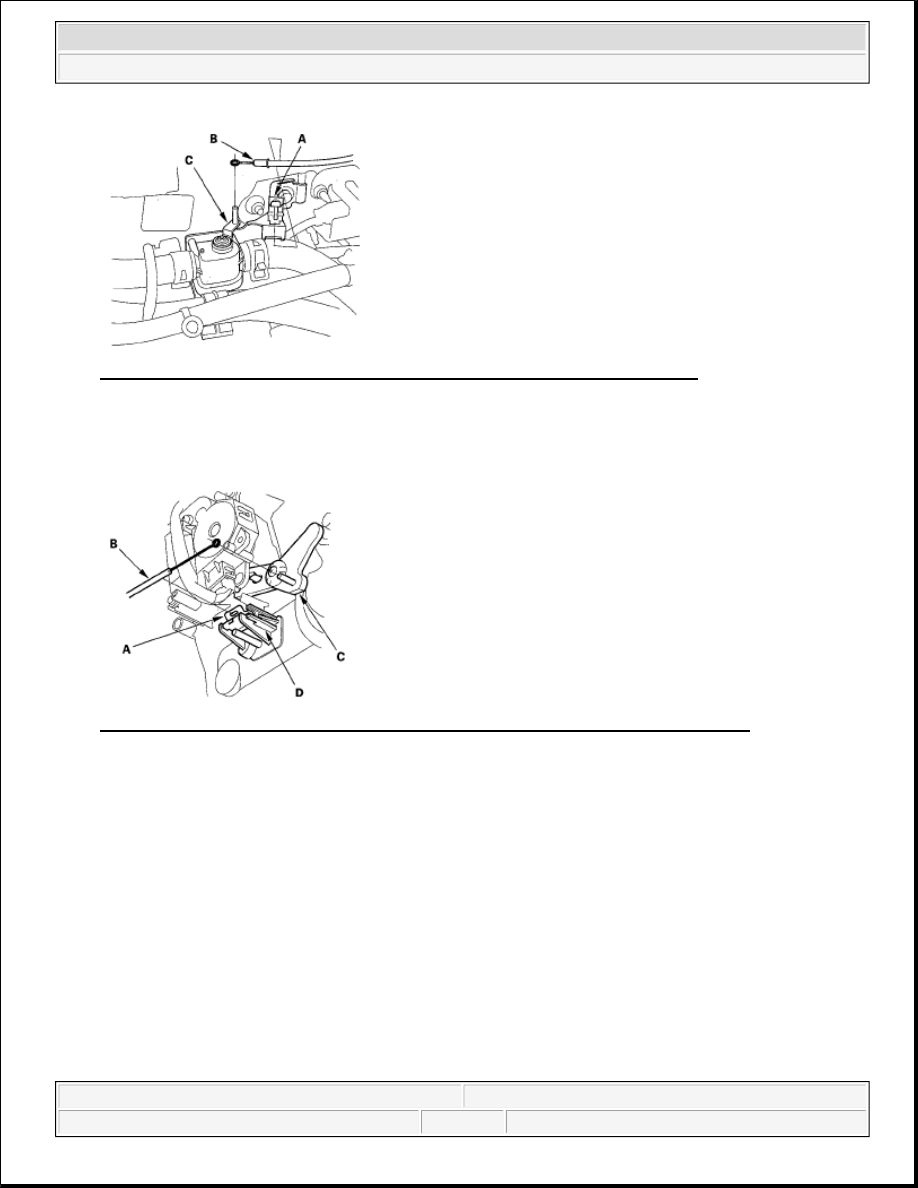

Fig. 81: Identifying Cable Clamp, Heater Valve Cable And Heater Valve Arm
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. From under the dash, disconnect the heater valve cable housing from the cable clamp (A), and disconnect

the heater valve cable (B) from the air mix control linkage (C).

Fig. 82: Identifying Cable Clamp, Heater Valve Cable And Air Mix Control Linkage
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Set the temperature control dial on Max Cool with the ignition switch ON (II).

4. Attach the heater valve cable to the air mix control linkage as shown in step 2. Hold the end of the heater

valve cable housing against the stop (D), then snap the heater valve cable housing into the cable clamp.

5. From under the hood, turn the heater valve arm (A) to the fully closed position as shown, and hold it.

Attach the heater valve cable (B) to the heater valve arm, and gently pull on the heater valve cable
housing to take up any slack, then install the heater valve cable housing into the cable clamp (C).
