3. Remove the filter (A) from the housing (B), and replace the filter.

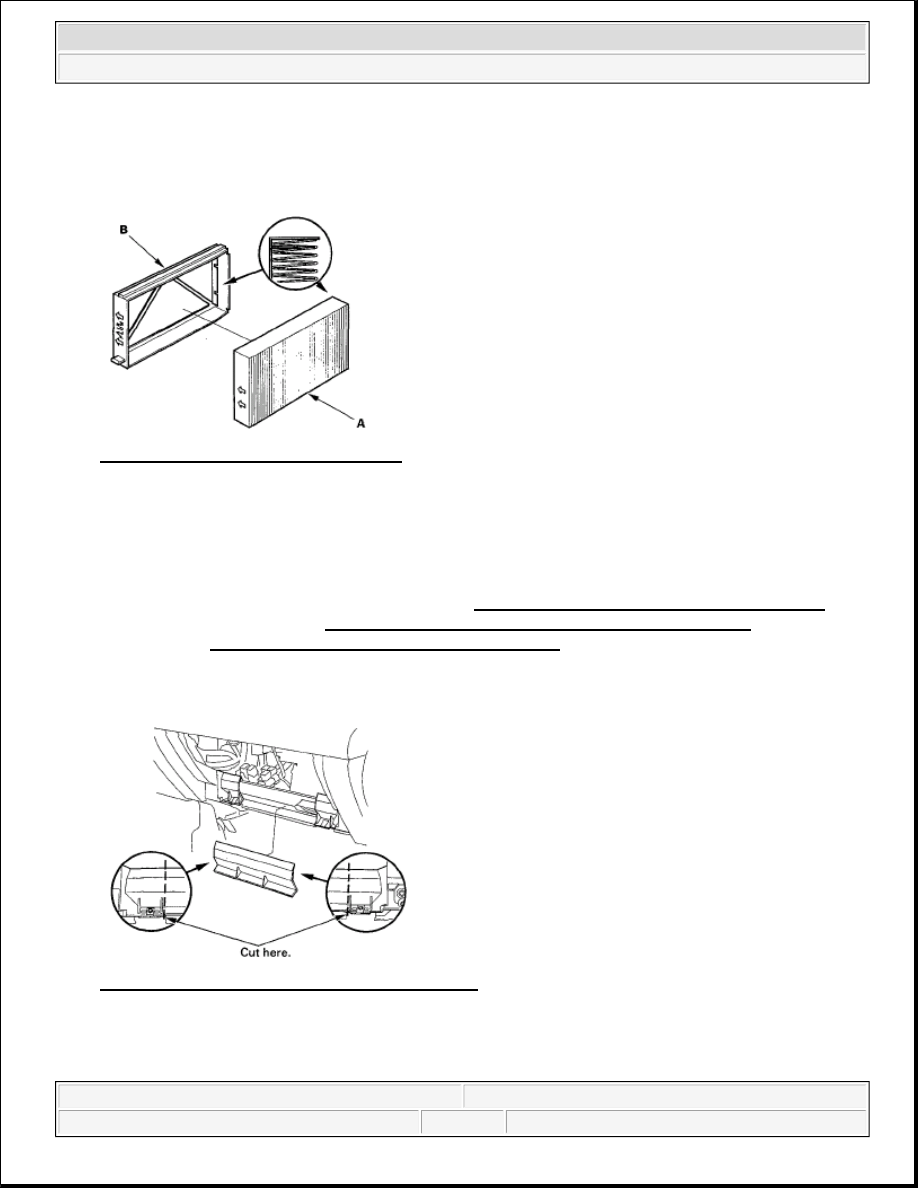

Fig. 70: Identifying Filter And Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Install the filters in the reverse order of removal.

BLOWER UNIT REMOVAL/INSTALLATION

1. Remove the passenger's dashboard undercover (see GLOVE BOX REMOVAL/INSTALLATION ),

the passenger's kick panel (see TRIM REMOVAL/INSTALLATION - DOOR AREAS ), and the
glove box (see GLOVE BOX REMOVAL/INSTALLATION ).

2. Cut the plastic cross brace in the glove box opening with diagonal cutters in the area shown. Remove and

discard the plastic cross brace.

Fig. 71: Identifying Plastic Cross Brace Cut Area
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the relays (A) and the wire harness clip (B), then remove the bolts and the glove box frame (C).



2007 Honda Element EX

2007-2008 HVAC HVAC - Element



Fig. 72: Identifying Relays, Wire Harness Clip And Glove Box Frame
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Remove the ECM/PCM (see ECM/PCM REPLACEMENT ).

5. Disconnect the connectors (A) from the blower motor, the power transistor, and the recirculation control

motor, then remove the wire harness clips (B).

Fig. 73: Identifying Blower Motor, Power Transistor And Recirculation Control Motor Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Fold the floor covering and pad back toward you. Remove the mounting bolts, the mounting nut, and the

blower unit.



2007 Honda Element EX

2007-2008 HVAC HVAC - Element



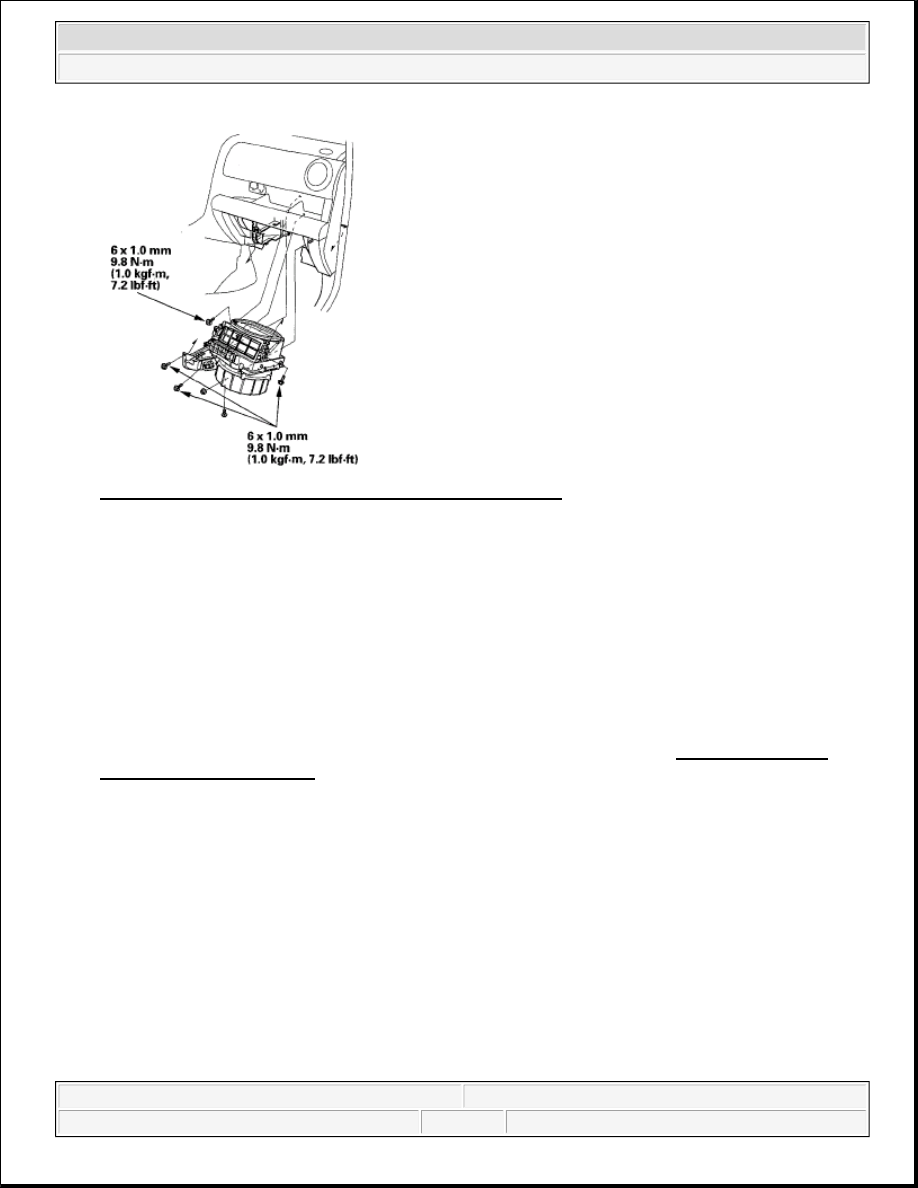

Fig. 74: Identifying Blower Unit With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Install the unit in the reverse order of removal. Make sure that there is no air leakage.

BLOWER UNIT COMPONENT REPLACEMENT

Note these items when overhauling the blower unit;



The recirculation control motor (A), the power transistor (B), the blower motor (C), and the dust and
pollen filters (D) can be replaced without removing the blower unit.



Before reassembly, make sure that the recirculation control linkage and doors move smoothly.



After reassembly, make sure the recirculation control motor runs smoothly (see MODE CONTROL
MOTOR REPLACEMENT ).



2007 Honda Element EX

2007-2008 HVAC HVAC - Element



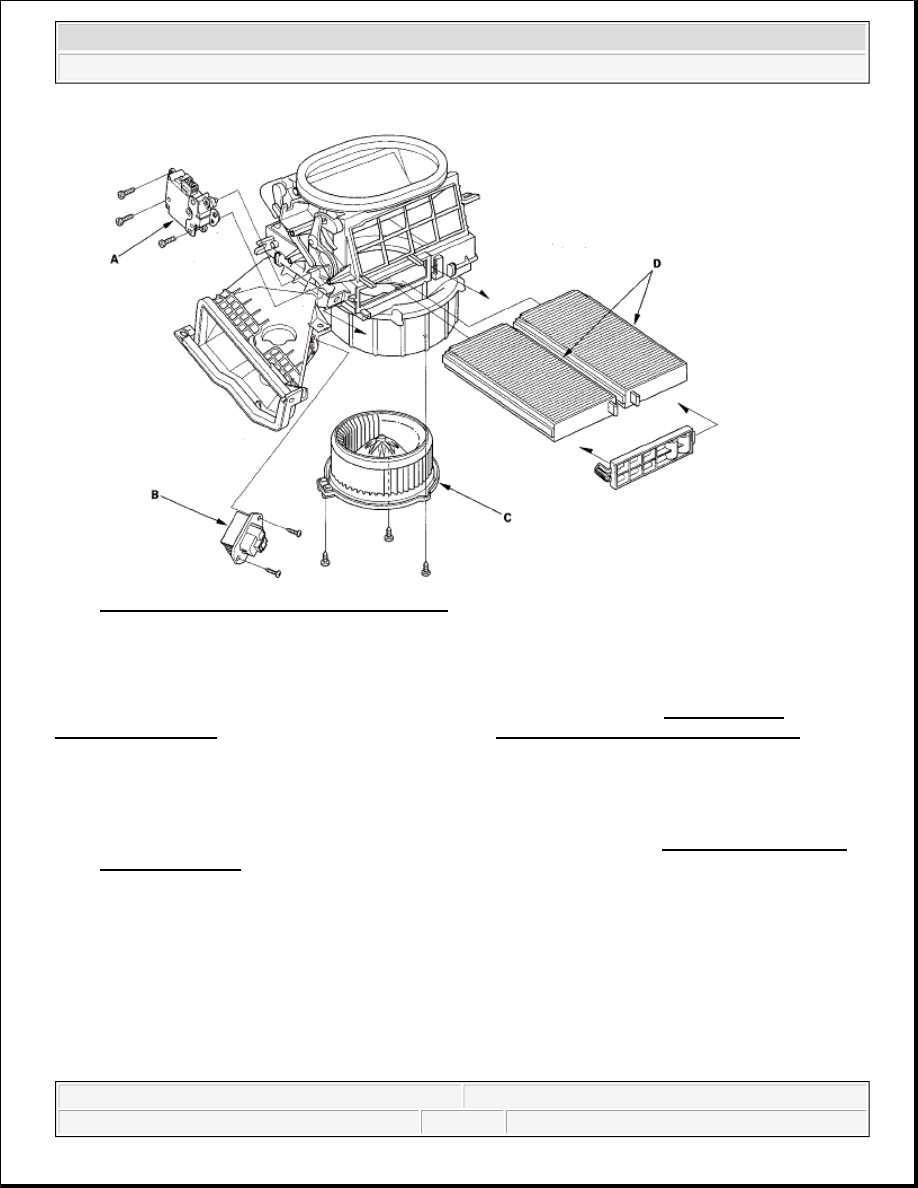

Fig. 75: Identifying Blower Unit Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.

HEATER UNIT/CORE REPLACEMENT

SRS components are located in this area. Review the SRS component locations (see COMPONENT
LOCATION INDEX ) and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before
doing repairs or service.

1. Make sure you have the anti-theft code for the audio system, then write down the audio presets.

2. Disconnect the negative cable from the battery.

3. With air conditioning; disconnect the A/C lines from the evaporator core (see EVAPORATOR CORE

REPLACEMENT ).

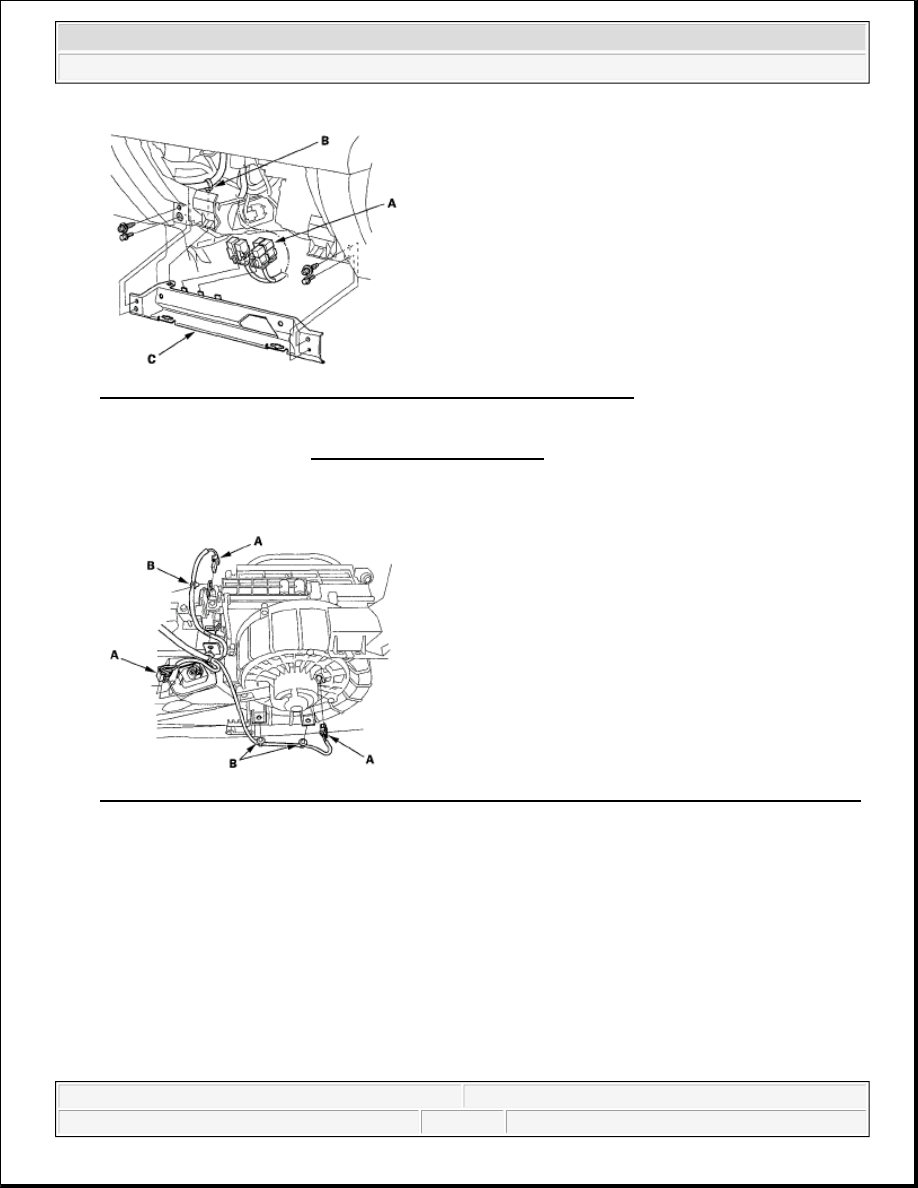

4. From under the hood, open the cable clamp (A), then disconnect the heater valve cable (B) from the

heater valve arm (C). Turn the heater valve arm to the fully opened position as shown.
