9. Disconnect the jumper wire.

10. Turn the ignition switch ON (II).

11. Measure the voltage between the No. 3 terminal of the A/C compressor clutch relay 4P socket and body

ground.

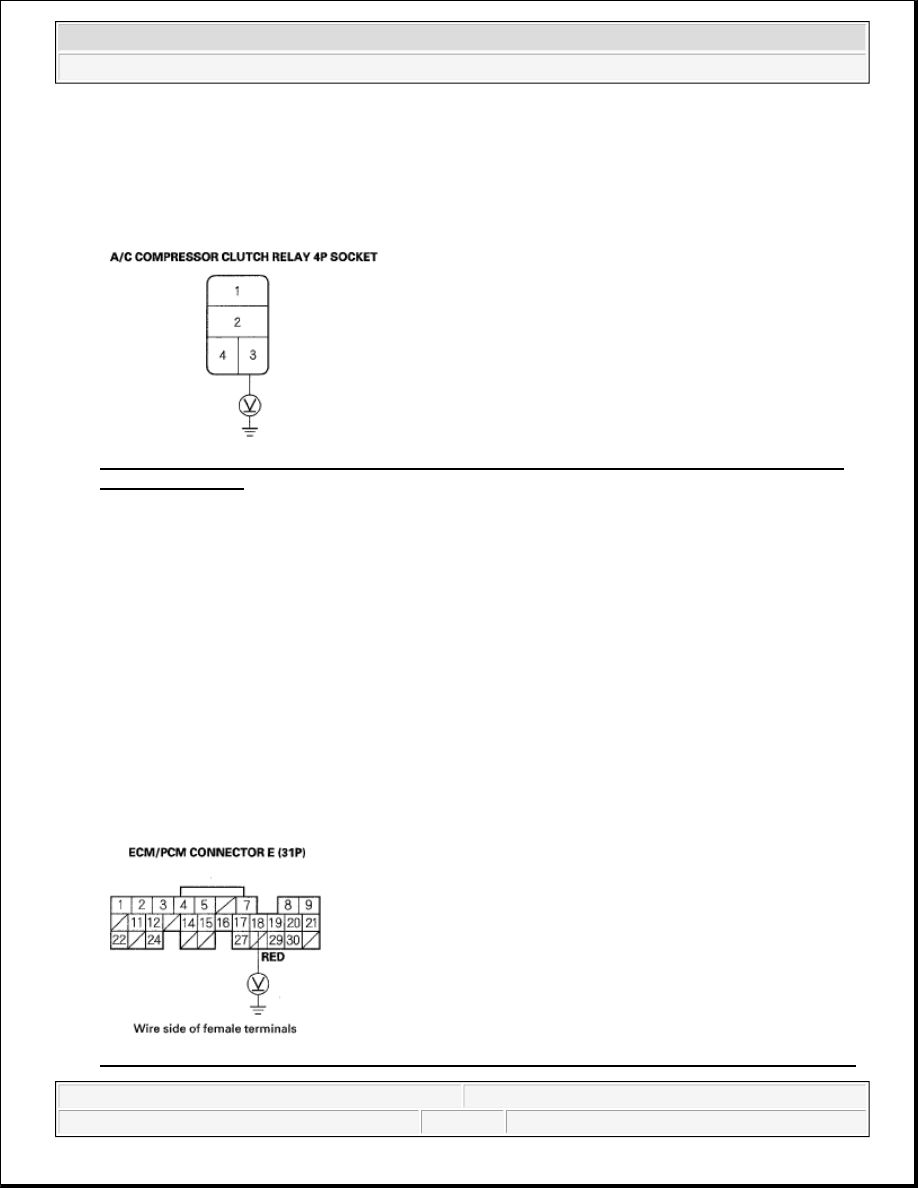

Fig. 52: Measuring Voltage Between No. 3 Terminal Of A/C Compressor Clutch Relay 4P Socket
And Body Ground

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES -Go to step 12.

NO -Repair open in the BLK/YEL wire between the No. 14 (10 A) fuse in the under-dash fuse/relay box
and the A/C compressor clutch relay socket.

12. Turn the ignition switch OFF.

13. Reinstall the A/C compressor clutch relay.

14. Make sure the A/C switch is OFF.

15. Turn the ignition switch ON (II).

16. Using the backprobe set, measure the voltage between the No. 18 terminal of ECM/PCM connector E

(31P) and body ground with the ECM/PCM connectors connected.

Fig. 53: Measuring Voltage Between No. 18 Terminal Of ECM/PCM Connector E (31P) And Body



2007 Honda Element EX

2007-2008 HVAC HVAC - Element



Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES -Check for loose wires or poor connections at ECM/PCM connector E (31P). If the connections are
good, substitute a known-good ECM/PCM, and recheck. If the symptom/indication goes away, replace
the original ECM/PCM (see ECM/PCM REPLACEMENT ).

NO -Repair open in the wire between the A/C compressor clutch relay and the ECM/PCM.

17. Disconnect the jumper wire.

18. Disconnect the A/C compressor clutch 1P connector.

19. Check for continuity between the No. 1 terminal of the A/C compressor clutch relay 4P socket and the

No. 1 terminal of the A/C compressor clutch 1P connector.

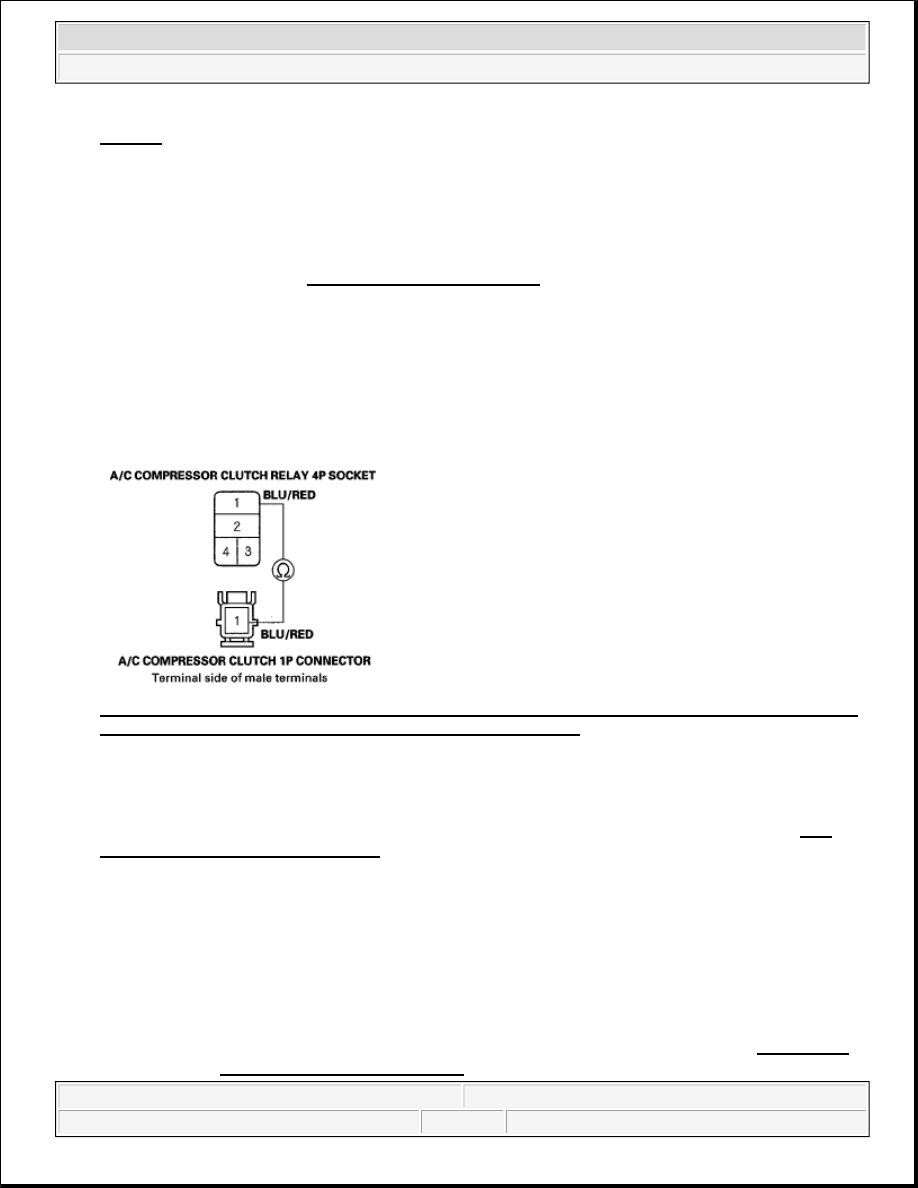

Fig. 54: Checking Continuity Between No. 1 Terminal Of A/C Compressor Clutch Relay 4P Socket
And No. 1 Terminal Of A/C Compressor Clutch 1P Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Check the A/C compressor clutch clearance, and the A/C compressor clutch field coil (see A/C
COMPRESSOR CLUTCH CHECK
 ).

NO -Repair open in the wire between the A/C compressor clutch relay socket and the A/C compressor
clutch.

A/C PRESSURE SWITCH CIRCUIT TROUBLESHOOTING

NOTE:

Do not use this troubleshooting procedure if any of these items are
working properly with the A/C switch ON; A/C condenser fan, radiator fan
and A/C compressor, or the heater does not work. Refer to the SYMPTOM
TROUBLESHOOTING INDEX.



2007 Honda Element EX

2007-2008 HVAC HVAC - Element



1. Turn the ignition switch ON (II).

2. Turn the blower switch on, and check for blower motor operation.

Does the blower motor run correctly on all speeds?

YES -Go to step 3.

NO -Troubleshoot the blower motor circuit (see DTC 12: A PROBLEM IN THE BLOWER MOTOR
CIRCUIT
 ).

3. Disconnect the A/C pressure switch 2P connector.

4. Turn the ignition switch ON (II).

5. Measure the voltage between the No. 2 terminal of the A/C pressure switch 2P connector and body

ground.

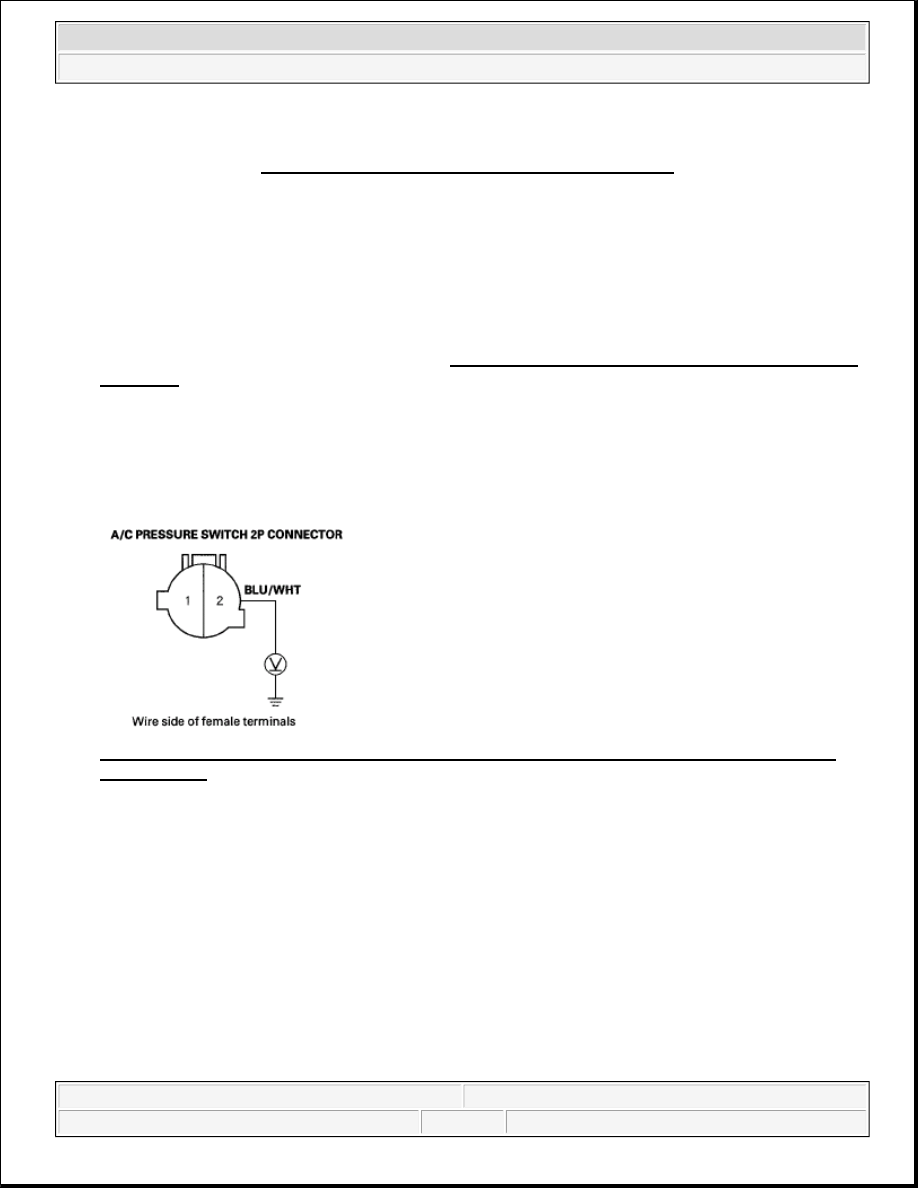

Fig. 55: Measuring Voltage Between No. 2 Terminal Of A/C Pressure Switch 2P Connector And
Body Ground

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there 5 V or more?

YES -Go to step 6.

NO -Go to step 14.

6. Turn the ignition switch OFF.

7. Check for continuity between the No. 1 and No. 2 terminals of the A/C pressure switch.

Before doing symptom troubleshooting, do the self-diagnostic function
(see RESETTING THE SELF-DIAGNOSTIC FUNCTION ).



2007 Honda Element EX

2007-2008 HVAC HVAC - Element

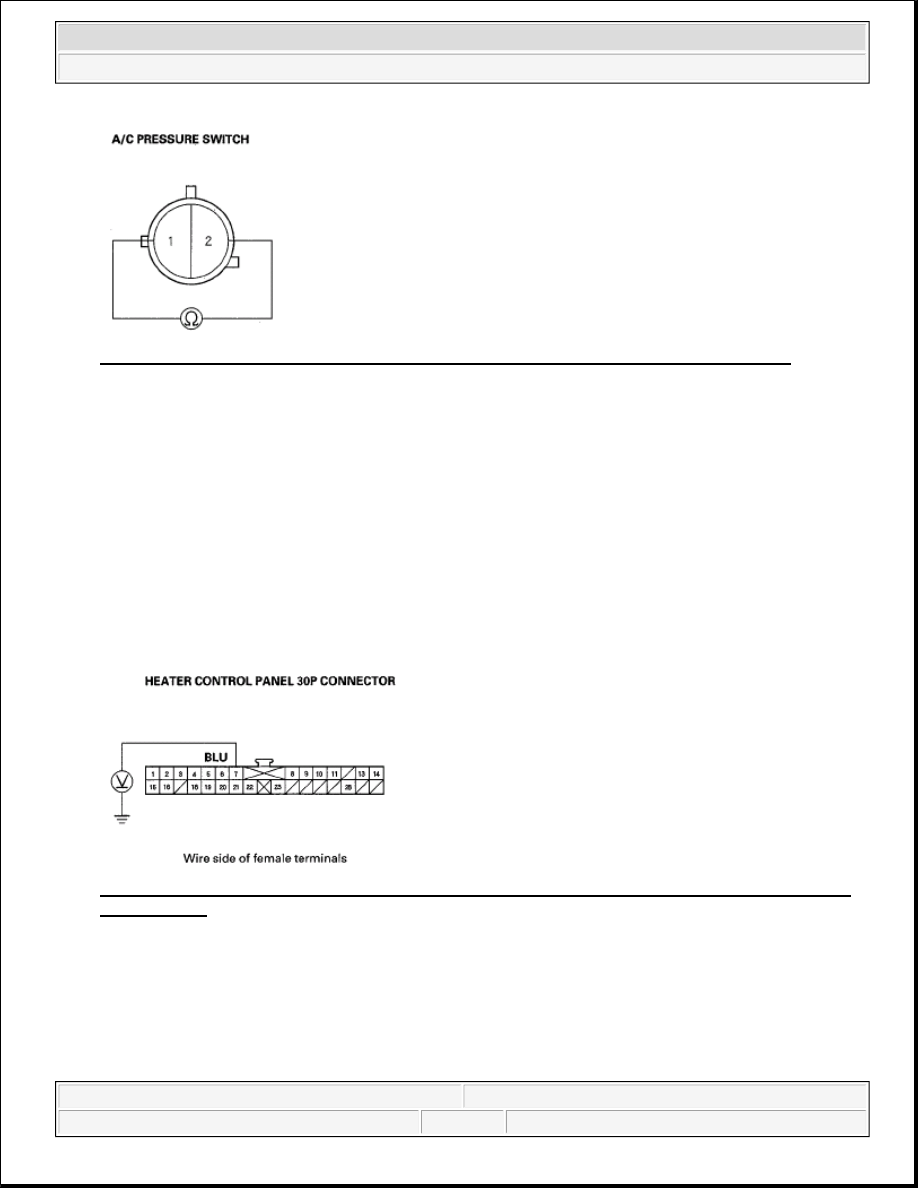

Fig. 56: Checking Continuity Between No. 1 And No. 2 Terminals Of A/C Pressure Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Go to step 8.

NO -Go to step 16.

8. Reconnect the A/C pressure switch 2P connector.

9. Disconnect the heater control panel 30P connector.

10. Turn the ignition switch ON (II).

11. Measure the voltage between the No. 7 terminal of the heater control panel 30P connector and body

ground.

Fig. 57: Measuring Voltage Between No. 7 Terminal Of Heater Control Panel 30P Connector And
Body Ground

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES -Go to step 12.

NO -Repair open in the wire between the heater control panel and the A/C pressure switch.
