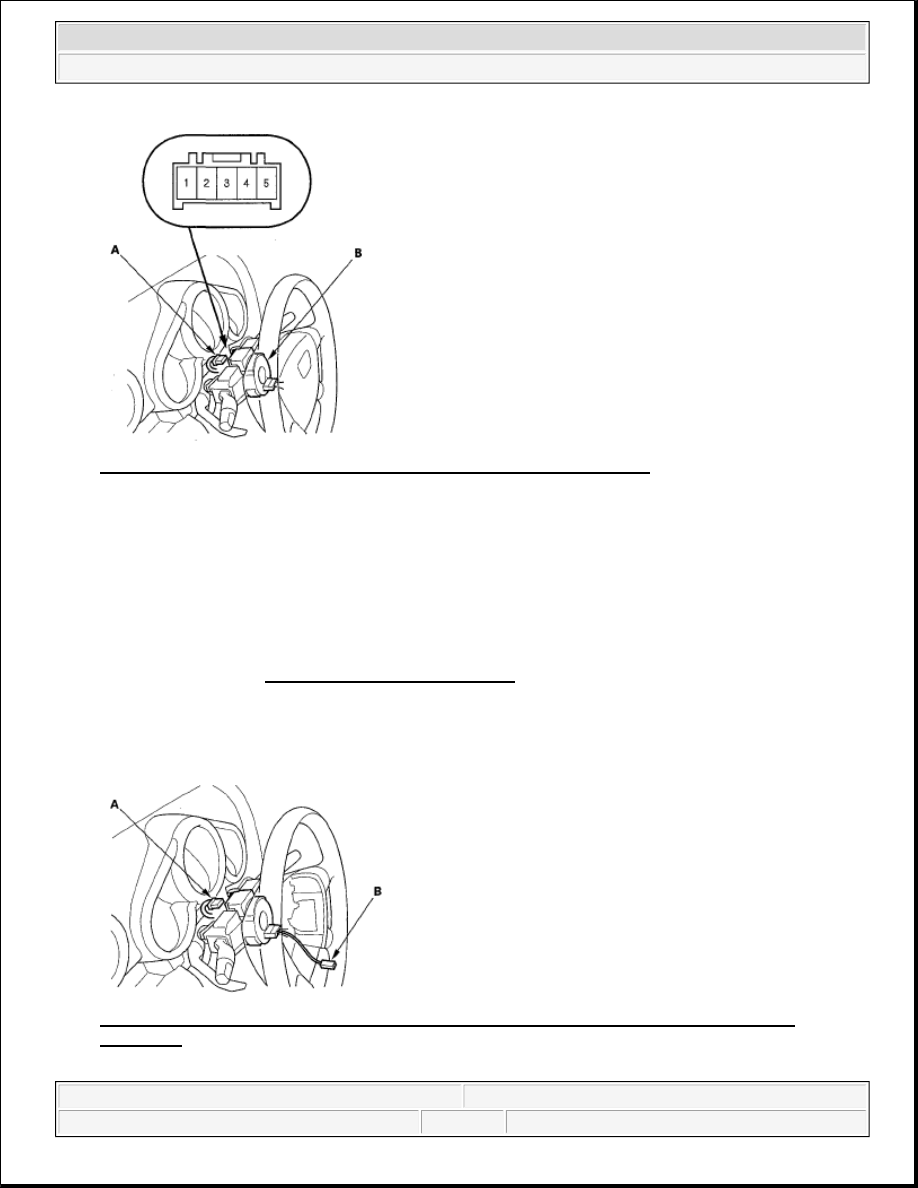

Fig. 5: Identifying Dashboard Wire Harness B 5P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Using a jumper wire, connect the dashboard wire harness B 5P connector (A) No. 1 terminal to body

ground.

If the horn sounds, go to step 4.

If the horn doesn't sound, check these items:

Horn relay.

No. 7 (15 A) fuse in the under-hood fuse/relay box.

Horn (see HORN TEST/REPLACEMENT ).

An open in the wire.

4. Reconnect the dashboard wire harness B 5P connector (A), and disconnect the horn switch positive 1P

connector (B).

Fig. 6: Identifying Dashboard Wire Harness B 5P Connector And Horn Switch Positive 1P
Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Horns - Element



5. Using a jumper wire, connect the horn switch positive 1P connector to ground.

If the horn sounds, replace the horn switch plate.

If the horn does not sound, replace the cable reel.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Horns - Element



2007-2008 HVAC

HVAC - Element

SPECIAL TOOLS

Fig. 1: Identifying Special Tools
Courtesy of AMERICAN HONDA MOTOR CO., INC.

COMPONENT LOCATION INDEX

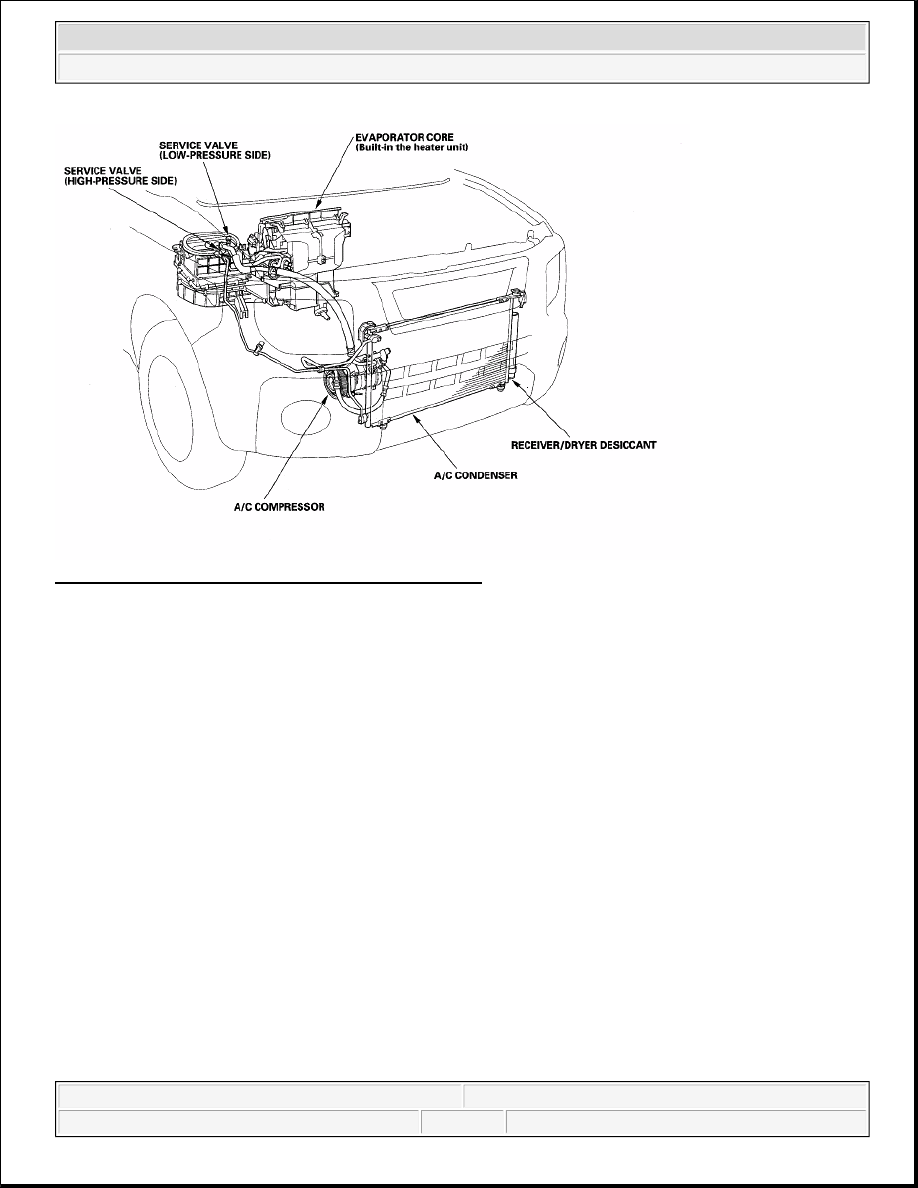

Fig. 2: Identifying HVAC Component Location (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-2008 HVAC HVAC - Element





2007 Honda Element EX

2007-2008 HVAC HVAC - Element



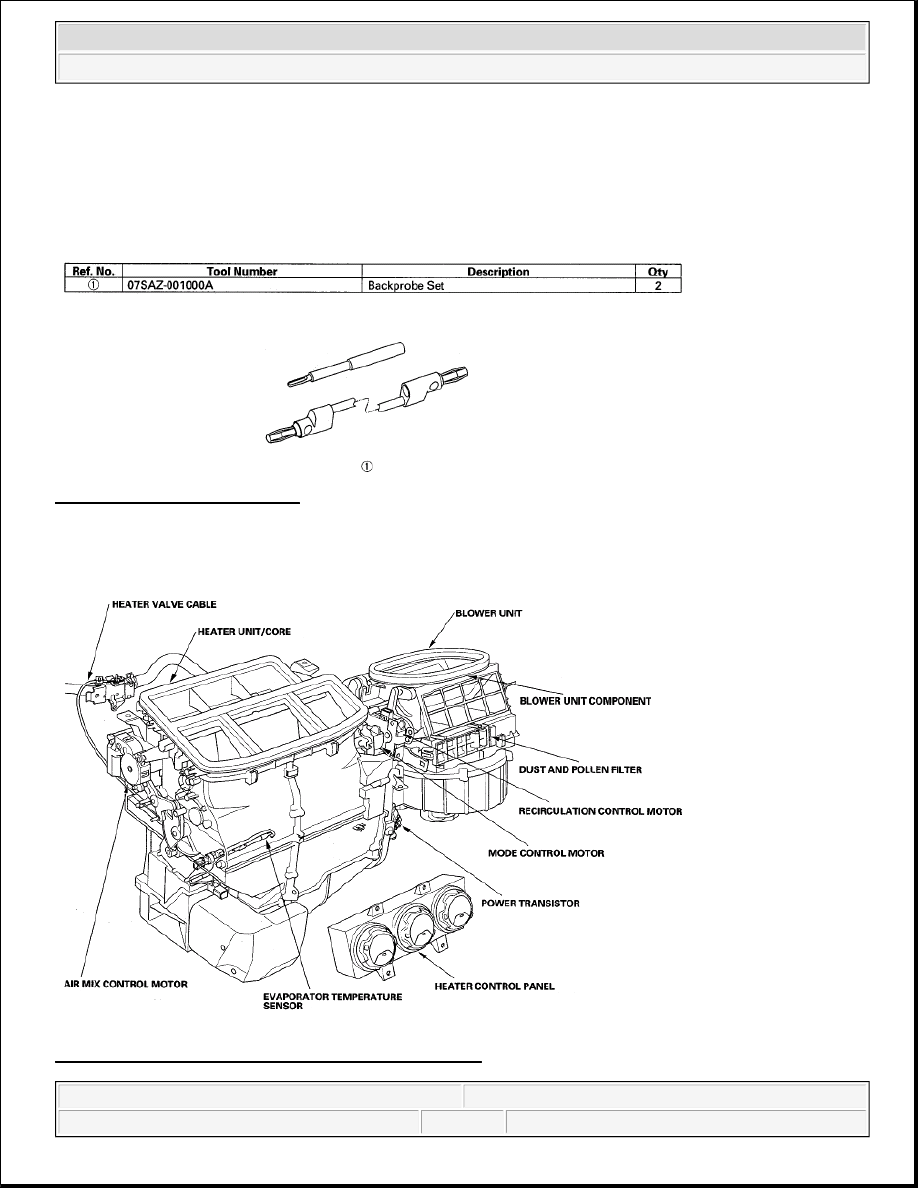

Fig. 3: Identifying HVAC Component Location (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-2008 HVAC HVAC - Element
