FUEL LINE/QUICK-CONNECT FITTING INSTALLATION

1. Check the contact area (A) of the line (B) for dirt or damage, and clean it if needed.

NOTE:

The retainer cannot be reused once it has been removed from the line.
Replace the retainer when:



replacing the fuel rail.



replacing the fuel feed line.



replacing the fuel pump.



replacing the fuel filter.



replacing the fuel gauge sending unit.



replacing the EVAP purge line.



replacing the EVAP canister.



it has been removed from the line.



it is damaged.

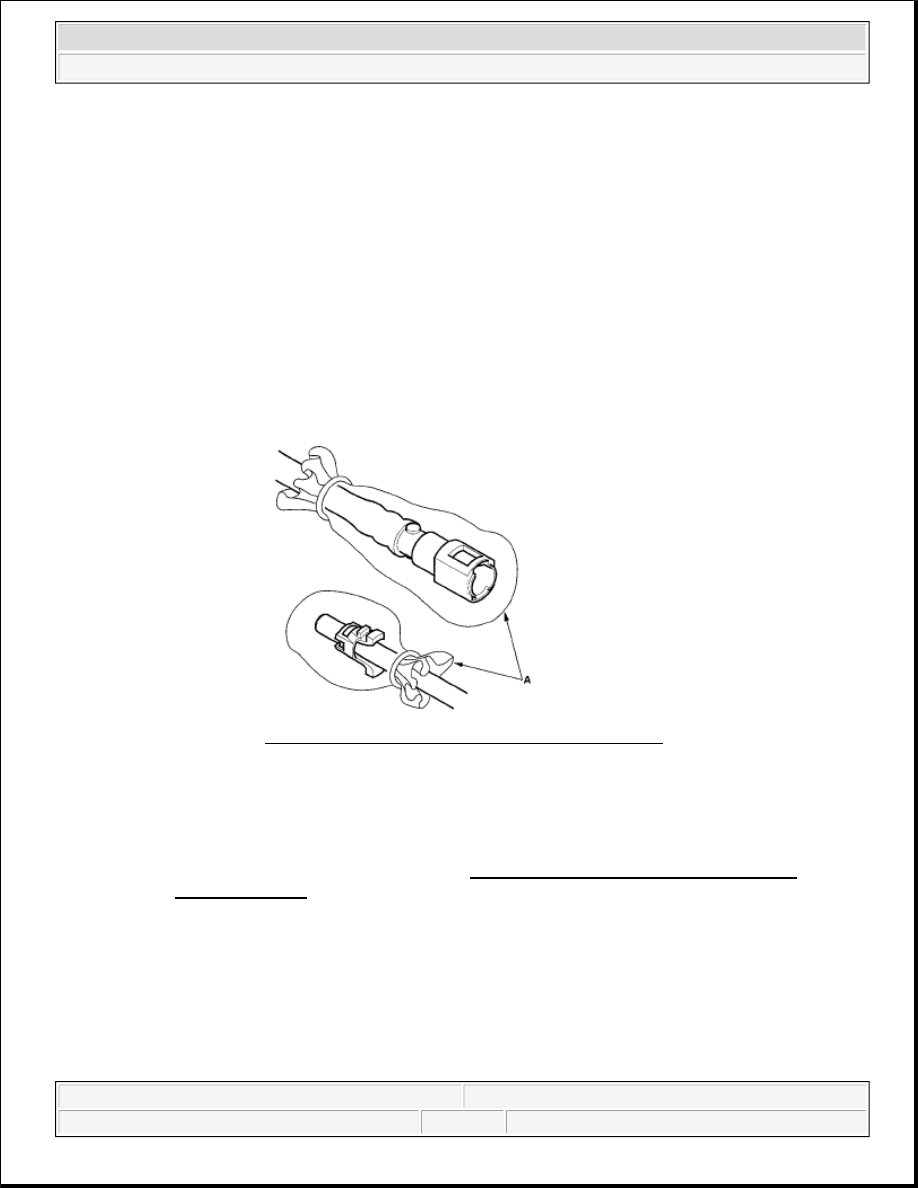

Fig. 37: Covering Connector With Plastic Bags
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE:

Before you work on the fuel lines and fittings, read the "Fuel Line/Quick-
Connect Fitting Precautions" (see FUEL LINE/QUICK-CONNECT FITTING
PRECAUTIONS ).



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Fuel Supply System - Element



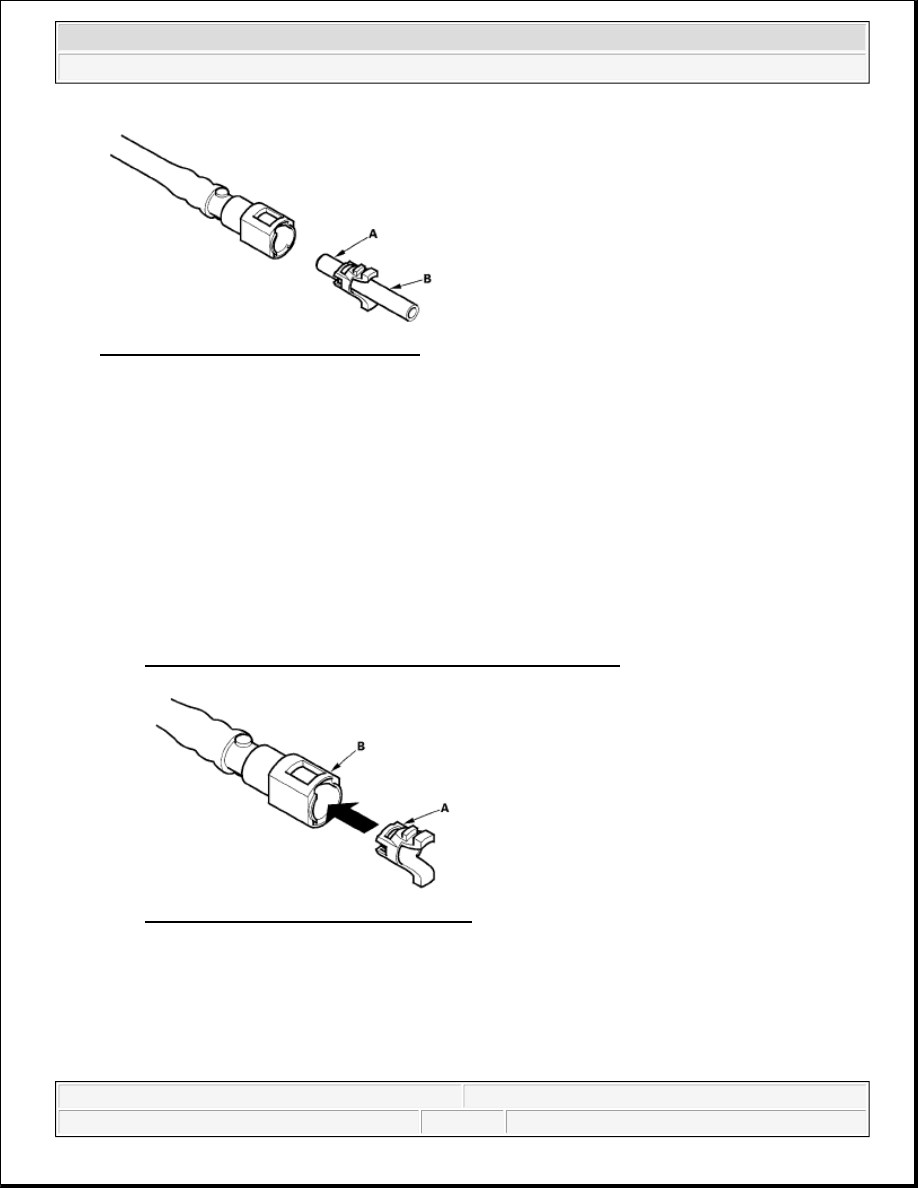

Fig. 38: Identifying Contact Area Of Line
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Insert a new retainer (A) into the connector (B) if the retainer is damaged, or after:



replacing the fuel rail.



replacing the fuel feed line.



replacing the fuel pump.



replacing the fuel filter.



replacing the fuel gauge sending unit.



removing the retainer from the line.



replacing the EVAP purge line.



replacing the EVAP canister.



Use the same manufacturer retainer and the same size retainer when the replacing the retainer (see
FUEL LINE/QUICK-CONNECT FITTING PRECAUTIONS ).

Fig. 39: Inserting Retainer Into Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Before connecting a new fuel line/quick-connect fitting assembly (A), remove the old retainer from the

mating line.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Fuel Supply System - Element



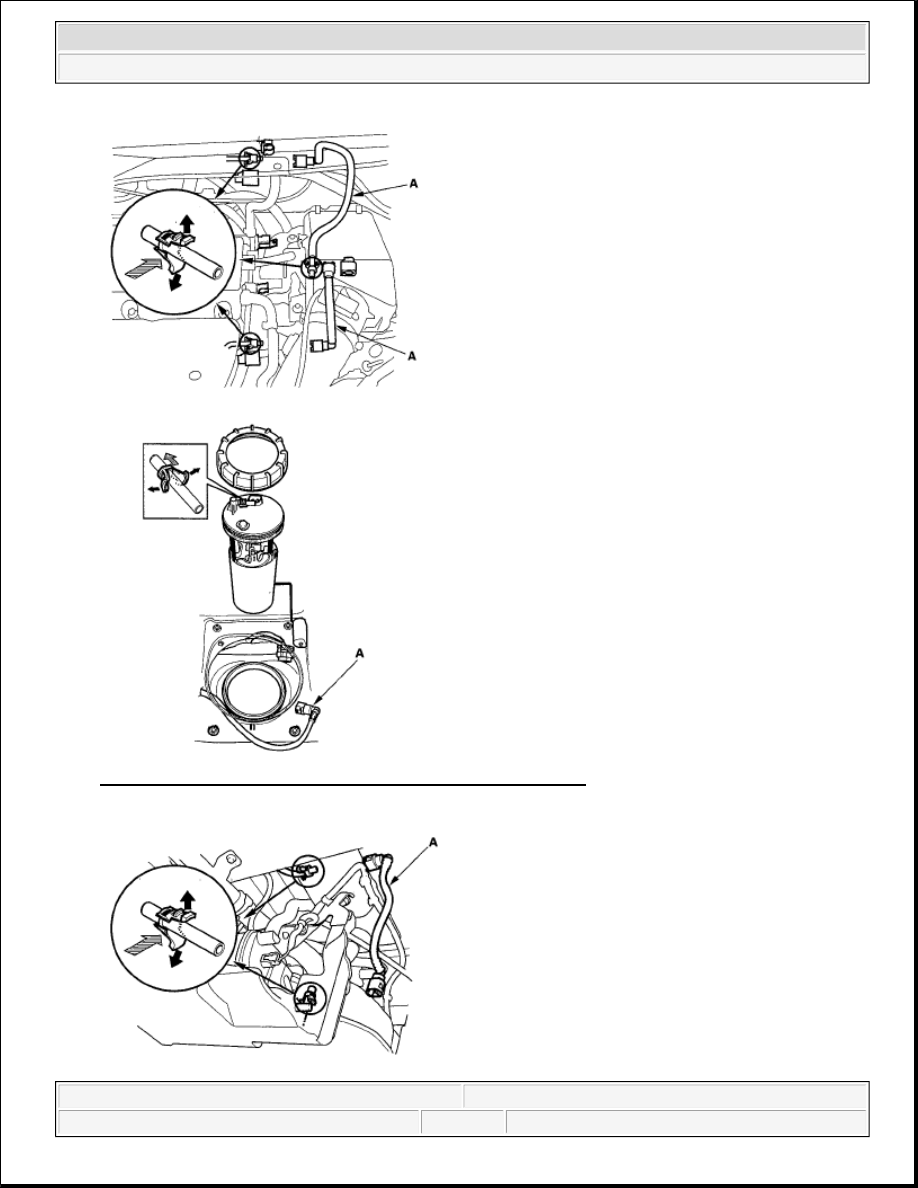

Fig. 40: Connecting Fuel Line/Quick-Connect Fitting Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Fuel Supply System - Element



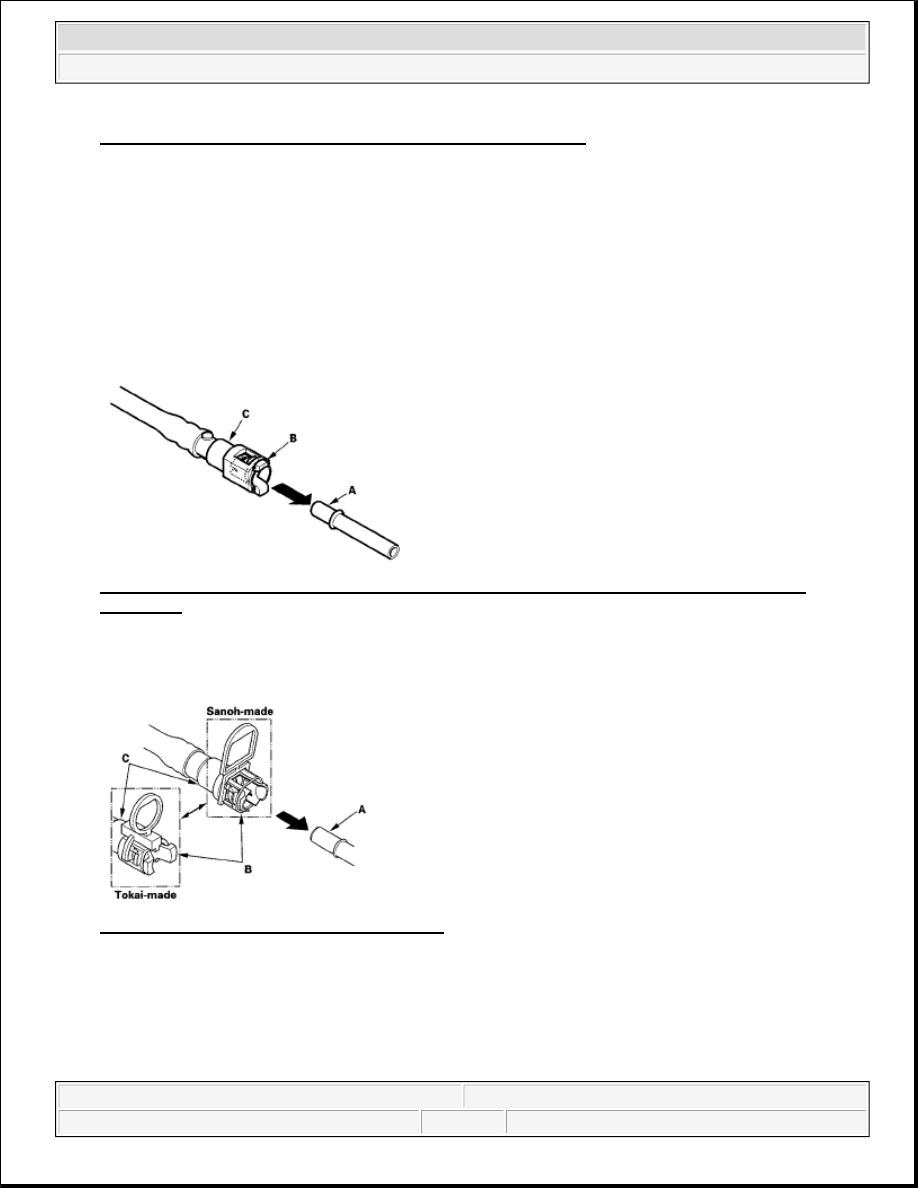

Fig. 41: Connecting Fuel Line/Quick-Connect Fitting Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Align the quick-connect fittings with the line (A), and align the retainer locking tabs (B) with the

connector (C) grooves. Then press the quick-connect fittings onto the line until both retainer tabs lock
with a clicking sound.

Connection with new retainer

Fig. 42: Aligning Quick-Connect Fittings With Line And Align Retainer Locking Tabs With
Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connection to new fuel line

Fig. 43: Identifying Connection To Fuel Line
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connection to existing retainer

NOTE:

If it is hard to connect, put a small amount of new engine oil on the line
end.
