NO -Repair open in the wire between PGM-FI main relay 2 (FUEL PUMP) and the ECM/PCM (E17).

10. Reinstall PGM-FI main relay 2 (FUEL PUMP).

11. Connect ECM/PCM connector terminal E7 to body ground with a jumper wire.

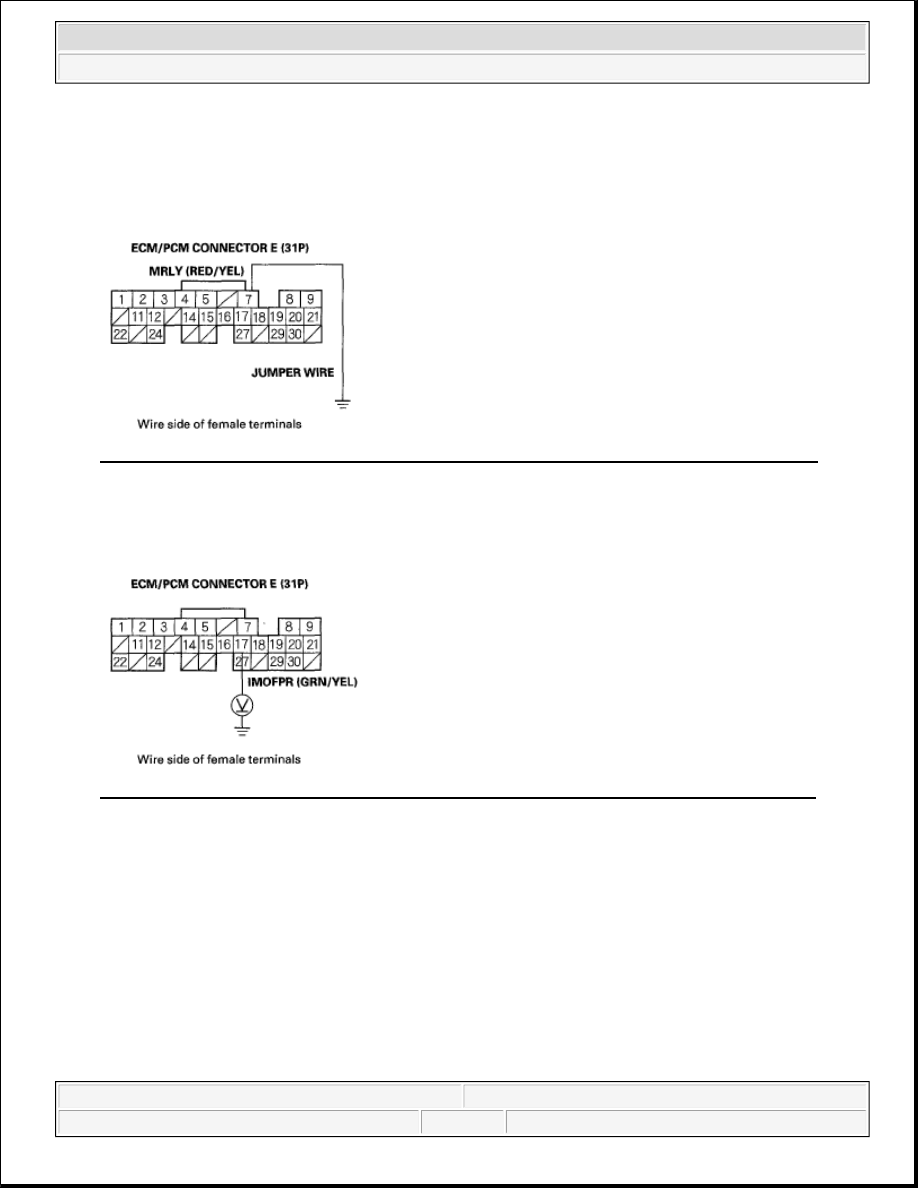

Fig. 13: Connecting ECM/PCM Connector Terminal E7 To Body Ground With Jumper Wire
Courtesy of AMERICAN HONDA MOTOR CO., INC.

12. Turn the ignition switch ON (II).

13. Measure voltage between ECM/PCM connector terminal E17 and body ground.

Fig. 14: Measuring Voltage Between ECM/PCM Connector Terminal E17 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES -Go to step 14.

NO -Replace PGM-FI main relay 2 (FUEL PUMP).

14. Turn the ignition switch OFF.

15. Remove the jumper wire, then reconnect ECM/PCM connector E (31P).

16. Open the SCS line with the HDS.

17. Turn the ignition switch ON (II), and measure voltage between ECM/PCM connector terminal E17 and

body ground within 2 seconds.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Fuel Supply System - Element



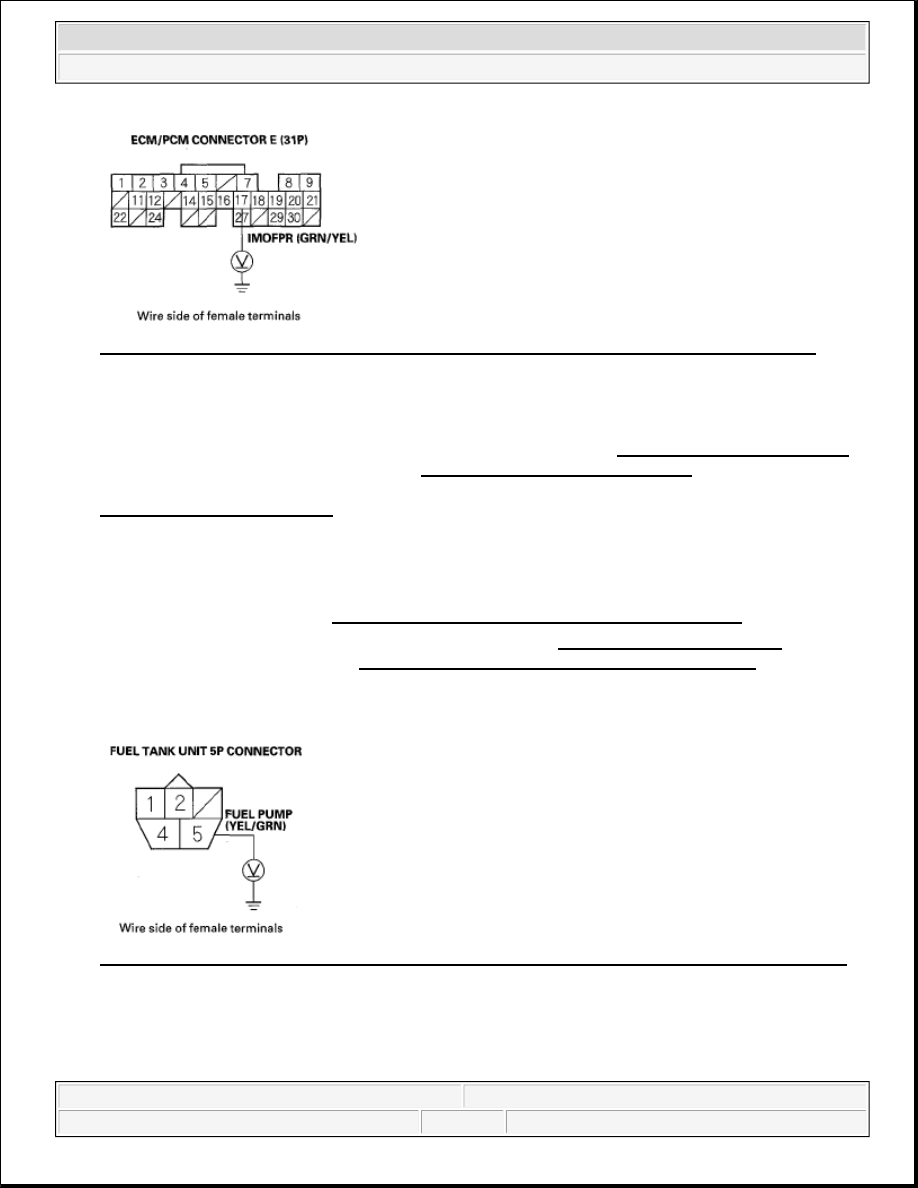

Fig. 15: Measuring Voltage Between ECM/PCM Connector Terminal E17 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage for 2 seconds?

YES -Update the ECM/PCM if it does not have the latest software (see UPDATING THE ECM/PCM ),
or substitute a known-good ECM/PCM (see SUBSTITUTING THE ECM/PCM ), then recheck. If the
symptom/indication goes away with a known-good ECM/PCM, replace the original ECM/PCM (see
ECM/PCM REPLACEMENT ).

NO -Go to step 18.

18. Turn the ignition switch OFF.

19. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).

20. Fold back the rear floor covering to reach the access panel (see REAR FLOOR COVERING ). Remove

the access panel from the floor (see FUEL TANK UNIT REMOVAL/INSTALLATION ).

21. Turn the ignition switch ON (II), and measure voltage between fuel pump 5P connector terminal No. 5

and body ground within 2 seconds.

Fig. 16: Measuring Voltage Between Fuel Pump 5P Connector Terminal No. 5 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage for 2 seconds?

YES -Go to step 27.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Fuel Supply System - Element



NO -Go to step 22.

22. Turn the ignition switch OFF.

23. Remove PGM-FI main relay 2 (FUEL PUMP).

24. Connect PGM-FI main relay 2 (FUEL PUMP) 5P connector terminals No. 1 and No. 2 with a jumper

wire.

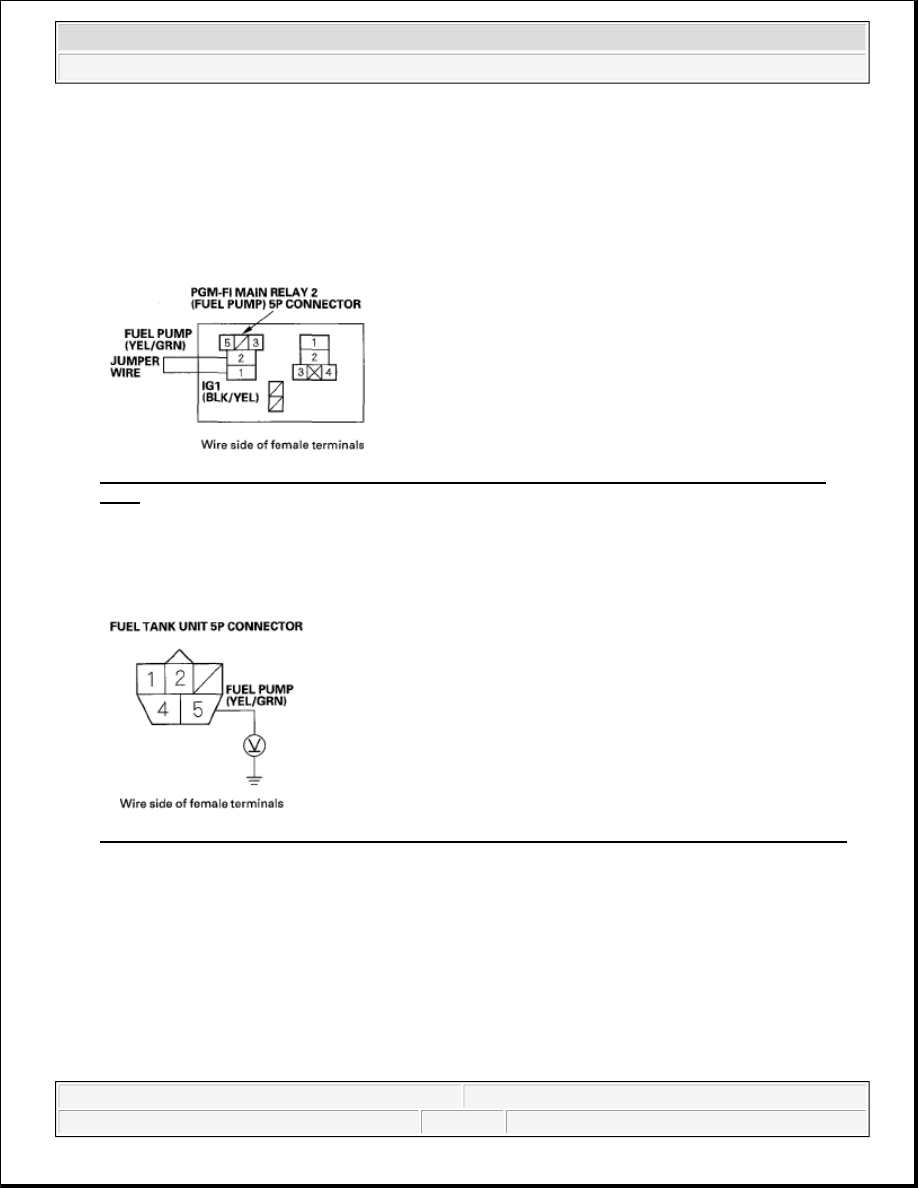

Fig. 17: Connecting PGM-FI Main Relay 2 5P Connector Terminals No. 1 And 2 With Jumper
Wire
Courtesy of AMERICAN HONDA MOTOR CO., INC.

25. Turn the ignition switch ON (II).

26. Measure voltage between fuel pump 5P connector terminal No. 5 and body ground.

Fig. 18: Measuring Voltage Between Fuel Pump 5P Connector Terminal No. 5 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES -Replace PGM-FI main relay 2 (FUEL PUMP).

NO -Repair open in the wire between PGM-FI main relay 2 (FUEL PUMP) and the fuel pump 5P
connector.

27. Turn the ignition switch OFF.

28. Check for continuity between fuel pump 5P connector terminal No. 4 and body ground.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Fuel Supply System - Element



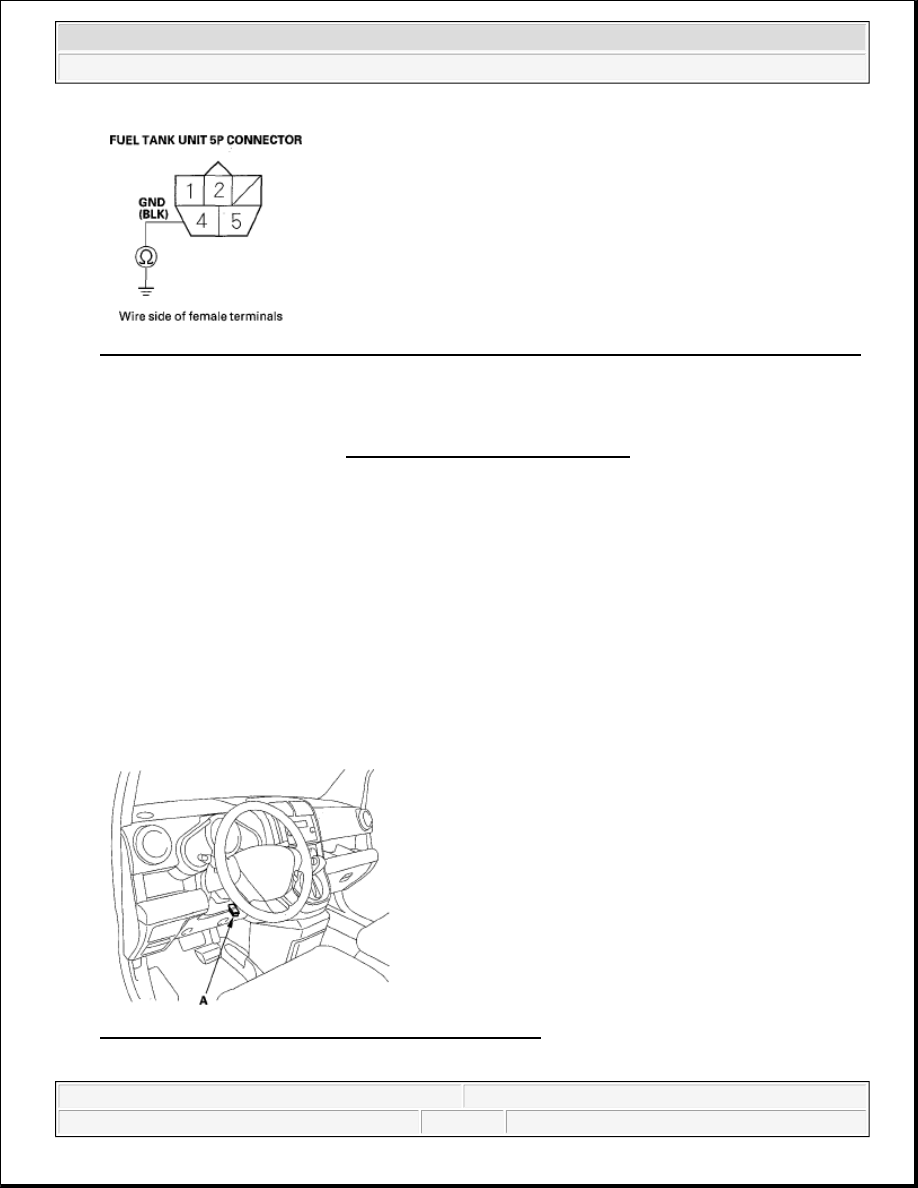

Fig. 19: Checking Continuity Between Fuel Pump 5P Connector Terminal No. 4 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Replace the fuel pump (see Fuel Tank Unit Removal/Installation).

NO -Repair open in the wire between the fuel pump 5P connector and G552.

FUEL PRESSURE RELIEVING

Before disconnecting fuel lines or hoses, relieve pressure from the system by disabling the fuel pump and then
disconnecting the fuel tube/quick connect fitting in the engine compartment.

WITH THE HDS

1. Make sure you have the anti-theft code for the audio system.

2. Turn the ignition switch OFF.

3. Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.

Fig. 20: Connecting HDS To Data Link Connector (DLC)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
