Honda Element. Manual - part 540

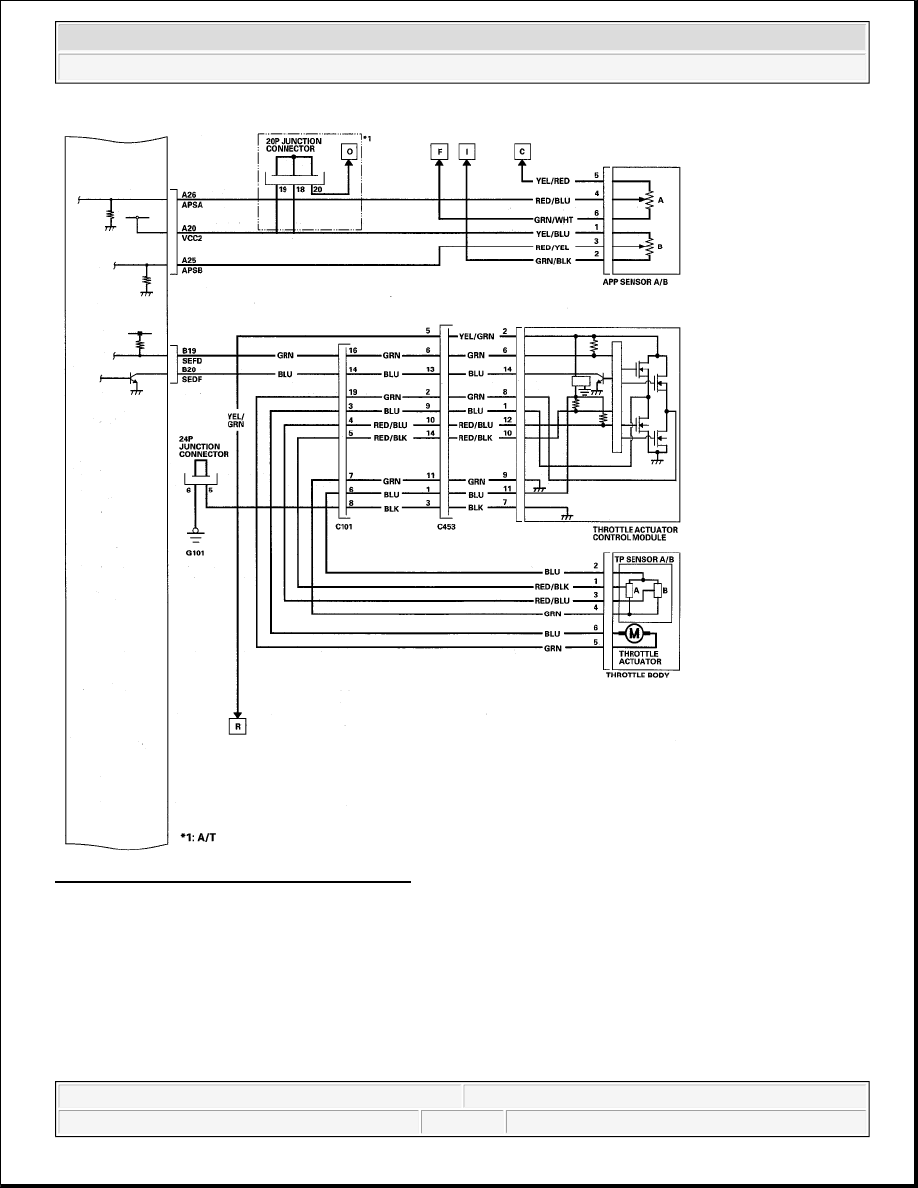

Fig. 58: ECM/PCM Circuit Diagram (7 Of 12)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Fuel and Emissions Systems - Element

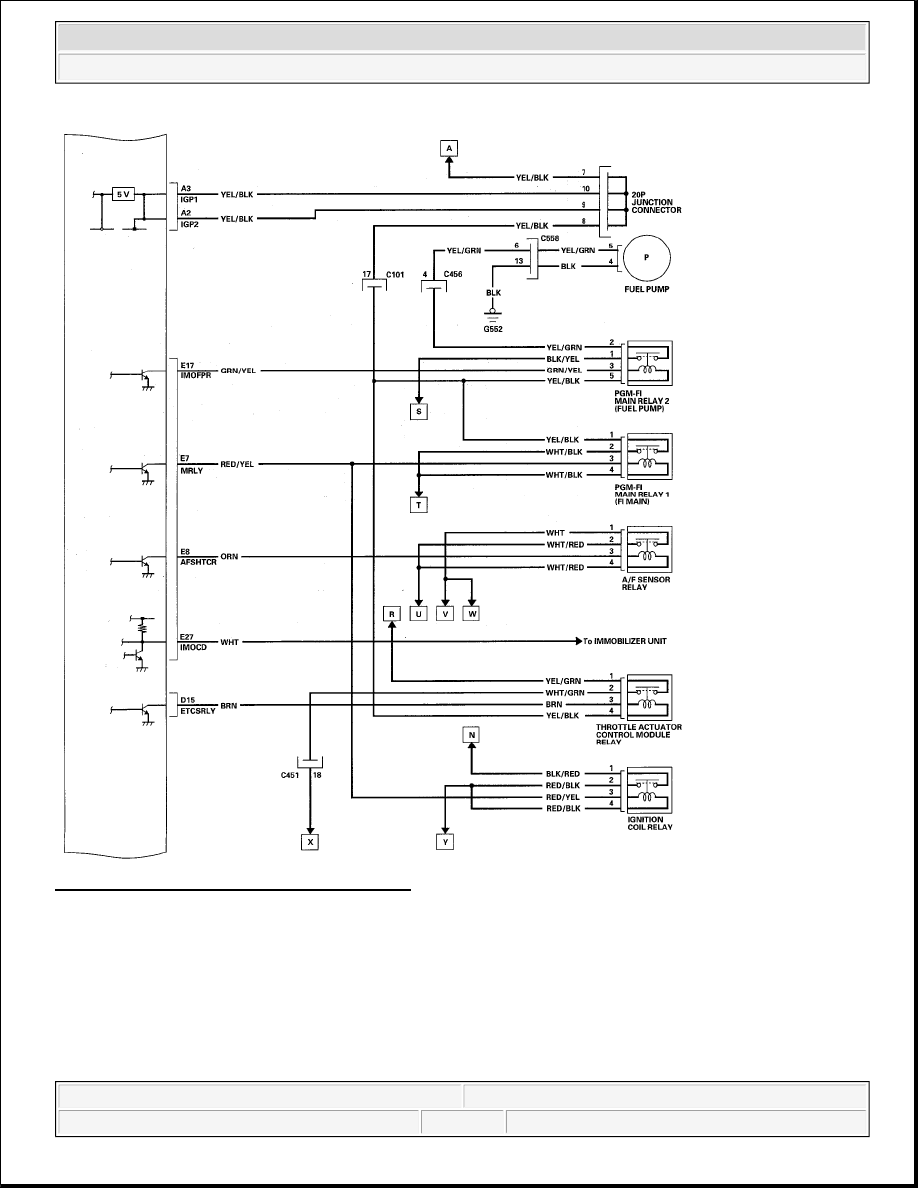

Fig. 59: ECM/PCM Circuit Diagram (8 Of 12)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Fuel and Emissions Systems - Element

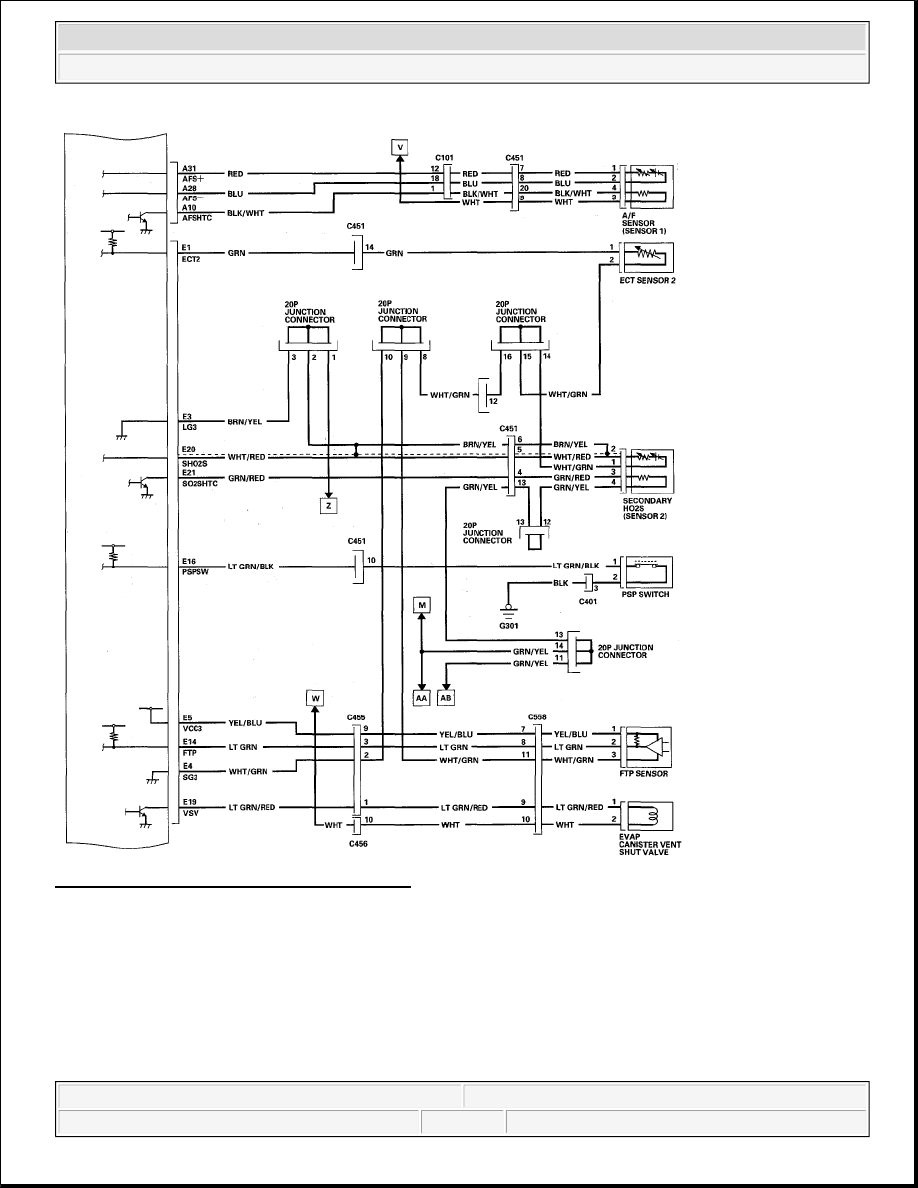

Fig. 60: ECM/PCM Circuit Diagram (9 Of 12)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Fuel and Emissions Systems - Element

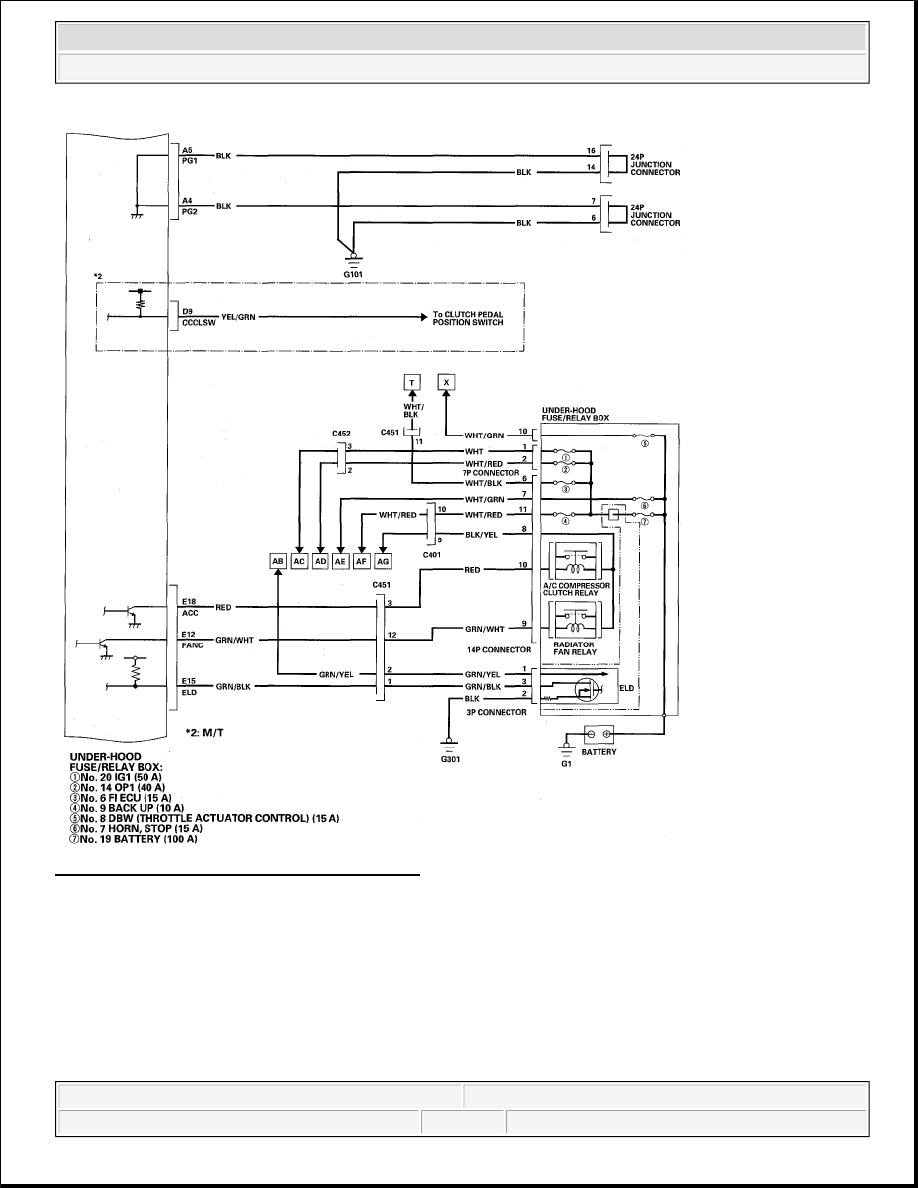

Fig. 61: ECM/PCM Circuit Diagram (10 Of 12)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Fuel and Emissions Systems - Element
