Fig. 13: ECM/PCM Electrical Connections Diagram (2 Of 6)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Fuel and Emissions Systems - Element

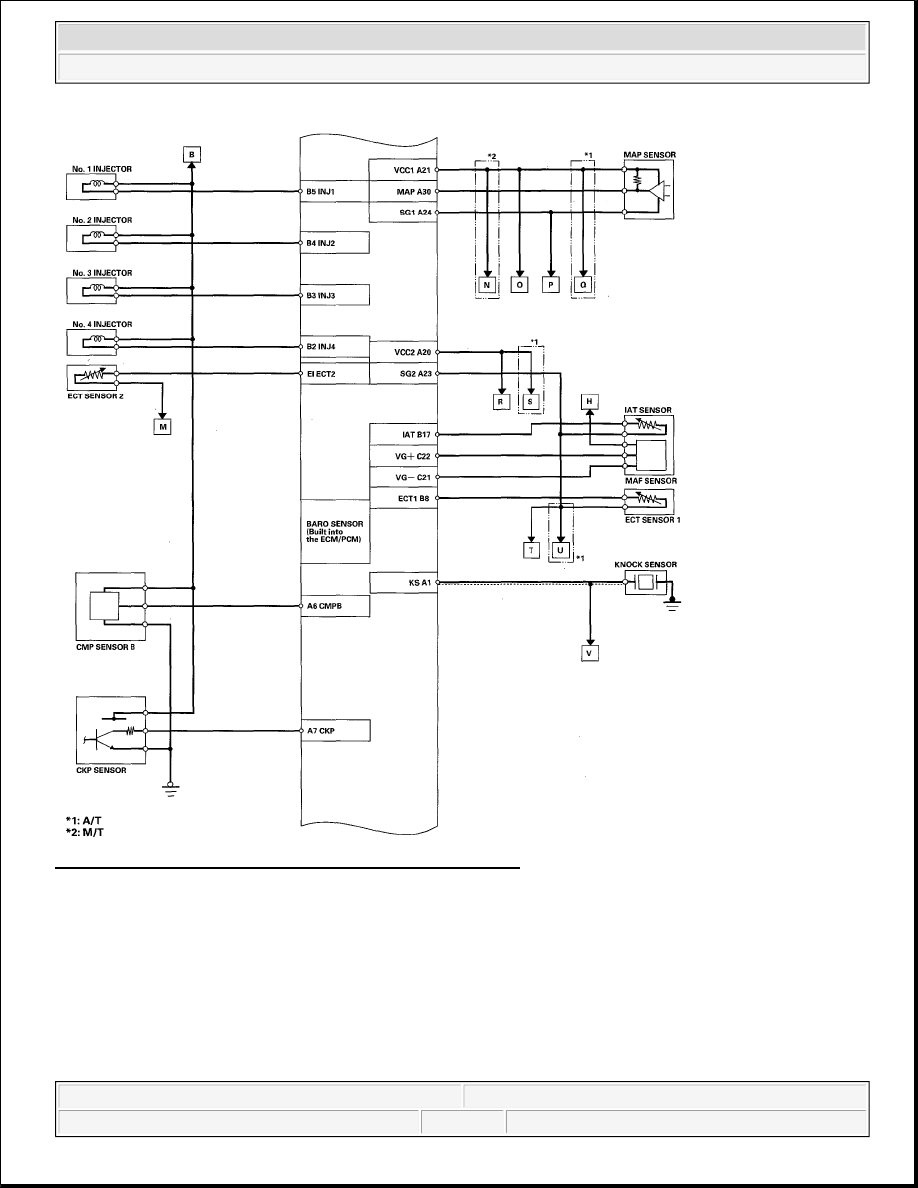

Fig. 14: ECM/PCM Electrical Connections Diagram (3 Of 6)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Fuel and Emissions Systems - Element

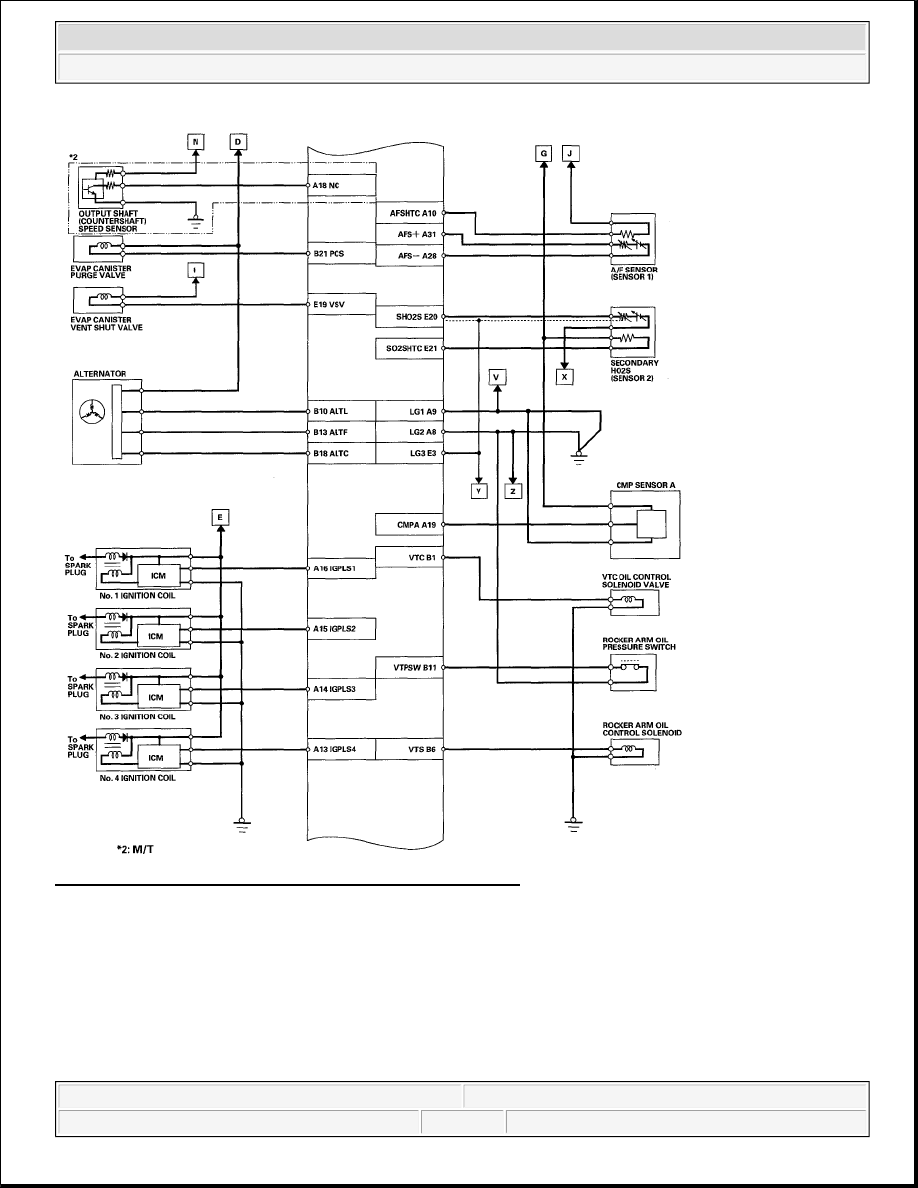

Fig. 15: ECM/PCM Electrical Connections Diagram (4 Of 6)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Fuel and Emissions Systems - Element

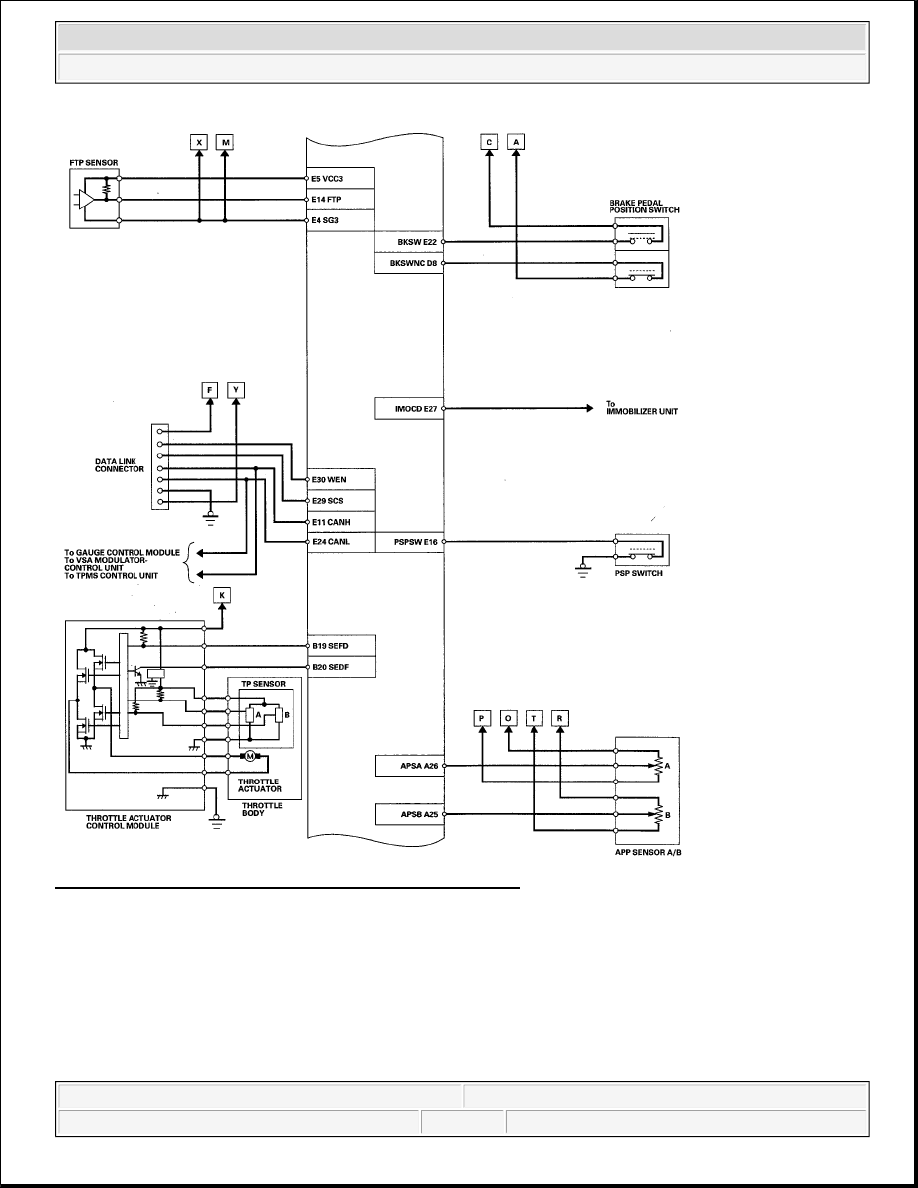

Fig. 16: ECM/PCM Electrical Connections Diagram (5 Of 6)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

*1:A/T

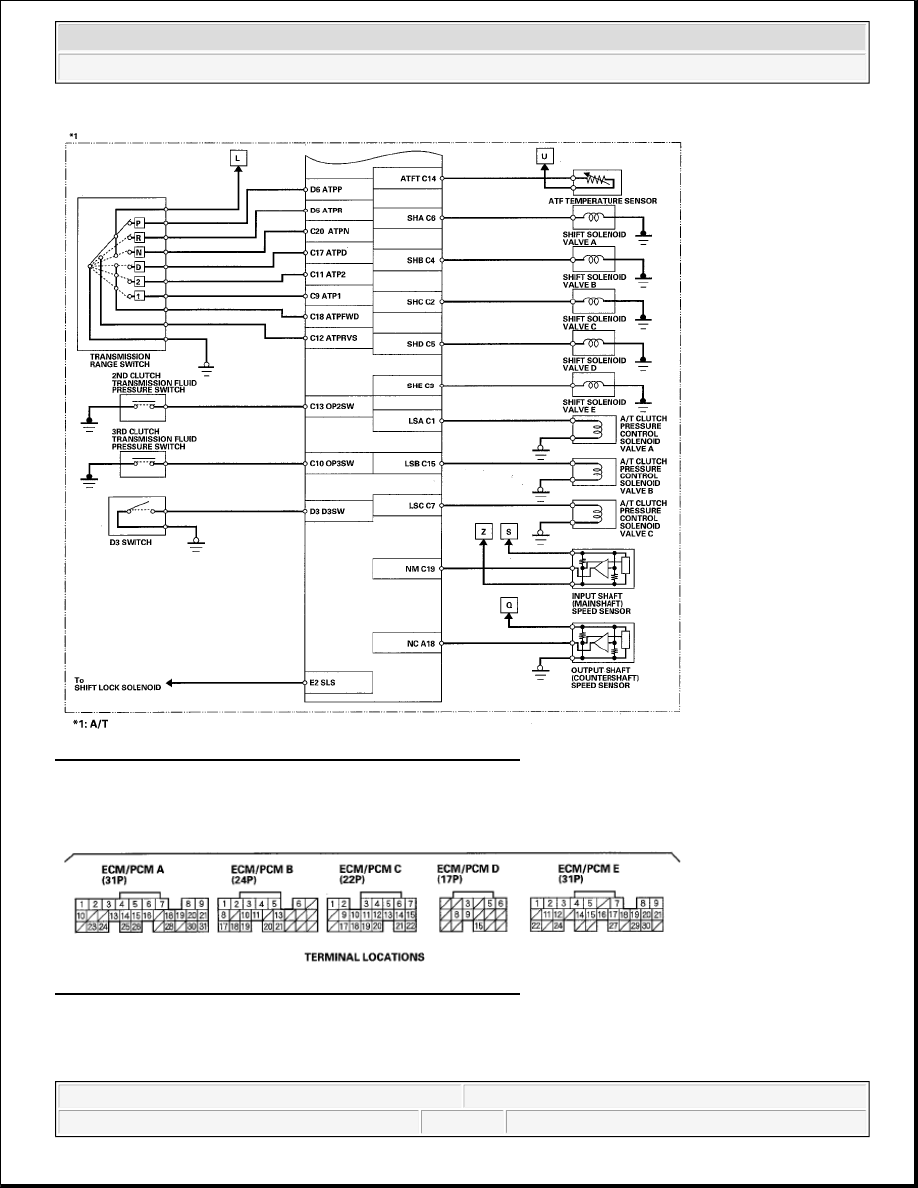

Fig. 17: ECM/PCM Electrical Connections Diagram (6 Of 6)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

VACUUM HOSE ROUTING



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Fuel and Emissions Systems - Element
