DTCs set)

3. Clean the throttle body (see THROTTLE

BODY CLEANING ).

Cold fast idle too high
(MIL works OK, no
DTCs set)

1. Do the ECM/PCM idle learn procedure (see

ECM/PCM IDLE LEARN PROCEDURE ).

2. Check the idle speed (see IDLE SPEED

INSPECTION ).

3. Do the throttle position learning check (see

THROTTLE BODY TEST ).



Idle speed fluctuates
(MIL works OK, no
DTCs set)

1. Do the ECM/PCM idle learn procedure (see

ECM/PCM IDLE LEARN PROCEDURE ).

2. Check the idle speed (see IDLE SPEED

INSPECTION ).

3. Do the carbon accumulation check (see

THROTTLE BODY TEST ).

4. Troubleshoot the A/C signal circuit (see A/C

SIGNAL CIRCUIT TROUBLESHOOTING ).

Intake vacuum leaks

After warming up, idle
speed is below
specification without
load (MIL works OK, no
DTCs set)

1. Troubleshoot the alternator FR signal circuit (see

ALTERNATOR FR SIGNAL CIRCUIT
TROUBLESHOOTING
 ).

2. Do the carbon accumulation check (see

THROTTLE BODY TEST ).



After warming up, idle
speed is above
specification without
load (MIL works OK, no
DTCs set)

1. Troubleshoot the alternator FR signal circuit (see

ALTERNATOR FR SIGNAL CIRCUIT
TROUBLESHOOTING
 ).

2. Inspect the APP sensor (see APP SENSOR

SIGNAL INSPECTION ).



After warming up, idle
speed drops when
steering wheel is turning
(MIL works OK, no
DTCs set)

1. Do the ECM/PCM idle learn procedure (see

ECM/PCM IDLE LEARN PROCEDURE ).

2. Troubleshoot the PSP switch signal circuit (see

PSP SWITCH SIGNAL CIRCUIT
TROUBLESHOOTING
 ).

3. Test the throttle body (see THROTTLE BODY

TEST ).

Power steering system
problems

Low power (MIL works
OK, no DTCs set)

Check the fuel pressure (see FUEL PRESSURE
TEST
 ).

Low
compression

Incorrect
camshaft timing

Incorrect engine
oil level

1. Do the ECM/PCM idle learn procedure (see

ECM/PCM IDLE LEARN PROCEDURE ).



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Fuel and Emissions Systems - Element



SYSTEM DESCRIPTION

ELECTRONIC CONTROL SYSTEM

The functions of the fuel and emission control systems are managed by the engine control module (ECM) on
vehicles with manual transmissions or the powertrain control module (PCM) on vehicles with automatic
transmissions.

Self-diagnosis

The ECM/PCM detects a failure of a signal from a sensor or another control unit and stores a Temporary DTC
or a DTC. Depending on the failure, a DTC is stored in either the first or the second drive cycle. When a DTC is
stored, the ECM/PCM turns on the malfunction indicator lamp (MIL) by sending a command to the gauge
control module.

Engine stalls (MIL
works OK, no DTCs set)

2. Check the fuel pressure (see FUEL PRESSURE

TEST ).

3. Check the idle speed (see IDLE SPEED

INSPECTION ).

4. Troubleshoot the brake pedal position switch

signal circuit (see BRAKE PEDAL POSITION
SWITCH SIGNAL CIRCUIT
TROUBLESHOOTING
 ).

Intake air leaks

Faulty harness
and sensor
connections

Difficult to refuel (MIL
works OK, no DTCs set)

1. Check the fuel vent tube between the EVAP

canister and the fuel tank.

2. Check the fuel tank vapor recirculation tube

between the fuel pipe and the fuel tank.

3. Replace the fuel tank unit (see FUEL TANK

UNIT REMOVAL/INSTALLATION ).

4. Replace the fuel tank (see FUEL TANK

REPLACEMENT ).

Malfunctioning gas
station filling nozzle.

Fuel overflows during
refueling (No DTCs set)

1. Replace the fuel tank unit (see FUEL TANK

UNIT REMOVAL/INSTALLATION ).

2. Replace the fuel tank (see FUEL TANK

REPLACEMENT ).

Malfunctioning gas
station filling nozzle.

HDS does not
communicate with the
ECM/PCM or the
vehicle

Troubleshoot the DLC circuit (see DLC CIRCUIT
TROUBLESHOOTING
 ).



Fuel cap warning
message comes on and
stays on (MIL works
OK, no DTCs set)

Troubleshoot the fuel cap warning message system (see
FUEL CAP WARNING MESSAGE SYSTEM
TROUBLESHOOTING
 ).





2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Fuel and Emissions Systems - Element



One Drive Cycle Detection Method

When an abnormality occurs in the signal from a sensor or another control unit, the ECM/PCM stores a
DTC for the failure and turns on the MIL immediately.

Two Drive Cycle Detection Method

When an abnormality occurs in the signal from a sensor or another control unit in the first drive cycle, the
ECM/PCM stores a Temporary DTC for the failure. The MIL does not come on at this time. If the failure
continues in the second drive cycle, the ECM/PCM stores a DTC in erasable memory and turns on the
MIL.

Fail-safe Function

When an abnormality occurs in the signal from a sensor or another control unit, the ECM/PCM ignores that
signal and substitutes a pre-programmed value that allows the engine to continue running. This causes a DTC to
be stored and the MIL to come on.

MIL Bulb Check and Readiness Code Condition

When the ignition switch is turned ON (II), the ECM/PCM supplies ground to the MIL circuit for about 15 to
20 seconds to check the bulb condition. If any readiness codes are not set to complete, the MIL flashes five
times. If all readiness codes are set to complete, the MIL goes off.

Self Shut Down (SSD) Mode

After the ignition switch is turned OFF, the ECM/PCM stays on (up to 25 minutes). If the ECM/PCM connector
is disconnected during this time, the ECM/PCM may be damaged. To cancel this mode, disconnect the negative
cable from the battery or jump the SCS line with the HDS after the ignition switch is turned OFF.

ECM/PCM Electrical Connections



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Fuel and Emissions Systems - Element

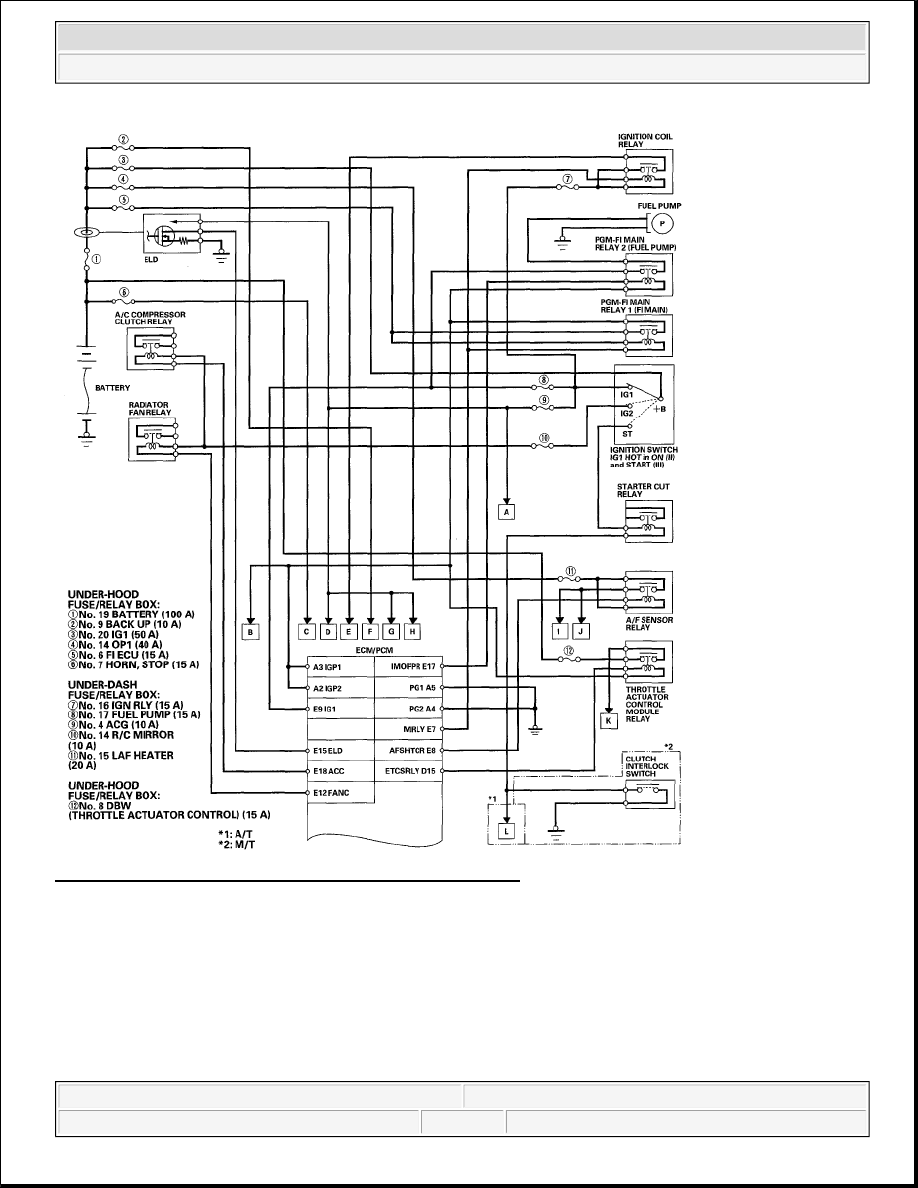

Fig. 12: ECM/PCM Electrical Connections Diagram (1 Of 6)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Fuel and Emissions Systems - Element
