5. Select the ETCS TEST, then select the TP POSITION CHECK and follow the screen prompts.

6. Turn the ignition switch OFF.

7. Jump the SCS line with the HDS.

8. Remove the passenger's dashboard under cover (see GLOVE BOX REMOVAL/INSTALLATION ),

the passenger's kick panel (see TRIM REMOVAL/INSTALLATION - DOOR AREAS ), and the
glove box (see GLOVE BOX REMOVAL/INSTALLATION ).

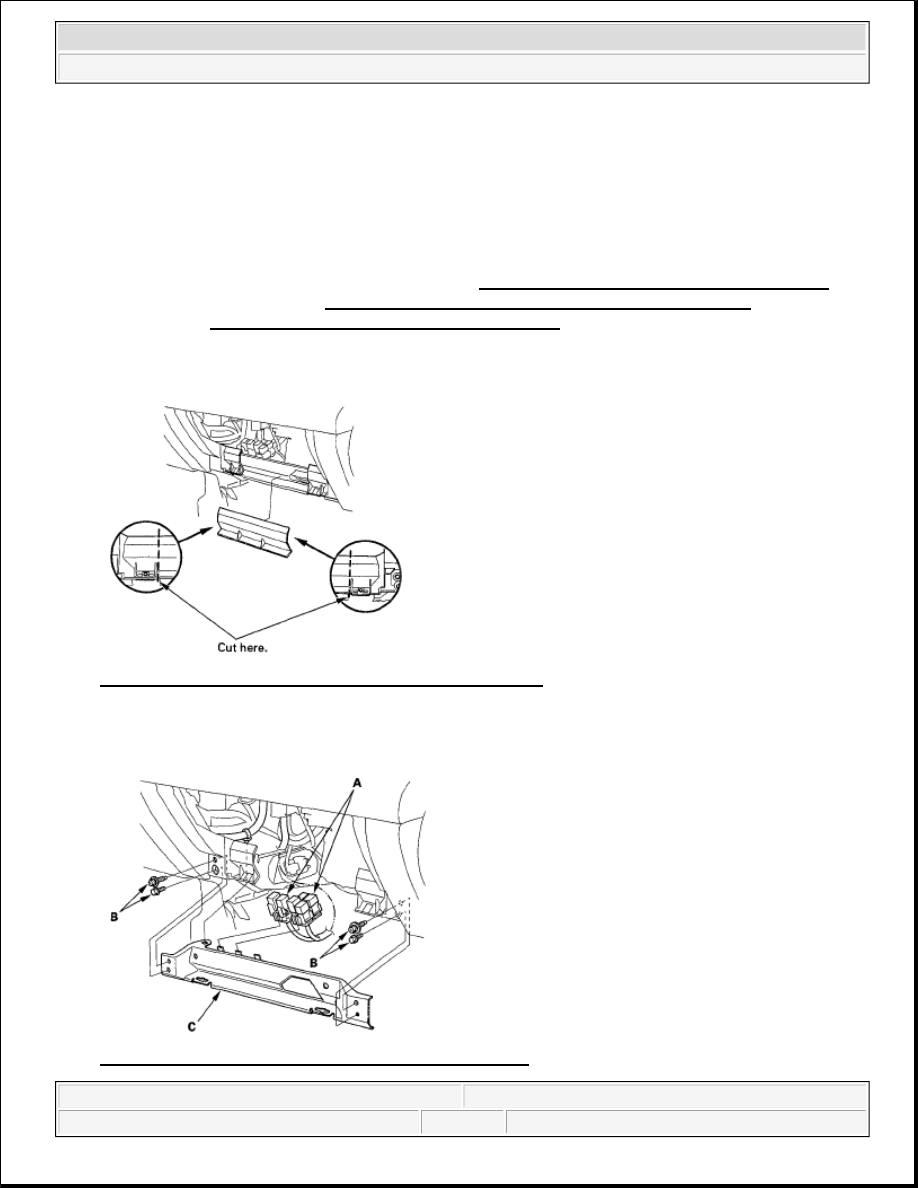

9. Cut the plastic cross brace in the glove box opening with diagonal cutters in the area shown, and discard

it.

Fig. 9: Cutting Plastic Cross Brace In Glove Box Opening
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Remove the relays (A), then remove the bolts (B) and the glove box frame (C).

Fig. 10: Identifying Relays, Bolts And Glove Box Frame

NOTE:

If the TP POSITION CHECK indicates FAILED, continue this procedure.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Fuel and Emissions Systems - Element



Courtesy of AMERICAN HONDA MOTOR CO., INC.

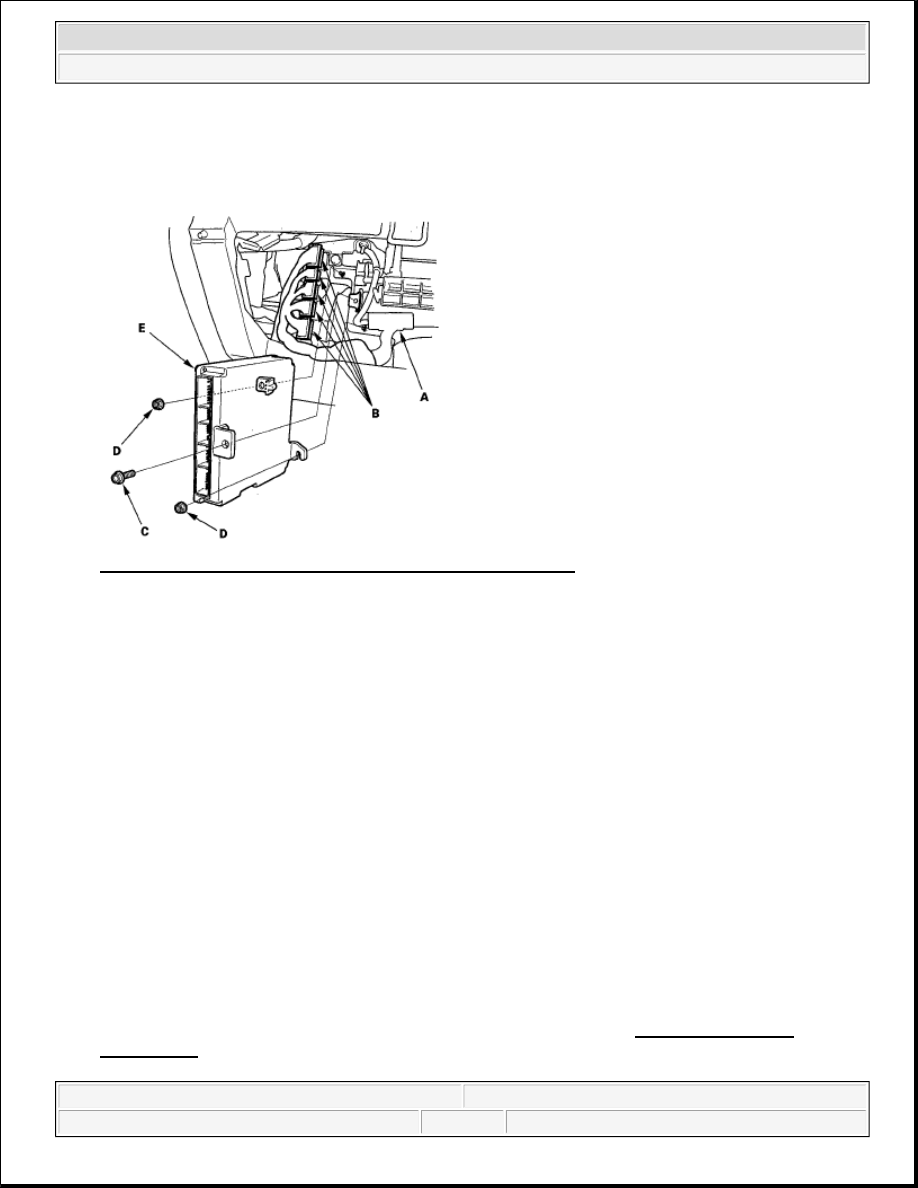

11. Remove the gray 20P ECM/PCM wire harness connector (A) from the ECM/PCM mounting bracket.

Fig. 11: Identifying ECM/PCM And Wire Harness Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

12. Disconnect the ECM/PCM connectors (B).

13. Remove the ECM/PCM mounting bolt (C) and the bracket.

14. Remove the nuts (D), then remove the ECM/PCM (E).

15. Install the parts in the reverse order of removal.

16. Open the SCS line with the HDS.

17. Turn the ignition switch ON (II).

18. Manually input the VIN to the ECM/PCM with the HDS.

19. Update the ECM/PCM if it does not have the latest software.

20. Select the IMMOBI SYSTEM with the HDS.

21. Enter the immobilizer code using the ECM/PCM replacement procedure in the HDS; it allows you to start

the engine.

22. Reset the ECM/PCM with the HDS.

23. If the TP POSITION CHECK failed in step 5, clean the throttle body (see THROTTLE BODY

CLEANING ).

24. Do the ECM/PCM idle learn procedure (see ECM/PCM IDLE LEARN PROCEDURE ).

NOTE:

DTC P0630 "VIN Not Programmed or Mismatch" may be stored because
the VIN has not been programmed into the ECM/PCM; ignore it, and
continue this procedure.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Fuel and Emissions Systems - Element



25. Do the crank (CKP) pattern learn procedure.

OBD STATUS

The OBD status shows the current system status of each DTC and all of the parameters. This function is used to
see if the repair was successfully completed. The results of diagnostic tests for the DTC are displayed as:



PASSED: The on board diagnosis is successfully finished.



FAILED: The on board diagnosis has finished but failed.



EXECUTING: The vehicle is in enable criteria conditions for the DTC and the on board diagnosis is
running.



NOT COMPLETED: The on board diagnosis was running but is out of the enable conditions of the DTC.



OUT OF CONDITION: The vehicle has stayed out of the enable conditions for the DTC.

DTC TROUBLESHOOTING INDEX

DTC TROUBLESHOOTING CHART

DTC (MIL indication

(1)

)

Two Drive Cycle

Detection

Detection Item

MIL

P0010 (56)

--

Variable Valve Timing
Control (VTC) Oil Control
Solenoid Valve
Malfunction

ON

P0011 (56)

o

Variable Valve Timing
Control (VTC) System
Malfunction

ON

P0101 (50)

o

Mass Air Flow (MAF)
Sensor Circuit
Range/Performance
Problem

ON

P0102 (50)

--

Mass Air Flow (MAF)
Sensor Circuit Low
Voltage

ON

P0103 (50)

--

Mass Air Flow (MAF)
Sensor Circuit High
Voltage

ON

P0107 (3)

--

Manifold Absolute
Pressure (MAP) Sensor
Circuit Low Voltage

ON

P0108 (3)

--

Manifold Absolute
Pressure (MAP) Sensor
Circuit High Voltage

ON

P0111 (10)

o

Intake Air Temperature
(IAT) Sensor Circuit

ON



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Fuel and Emissions Systems - Element



Range/Performance
Problem

P0112 (10)

--

Intake Air Temperature
(IAT) Sensor Circuit Low
Voltage

ON

P0113 (10)

--

Intake Air Temperature
(IAT) Sensor Circuit High
Voltage

ON

P0116 (86)

o

Engine Coolant
Temperature (ECT) Sensor
1 Circuit
Range/Performance
Problem

ON

P0117 (6)

--

Engine Coolant
Temperature (ECT) Sensor
1 Circuit Low Voltage

ON

P0118 (6)

--

Engine Coolant
Temperature (ECT) Sensor
1 Circuit High Voltage

ON

P0122 (7)

--

Throttle Position (TP)
Sensor A Circuit Low
Voltage

ON

P0123 (7)

--

Throttle Position (TP)
Sensor A Circuit High
Voltage

ON

P0125 (86)

o

Engine Coolant
Temperature (ECT) Sensor
1 Malfunction/Slow
Response

ON

P0128 (87)

o

Cooling System
Malfunction

ON

P0133 (61)

o

Air Fuel Ratio (A/F)
Sensor (Sensor 1)
Malfunction/Slow
Response

ON

P0134 (41)

o

Air Fuel Ratio (A/F)
Sensor (Sensor 1) Heater
System Malfunction

ON

P0135 (41)

--

Air Fuel Ratio (A/F)
Sensor (Sensor 1) Heater
Circuit Malfunction

ON

P0137 (63)

o

Secondary Heated Oxygen
Sensor (Secondary HO2S
(Sensor 2)) Circuit Low
Voltage

ON



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Fuel and Emissions Systems - Element
