lightly.

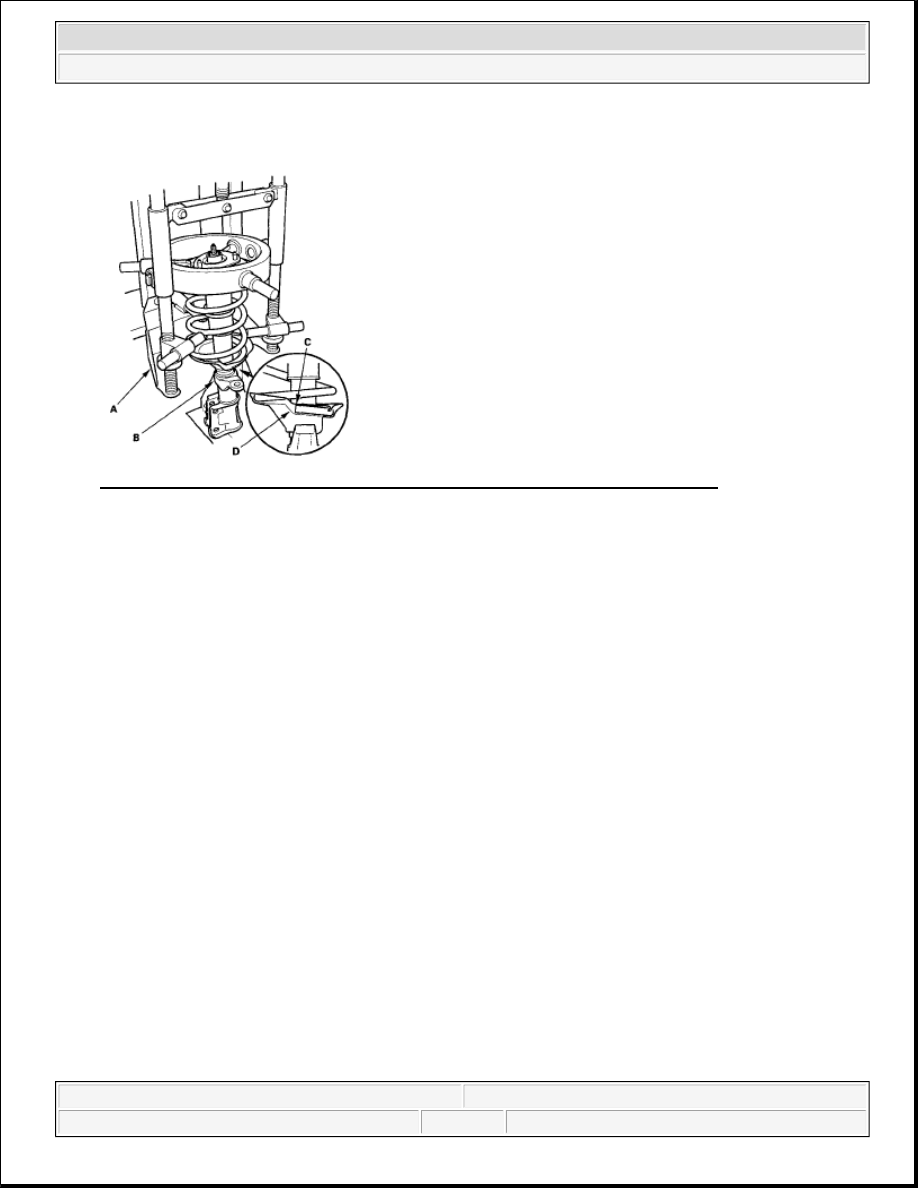

Fig. 41: Identifying Upper Spring Seat And Spring On Strut Spring Compressor
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Insert the damper unit (B) up through the compressed spring.

6. Align the bottom of the spring (C) and the stepped part (D) of the lower spring seat.

7. Align an angle (A) of the ball joint connecting hole (B) on the steering arm and the cutout (C) on the

upper spring seat.



2007 Honda Element EX

2007-08 SUSPENSION Front Suspension - Element

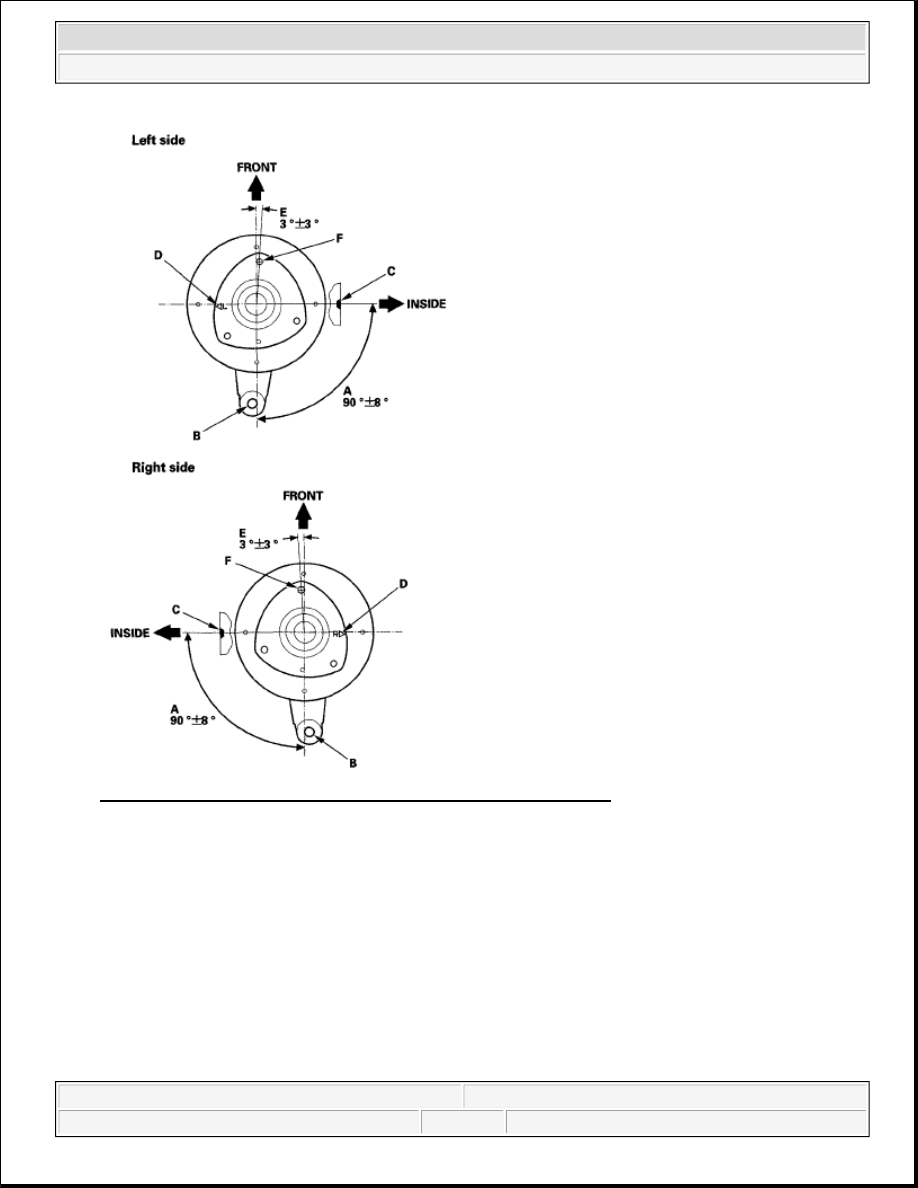

Fig. 42: Aligning Angle Of Ball Joint Connecting Hole And Cutout
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Turn the damper mounting base and L/R mark (D) faces toward the outside position, then align angle (E)

of the ball joint connecting hole and stud bolt (F).

9. Hold the bottom of the damper with your hand, and compress the spring. Do not compress the spring

excessively.

10. Install a new 12 mm self-locking nut (A) on the damper shaft (B).



2007 Honda Element EX

2007-08 SUSPENSION Front Suspension - Element

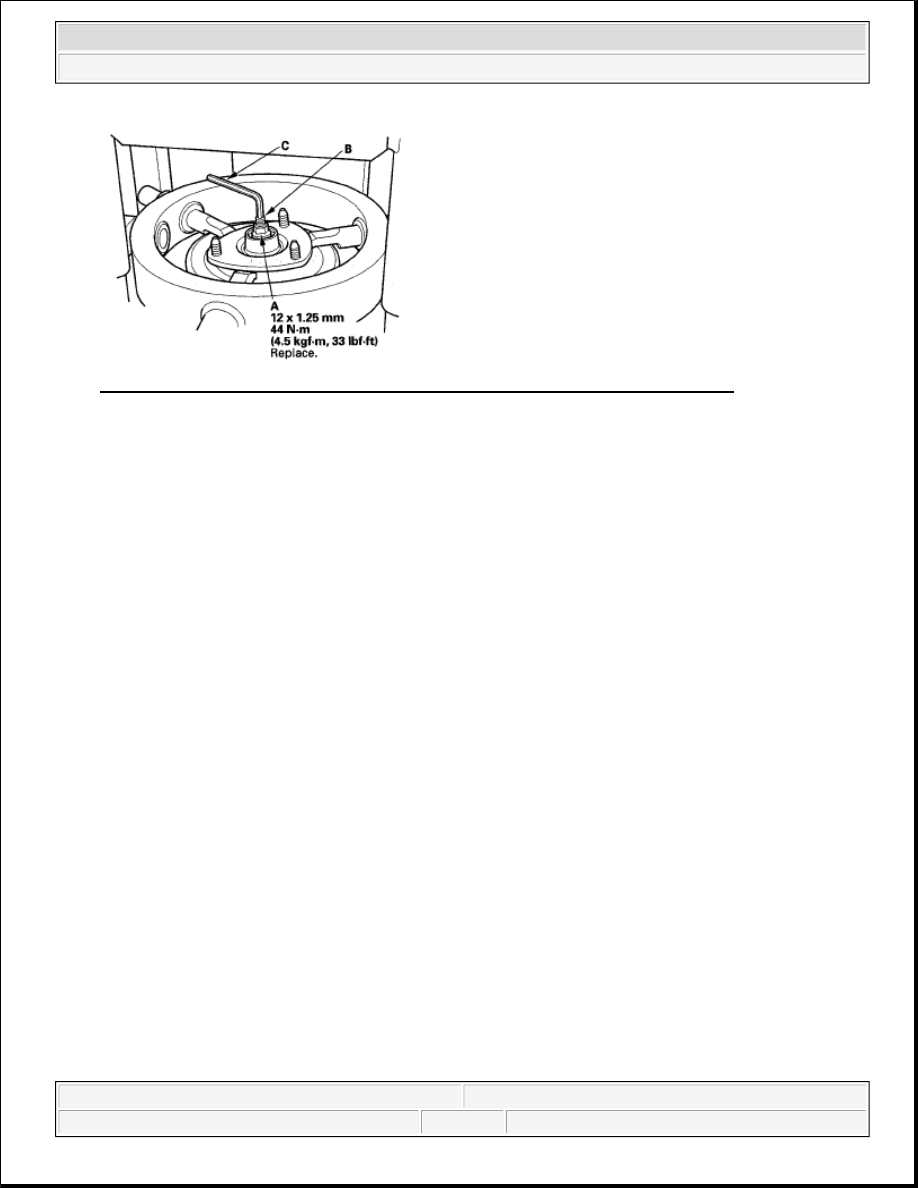

Fig. 43: Identifying Self-Locking Nut On Damper Shaft With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. Hold the damper shaft with a hex wrench (C), and tighten the 12 mm self-locking nut to the specified

torque value.

12. Remove the damper assembly from the strut spring compressor.



2007 Honda Element EX

2007-08 SUSPENSION Front Suspension - Element



2007-2008 ENGINE PERFORMANCE

Fuel and Emissions Systems - Element

SPECIAL TOOLS

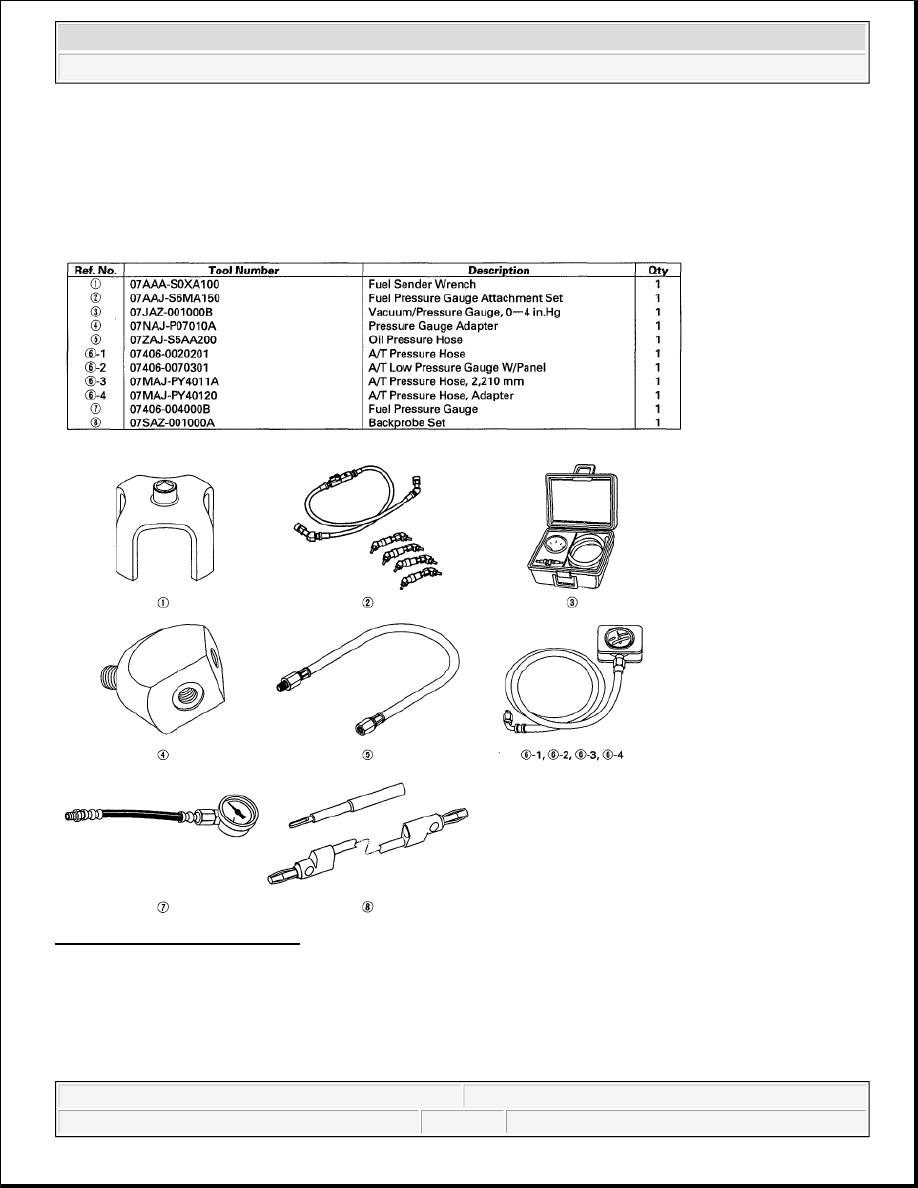

Fig. 1: Identifying Special Tools
Courtesy of AMERICAN HONDA MOTOR CO., INC.

GENERAL TROUBLESHOOTING INFORMATION

INTERMITTENT FAILURES
