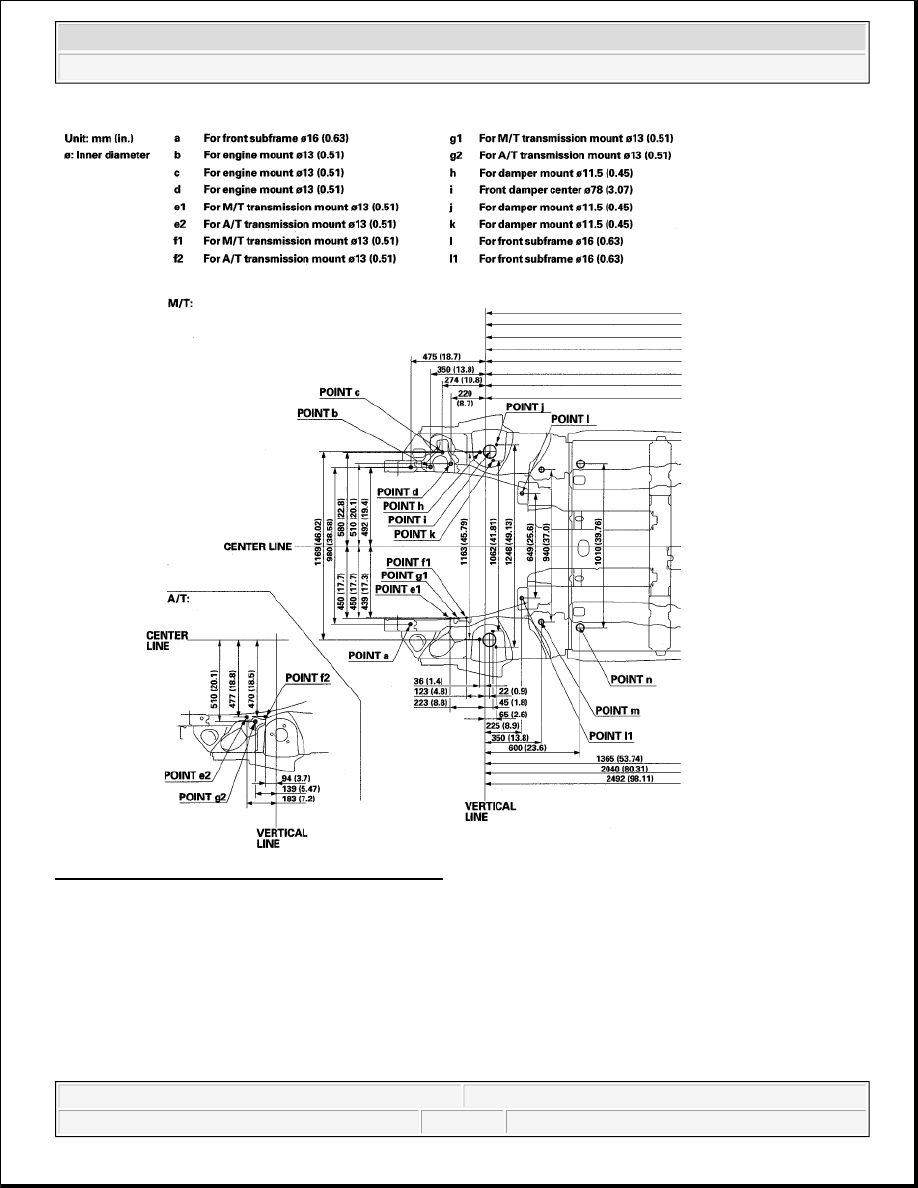

Fig. 4: Frame Repair Chart For Top View (1 Of 2)

2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Frame - Element

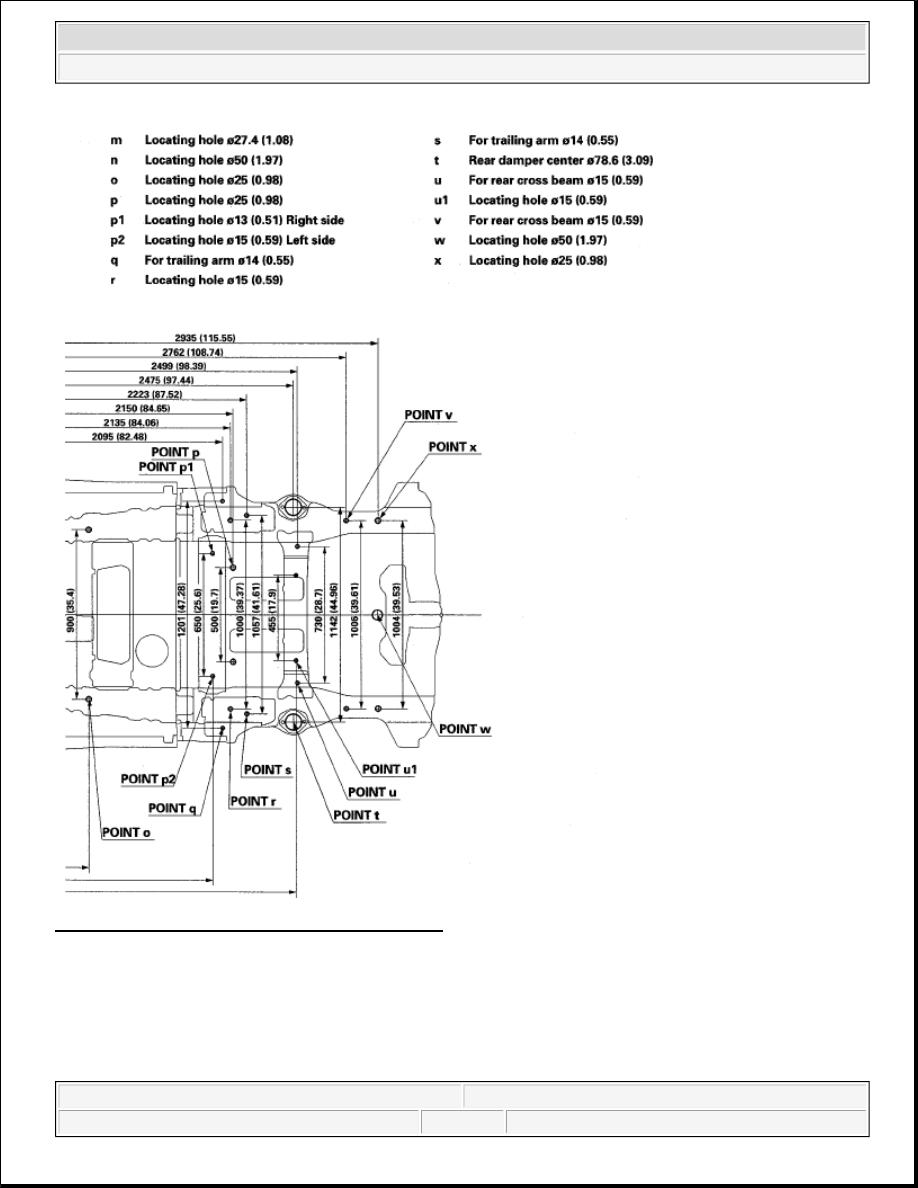

Fig. 5: Frame Repair Chart For Top View (2 Of 2)

SIDE VIEW

2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Frame - Element

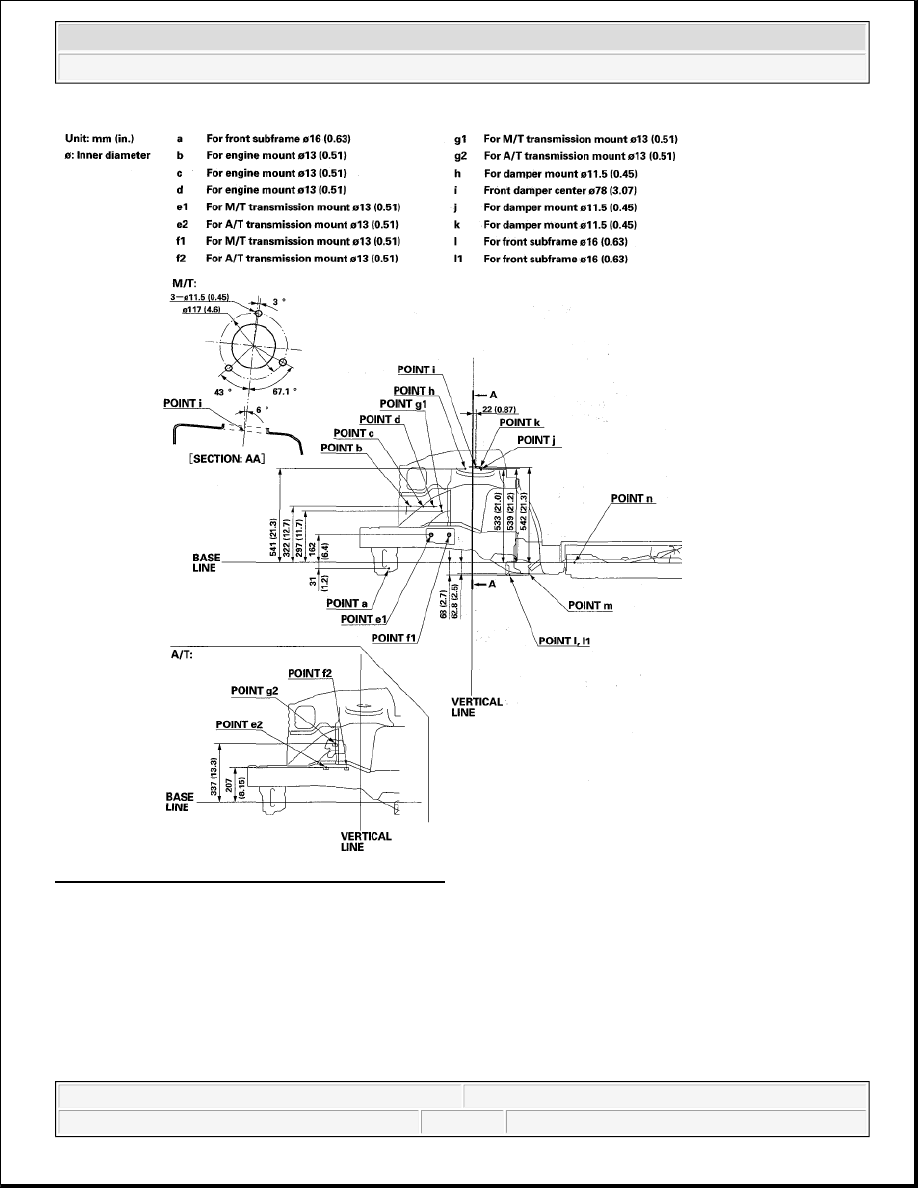

Fig. 6: Frame Repair Chart For Side View (1 Of 2)

2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Frame - Element

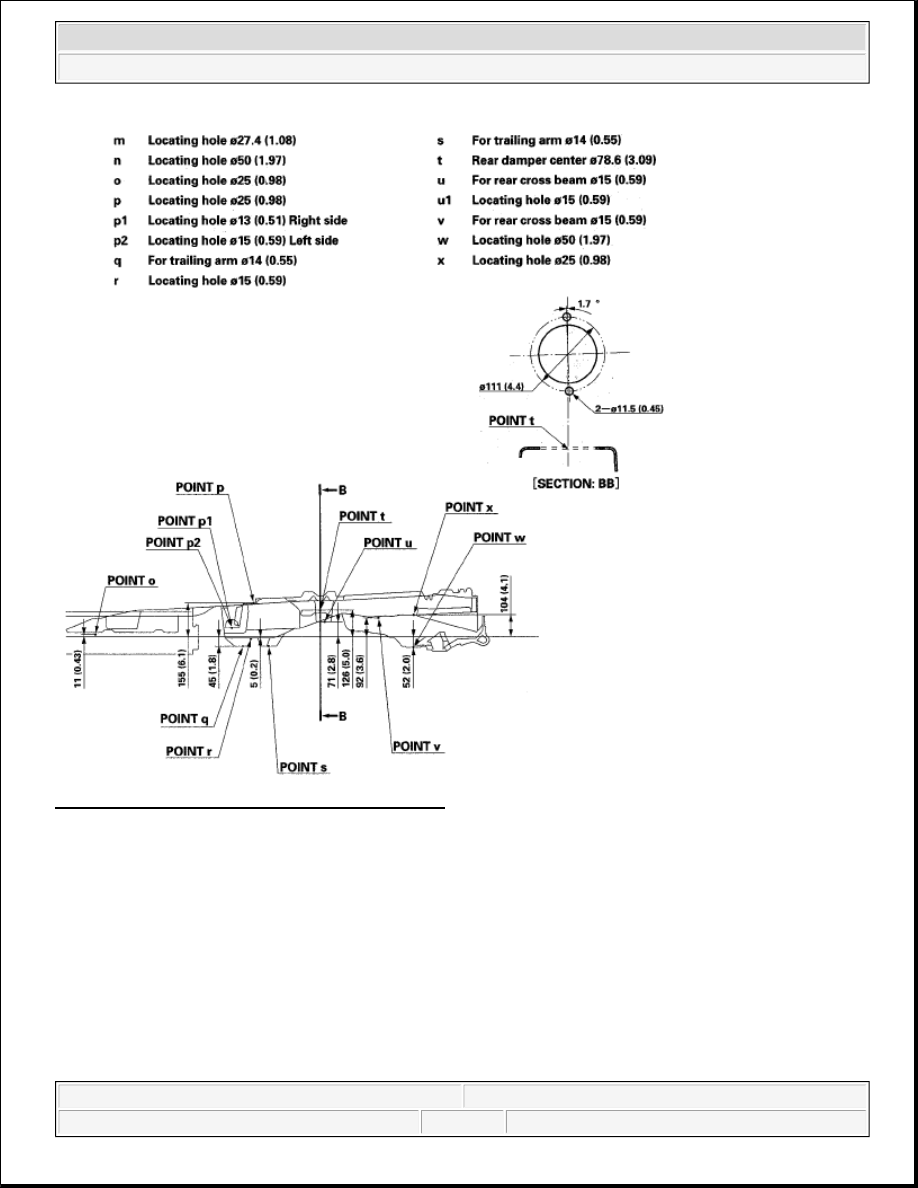

Fig. 7: Frame Repair Chart For Side View (2 Of 2)

2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Frame - Element
