YES -Troubleshooting is complete. If any other Temporary DTCs or DTCs were indicated in step 11, go
to the INDICATED DTCS TROUBLESHOOTING.

NO -If the screen indicates FAILED, check for poor connections or loose terminals at the FTP sensor and
the ECM/PCM, then go to step 1. If the screen indicates NOT COMPLETED, keep idling until a result
comes on.

DTC P0452: FTP SENSOR CIRCUIT LOW VOLTAGE

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Turn the ignition switch OFF.

4. Remove the fuel fill cap.

5. Turn the ignition switch ON (II).

6. Check the FTP SENSOR in the DATA LIST with the HDS.

Is about - 7.3 kPa (--2.16 in.Hg, --55 mmHg), or 0.3 V or less indicated?

YES -Go to step 10.

NO -Go to step 7.

7. Install the fuel fill cap.

8. Start the engine.

9. Monitor the OBD STATUS for DTC P0452 in the DTCs MENU with the HDS.

Does the screen indicate FAILED?

YES -Go to step 10.

NO -If the screen indicates PASSED, intermittent failure, the system is OK at this time. Check for poor
connections or loose terminals at the FTP sensor and the ECM/PCM. If the screen indicates NOT
COMPLETED, go to step 4 and recheck.

10. Turn the ignition switch OFF.

11. Disconnect the FTP sensor 3P connector.

12. Turn the ignition switch ON (II).

13. Check the FTP SENSOR in the DATA LIST with the HDS.

Is about 7.3 kPa (2.16 in.Hg, 55 mmHg), or 4.7 V indicated?

NOTE:

Before you troubleshoot, record all freeze data and any on-board snapshot, and
review the general troubleshooting information (see GENERAL
TROUBLESHOOTING INFORMATION ).



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE EVAP System - Element



YES -Go to step 20.

NO -Go to step 14.

14. Measure voltage between FTP sensor 3P connector terminal No. 1 and body ground.

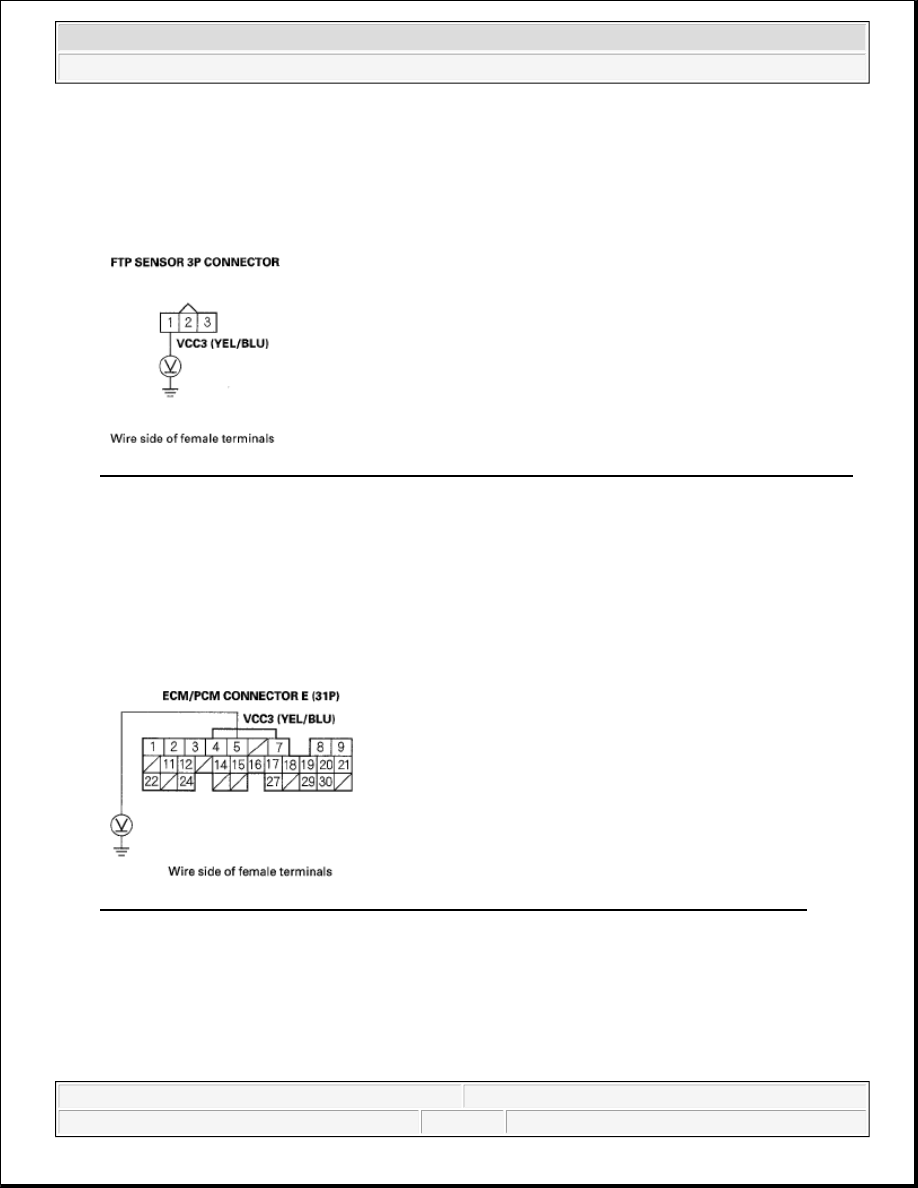

Fig. 10: Measuring Voltage Between FTP Sensor 3P Connector Terminal No. 1 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there about 5 V?

YES -Go to step 16.

NO -Go to step 15.

15. Measure voltage between ECM/PCM connector terminal E5 and body ground.

Fig. 11: Measuring Voltage Between ECM/PCM Connector Terminal E5 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there 5 V?

YES -Repair open in the wire between the ECM/PCM (E5) and the FTP sensor, then go to step 22.

NO -Go to step 28.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE EVAP System - Element



16. Turn the ignition switch OFF.

17. Jump the SCS line with the HDS.

18. Disconnect ECM/PCM connector E (31P).

19. Check for continuity between FTP sensor 3P connector terminal No. 2 and body ground.

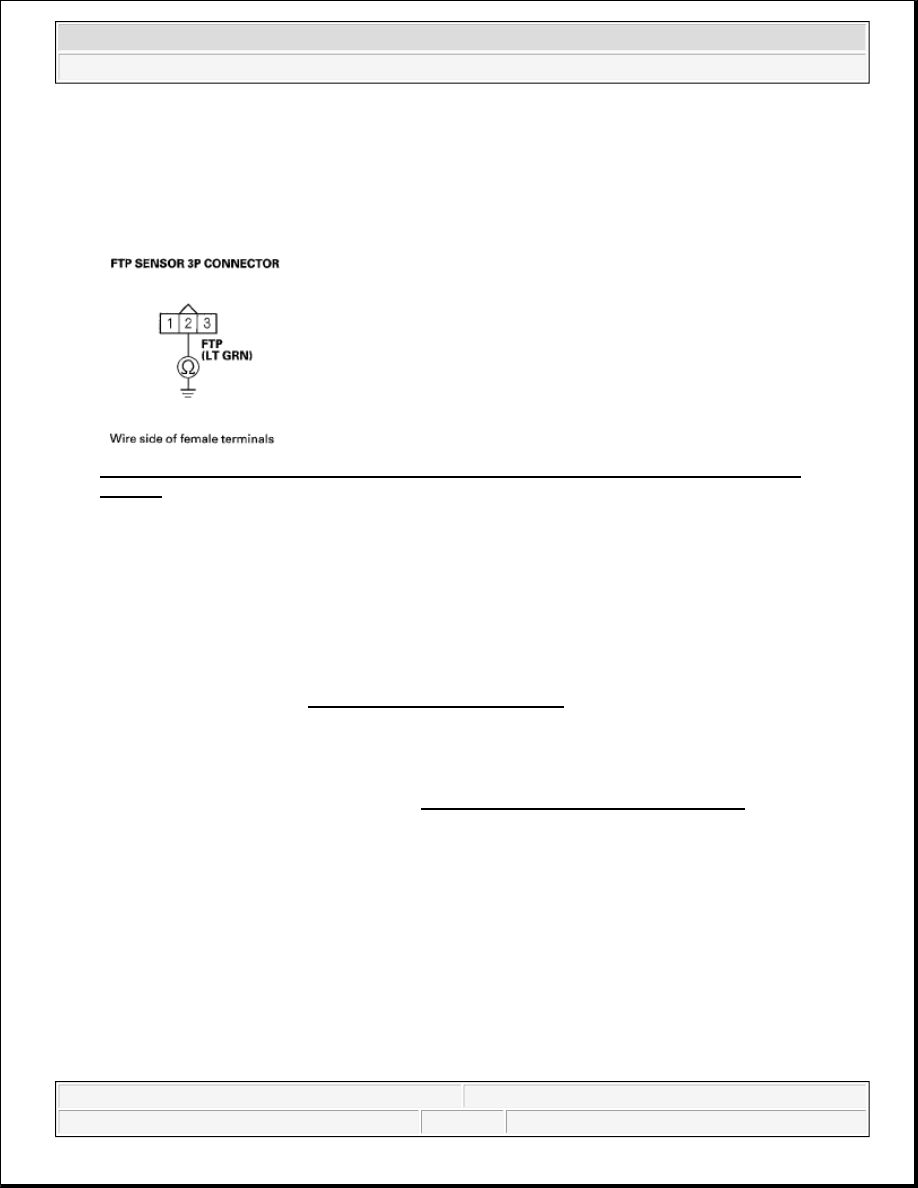

Fig. 12: Checking Continuity Between FTP Sensor 3P Connector Terminal No. 2 And Body
Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Repair short in the wire between the ECM/PCM (E14) and the FTP sensor, then go to step 22.

NO -Go to step 29.

20. Turn the ignition switch OFF.

21. Replace the FTP sensor (see FTP SENSOR REPLACEMENT ).

22. Reconnect all connectors.

23. Turn the ignition switch ON (II).

24. Reset the ECM/PCM with the HDS.

25. Do the ECM/PCM idle learn procedure (see ECM/PCM IDLE LEARN PROCEDURE ).

26. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P0452 indicated?

YES -Check for poor connections or loose terminals at the FTP sensor and the ECM/PCM, then go to
step 1.

NO -Go to step 27.

27. Monitor the OBD STATUS for DTC P0452 in the DTCs MENU with the HDS.

Does the screen indicate PASSED?



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE EVAP System - Element



YES -Troubleshooting is complete. If any other Temporary DTCs or DTCs were indicated in step 26, go
to the INDICATED DTCS TROUBLESHOOTING.

NO -If the screen indicates FAILED, check for poor connections or loose terminals at the FTP sensor and
the ECM/PCM, then go to step 1. If the screen indicates NOT COMPLETED, keep idling until a result
comes on.

28. Turn the ignition switch OFF.

29. Reconnect all connectors.

30. Update the ECM/PCM if it does not have the latest software (see UPDATING THE ECM/PCM ), or

substitute a known-good ECM/PCM (see SUBSTITUTING THE ECM/PCM ).

31. Start the engine, and let it idle.

32. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P0452 indicated?

YES -Check for poor connections or loose terminals at the FTP sensor and the ECM/PCM. If the
ECM/PCM was updated, substitute a known-good ECM/PCM (see SUBSTITUTING THE
ECM/PCM ), then go to step 31. If the ECM/PCM was substituted, go to step 1.

NO -Go to step 33.

33. Monitor the OBD STATUS for DTC P0452 in the DTCs MENU with the HDS.

Does the screen indicate PASSED?

YES -If the ECM/PCM was updated, troubleshooting is complete. If the ECM/PCM was substituted,
replace the original ECM/PCM (see ECM/PCM REPLACEMENT ). If any other Temporary DTCs or
DTCs were indicated in step 32, go to the INDICATED DTCS TROUBLESHOOTING.

NO -If the screen indicates FAILED, check for poor connections or loose terminals at the FTP sensor and
the ECM/PCM. If the ECM/PCM was updated, substitute a known-good ECM/PCM (see
SUBSTITUTING THE ECM/PCM ), then go to step 31. If the ECM/PCM was substituted, go to step 1.
If the screen indicates NOT COMPLETED, keep idling until a result comes on.

DTC P0453: FTP SENSOR CIRCUIT HIGH VOLTAGE

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Turn the ignition switch OFF.

4. Remove the fuel fill cap.

NOTE:

Before you troubleshoot, record all freeze data and any on-board snapshot, and
review the general troubleshooting information (see GENERAL
TROUBLESHOOTING INFORMATION ).
