11. Apply new engine oil to the threads of the 8 mm bolts (A).

Fig. 26: Applying Engine Oil To Threads Of Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

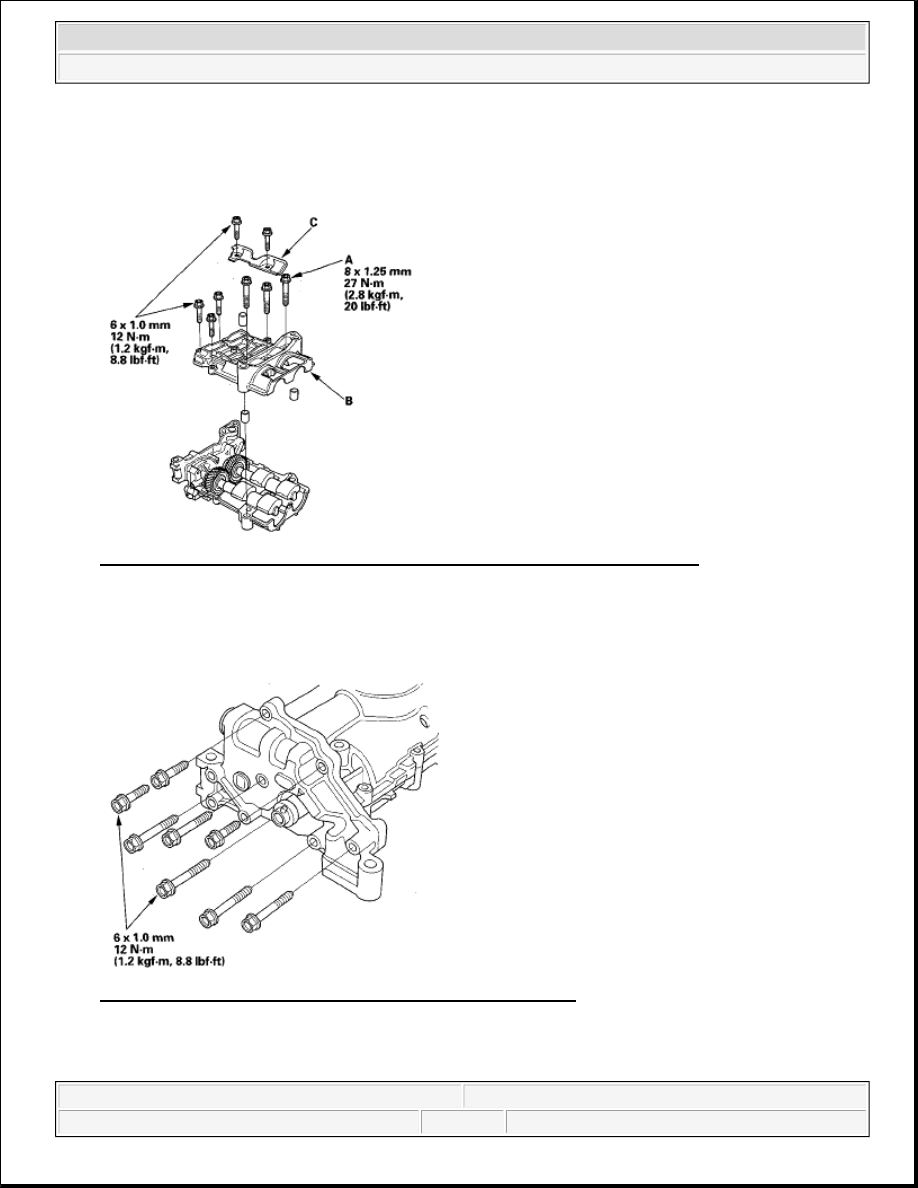

12. Install the upper balancer shaft holder (B) and baffle plate (C).

13. Install the pump housing.

Fig. 27: Identifying Pump Housing With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

OIL PUMP INSTALLATION



2007 Honda Element EX

2007-08 ENGINE Engine Lubrication - Element



1. Make sure the No. 1 piston is at TDC (see step 4 on CAM CHAIN REMOVAL ).

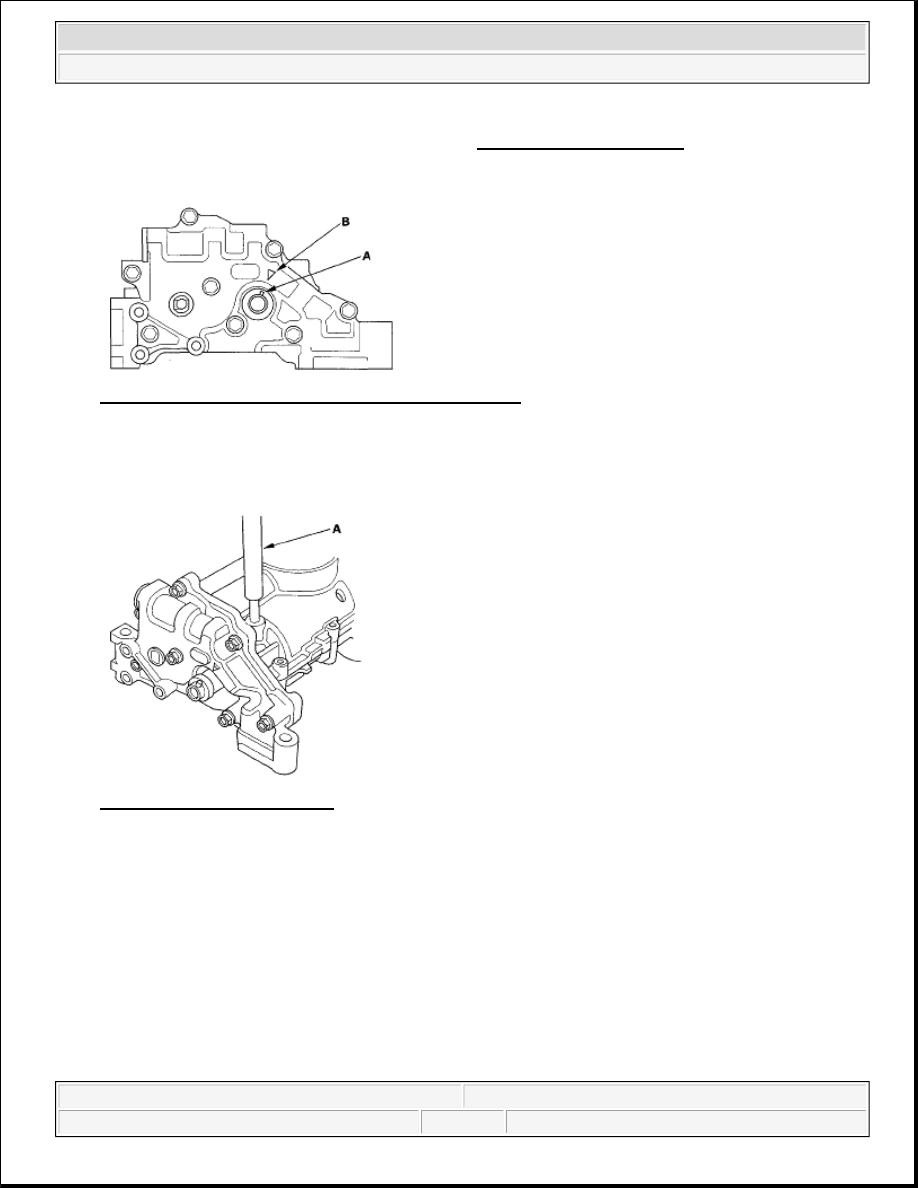

2. Align the dowel pin (A) on the rear balancer shaft with the mark (B) on the oil pump.

Fig. 28: Identifying Dowel Pin On Rear Balancer Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. To hold the rear balancer shaft, insert a 6 mm pin driver (A) into the maintenance hole in the lower

balancer shaft holder and through the rear balancer shaft.

Fig. 29: Identifying Pin Driver
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Apply new engine oil to the threads of the oil pump sprocket mounting bolt (A).



2007 Honda Element EX

2007-08 ENGINE Engine Lubrication - Element



Fig. 30: Identifying Oil Pump Sprocket Mounting Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Loosely install the oil pump (B), then install the oil pump sprocket (C).

6. Remove the pin driver (D).

7. Torque the oil pump mounting bolts.

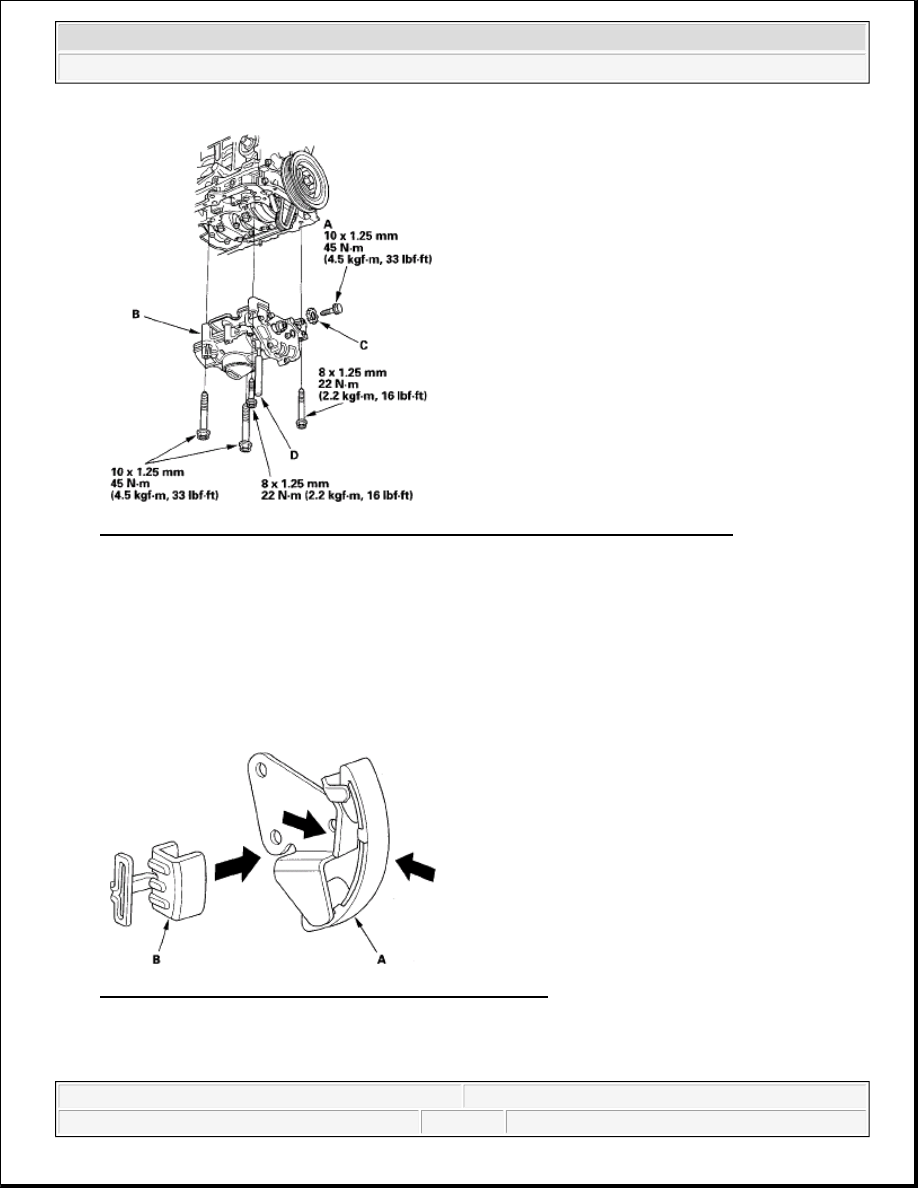

8. Squeeze the new oil pump chain tensioner (A), then install the set clip (B) on it as shown.

Fig. 31: Identifying Oil Pump Chain Tension And Set Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Install the new oil pump chain tensioner.

NOTE:

The set clip is supplied with the oil pump chain tensioner.



2007 Honda Element EX

2007-08 ENGINE Engine Lubrication - Element



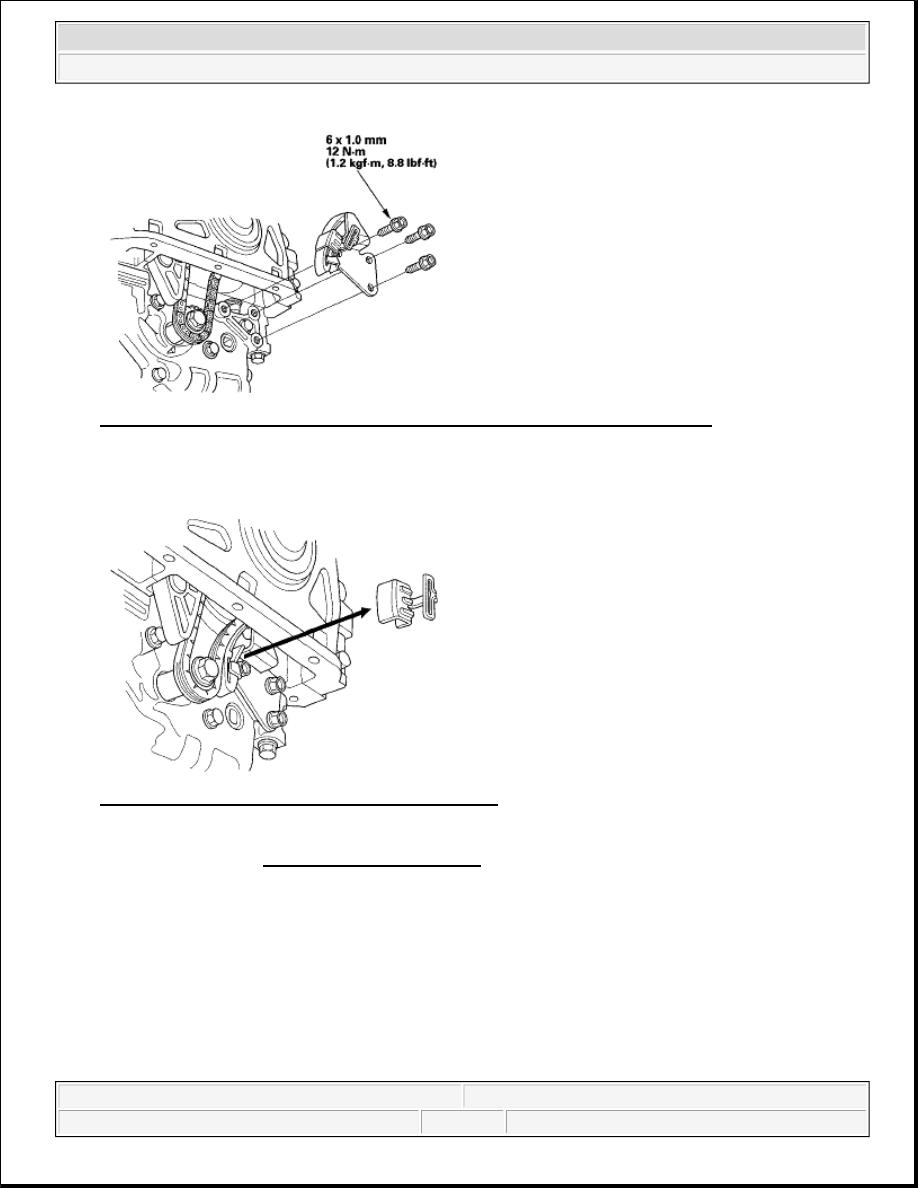

Fig. 32: Identifying Oil Pump Chain Tensioner Bolts With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Remove the set clip from the oil pump chain tensioner.

Fig. 33: Identifying Oil Pump Chain Tensioner Clip
Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. Install the oil pan (see OIL PAN INSTALLATION ).
