Honda Element. Manual - part 480





Fig. 57: Identifying Bearing Cap Bolts Torque Sequence
Courtesy of AMERICAN HONDA MOTOR CO., INC.


19. Torque the bearing cap bolts an additional 56°.

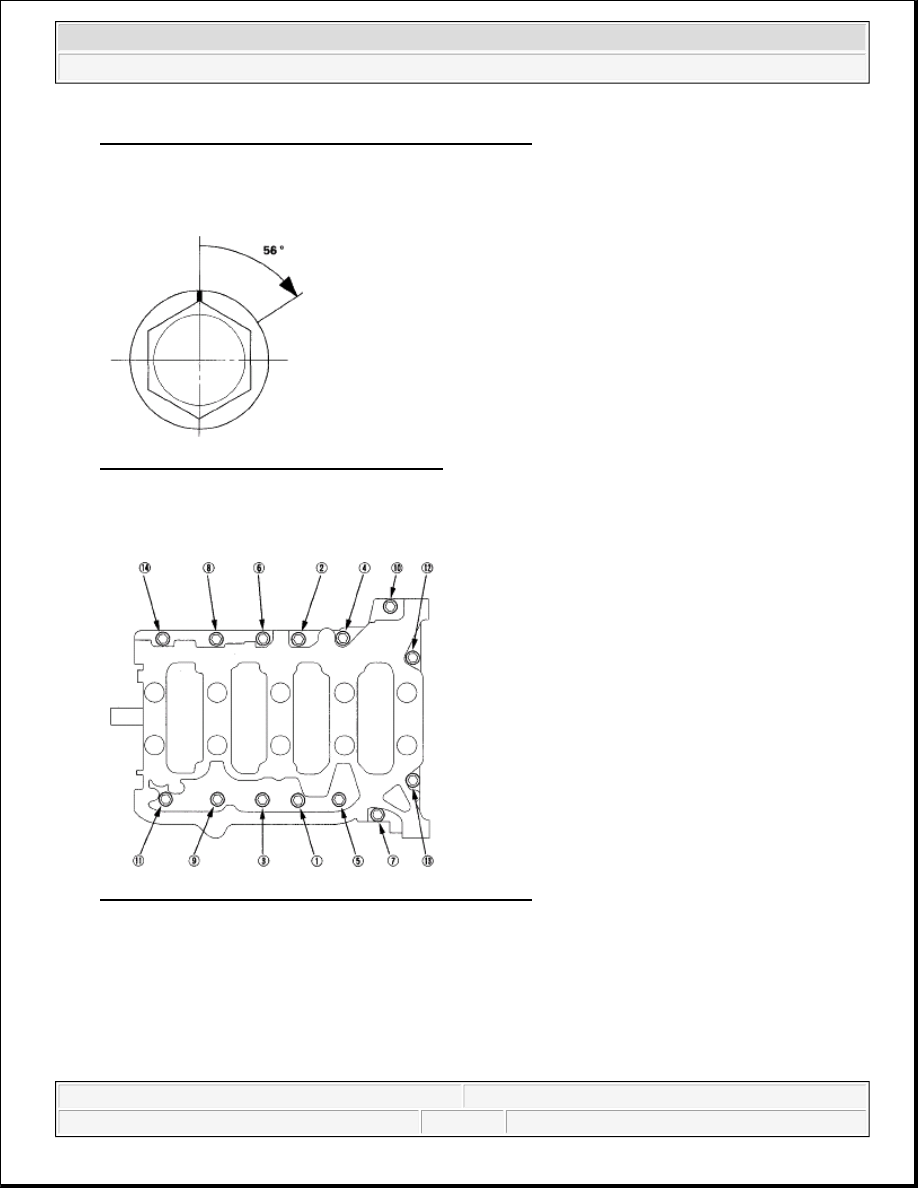

Fig. 58: Identifying Bearing Cap Bolts Angle
Courtesy of AMERICAN HONDA MOTOR CO., INC.

20. Torque the 8 mm bolts in sequence to 22 N.m (2.2 kgf.m, 16 lbf.ft).

Fig. 59: Identifying Bearing Cap Bolts Torque Sequence
Courtesy of AMERICAN HONDA MOTOR CO., INC.

21. Use the handle driver and oil seal driver attachment to drive a new crankshaft oil seal squarely into the

engine block to the specified installed height.



2007 Honda Element EX

2007-08 ENGINE Engine Block - Element



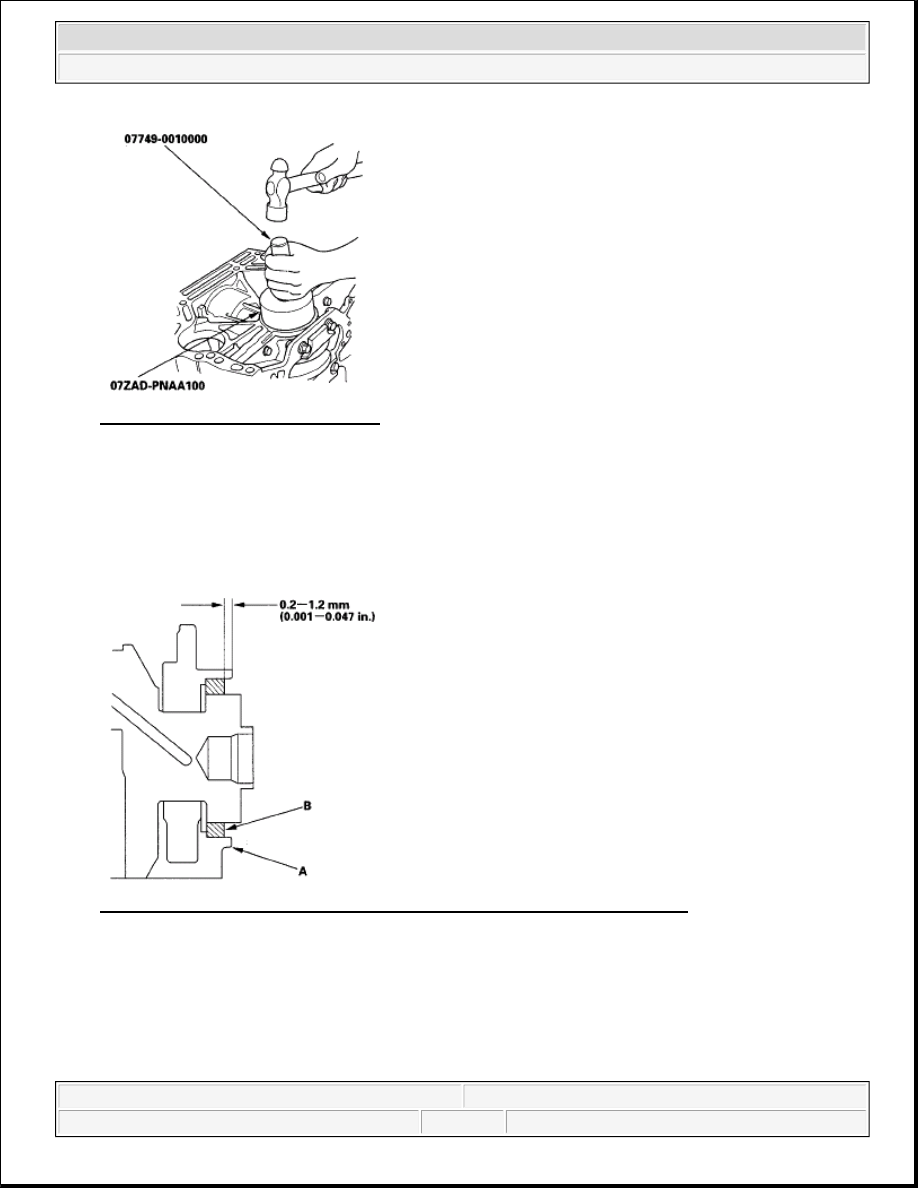

Fig. 60: Driving Crankshaft Oil Seal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

22. Measure the distance between the engine block (A) and crankshaft oil seal (B).

Crankshaft Oil Seal Installed Height:

0.2-1.2 mm (0.001-0.047 in.)

Fig. 61: Measuring Distance Between Engine Block And Crankshaft Oil Seal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

23. Install the baffle plates.



2007 Honda Element EX

2007-08 ENGINE Engine Block - Element



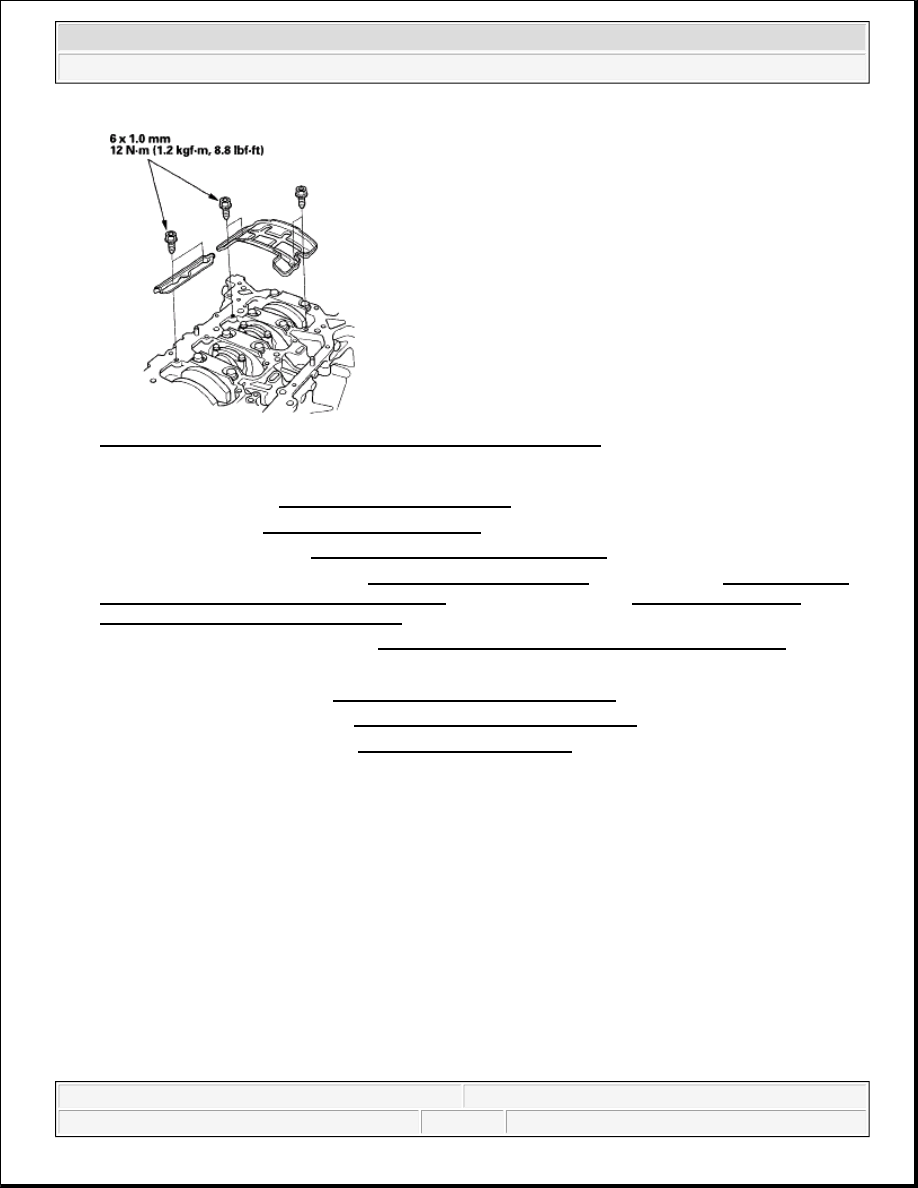

Fig. 62: Identifying Baffle Plates Bolts With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

24. Install the oil pump (see OIL PUMP INSTALLATION ).

25. Install the oil pan (see OIL PAN INSTALLATION ).

26. Install the cylinder head (see CYLINDER HEAD INSTALLATION ).

27. M/T model: Install the flywheel (see FLYWHEEL INSPECTION ), clutch disc (see CLUTCH DISC

AND PRESSURE PLATE INSTALLATION ), and pressure plate (see CLUTCH DISC AND
PRESSURE PLATE INSTALLATION
 ).

28. A/T model: Install the drive plate (see DRIVE PLATE REMOVAL AND INSTALLATION ).

29. Install the transmission:

Manual transmission (see TRANSMISSION INSTALLATION )

Automatic transmission (see TRANSMISSION INSTALLATION )

30. Install the engine/transmission (see ENGINE INSTALLATION ).

OIL PAN INSTALLATION

1. Remove all of the old liquid gasket from the oil pan mating surfaces, bolts, and bolt holes.

2. Clean and dry the oil pan mating surfaces.

3. Apply liquid gasket, P/N 08717-0004, 08718-0001, 08718-0003, or 08718-0009, evenly to the engine

block mating surface of the oil pan and to the inner threads of the bolt holes. Install the component within
5 minutes of applying the liquid gasket.

NOTE:

Whenever any crankshaft or connecting rod bearing is replaced, it is
necessary after reassembly to run the engine at idling speed until it
reaches normal operating temperature, then continue to run it for about 15
minutes.



2007 Honda Element EX

2007-08 ENGINE Engine Block - Element



4. Install the oil pan.

5. Torque the bolts/nuts in three steps. In the final step, torque all bolts, in sequence, to 12 N.m (1.2 kgf.m,

8.8 lbf.ft).

Fig. 64: Identifying Oil Pan Bolts/Nuts Sequence
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. M/T model: Install the clutch cover.

NOTE:

If you apply liquid gasket P/N 08718-0012, the component must be
installed within 4 minutes.

If too much time has passed after applying the liquid gasket, remove
the old liquid gasket and residue, then reapply new liquid gasket.

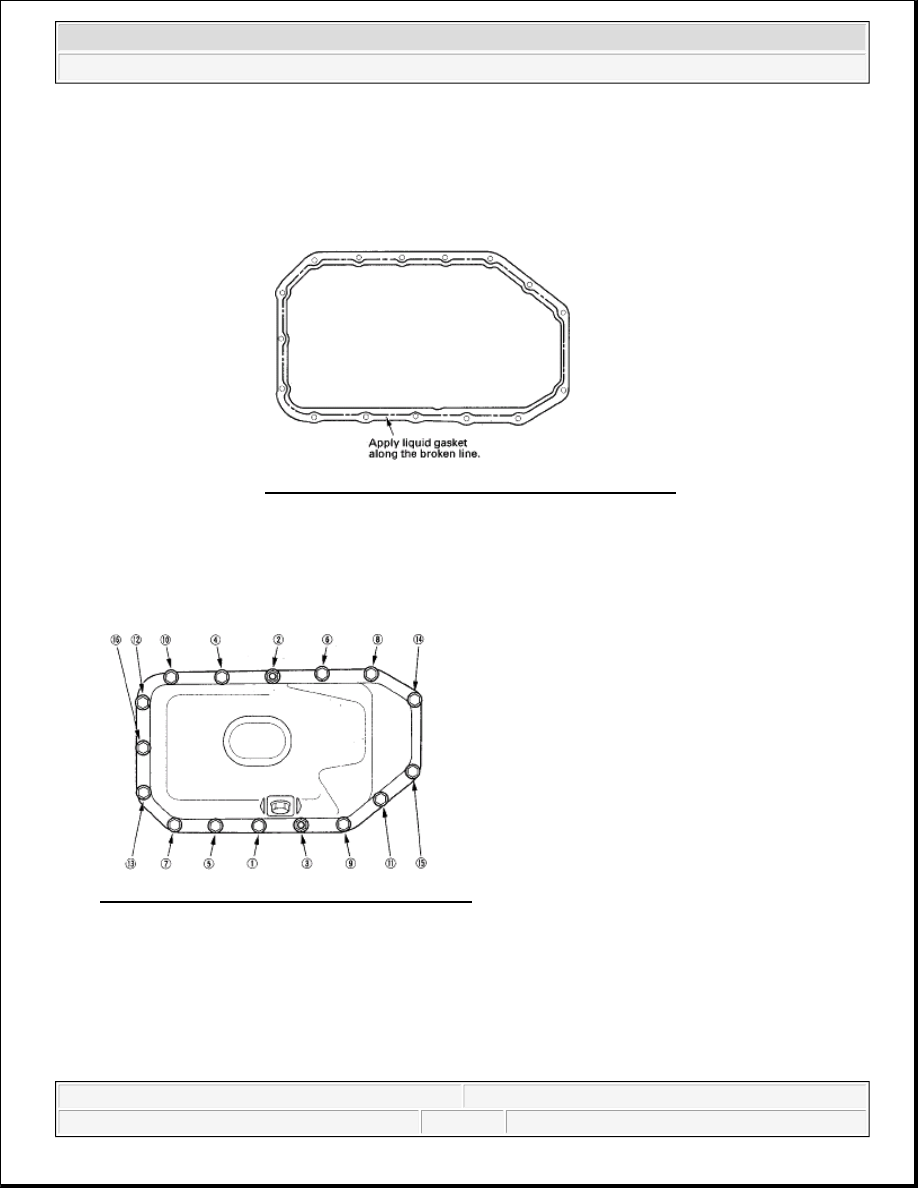

Fig. 63: Identifying Liquid Gasket Applying Area
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-08 ENGINE Engine Block - Element
