Fig. 53: Identifying ECM/PCM Connectors And ECM/PCM Wire Harness Connector

46. Install the evaporative emission (EVAP) canister hose (A) and brake booster vacuum hose (B).

Fig. 54: Identifying Evaporative Emission (EVAP) Canister Hose And Brake Booster Vacuum Hose

47. Connect the fuel feed hose (A) (see FUEL LINE/QUICK-CONNECT FITTING INSTALLATION ),

then install the quick-connect fitting cover (B).



2007 Honda Element EX

2007-08 ENGINE Engine Assembly - Element



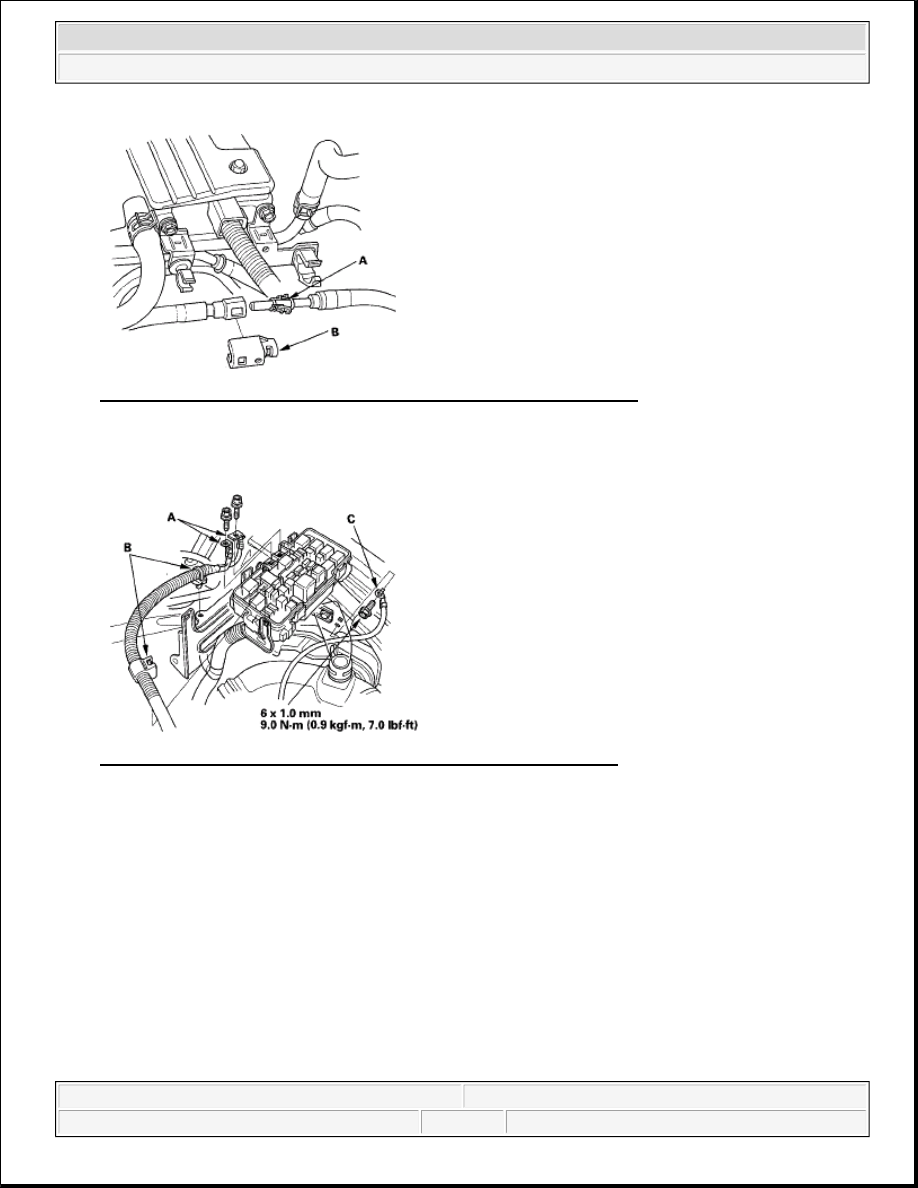

Fig. 55: Identifying Fuel Feed Hose And Quick-Connect Fitting Cover

48. Install the under-hood fuse/relay box to the bracket, then install the positive (+) terminals (A) and harness

clamps (B) to the under-hood fuse/relay box.

Fig. 56: Identifying Under-Hood Fuse/Relay Box Clamps And Bolts

49. Install the ground cable (C).

50. Install the battery base (A), then install the harness clamps (B).



2007 Honda Element EX

2007-08 ENGINE Engine Assembly - Element



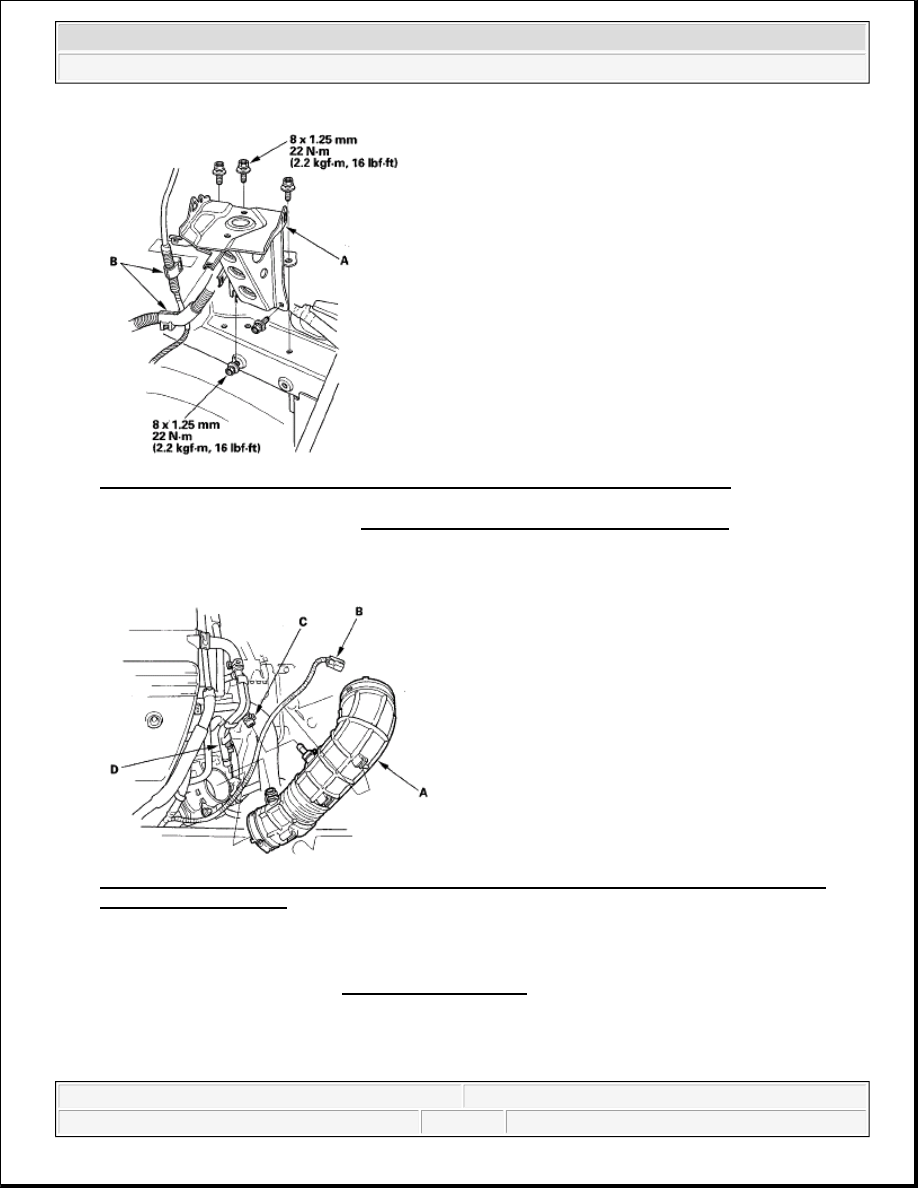

Fig. 57: Identifying Battery Base And Ground Cable (With Torque Specifications)

51. Install the air cleaner assembly (see AIR CLEANER REMOVAL/INSTALLATION ).

52. Install the intake air duct (A), then connect the mass airflow (MAF) sensor/intake air temperature (IAT)

sensor connector (B), and install the vacuum hose (C) and breather pipe (D).

Fig. 58: Identifying Intake Air Duct And Mass Airflow (MAF) Sensor/Intake Air Temperature
(IAT) Sensor Connector


53. Install the battery. Clean the battery posts and cable terminals, then assemble them and apply grease to

prevent corrosion.

54. Install the hood and adjust it (see HOOD ADJUSTMENT ).

55. A/T model: Move the shift lever to each gear, and verify that the A/T gear position indicator follows the

transmission range switch.

56. M/T model: Check that the transmission shifts into gear smoothly.



2007 Honda Element EX

2007-08 ENGINE Engine Assembly - Element



57. Inspect for fuel leaks. Turn the ignition switch ON (II) (do not operate the starter) so the fuel pump runs

for about 2 seconds and pressurizes the fuel line. Repeat this operation three times, then check for fuel
leakage at any point in the fuel line.

58. Refill the engine with engine oil (see OIL PRESSURE TEST ).

59. Refill the transmission with fluid:

Manual transmission (see TRANSMISSION FLUID INSPECTION AND REPLACEMENT )

Automatic transmission (see ATF REPLACEMENT )

60. Refill the radiator with engine coolant, and bleed air from the cooling system with the heater valve open

(see step 7 in COOLANT REPLACEMENT ).

61. Do the ECM/PCM reset procedure (see ECM/PCM RESET ).

62. Do the ECM/PCM idle learn procedure (see ECM/PCM IDLE LEARN PROCEDURE ).

63. Do the crankshaft position (CKP) pattern clear/CKP pattern learn procedure (see CRANK (CKP)

PATTERN CLEAR/CRANK (CKP) PATTERN LEARN ).

64. Inspect the idle speed (see IDLE SPEED INSPECTION ).

65. Inspect the ignition timing (see IGNITION TIMING INSPECTION ).

66. Enter the anti-theft code for the audio system.

67. Do the power window control unit reset procedure (see RESETTING THE POWER WINDOW

CONTROL UNIT ).

68. Set the clock.
