11. Check the throttle valve operation.

Does the valve open after it closes?

YES -Go to step 12.

NO -Go to step 13.

12. Check the throttle valve again.

Does the throttle valve open fully?

YES -Go to step 40.

NO -Go to step 34.

13. Turn the ignition switch OFF.

14. Disconnect the throttle actuator control module 16P connector.

15. Check for continuity between throttle actuator control module 16P connector terminal No. 7 and body

ground.

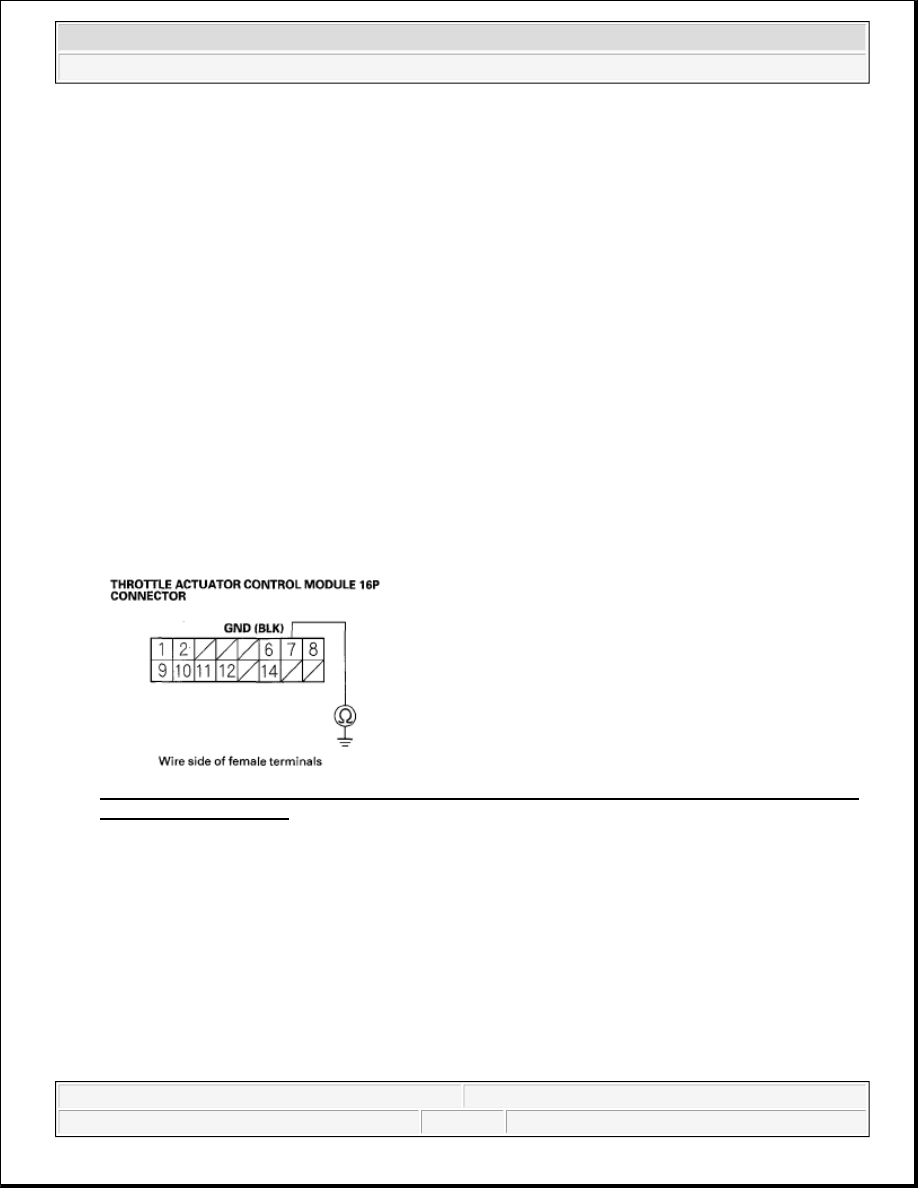

Fig. 49: Checking Continuity Between Throttle Actuator Control Module 16P Connector Terminal
No. 7 And Body Ground

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Go to step 16.

NO -Repair open in the wire between the throttle body, the throttle actuator control module, and G101,
then go to step 50.

16. Remove the throttle actuator control module relay (A).



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Electronic Throttle Control System - Element



Fig. 50: Identifying Throttle Actuator Control Module Relay
Courtesy of AMERICAN HONDA MOTOR CO., INC.

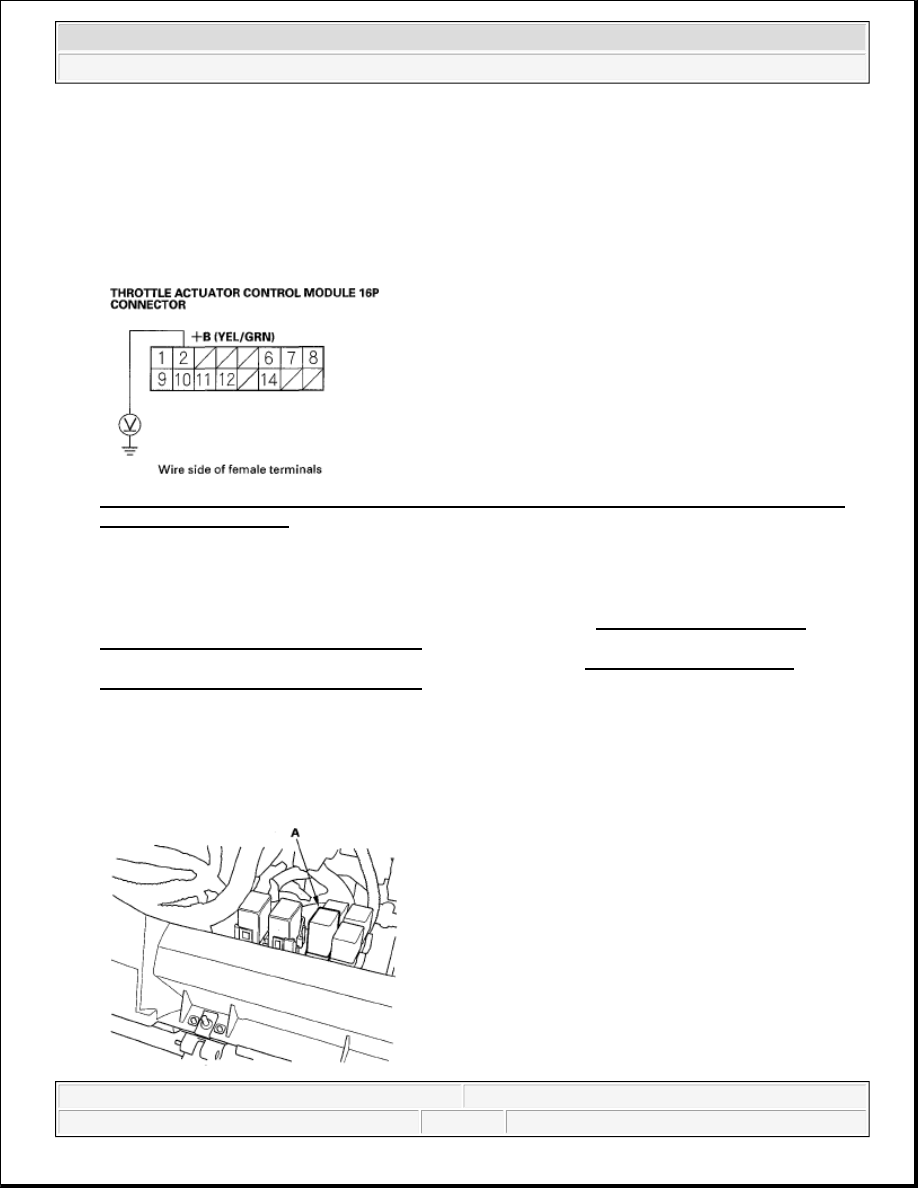

17. Measure voltage between throttle actuator control module relay 4P connector terminal No. 2 and body

ground.

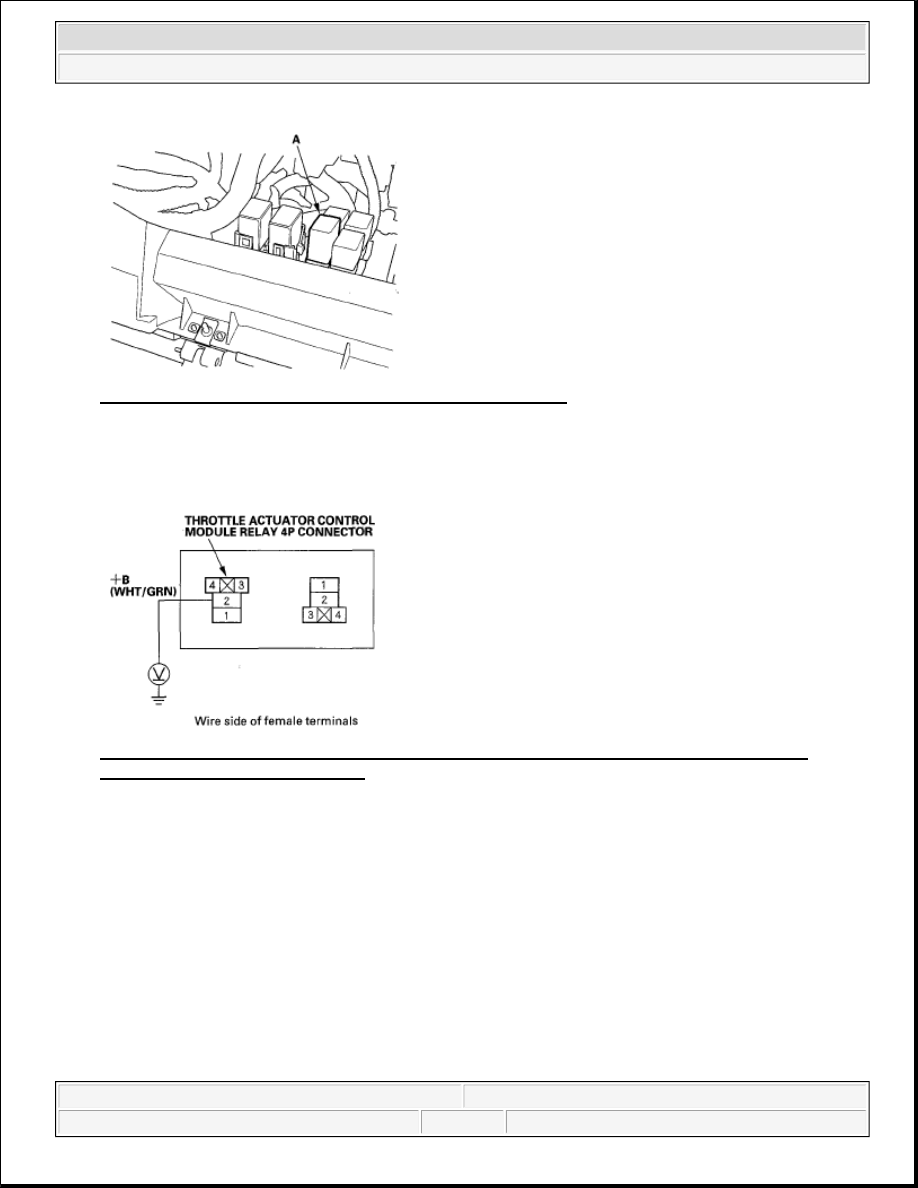

Fig. 51: Measuring Voltage Between Throttle Actuator Control Module Relay 4P Connector
Terminal No. 2 And Body Ground

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES -Go to step 19.

NO -Go to step 18.

18. Check the No. 8 DBW {15 A) fuse in the under-hood fuse/relay box.

Is the fuse OK?

YES -Repair open in the wire between the throttle actuator control module relay (+B line) and the No. 8
DBW (15 A) fuse, then go to step 50.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Electronic Throttle Control System - Element



NO -Repair short in the wire between the throttle actuator control module relay (+B line) and the No. 8
DBW (15 A) fuse. Also replace the fuse, then go to step 50.

19. Install the throttle actuator control module relay.

20. Turn the ignition switch ON (II).

21. Measure voltage between throttle actuator control module 16P connector terminal No. 2 and body ground.

Fig. 52: Measuring Voltage Between Throttle Actuator Control Module 16P Connector Terminal
No. 2 And Body Ground

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage for about 2 seconds?

YES -Substitute a known-good throttle actuator control module (see THROTTLE ACTUATOR
CONTROL MODULE REPLACEMENT
 ), then go to step 50 and recheck. If DTC U0107 is not
indicated, replace the original throttle actuator control module (see THROTTLE ACTUATOR
CONTROL MODULE REPLACEMENT
 ), then go to step 50.

NO -Go to step 22.

22. Turn the ignition switch OFF.

23. Remove the throttle actuator control module relay (A).



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Electronic Throttle Control System - Element



Fig. 53: Identifying Throttle Actuator Control Module Relay
Courtesy of AMERICAN HONDA MOTOR CO., INC.


24. Check the throttle actuator control module relay (see POWER RELAY TEST ).

Is the throttle actuator control module relay OK?

YES -Go to step 25.

NO -Replace the throttle actuator control module relay, then go to step 50.

25. Turn the ignition switch ON (II).

26. Measure voltage between throttle actuator control module relay 4P connector terminal No. 4 and body

ground.

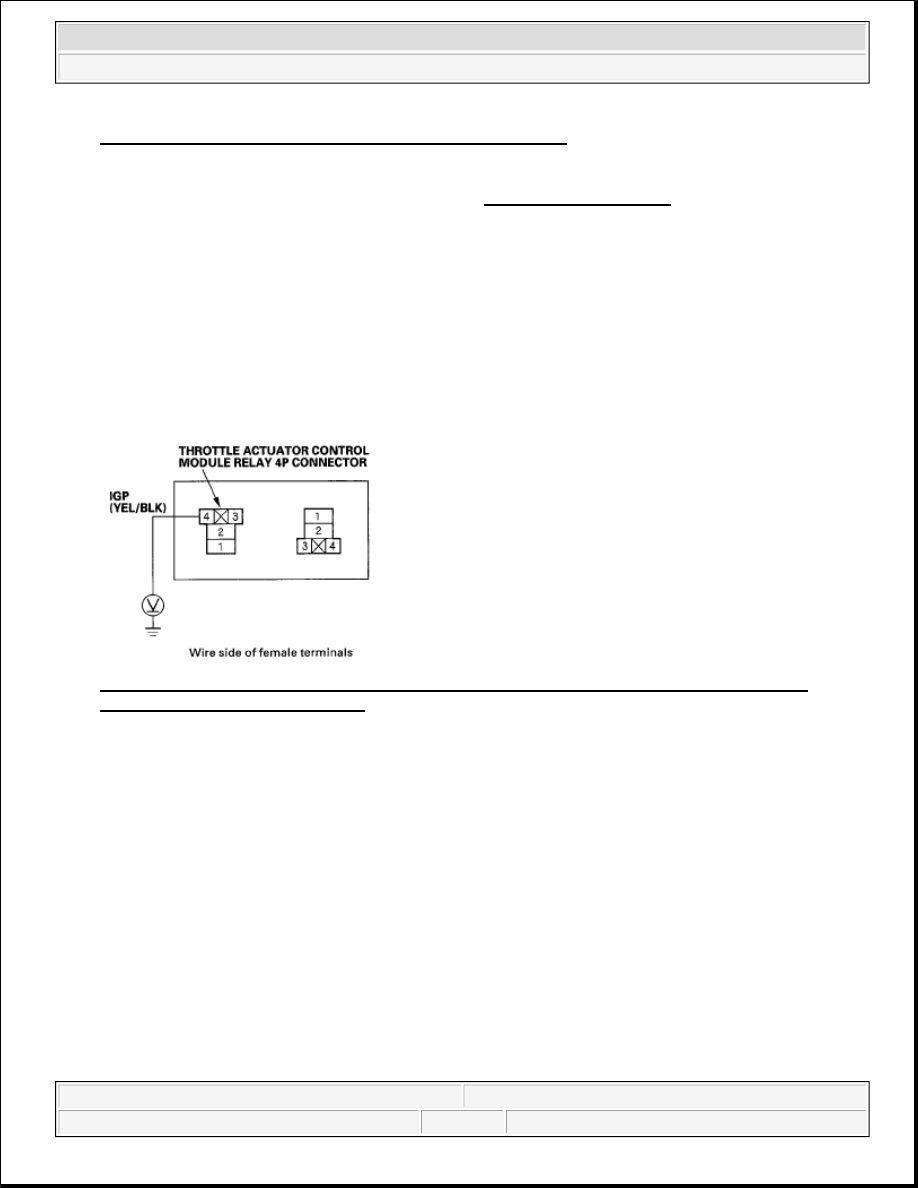

Fig. 54: Measuring Voltage Between Throttle Actuator Control Module Relay 4P Connector
Terminal No. 4 And Body Ground

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES -Go to step 27.

NO -Repair open in the wire between the throttle actuator control module relay and PGM-FI main relay 1
(FI MAIN), then go to step 50.

27. Turn the ignition switch OFF.

28. Jump the SCS line with the HDS.

29. Disconnect ECM/PCM connector D (17P).

30. Check for continuity between ECM/PCM connector terminal D15 and throttle actuator control module

relay 4P connector terminal No. 3.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Electronic Throttle Control System - Element
